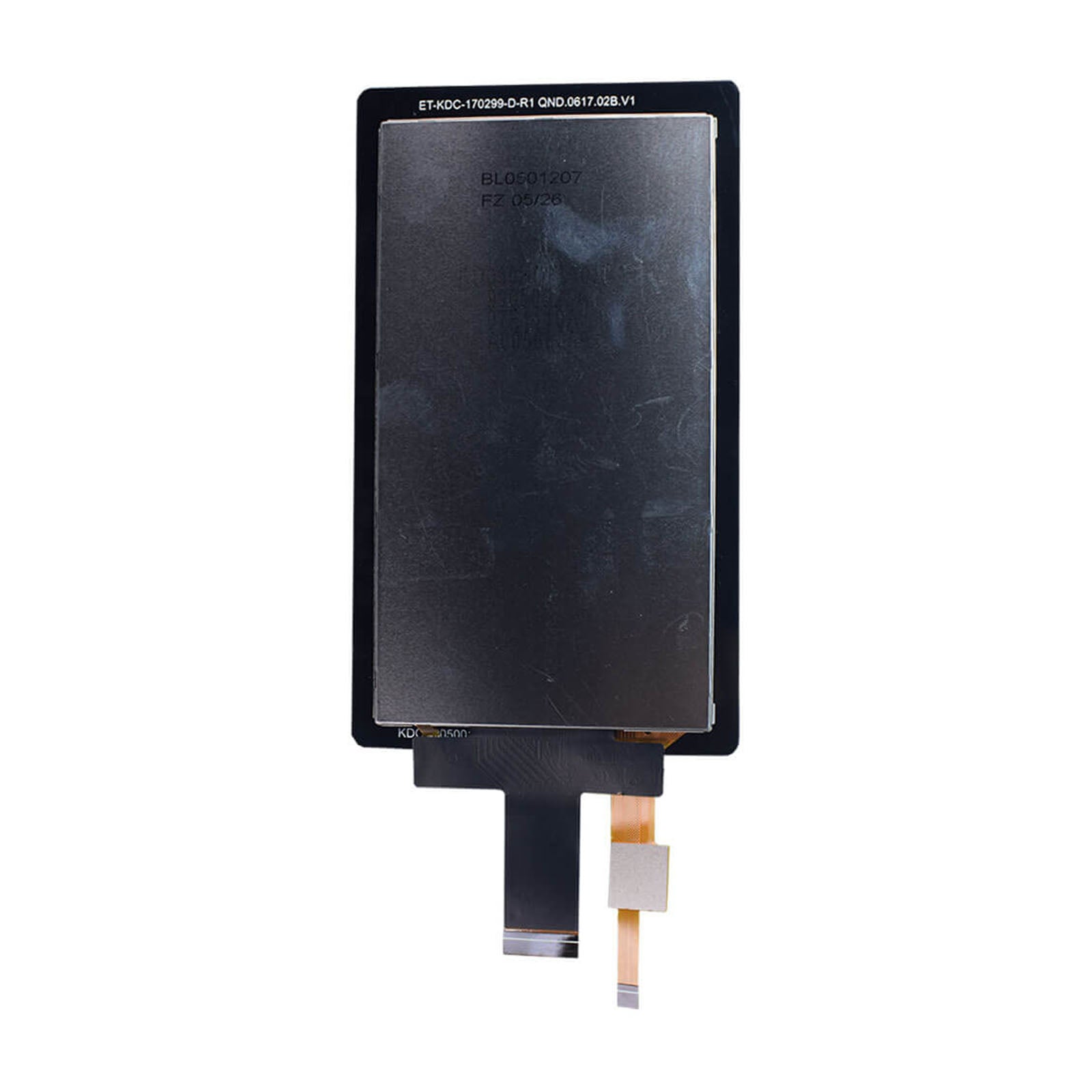

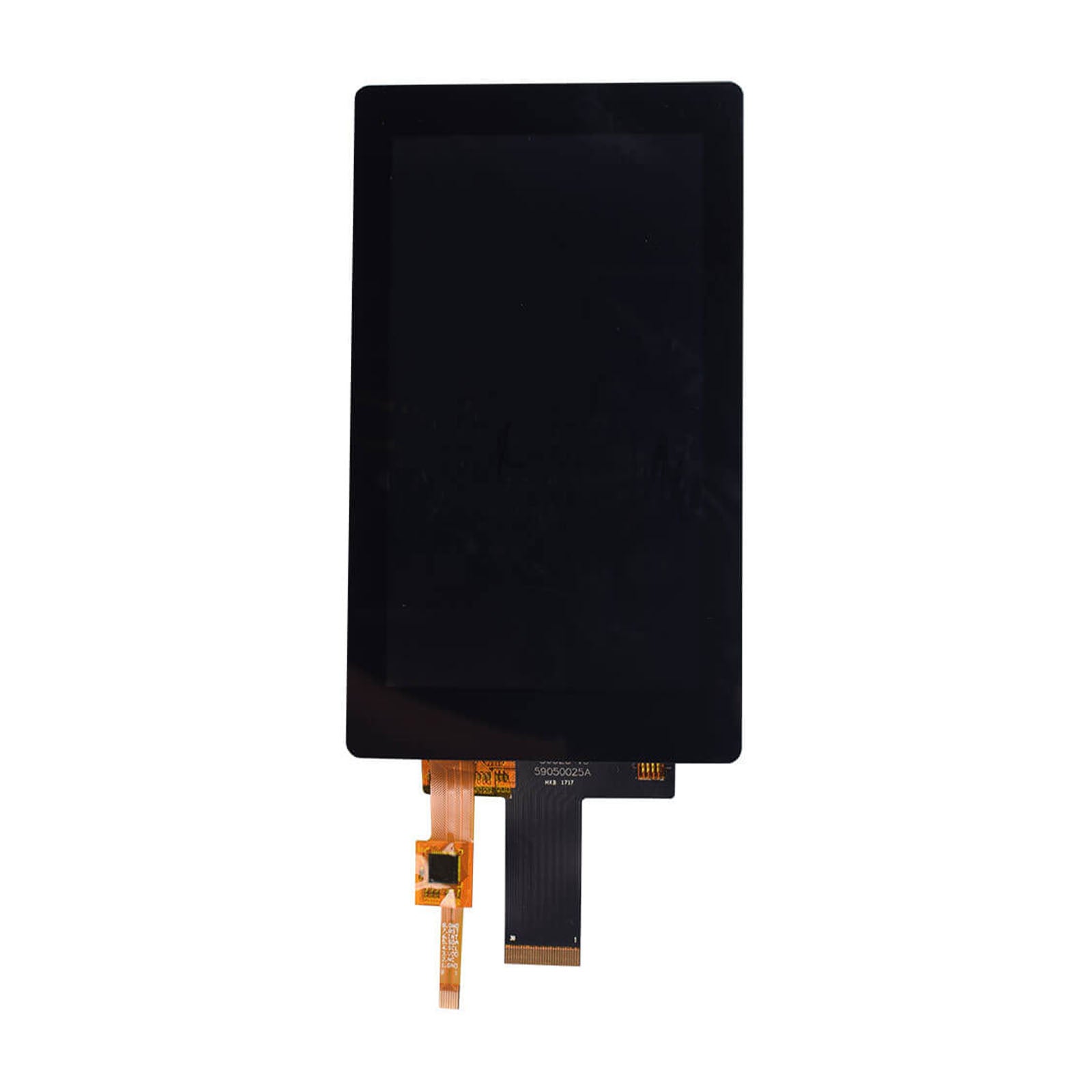

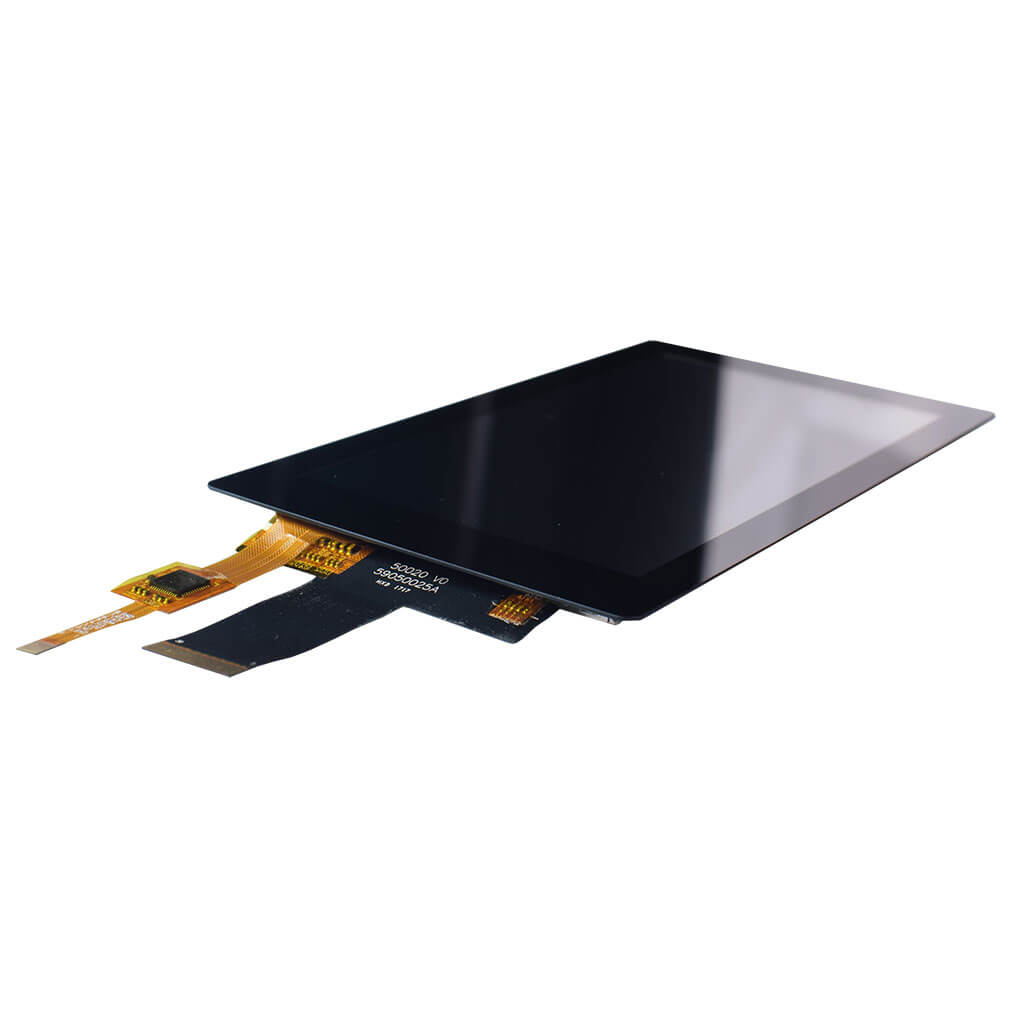

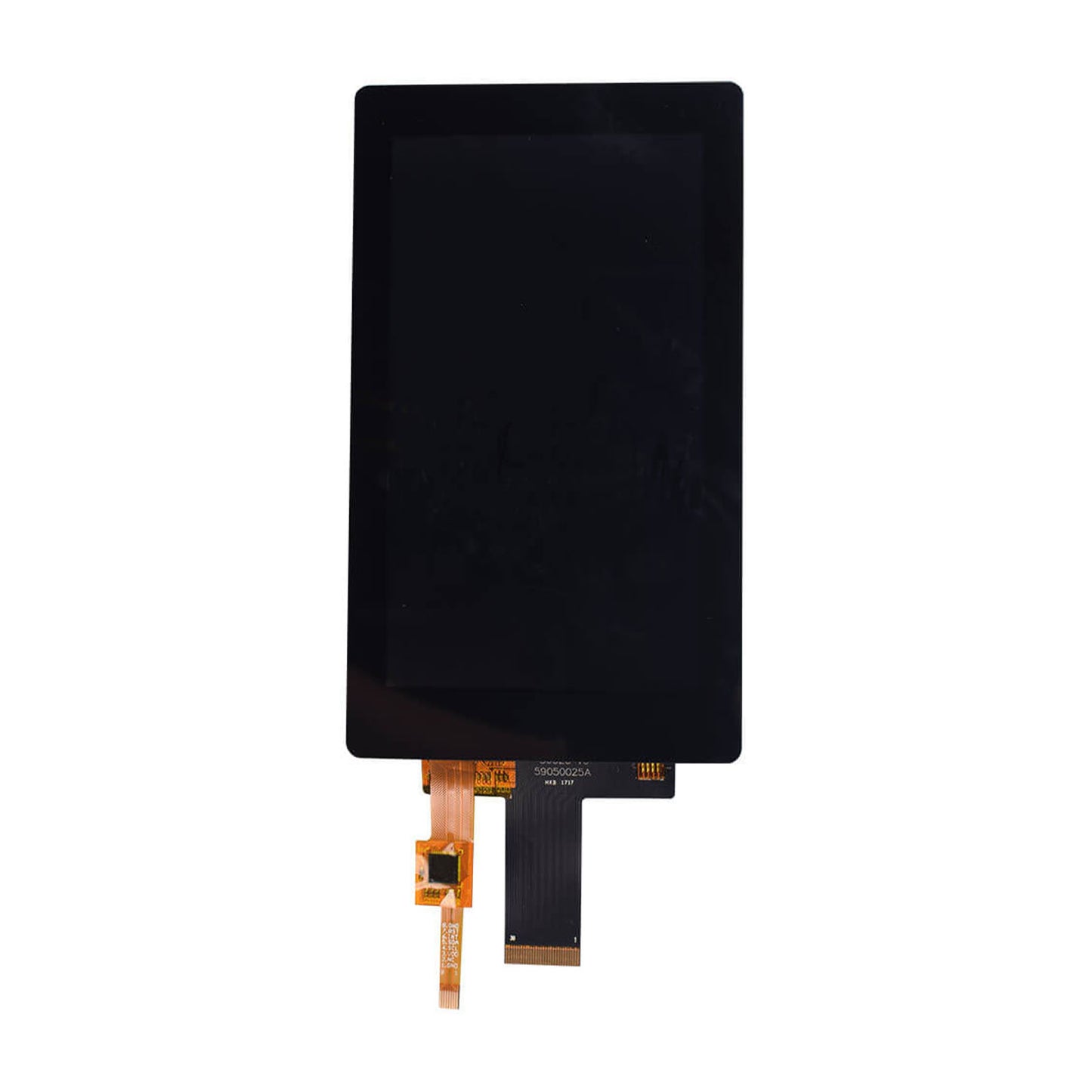

5" IPS Display 720x1280 Capacitive - MIPI
Advanced 5-inch IPS TFT LCD display module delivering high-resolution 720x1280 pixels with capacitive touch functionality. Engineered for robust performance in industrial and consumer applications, featuring wide viewing angles and MIPI interface for high-speed data transmission.
This display module integrates ILI9881C display driver and GT911 touch controller, supporting 16.7 million colors with 420 cd/m² brightness. The all-direction viewing capability ensures consistent image quality from any angle.
- High Precision Touch: GT911 controller supports 5-point simultaneous touch detection with gesture recognition, responding within 10ms for smooth interaction.
- MIPI Interface Efficiency: 4-lane MIPI DSI interface enables data transfer rates up to 550Mbps per lane, reducing power consumption by 30% compared to parallel interfaces.
- Wide Temperature Operation: Maintains stable performance across -20℃ to 70℃ operating range, suitable for industrial environments.
- Compact Design: Module dimensions of 78.56 x 135.65 x 4.2 mm with active display area of 62.10 x 110.40 mm maximizes screen-to-body ratio.
| Parameter | Specification |
|---|---|
| Diagonal Size | 5.0 inch |
| Resolution | 720 (H) x 1280 (V) pixels |
| View Direction | All Directions |
| Touch Mode | 5-point Capacitive with Gestures |
| Module Dimensions | 78.56 x 135.65 x 4.2 mm |
| Viewing Area | 62.10 x 110.40 mm |
| Supply Voltage | 3.3V ±5% |
| Interface | 4-Lane MIPI DSI |
| Luminance | 420 cd/m² (Typical) |
| Drive IC | ILI9881C + GT911 |
| Operation Temperature | -20℃ ~ 70℃ |
| Storage Temperature | -30℃ ~ 80℃ |
Customized display solutions for OEMs and system integrators requiring high-volume deployments or specialized configurations.
- Bulk Order Programs: Volume pricing available for orders exceeding 100 units, with flexible payment terms and guaranteed 2-week delivery.
- Customization Services: Modify touch sensitivity, interface protocols, or mechanical dimensions to match specific application requirements.
-
White-Label Options:
Branding services available for corporate identity integration with minimum order quantity of 500 units. Industry ApplicationsINDUSTRIAL HMIRugged display solution for factory automation systems with 5-point touch supporting glove operation and wide temperature tolerance.
MEDICAL DEVICESHigh-brightness 420 nits display ensures readability in clinical environments with accurate color reproduction for diagnostic applications.
PORTABLE DEVICESLow-power MIPI interface extends battery life in handheld instruments while maintaining 720p resolution for detailed content display.
CompatibilityDesigned for seamless integration with popular embedded platforms and processors supporting MIPI DSI interface.
- Processor Support: Compatible with Qualcomm Snapdragon, MediaTek, and Rockchip processors with MIPI DSI interfaces
- Operating Systems: Certified for Android, Linux, and Windows IoT deployments with available reference drivers
- Interface Standard: MIPI DSI v1.01 compliant with 4 data lanes supporting up to 550Mbps per lane
Technical ResourcesTechnical Documentation: Complete engineering specifications and integration guidelines available for download.
- Download Complete Datasheet
- Display Controller (ILI9881C) Datasheet
- Touch Controller (GT911) Datasheet
- 3D Model (STEP File)
Integration Support: Technical support available for schematic review and driver implementation within 24 hours of request.
Dimensions
