6.01-Inch AMOLED Display Module — 1080 × 2160 Resolution and 4-Lane MIPI Interface

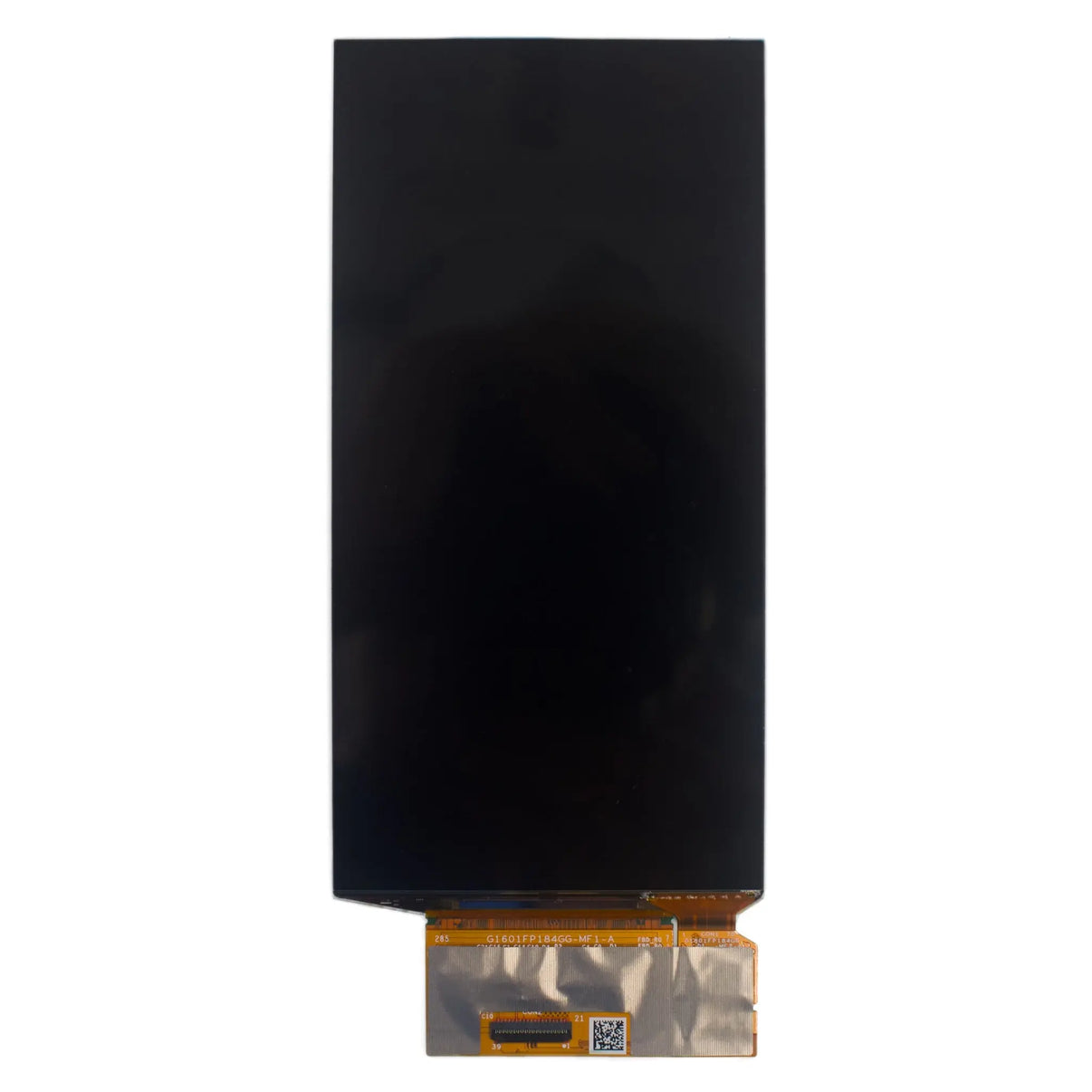

A portrait-format AMOLED display module with a 6.01-inch diagonal, 1080 × 2160 native resolution, a 68.256 × 136.512 mm active area and a 70.066 × 142.297 mm panel outline.

The available mechanical drawing provides panel dimensions, a 39-pin FPC assignment, operating-voltage values, temperature limits, controller references and dimensional tolerances. Electrical timing, initialization commands, optical performance and the active production controller revision must be confirmed before final design release.

6.01 Inch

Diagonal panel size

1080 × 2160

2,332,800 pixels

4 Data Lanes

D0, D1, D2 and D3 pairs

0.78 ± 0.15 mm

Specified panel thickness

DMKDO06001BCA 6.01 inch AMOLED display complete mechanical drawing with dimensions notes voltage values temperature limits and FPC pin assignment

Approximately 401.8 PPI

Calculated from resolution and diagonal size

1:2 Portrait Ratio

1080 horizontal × 2160 vertical pixels

39-Pin FPC

Display, touch, control, power and ground connections

Approximately 93.46%

Calculated active-area-to-outline ratio

Mechanical Drawing Specifications

The values below are taken from drawing DMKDO06001BCA, Parts No. 97060001A. The drawing revision information shows a model update dated 16 July 2024. Calculated values are identified separately.

Parameter	Specification and Status
Drawing Name	DMKDO06001BCA
Parts Number	97060001A
Revision Date Shown	16 July 2024
Display Mode	AMOLED
Diagonal Size	6.01 inches
Native Resolution	1080 × 2160 pixels
Calculated Pixel Count	2,332,800 pixels
Calculated Pixel Density	Approximately 401.8 PPI
Active Area	68.256 × 136.512 mm
Panel Outline	70.066 × 142.297 mm
Panel Thickness	0.78 ± 0.15 mm
Unspecified Tolerance	±0.2 mm
FPC Pin Count	39 pins
Display-Controller Reference	CH13721C is listed in the drawing. Confirm the current production revision before firmware development.
Touch-Controller Reference	FT3519 is listed in the drawing. Confirm the current production revision before touch-driver development.
Compliance Statement	The drawing states “RoHS compliant.”

Mechanical Integration Parameters

The dimensional values support initial enclosure planning. Connector geometry, FPC bending limits, adhesive thickness and production tolerances must still be reviewed against the approved sample and latest controlled drawing.

0.905 mm Calculated Side Margin

Calculated as half of the difference between the 70.066 mm panel width and the 68.256 mm active-area width.

FPC Shipped Unfolded

The drawing states that the module is delivered with the FPC extended. Confirm the permitted bend area and bend radius before enclosure release.

Tolerance Stack-Up

Use the ±0.2 mm unspecified tolerance and 0.78 ± 0.15 mm thickness when defining housing clearance and adhesive compression.

Operating-Voltage Values

The mechanical drawing lists the following voltage values. It does not provide complete power sequencing, current consumption, discharge timing or regulator-ripple limits.

VCI: 2.5–3.6 V

Range stated in the drawing notes.

IOVCC: 1.65–3.3 V

Range stated in the drawing notes.

ELVDD: 4.6 V

Value stated in the drawing notes.

ELVSS: −3 V

Value stated in the drawing notes.

AVDD: 6.7 V

Value stated in the drawing notes.

Do not derive a production power sequence from these voltage values alone. Obtain the current electrical specification before applying power to engineering samples.

39-Pin FPC Assignment

Pin names below reproduce the labels shown in the mechanical drawing. Pin 27 is displayed as “REST” in the source drawing and is retained without reinterpretation.

Pin	Symbol
1	GND
2	D0P
3	D0N
4	GND
5	D1P
6	D1N
7	GND
8	CLKP
9	CLKN
10	GND
11	D2P
12	D2N
13	GND

Pin	Symbol
14	D3P
15	D3N
16	GND
17	TSP_INT
18	TSP_RESET
19	TSP_SCL
20	TSP_SDA
21	TSP_AVDD
22	TSP_VDDIO
23	AVDD
24	AVDD_EN
25	SWIRE
26	TE

Pin	Symbol
27	REST
28	VDDIO
29	GND
30	ELVSS
31	ELVSS
32	ELVSS
33	GND
34	ELVDD
35	ELVDD
36	ELVDD
37	MTP_PWR
38	VCI
39	DVDD

Temperature Limits

−20°C to +70°C

Operating-temperature range stated in the drawing

−40°C to +80°C

Storage-temperature range stated in the drawing

Product-Level Testing Required

The stated temperature limits do not establish humidity, vibration, shock, thermal-cycle, ingress-protection or operating-lifetime performance.

Engineering Validation Before Design Release

The mechanical drawing supports early mechanical and connector planning. The following information is still required before production approval.

Electrical Documentation

Power-on and power-off sequencing

Operating, sleep and peak current

Lane rate, signal timing and initialization commands

Regulator ripple, tolerance and discharge requirements

Mechanical Confirmation

Connector model, height and insertion direction

Approved FPC bend radius and keep-out area

Adhesive, panel and enclosure tolerance stack

Protection from point loading, twist and FPC tension

Optical Specification

Typical and minimum luminance

Luminance uniformity and contrast ratio

Color coordinates, gamut and gamma

Refresh rate, response time and flicker limits

Production Control

Latest approved drawing and electrical datasheet

Golden-sample approval

Incoming inspection requirements

Hardware, firmware and lot traceability

Data Status and Specification Control

Directly Shown in the Drawing

Display mode, size, resolution, panel dimensions, thickness, voltage values, temperature ranges, pin assignment, controller references, parts number, revision information and RoHS statement.

Calculated from Published Values

Pixel count, approximate pixel density, lateral side margin and rectangular active-area-to-outline ratio are mathematical calculations rather than separate factory test results.

Requires Current Supplier Confirmation

Production controller revision, touch-controller revision, optical performance, power consumption, interface timing, command sequence, reliability limits and mass-production availability.

View Mechanical Drawing & Confirm Integration Details

Review the complete DMKDO06001BCA mechanical drawing to confirm panel dimensions, FPC position, pin assignment, voltage values, temperature limits and dimensional tolerances.

Before PCB, enclosure or firmware release, confirm the current production controller revision and obtain the controlled electrical and optical specifications from the supplier.

View Complete Mechanical Drawing
