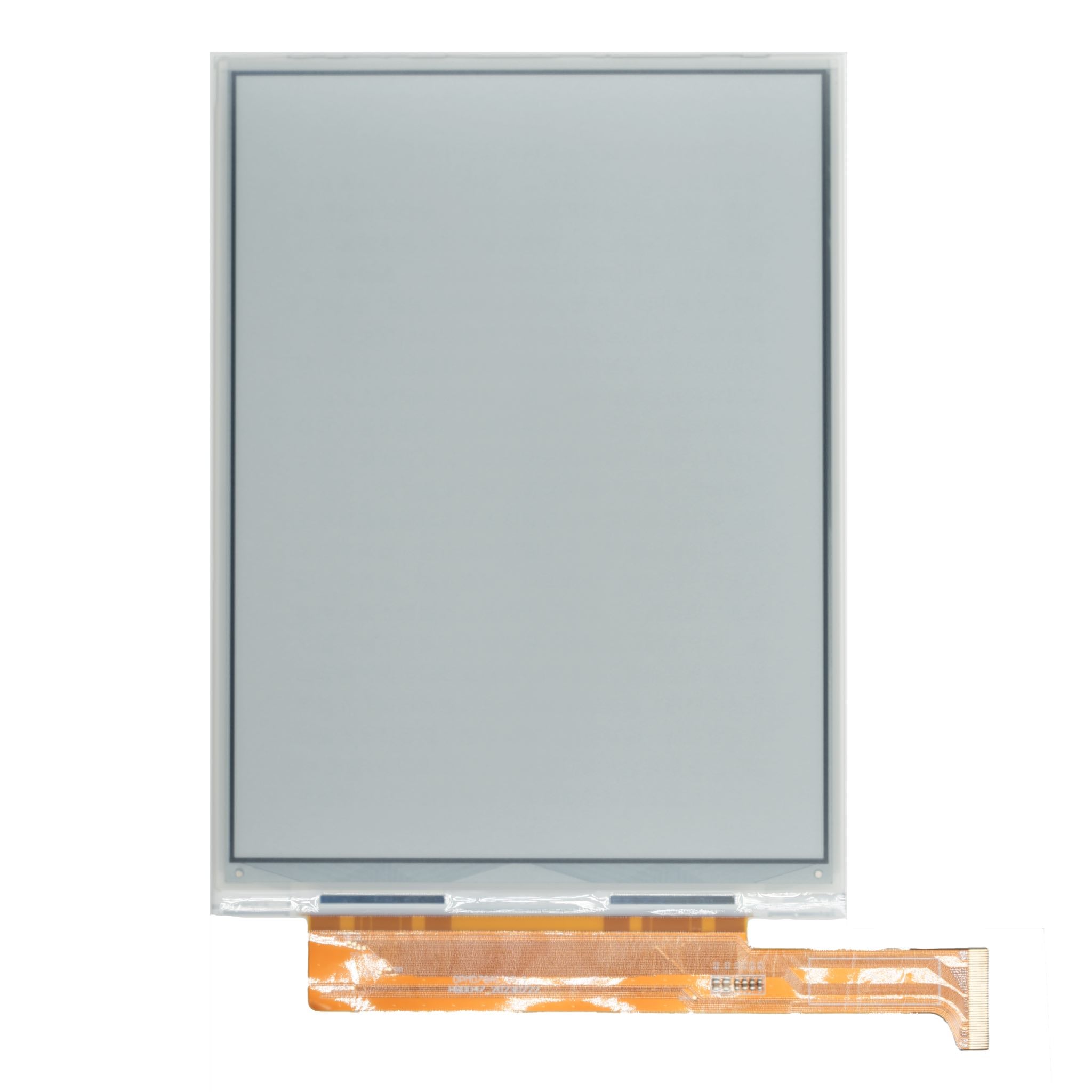

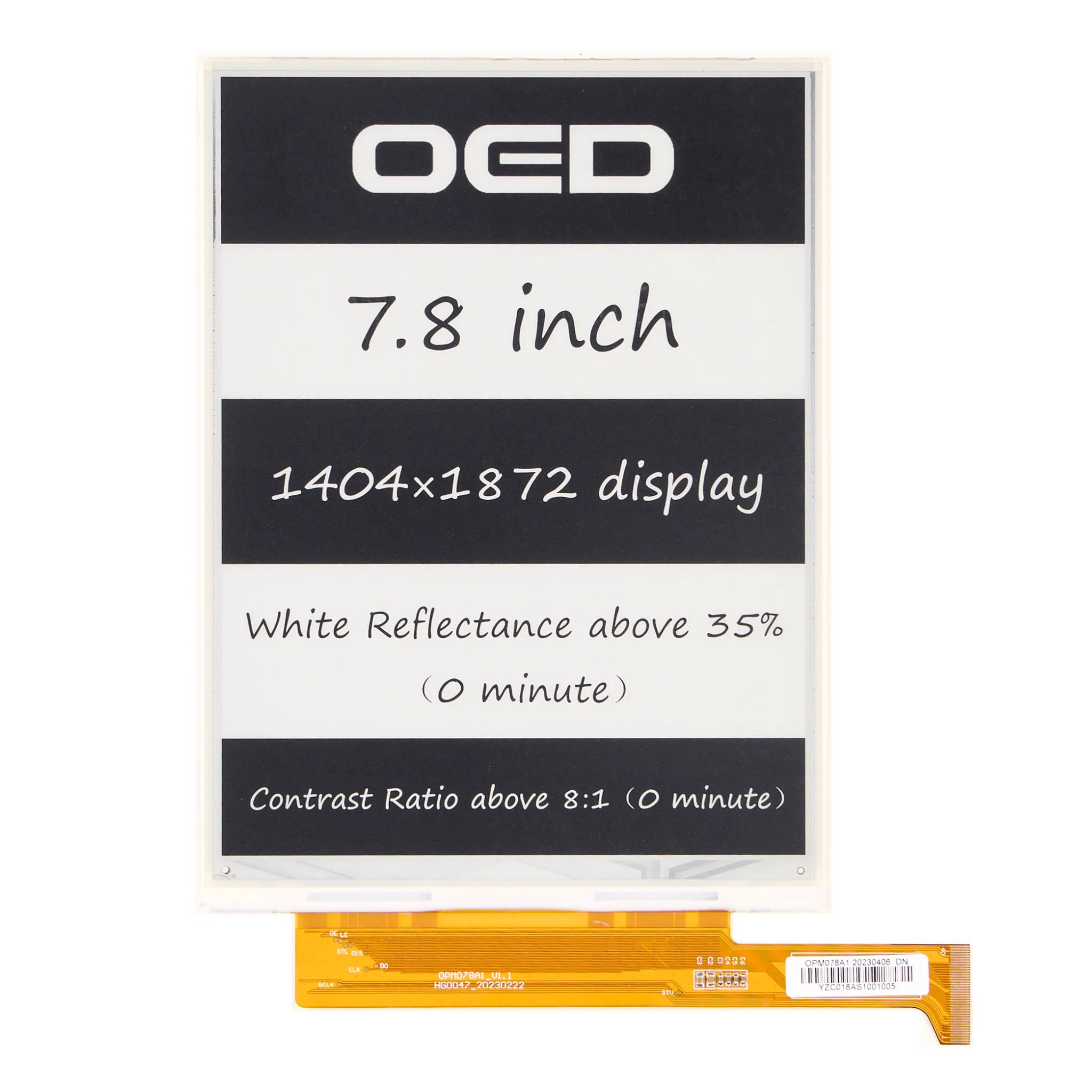

7.8" AM EPD Display 1404×1872 | DMAYE0780X8NB
The DMAYE0780X8NB is a 7.8-inch active matrix electrophoretic display (AM EPD) designed for e-readers and other portable, battery-powered devices. It offers a 1404×1872 resolution in a 3:4 aspect ratio with a fine 0.0845 mm pixel pitch (~300 ppi). The pure reflective, bi-stable technology ensures excellent daylight readability and ultra-low power consumption, while the integrated gate/source drivers and VCOM control streamline system integration.
| Parameter | Specification | Unit |
|---|---|---|
| Screen Size | 7.8 (3:4 diagonal) | inch |
| Display Mode | Reflective / Bi-stable | - |
| Resolution | 1404 × 1872 | pixels |
| Pixel Pitch | 0.0845 × 0.0845 | mm |
| Active Area | 118.638 × 158.184 | mm |
| Module Dimensions | 127.6 × 173.8 × 0.86 | mm |
| Weight | 38.93 | g |
| Interface | 40-pin FPC (0.5 mm) | - |
| Typical Power Consumption | 102 | mW |
| Standby Power Consumption | 0.93 | mW |
| Operating Temperature | 0 ~ 50 | °C |
| Storage Temperature | -25 ~ 60 | °C |
| Operating Humidity | 0 ~ 70 | %RH |
| White Reflectance (Typ.) | 45 | % |
| Contrast Ratio (Typ.) | 20:1 | - |
| Image Update Time (25 °C) | 520 | ms |
| RoHS | Compliant | - |
Mechanical Dimensions
Technical Resources
- 📄 Datasheet: DMAYE0780X8NB
