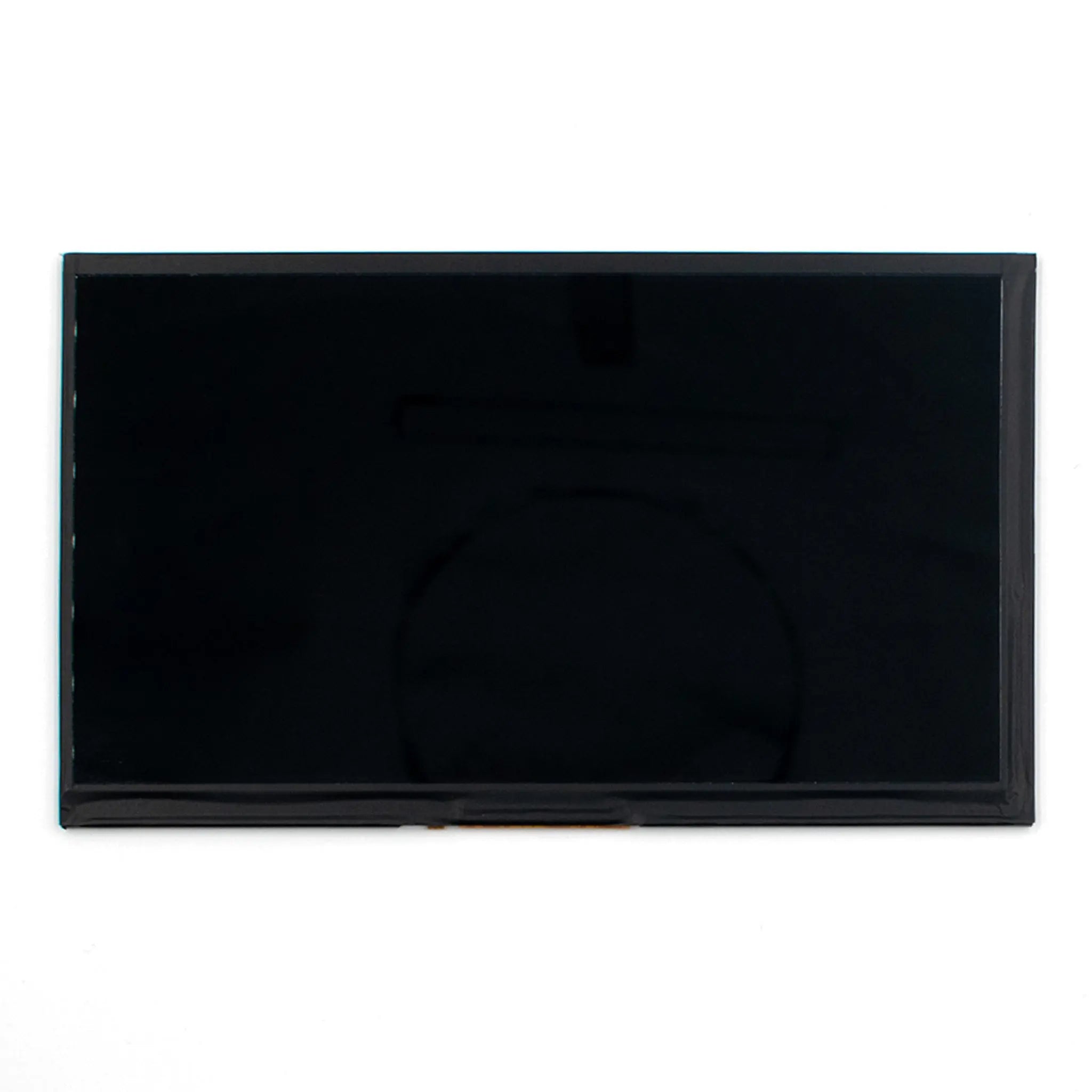

7.0" 16.7M Colors TFT Display 1024x600 - LVDS FPC
This 7.0-inch TFT LCD display delivers high-performance visualization with a 1024×600 resolution and 16.7 million colors, designed for industrial applications requiring reliability and clarity. The transmissive normally black mode ensures deep blacks and high contrast ratios, while the LVDS interface provides stable signal transmission.
Engineered with amorphous silicon TFT technology, this display offers a wide operating temperature range from -20°C to 70°C, making it suitable for harsh environments. The integrated GG touch sensor (optional) adds interactivity, though the standard interface focuses on high-quality image rendering.
- High Contrast Ratio: 800:1 typical contrast for sharp image quality, comparable to professional monitors.
- Wide Color Gamut: 50% NTSC coverage ensures vibrant and accurate color reproduction.
- Robust Construction: With an outline size of 164.9mm × 100mm × 3.06mm, it fits compact spaces while resisting mechanical stress.
- LVDS Interface: Low-voltage differential signaling reduces noise and supports long-distance data transmission.
| Parameter | Specification |
|---|---|
| Display Type | TFT-LCD, Normally Black, Transmissive |
| Active Area | 154.2144 mm × 85.92 mm |
| Number of Pixels | 1024 (H) RGB × 600 (V) |
| Pixel Pitch | 0.0502 mm (H) × 0.1432 mm (V) |
| Display Colors | 16.7 million |
| Color Gamut | 50% NTSC (typical) |
| Luminance | 350 cd/m² (typical) |
| Contrast Ratio | 800:1 (typical) |
| Response Time (Tr+Tf) | 30 ms (typical) |
| Viewing Angle (H/V) | 85° / 85° (CR>10) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +70°C |
| Supply Voltage (VDD) | 3.3 V (typical) |
| Interface | LVDS FPC with 32-pin connector |
| Backlight Type | LED, 12.8 V forward voltage, 120 mA current |
We offer customized display solutions for bulk orders and specific application requirements. Our team can tailor aspects like interface compatibility, mechanical mounting, and optical enhancements to meet your project needs.
- Custom Configurations: Adjustments in brightness, touch integration, or connector types for seamless system integration.
- Volume Discounts: Competitive pricing for large-scale deployments in industrial or commercial settings.
Ideal for HMI panels in machinery, PLC interfaces, and automation systems where high visibility and durability are critical.
Used in medical devices, kiosks, and portable equipment requiring reliable performance in compact form factors.
Suited for dashboard displays or passenger information systems in vehicles, operating stably across temperature variations.
Compatibility Notes: This display is compatible with standard LVDS controllers and operates at a pixel clock of 51.2 MHz (typical). Ensure power sequencing: apply VDD and VGL first, then VGH to prevent damage.
Resources: Download complete datasheet for detailed specifications
Mechanical Dimensions
The mechanical drawing below provides precise measurements for enclosure design and system integration.
