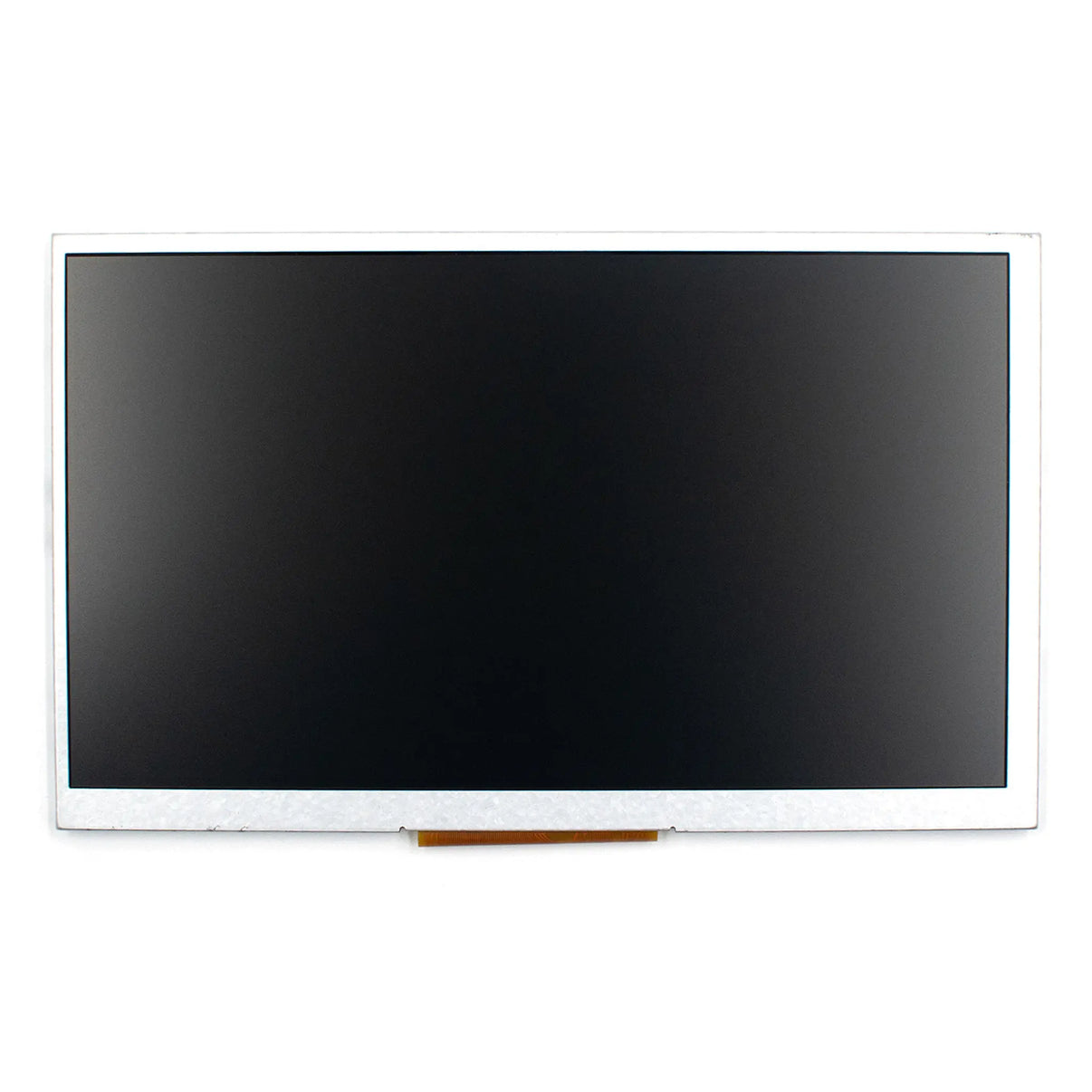

7.0" TFT Display 800x480 - FPC
This high-performance 7-inch TFT LCD display delivers an 800×480 resolution with RGB stripe arrangement, ensuring vibrant color reproduction and sharp image quality. Designed with a normally white transmissive mode and anti-glare surface treatment, it minimizes reflections for clear visibility in various lighting conditions. The display is engineered for reliable operation in demanding environments, supporting a wide temperature range from -30°C to 85°C, making it ideal for industrial, embedded, and outdoor applications.
The module features a compact size of 169.4 × 100.0 × 5.7 mm and weighs approximately 154 grams, enabling easy integration into space-constrained devices. With a digital interface and low power consumption—panel power at 0.226W typical and backlight at 1.674W typical—it offers energy-efficient performance for extended use.
- Robust Construction: Built with a-Si TFT active matrix technology for durability and long-term stability in harsh conditions.
- Anti-Glare Treatment: Surface coating reduces glare, enhancing readability under direct light—similar to matte finishes on premium monitors.
- Wide Compatibility: Digital interface supports seamless integration with various controllers and embedded systems.
Mechanical Dimensions
Review the mechanical drawing for precise module dimensions, mounting hole locations, and integration guidelines to ensure proper fit in your application.
| Parameter | Value | Unit |
|---|---|---|
| Screen Diagonal | 7.0 | inch |
| Driver Element | a-Si TFT Active Matrix | - |
| Resolution | 800 × 480 | pixels |
| Display Mode | Normally White, Transmissive | - |
| Dot Pitch | 0.0642 × 0.1790 | mm |
| Active Area | 154.08 × 85.92 | mm |
| Module Size | 169.4 × 100.0 × 5.7 | mm |
| Surface Treatment | Anti-glare | - |
| Color Arrangement | RGB-stripe | - |
| Interface | Digital | - |
| Backlight Power Consumption | 1.674 (typical) | W |
| Panel Power Consumption | 0.226 (typical) | W |
| Weight | 154 (typical) | g |
| Operating Temperature | -30 ~ 85 | °C |
| Storage Temperature | -30 ~ 85 | °C |
We offer customized TFT display solutions for businesses requiring bulk orders or tailored specifications. Whether you need modifications for specific environments or volume pricing for large-scale deployments, our team can provide flexible options.
- Custom Configurations: Adjustments to interface, backlight, or mechanical dimensions to meet unique project requirements—ideal for OEM integrations.
- Wholesale Programs: Competitive pricing for bulk purchases, with support for logistics and quality assurance to streamline your supply chain.
Used in control panels and HMI systems for machinery monitoring, with wide temperature tolerance ensuring reliability in factory settings where fluctuations are common.
Integrated into medical devices, kiosks, and portable instruments due to its compact size and low power consumption—akin to displays in handheld diagnostic tools.
Deployed in agricultural monitors or outdoor signage, with anti-glare treatment providing clear visibility even in direct sunlight.
Compatibility Notes
This display is compatible with standard digital interfaces and can be driven by common controllers supporting RGB signals. It is suitable for use with embedded platforms like Raspberry Pi, Arduino, and industrial PCs, ensuring easy adoption in prototyping and production.
Technical Documentation: Access the full datasheet for detailed electrical characteristics, timing diagrams, and mechanical drawings to aid in design and integration.
Resources: Download DM-TFT700-503 Datasheet (PDF)
