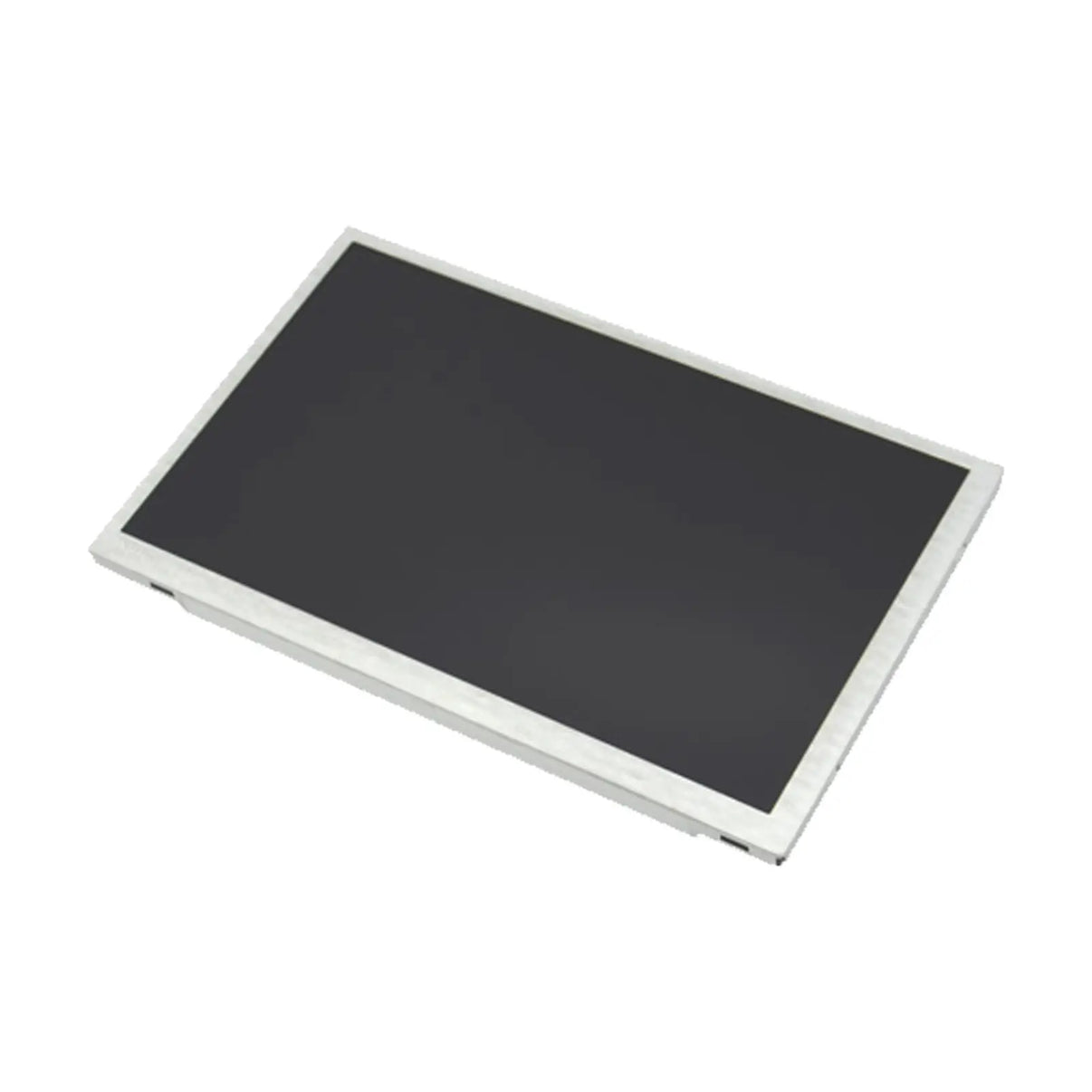

7.0" Color TFT Display 800x480
Professional-grade 7-inch TFT LCD module featuring 800×480 resolution with AHVA technology for superior viewing angles up to 89° in all directions. Designed for industrial applications requiring reliability in extreme temperatures from -30°C to 80°C.
Engineered with normally black display mode and anti-glare surface treatment, this TFT module delivers crisp 16.7 million colors with fast 20ms response time. The compact 166.6×107×10mm design weighs just 175g, making it ideal for space-constrained applications.
- Wide Temperature Operation: Reliable performance from -30°C to 80°C, suitable for harsh industrial environments.
- LVDS Interface: Low-voltage differential signaling ensures stable data transmission with minimal electromagnetic interference.
- High Reliability: Tested for 50,000 hours LED backlight life with 70% color gamut coverage.
- Robust Construction: Built to withstand vibration, shock, and thermal cycling per industrial standards.
| Parameter | Specification |
|---|---|
| Screen Size | 7.0 inch |
| Active Area | 152.4 × 91.44 mm |
| Resolution | 800 × 480 pixels |
| Pixel Pitch | 0.1905 × 0.0635 mm |
| Display Mode | Normally Black |
| Input Voltage | 3.3V typical (3.0V-3.6V range) |
| Power Consumption | 2.978W maximum |
| Weight | 175g ±10% |
| Interface | LVDS |
| Operating Temperature | -30°C to 80°C |
| Storage Temperature | -30°C to 80°C |
| Response Time | 20ms (rise + fall) |
| Color Support | 16.7 million colors |
| Surface Treatment | Anti-glare |
Compact form factor measuring 166.6mm × 107mm × 10mm maximum thickness, designed for seamless integration into various industrial enclosures and systems.
Customized display solutions for OEM and volume applications with flexible configuration options and technical support.
- Bulk Procurement: Volume discounts and customized delivery schedules for production line integration.
- Custom Configurations: Modified interface options, connector types, and mechanical adaptations.
- Technical Support: Dedicated engineering support for system integration and troubleshooting.
Machine interface panels, PLC displays, and monitoring systems requiring reliable operation in harsh factory environments.
Patient monitoring devices, diagnostic equipment, and portable medical instruments needing clear visibility.
Fleet management systems, vehicle displays, and navigation equipment for automotive and marine applications.
Technical Notes: Display requires proper power sequencing with minimum 7ms delay between VDD and backlight activation. Compatible with standard LVDS controllers operating at 33.2-45MHz clock frequency.
Resources: Download complete technical documentation
Mechanical Dimensions
Refer to the mechanical outline below for integration into your enclosure or mounting fixture.
