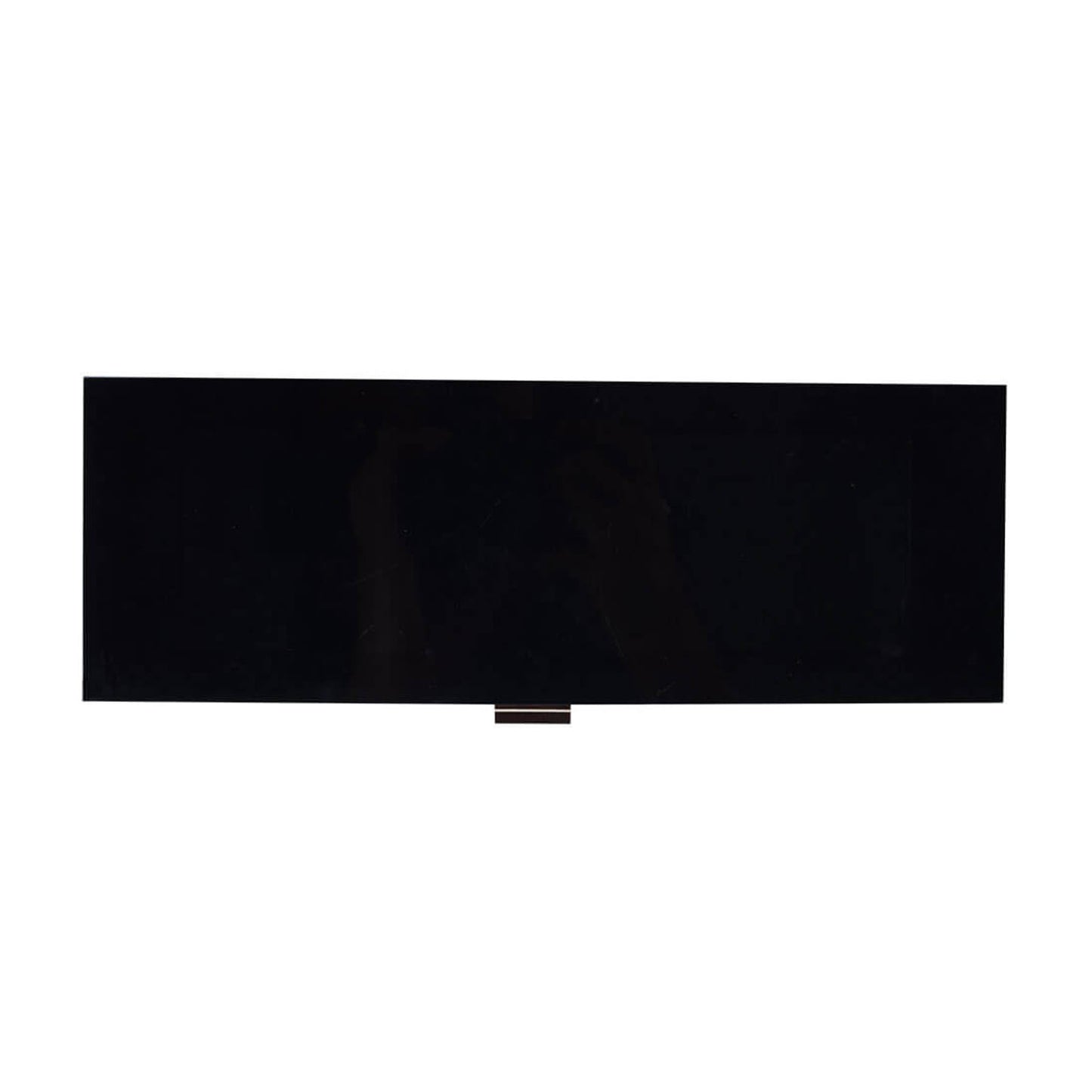

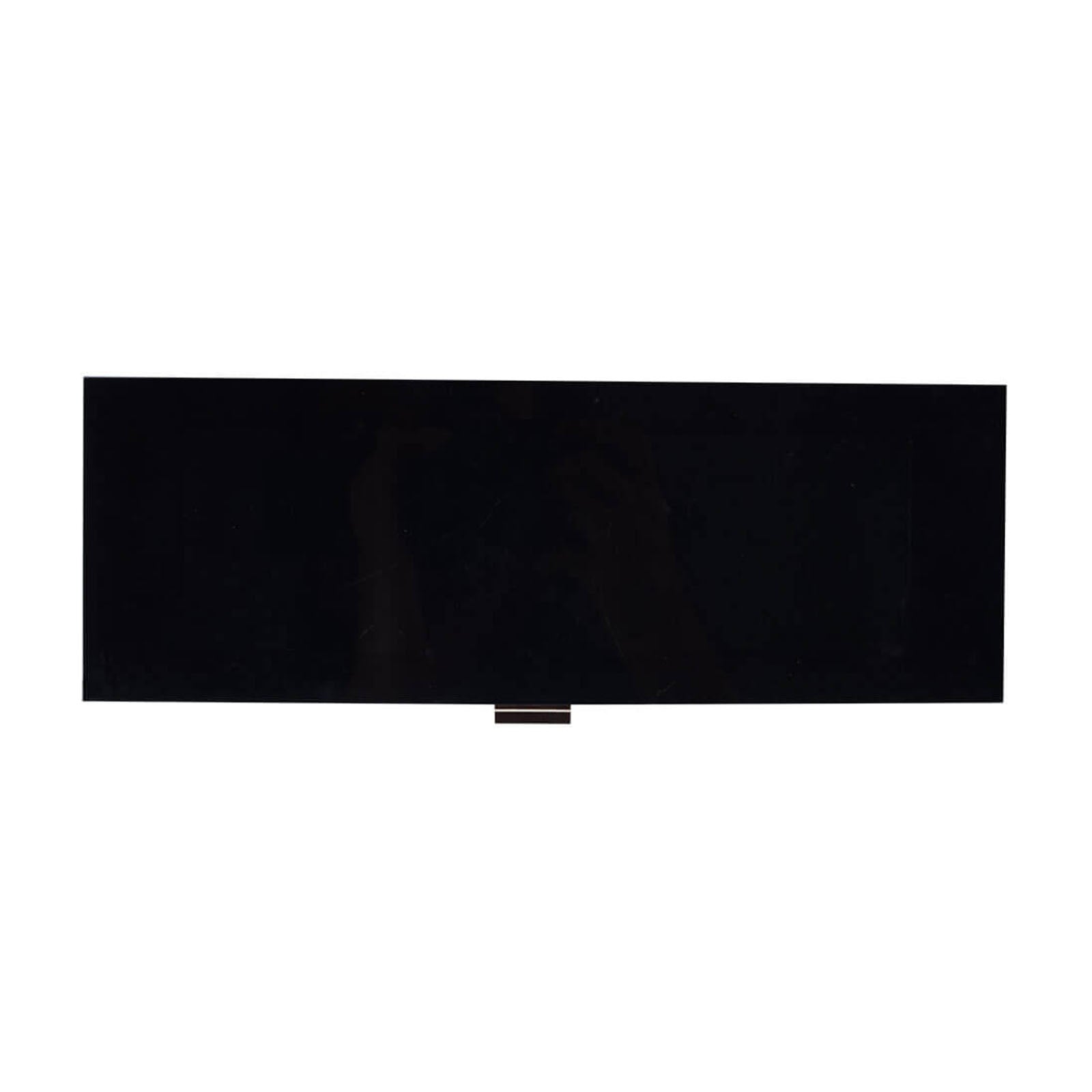

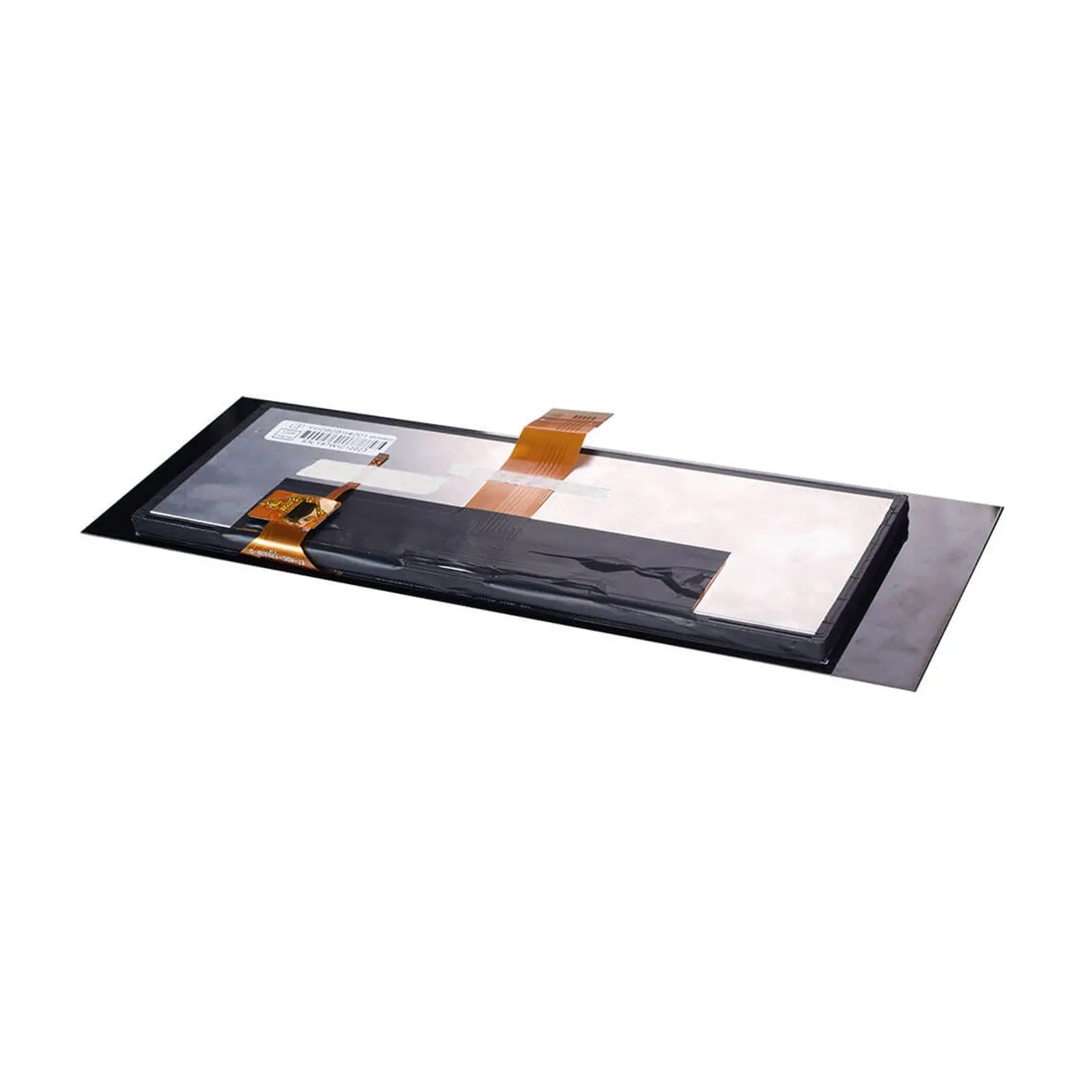

8.0" IPS Display 1600x480 BAR Type Capacitive - LVDS
Product Introduction
Engineered for high-performance wide-screen applications, this 8.0-inch IPS display delivers exceptional 1600x480 resolution with 10-point capacitive touch functionality. The bar-type design (249.2mm width) provides an ideal aspect ratio for industrial dashboards, digital signage, and control panels.
Featuring IPS technology with 425 cd/m² luminance, the display maintains consistent color and clarity from all viewing directions. The 3.3V operation makes it energy-efficient for embedded systems.
- Wide Temperature Range: Operates from -20°C to +70°C, suitable for industrial environments
- High Compatibility: Supports 6-bit and 8-bit LVDS interfaces with plug-and-play operation

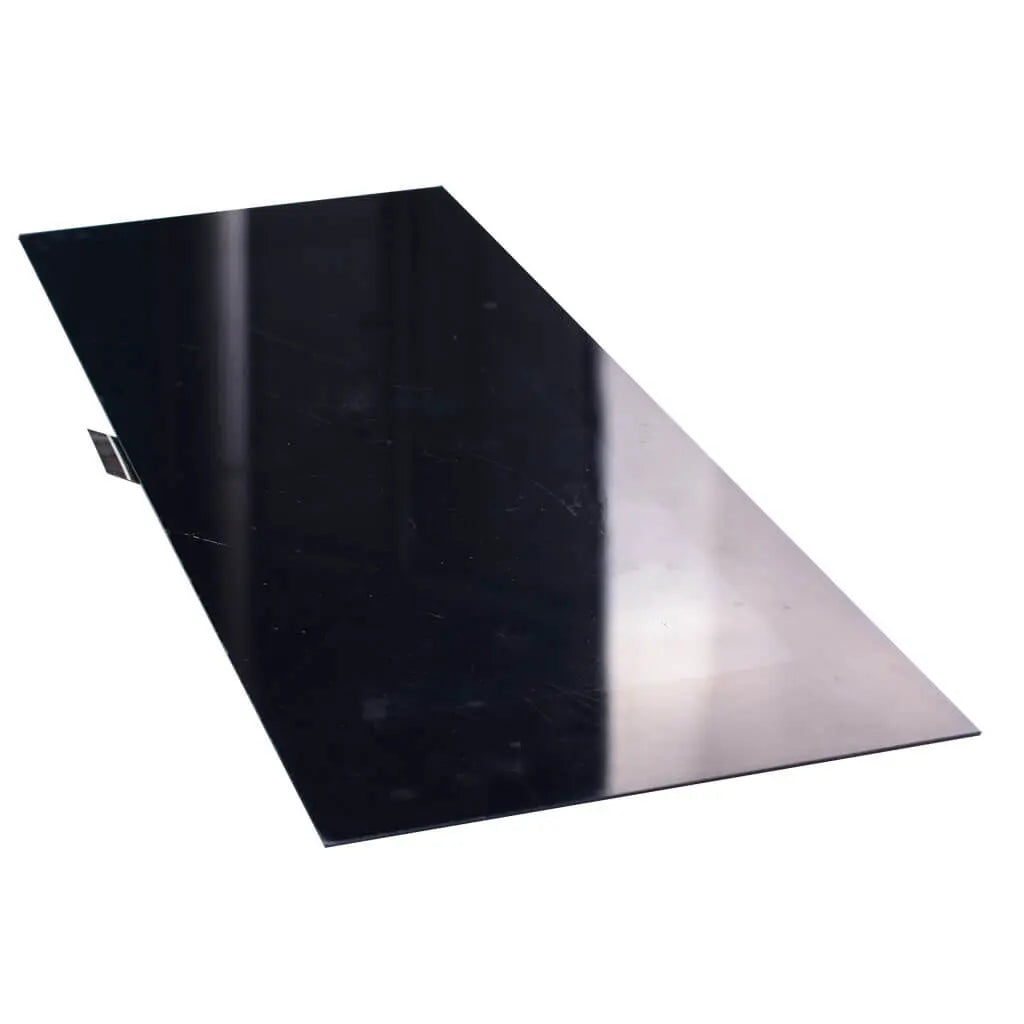

- Robust Construction: 6.86mm slim profile with industrial-grade components
- Touch Integration: FT5926QSM controller enables precise 10-point touch recognition
Product Specifications
| Parameter | Specification |
|---|---|
| Diagonal Dimension | 8.0 inch |
| Resolution | 1600x480 pixels |
| View Direction | All Directions |
| Touch Mode | 10 points capacitive |
| Module Dimension (HxVxD) | 249.20mm x 87.0mm x 6.86mm |
| Viewing Area (HxV) | 194.40mm x 58.3mm |
| Supply Voltage | 3.3V |
| Interface | 6/8bit LVDS |
| Luminance | 425 cd/m² |
| Drive IC | HX8249 + HX8678 + FT5926QSM |
| Operation Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
Enterprise Solutions
We offer customized display solutions for OEM and volume customers, including panel modifications, custom firmware, and branding options.
- Bulk Pricing: Volume discounts available for orders above 100 units with flexible payment terms
- Custom Configurations: Modified resolutions, interface changes, and special temperature ranges
- Technical Support: Dedicated engineering support for integration and customization projects
- Lead Time: Standard 4-6 weeks production time, expedited options available
Industry Applications
Wide-screen display ideal for factory automation control panels and machinery interfaces with 10-point touch for glove-compatible operation.
Bar-type format perfect for retail price displays, information kiosks, and transportation schedule boards with high visibility.
Medical-grade display for patient monitoring systems and diagnostic equipment with reliable -20°C to +70°C operation.
Technical Resources
Compatibility Notes: This display requires no initialization code and is compatible with standard LVDS output sources. Works with Windows, Linux, and embedded systems supporting 1600x480 resolution.
Technical Documentation:
- DM-TFT80-379 Complete Datasheet
- Display Controller: HX8678 / HX8249
- Touch Driver IC: FT5926
Note: No initialization code required - plug and play operation.
