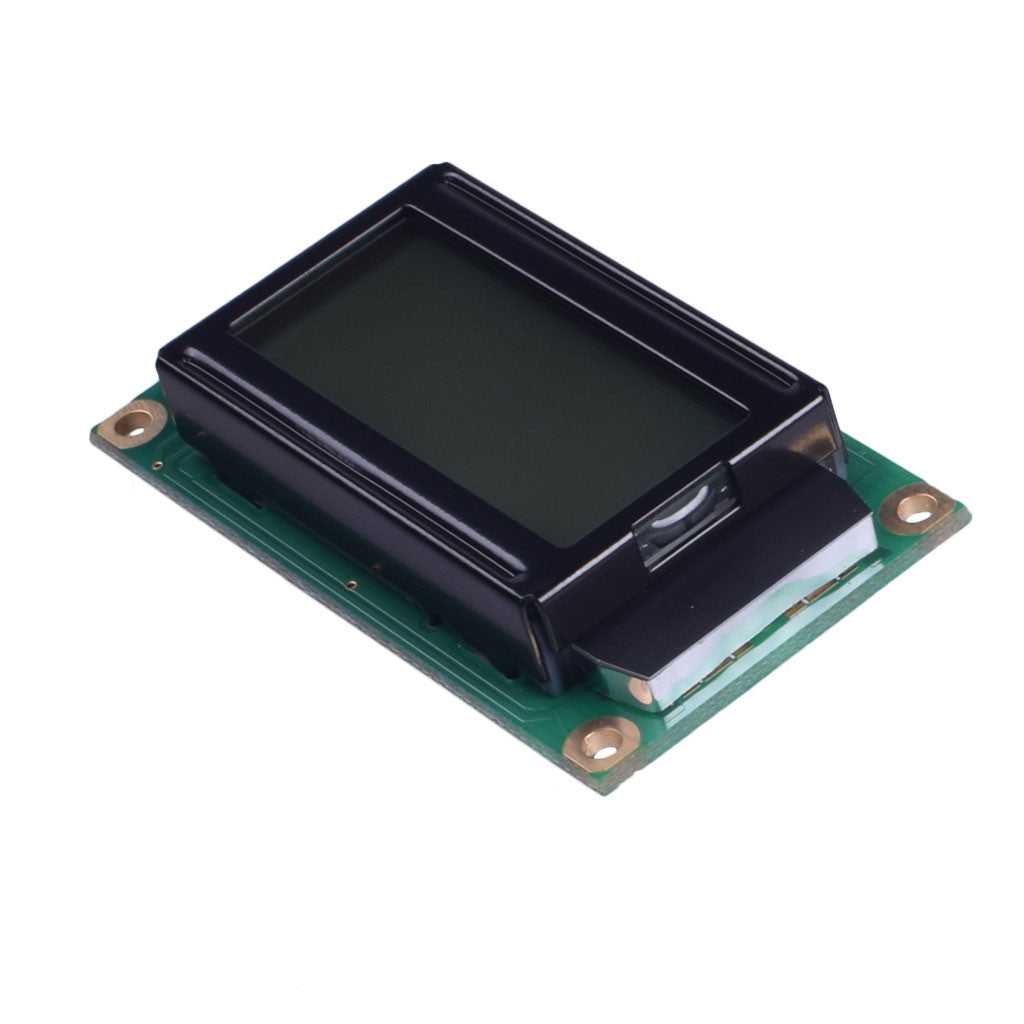

8x2 character LCD display module using FSTN technology, transflective mode, and connected via MCU

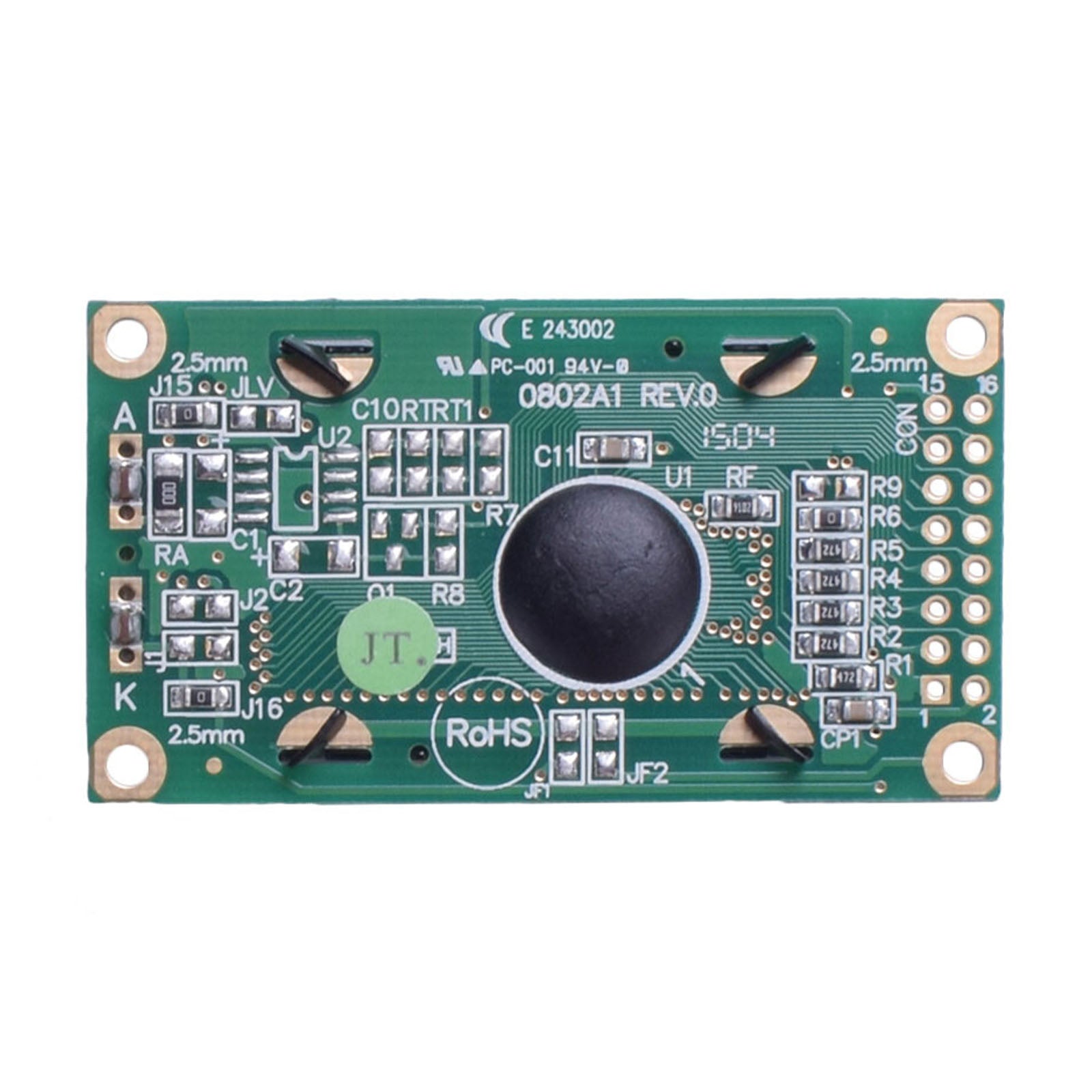

back of 8x2 character LCD display module using MCU interface

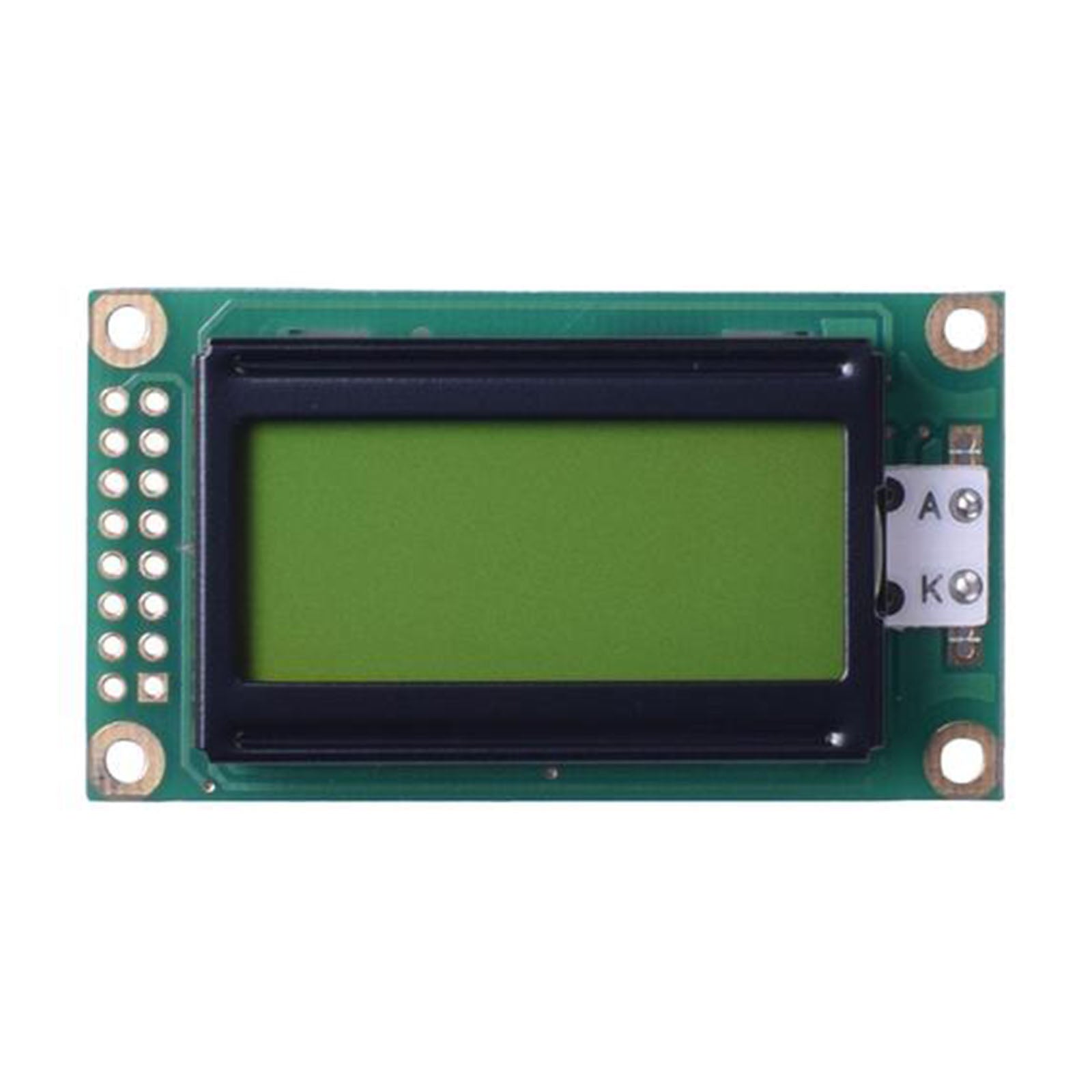

green 8x2 character LCD display module

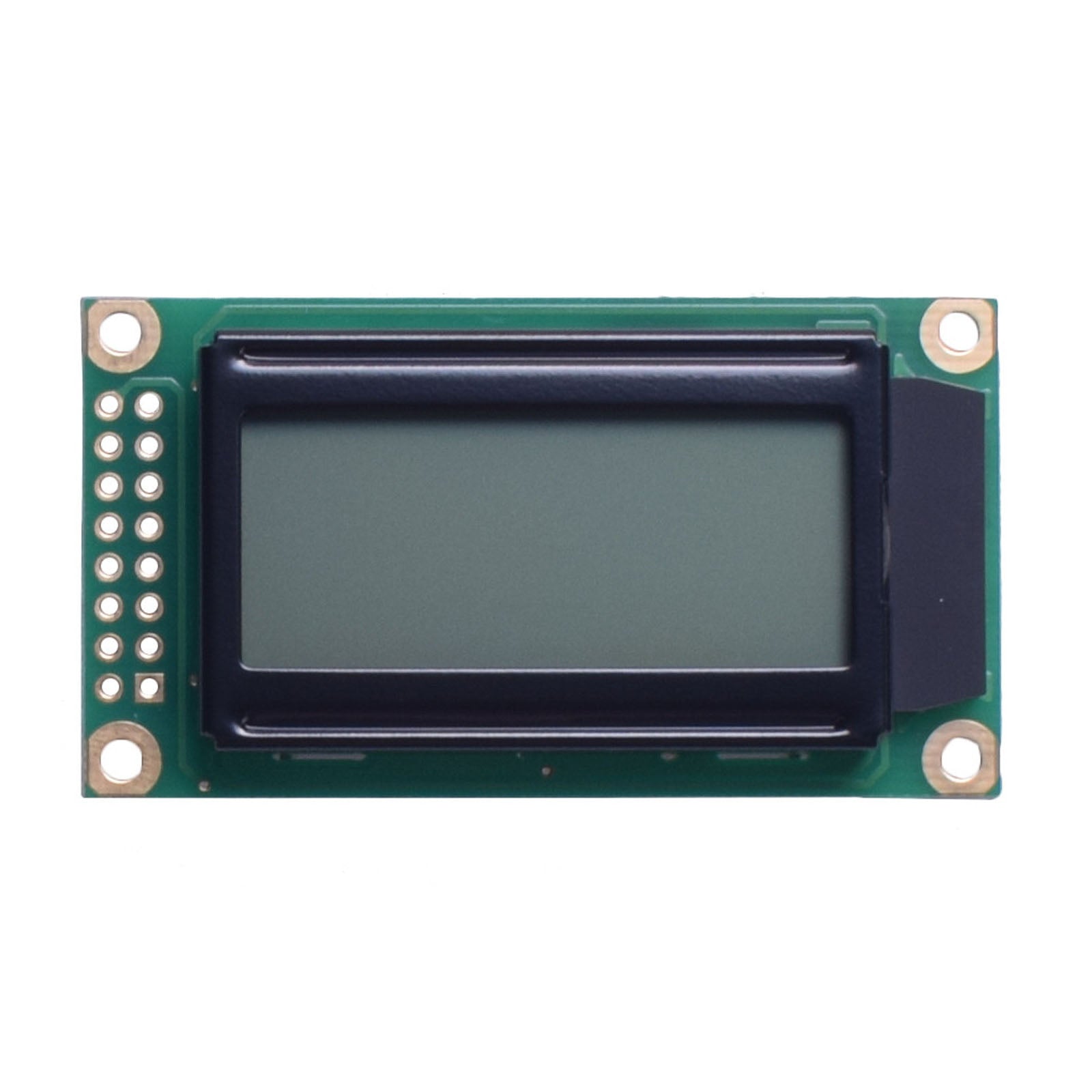

side view of 8x2 character LCD display module

8x2 Character LCD FSTN Transflective - MCU

Regular price $8.90
Sale price $8.90 Regular price $5.49
Datesheet:
Gray
Yellow Green
1 pcs original price
5 pcs 8% off
10 pcs 10% off

Customization & Manufacturing

Adapter Custom

Sometimes standard interfaces or adapters may not meet your special needs. We provide custom adapter service for this, make sure you can easily connect our screen with your device perfectly.

Prototype, Pilot Production, Mass Manufacturing

DisplayModule is a subsidiary of NexPCB, thanks to NexPCB's rich experience in design, prototype, mass production, we confidently declare that we can provide one-stop service.

Contact Form

I'm reaching out to DisplayModule because...

Product description

Display Specifications

  • Display Format : 8 characters x 2 lines
  • Display Mode : FSTN Positive, Transflective
  • View Direction : 6:00
  • Module Dimension : 58.0 x 32.0 x 13.2 (MAX) mm
  • Power Supply : 5.0 V
  • Backlight : White LED
  • Interface : 6800 Series MPU Interface
  • Controller IC : ST7066U
  • Operation Temperature : -20℃~70℃
  • Storage Temperature : -30℃~80℃
  • Weight : 22.3 g

Dimensions

Resources

Product reviews
