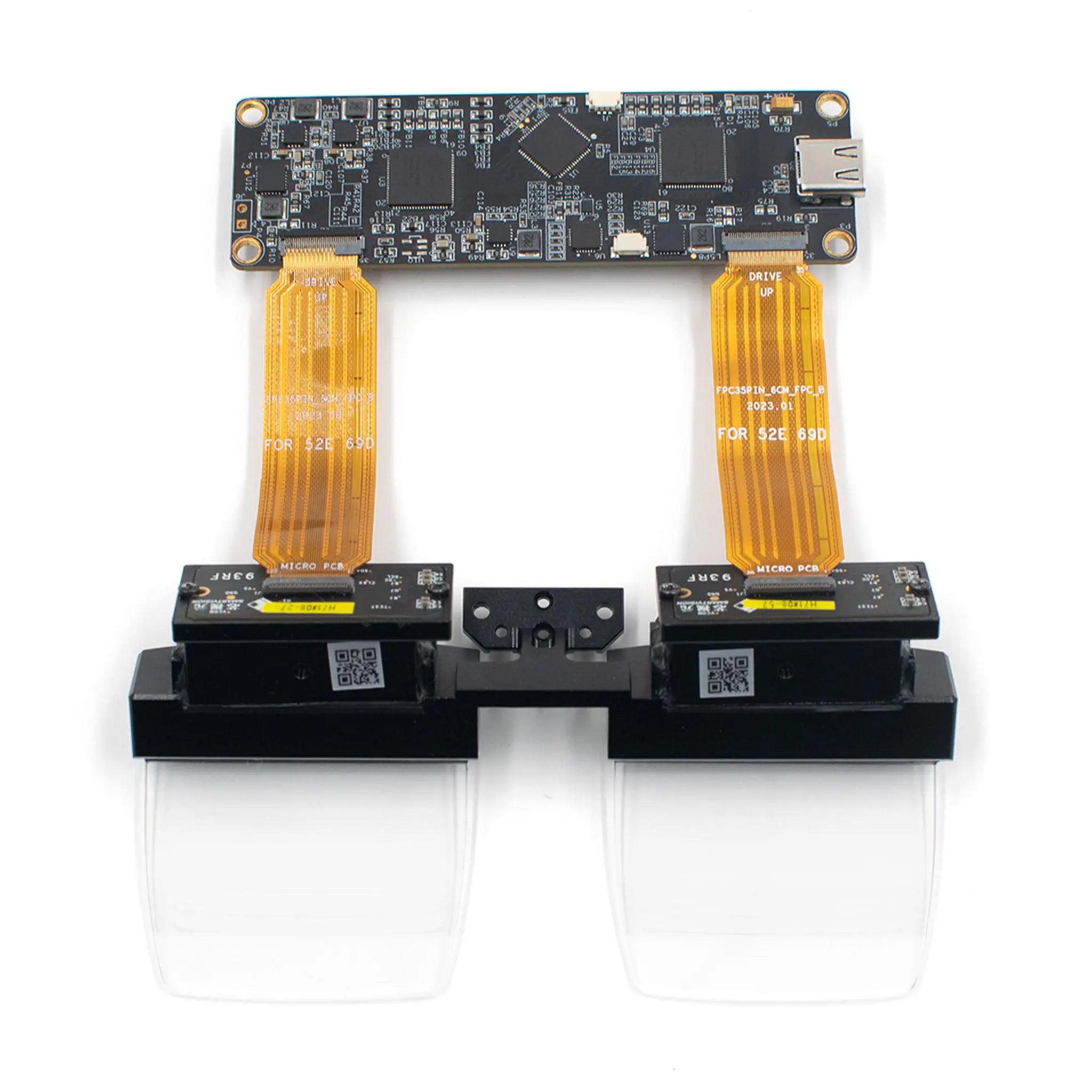

AR Optical Waveguide Module 1920x1080 Vertical Set
Delivering immersive AR experiences with a 50°±1° monocular diagonal field of view and 1920x1080 full-color RGB display. Engineered for lightweight wearability, this waveguide module features 8-bit grayscale precision and 85% light transmittance for natural visual integration.
Featuring a 20mm exit pupil distance and 15×10mm eye movement range, this module ensures comfortable viewing with minimal distortion (<2% TV distortion). The upward/downward projection method supports versatile application scenarios.
- MTF Performance: >0.3 Avg @ 35lp/mm
- Refresh Rate: 60Hz
- Optical Interface: 4-Lane MIPI Input / RGB Output
- LED Compatibility: Supports RGB 24-bit @ 150mA continuous / 300mA pulse current
Customize and scale your AR vision with industry-leading support:
- Customization Options: Form factor optimization, interface customization, and thermal management solutions
- Wholesale Programs: Volume pricing for OEMs and system integrators
- Technical Collaboration: Joint development for bespoke AR applications
Enhance technician workflows with hands-free access to schematics and diagnostic data
Enable surgeons to overlay patient data during procedures with 85% light transmission clarity
Improve knowledge retention with interactive 3D simulations in hazardous environments
Key Documentation: ARM-103 Datasheet | 3D Model Download
Compliance: AEC-Q101 ESD Classification (R:2000V/G:1000V/B:1000V)
Optimized for integration with:
- LCOS Display: Tianmu-I-050-B (FH35C-35S-0.3SHW Connector)
- LED Backlight: AYF530435 (RGB 24-bit @ 150mA Continuous)
- Driver Chip: SVC2KAMR4B (Supports 4-Lane MIPI Input)
ARM-103 Technical Specifications
| Parameter | Specification |
|---|---|
| Field of View | 60°=50°±1° (monocular diagonal) |
| Resolution | 1920 x 1080 |
| Color | Full-color RGB |
| Brightness | Peak 300 nits (to be tested) |
| Grayscale | 8-bit |
| Eye Movement Range | 15x10 (mm) @20mm exit pupil distance |
| Exit Pupil Distance | 20mm |
| MTF (Modulation Transfer Function) | >0.3 (avg) @35lp/mm |
| TV Distortion | <2% |
| Transmittance | 85% |
| Refresh | 60Hz |
| Projection Method | Upward and downward projection |
Structural Design
Optical Display Area
Display center, designed to be directly in front of the human eye.
Binocular Design Instructions
1) The LOE structure of the light waveguide lens in the left and right light engine modules is designed symmetrically.
2) The recommended distance between the eyeball and LOE should not be more than 22mm.
3) The recommended design value for the distance between the display centers of the left and right eyes is 64mm (corresponding to the human eye's pupil distance).
Structure Reference
