AR Optical Waveguide Module 1920x1080 Vertical Set

Regular price $3,999.00
Shipping calculated at checkout.
SKU: DM-ARM-103
Set: An AR display lens

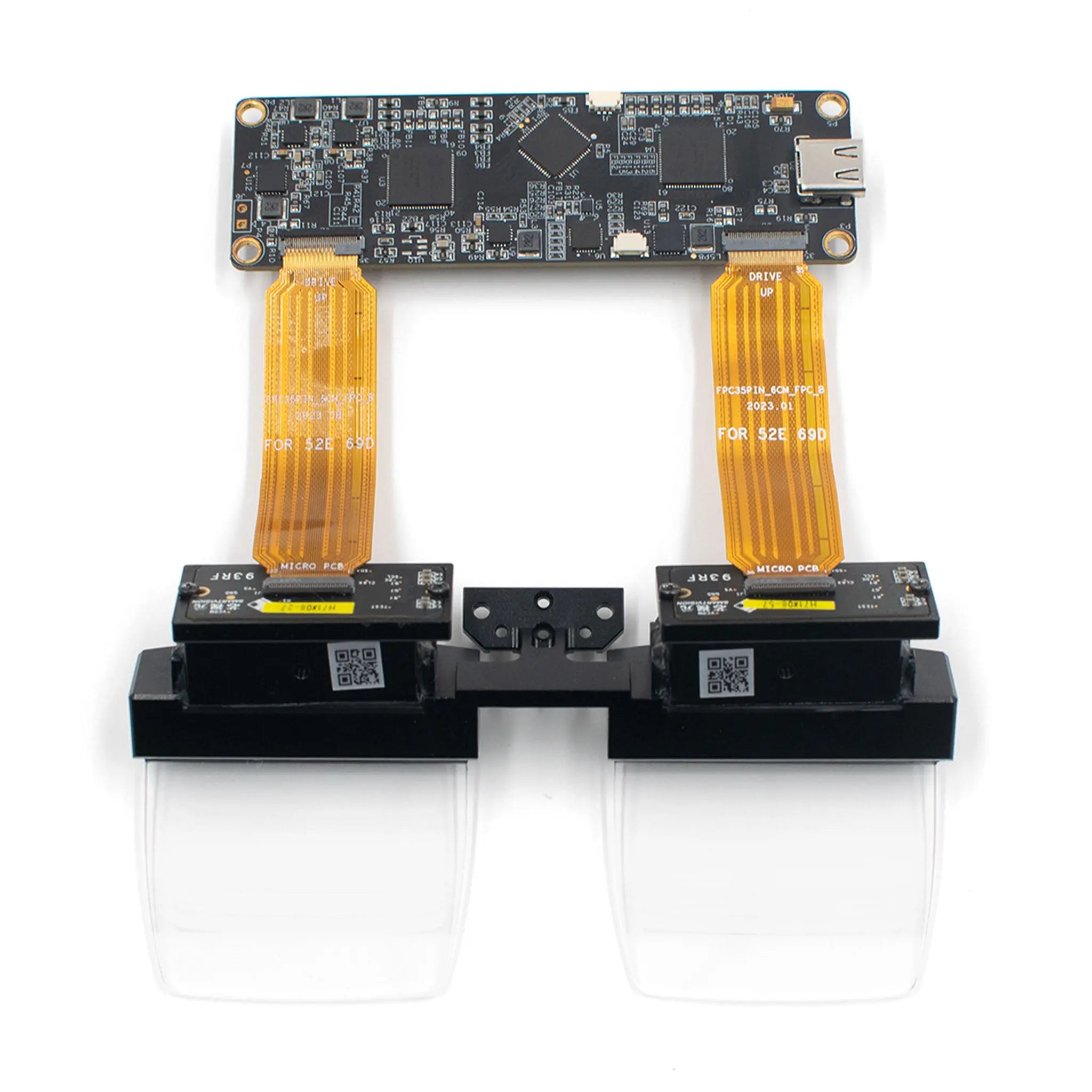

Vertical Augmented Reality Optical Waveguide Module set with a resolution of 1920 by 1080 pixels
$3,999.00
An AR display lens

Payment and security

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

AR Optical Waveguide Module 1920x1080 Vertical Set

Product Details

Delivering immersive AR experiences with a 50°±1° monocular diagonal field of view and 1920x1080 full-color RGB display. Engineered for lightweight wearability, this waveguide module features 8-bit grayscale precision and 85% light transmittance for natural visual integration.

FIELD OF VIEW
50°±1° (Monocular Diagonal)
RESOLUTION
1920×1080
COLOR
Full-color RGB
BRIGHTNESS
Peak 300 nits (To be tested)

Featuring a 20mm exit pupil distance and 15×10mm eye movement range, this module ensures comfortable viewing with minimal distortion (<2% TV distortion). The upward/downward projection method supports versatile application scenarios.

  • MTF Performance: >0.3 Avg @ 35lp/mm
  • Refresh Rate: 60Hz
  • Optical Interface: 4-Lane MIPI Input / RGB Output
  • LED Compatibility: Supports RGB 24-bit @ 150mA continuous / 300mA pulse current
Enterprise Solutions

Customize and scale your AR vision with industry-leading support:

  • Customization Options: Form factor optimization, interface customization, and thermal management solutions
  • Wholesale Programs: Volume pricing for OEMs and system integrators
  • Technical Collaboration: Joint development for bespoke AR applications
Industry Applications
Industrial Maintenance

Enhance technician workflows with hands-free access to schematics and diagnostic data

Medical Visualization

Enable surgeons to overlay patient data during procedures with 85% light transmission clarity

Enterprise Training

Improve knowledge retention with interactive 3D simulations in hazardous environments

Technical Resources

Key Documentation: ARM-103 Datasheet | 3D Model Download

Compliance: AEC-Q101 ESD Classification (R:2000V/G:1000V/B:1000V)

Recommended Equipment

Optimized for integration with:

  • LCOS Display: Tianmu-I-050-B (FH35C-35S-0.3SHW Connector)
  • LED Backlight: AYF530435 (RGB 24-bit @ 150mA Continuous)
  • Driver Chip: SVC2KAMR4B (Supports 4-Lane MIPI Input)
