Birdbath optical module for augmented reality with 1920x1080 resolution and a 42-degree field of view, connected via LVDS

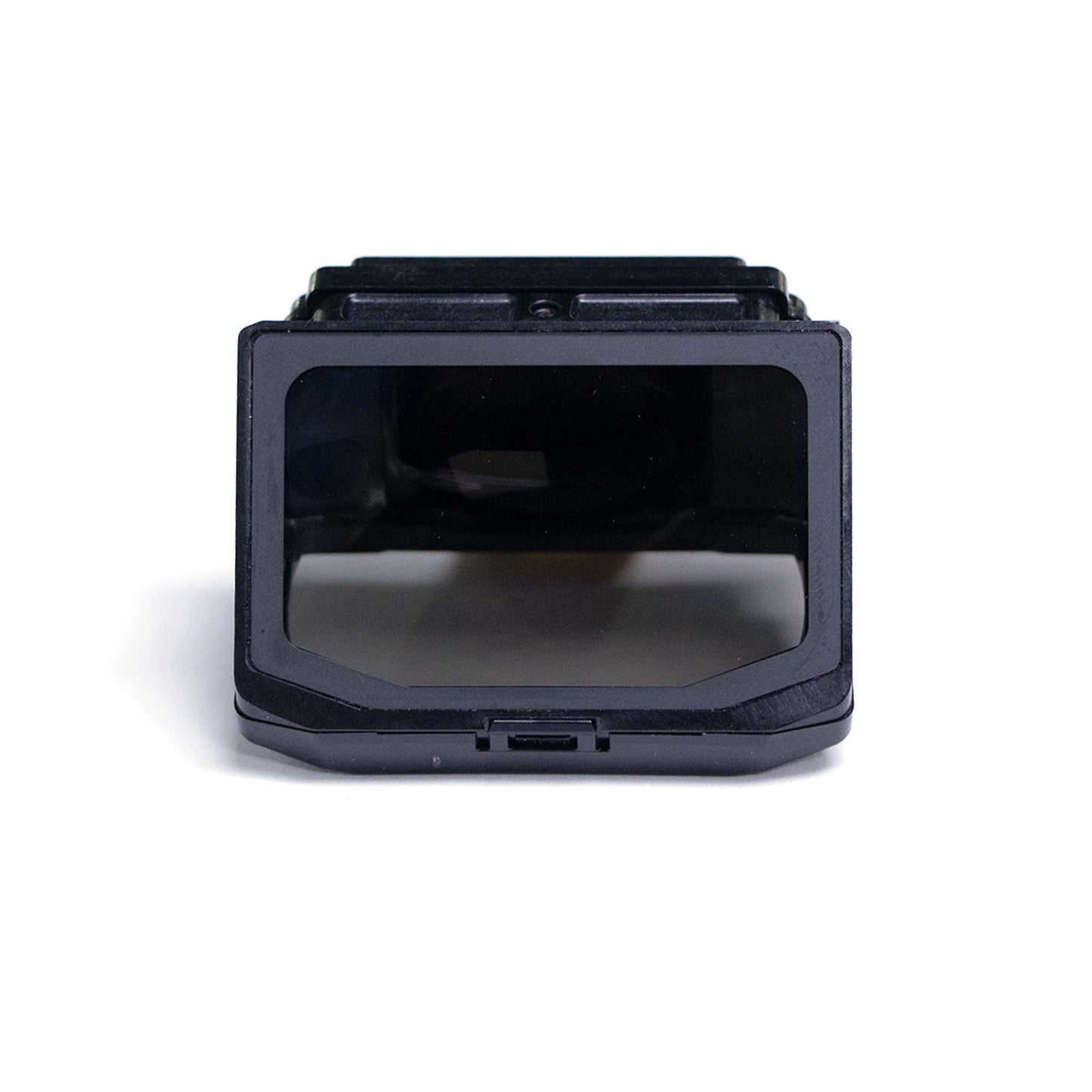

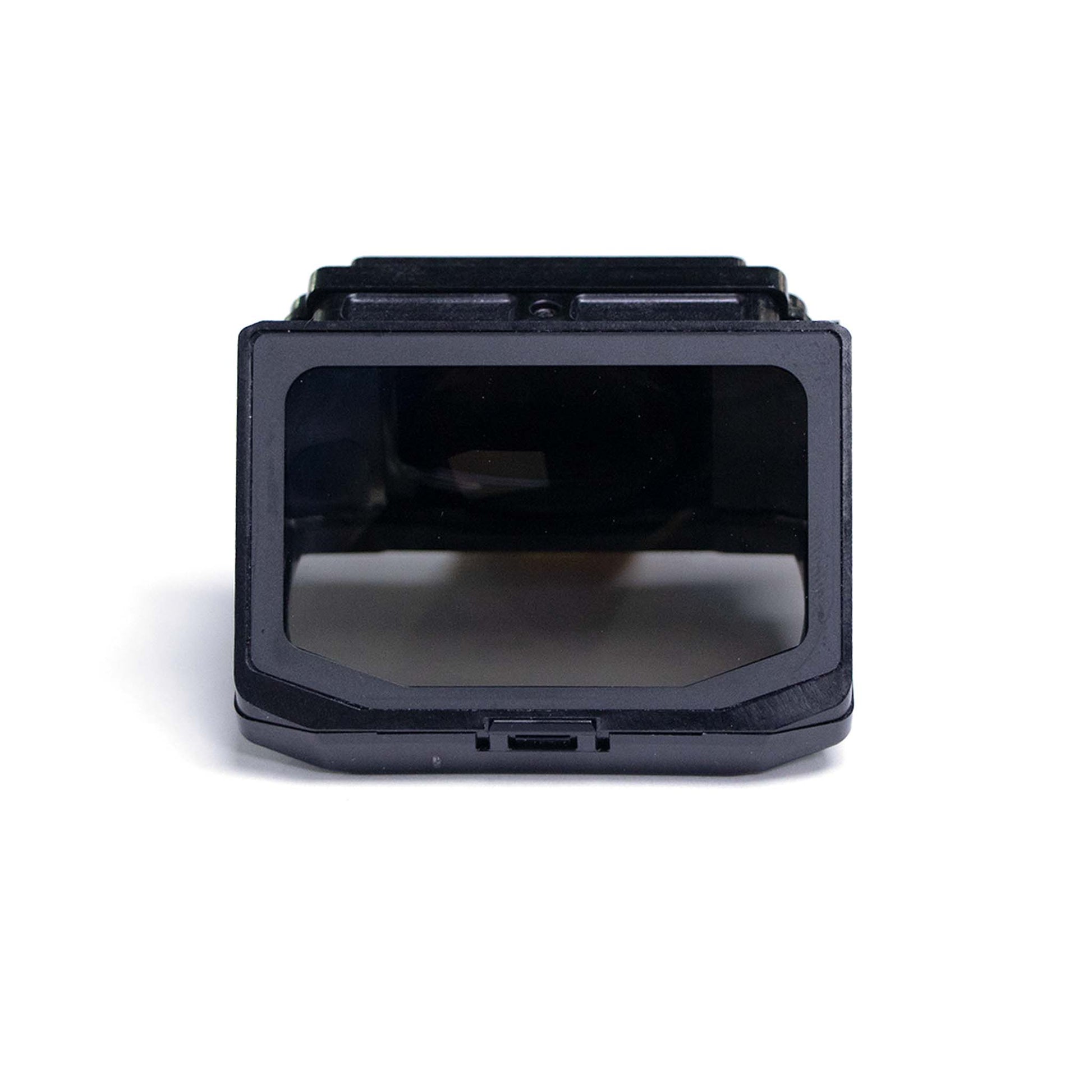

External view of Birdbath optical module for augmented reality

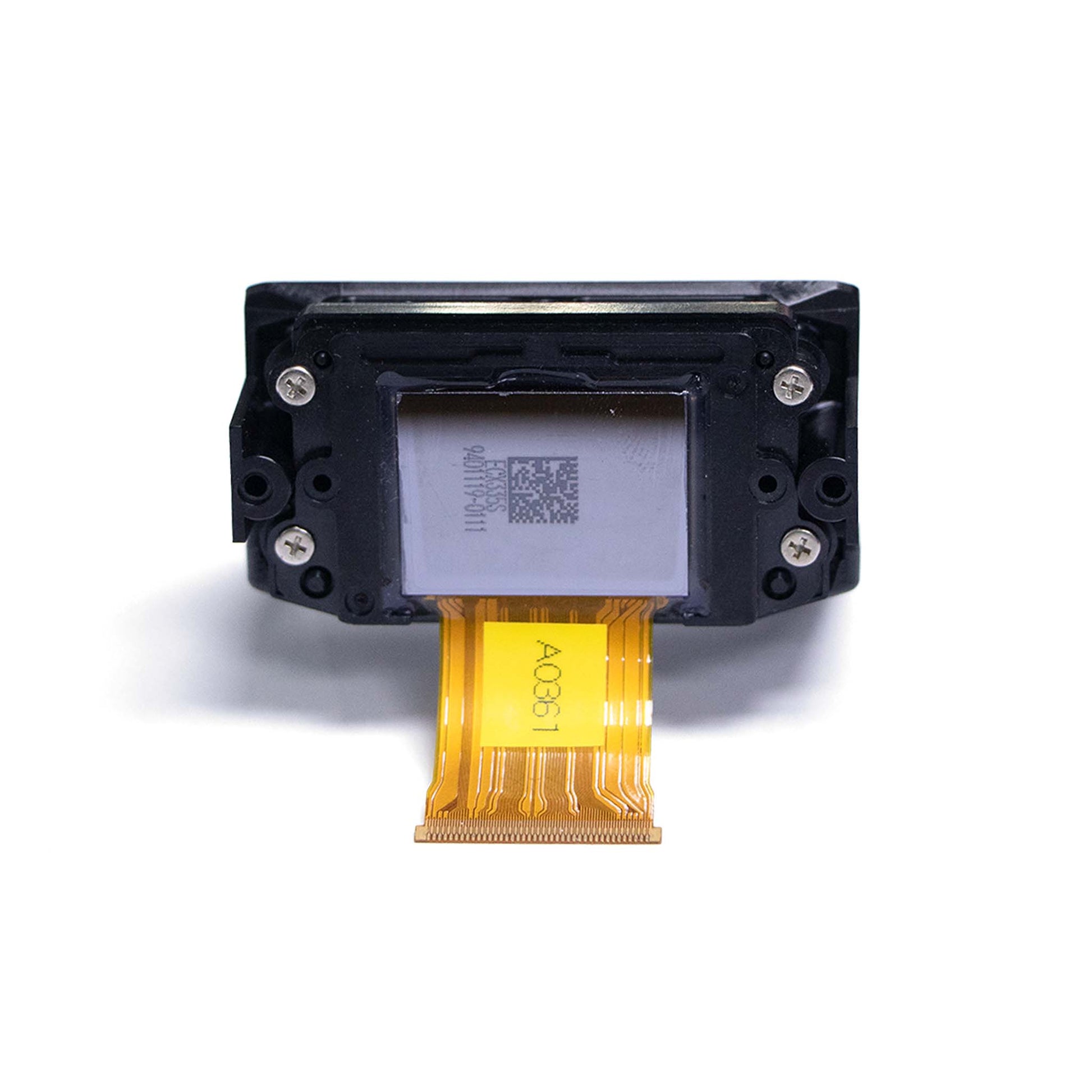

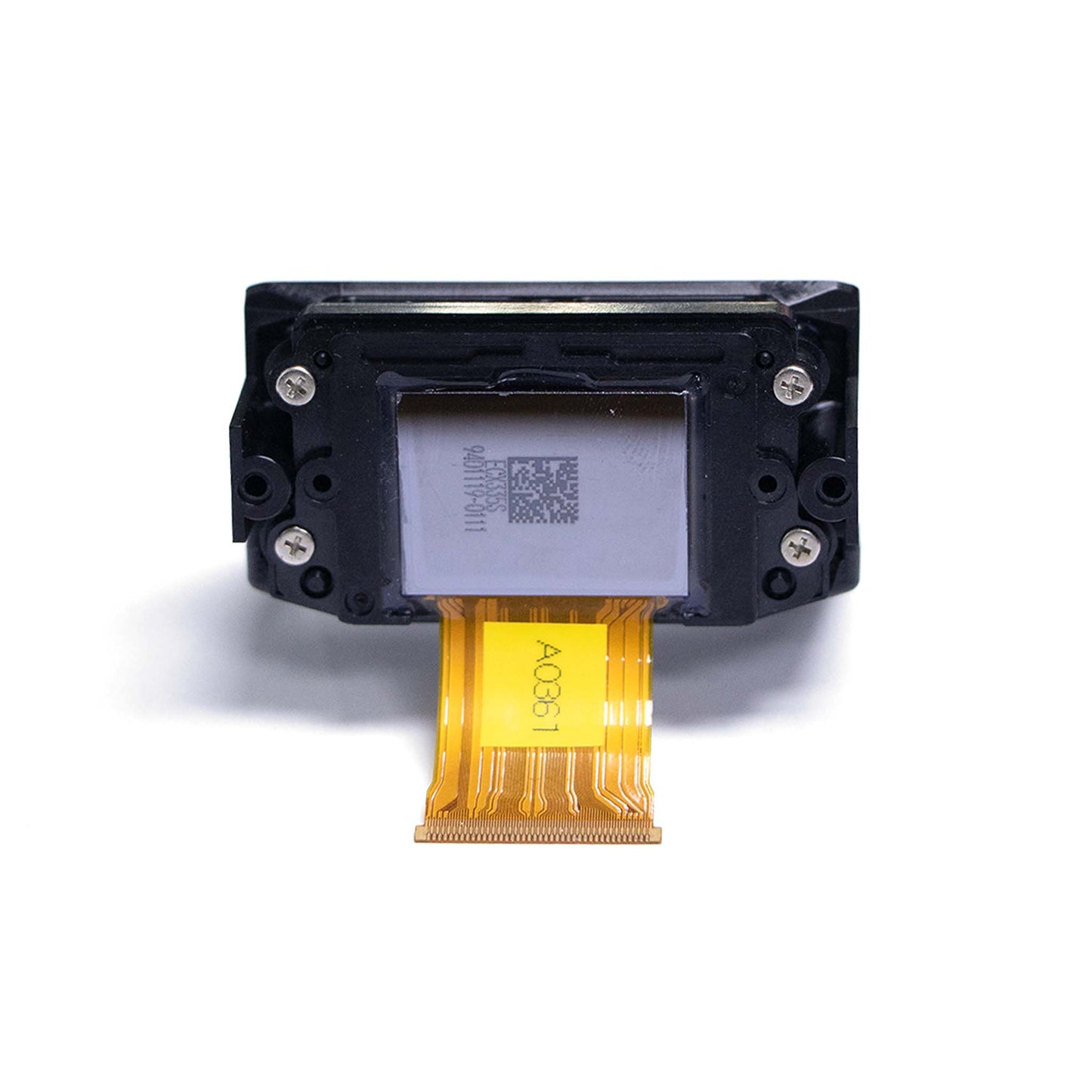

Photo of the interface location of Birdbath optical module for augmented reality

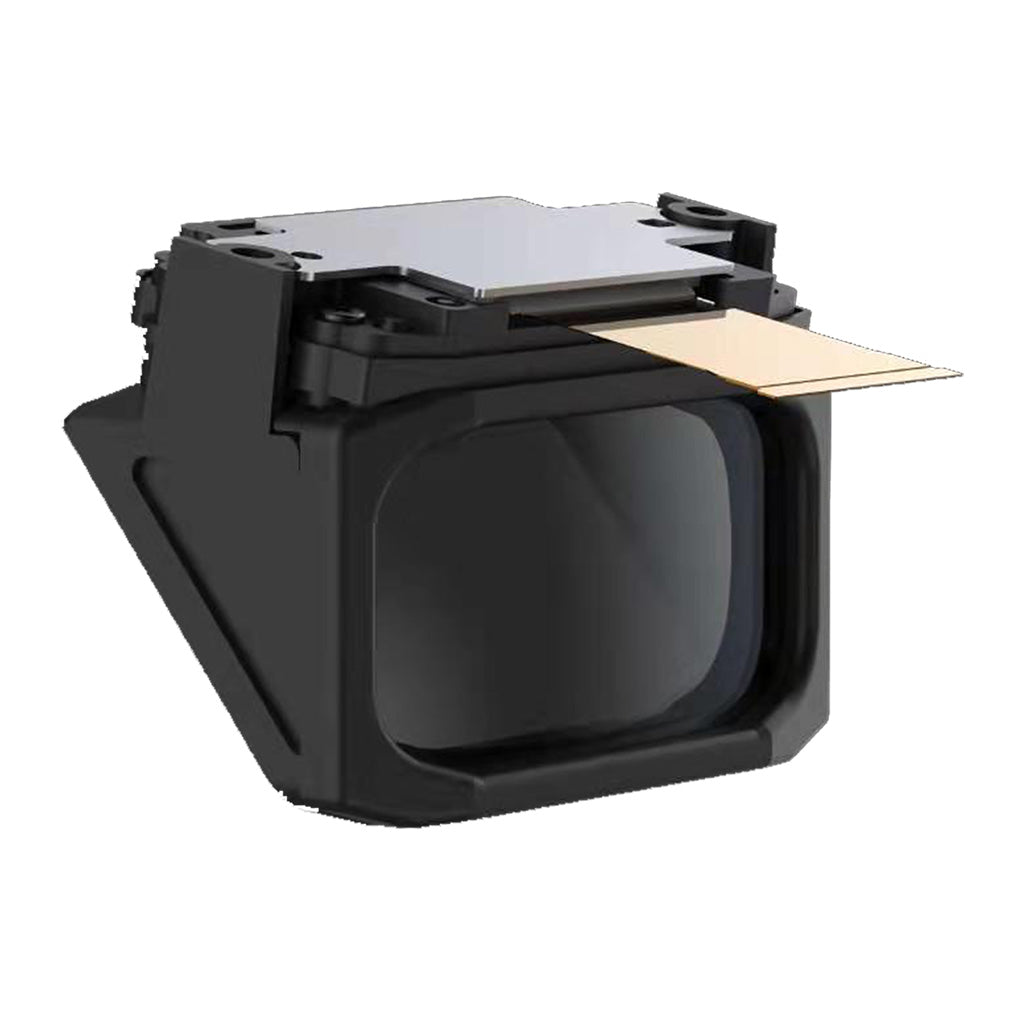

Model rendering of Birdbath optical module for augmented reality

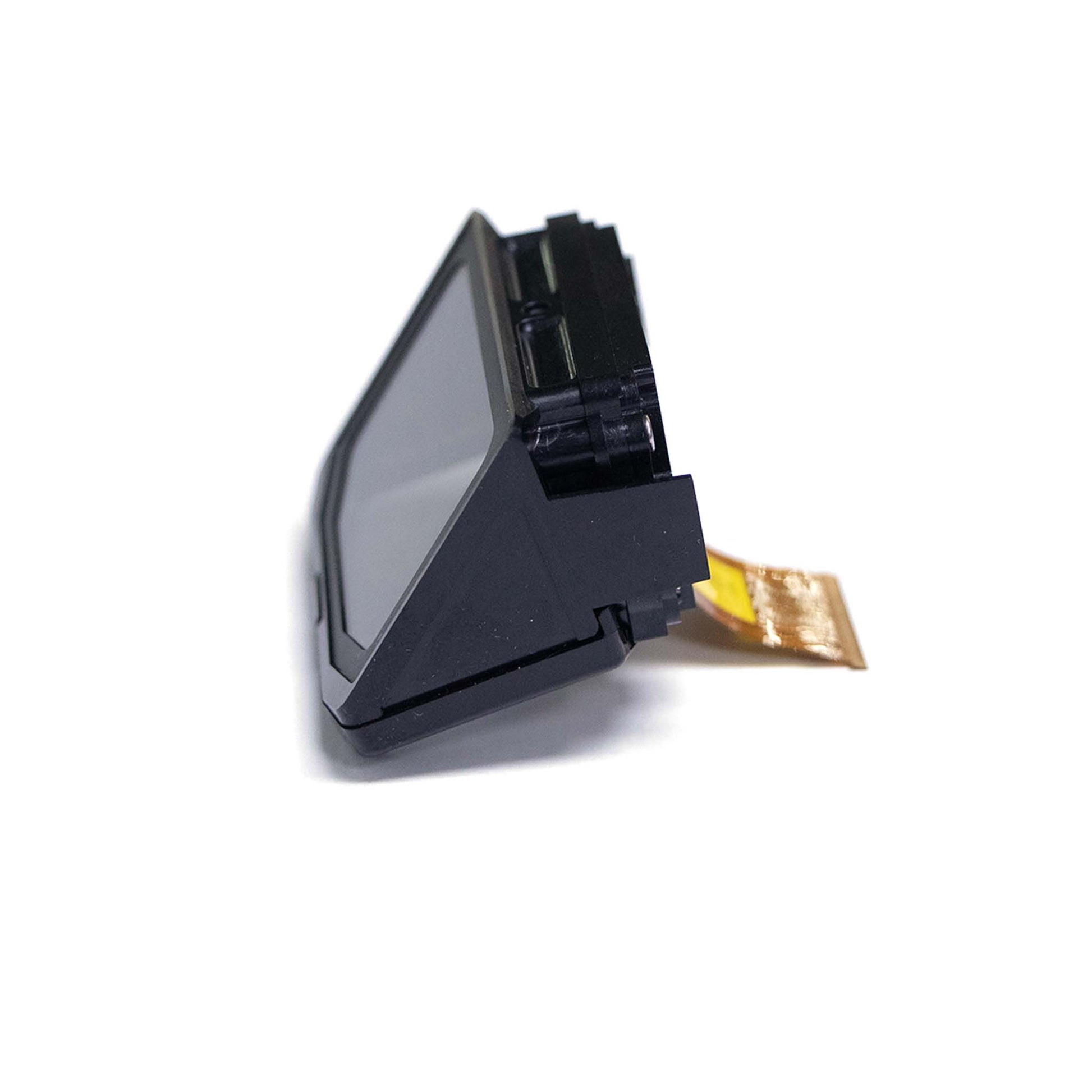

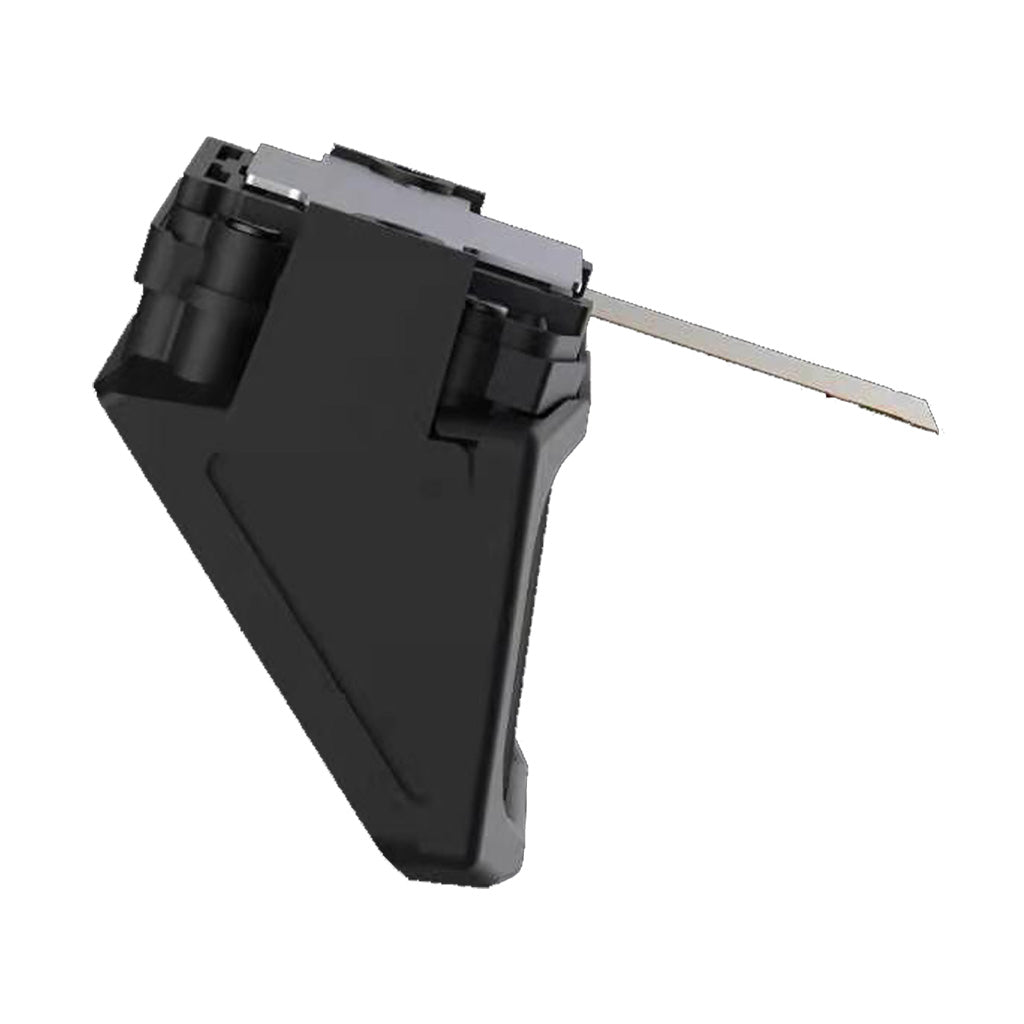

side of Model of Birdbath optical module for augmented reality

Birdbath 1920x1080 AR(Augmented Reality) Optical Module-FOV 42 degree - LVDS

SKU: DM-AR07-42

$1,499.00

💹 Enjoy a 20% discount for orders over 500
📉 A 15% discount is available for orders ranging from 200 to 499
🎁 A 10% discount is available for orders ranging from 50 to 199
🎁 A 5% discount is available when ordering 10-49

Interested in customizing this product? Get in touch with us.

Order samples, immediate delivery.

Factory bulk lead time: 3 weeks.

Item: Two Screen

Two Screen Single Screen

Share

Birdbath 1920x1080 AR(Augmented Reality) Optical Module-FOV 42 degree - LVDSTwo Screen

$1,499.00

Birdbath 1920x1080 AR Optical Module - FOV 42° - LVDS

Product Details

Revolutionizing AR experiences with precision optics and advanced display technology. This modular solution features a 0.7-inch diagonal 1920x1080 AMOLED panel, delivering stunning visuals in a compact form factor optimized for AR/VR applications.

FIELD OF VIEW (FOV)

42°

VIRTUAL IMAGING SIZE

100-inch @4m

EYE RELIEF

15-20mm

RESOLUTION

1920x1080 RGB

Featuring a birdbath optical system with 26% transmittance (customizable), this module provides exceptional image quality with:

3000 cd/m² Peak Brightness for outdoor readability
100,000:1 Contrast Ratio for vivid visuals
LVDS Interface for seamless integration
-20℃ to 70℃ Operating Temp for rugged environments

Product Specifications

Technical Parameter	Specification
Display Technology	Active Matrix Color OLED
Panel Size	0.7 inch
Resolution	1920x1080 RGB
Refresh Rate	60Hz
Luminance	3000 cd/m² (Max)
Contrast Ratio	100,000:1
Interface	LVDS
Operating Temp	-20℃ to 70℃
Storage Temp	-30℃ to 80℃
Weight	14g
