Dimensions

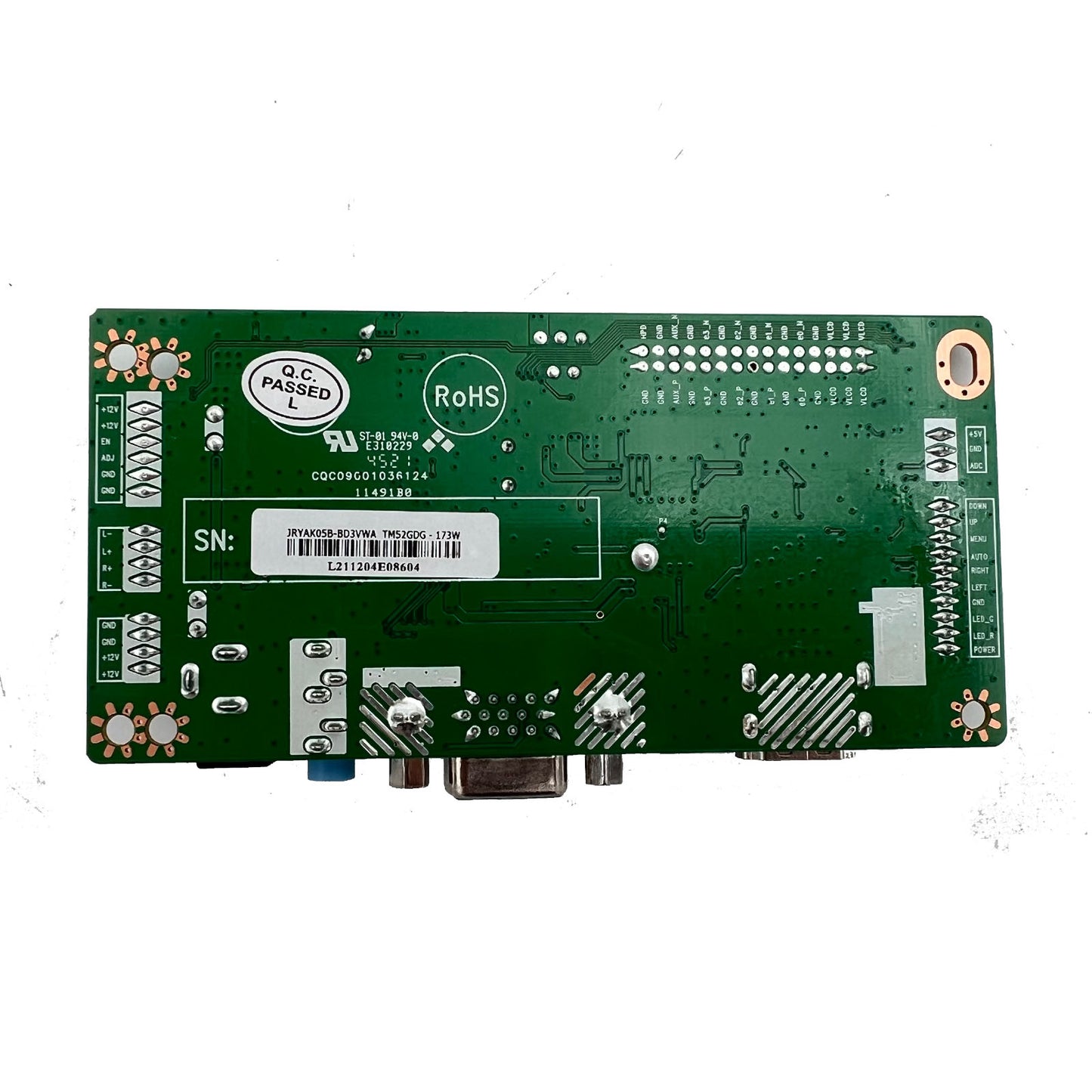

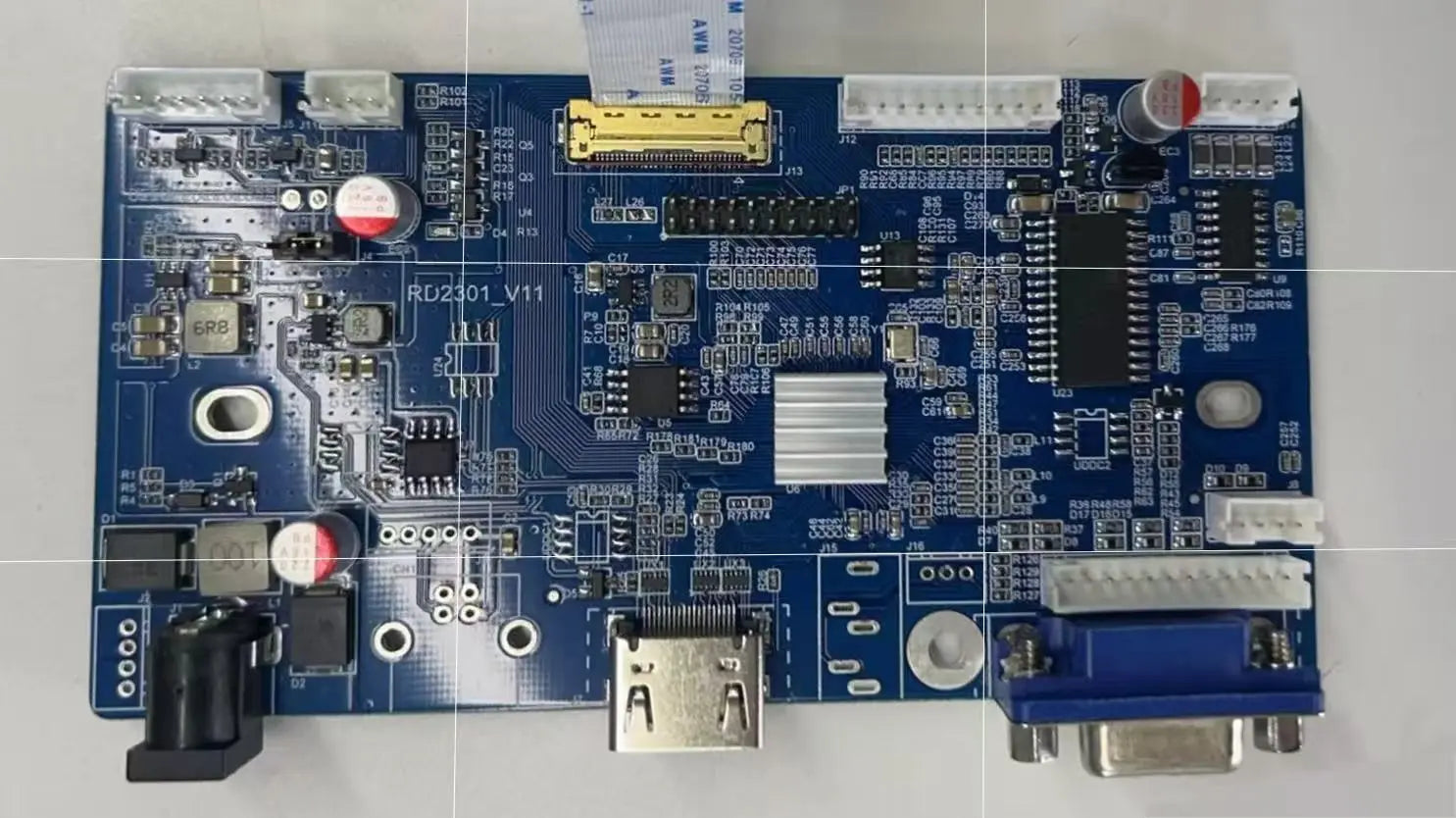

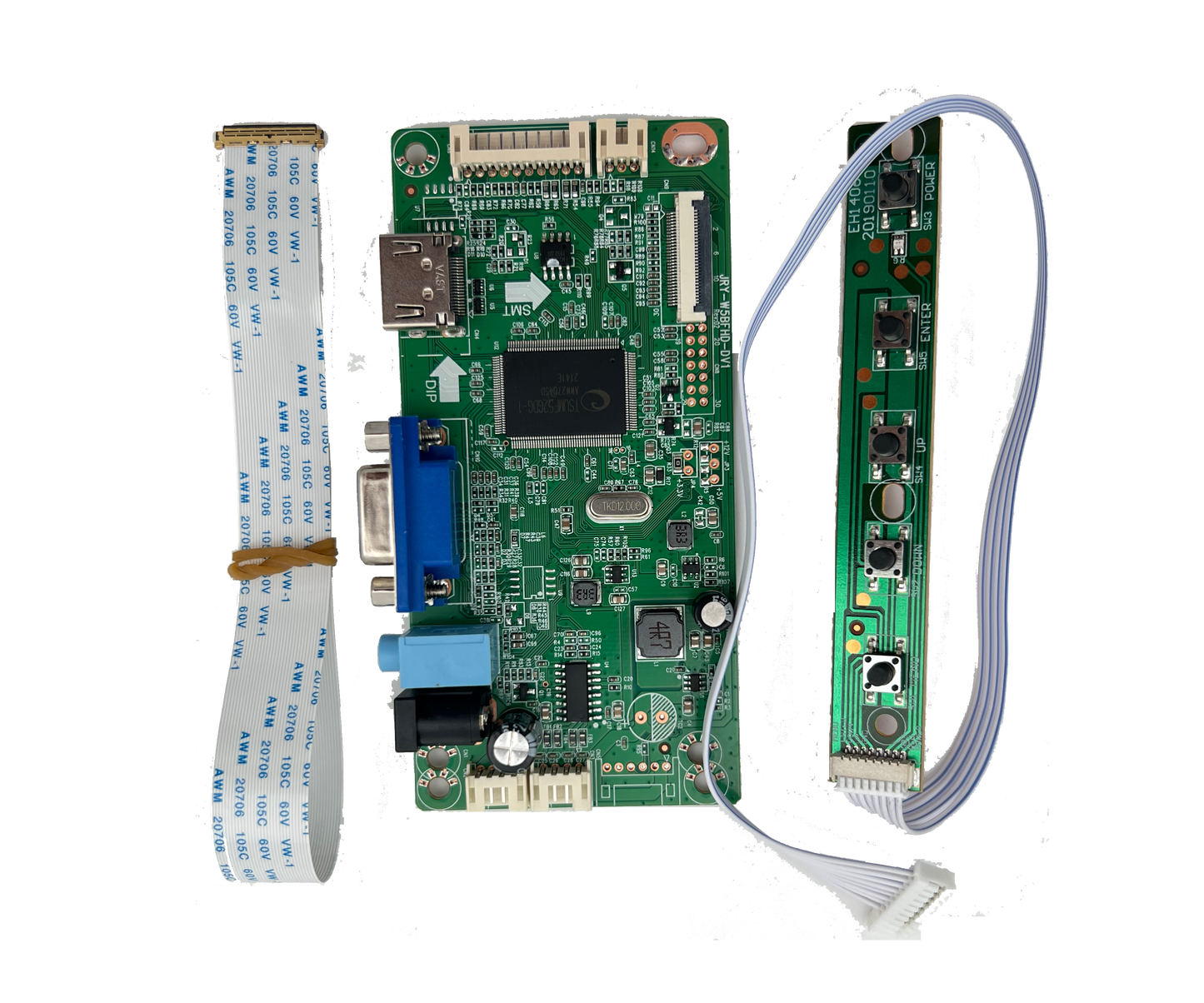

Display Adapter for HDMI to eDP
This adapter bridges HDMI/VGA inputs to eDP outputs, enabling seamless connectivity for LCD displays. It processes analog RGB and HDMI signals, supporting high-resolution video and audio for versatile applications in electronics and embedded systems.
Designed for reliability, the adapter integrates OSD controls, IR remote support, and UART communication. It ensures broad compatibility with Windows, macOS, and Raspberry Pi systems, making it ideal for developers and integrators.
- HDMI/VGA Input: Supports max 1920x1200@60Hz resolution for crisp video quality.
- eDP Output: Delivers 1920x1200@60Hz to compatible LCD screens.
- Audio Support: 100Hz-18000Hz frequency range with 2x3W output power.
- OSD Controls: 7-key interface for on-screen display adjustments.
- UART Communication: Enables serial data exchange for advanced configurations.
| Parameter | Specification |
|---|---|
| Supported Resolution | 1920x1080, 1920x1200 |
| Video Input (HDMI) | Max 1920x1200@60Hz |
| Video Input (VGA) | Max 1920x1200@60Hz |
| Video Output (eDP) | 1920x1200@60Hz |
| Audio Frequency | 100Hz-18000Hz |
| Audio Output Power | 2x3W (4Ω, THD<10%) |
| OS Support | Windows, macOS, Raspberry Pi |
| Power Supply Voltage | 9V - 14V (Typ. 12V) |
| Dimensions (L x W) | 107.0 x 55.0 mm |
| Operating Temperature | -20°C to 75°C |
Customize adapters for specialized requirements, including unique interfaces, industrial designs, and bulk deployments. Our solutions ensure seamless integration into your projects.
- Input/Output Customization: Tailor interfaces (e.g., HDMI, DisplayPort, USB-C, LVDS, MIPI DSI).
- Functional Enhancements: Add signal conversion, voltage regulation, multi-screen sync, or touch integration.
- Industrial Design: Waterproof, dustproof, shockproof enclosures with custom branding.
- Bulk Procurement: Volume discounts and dedicated support for wholesale orders.
Integrate into industrial control panels, kiosks, and medical devices requiring reliable display connectivity.
Enable HDMI/VGA to eDP conversion in monitors, all-in-one PCs, and portable displays.
Facilitate testing and integration for engineers working with LCD panels and display technologies.
This adapter works seamlessly with:
- DM-TFT133-357 - 13.3" 1920x1080 IPS Display Panel
Documentation: Access detailed specifications and integration guides.
Resources: Download Full Datasheet
Customization Support: Explore Adapter Customization Options
