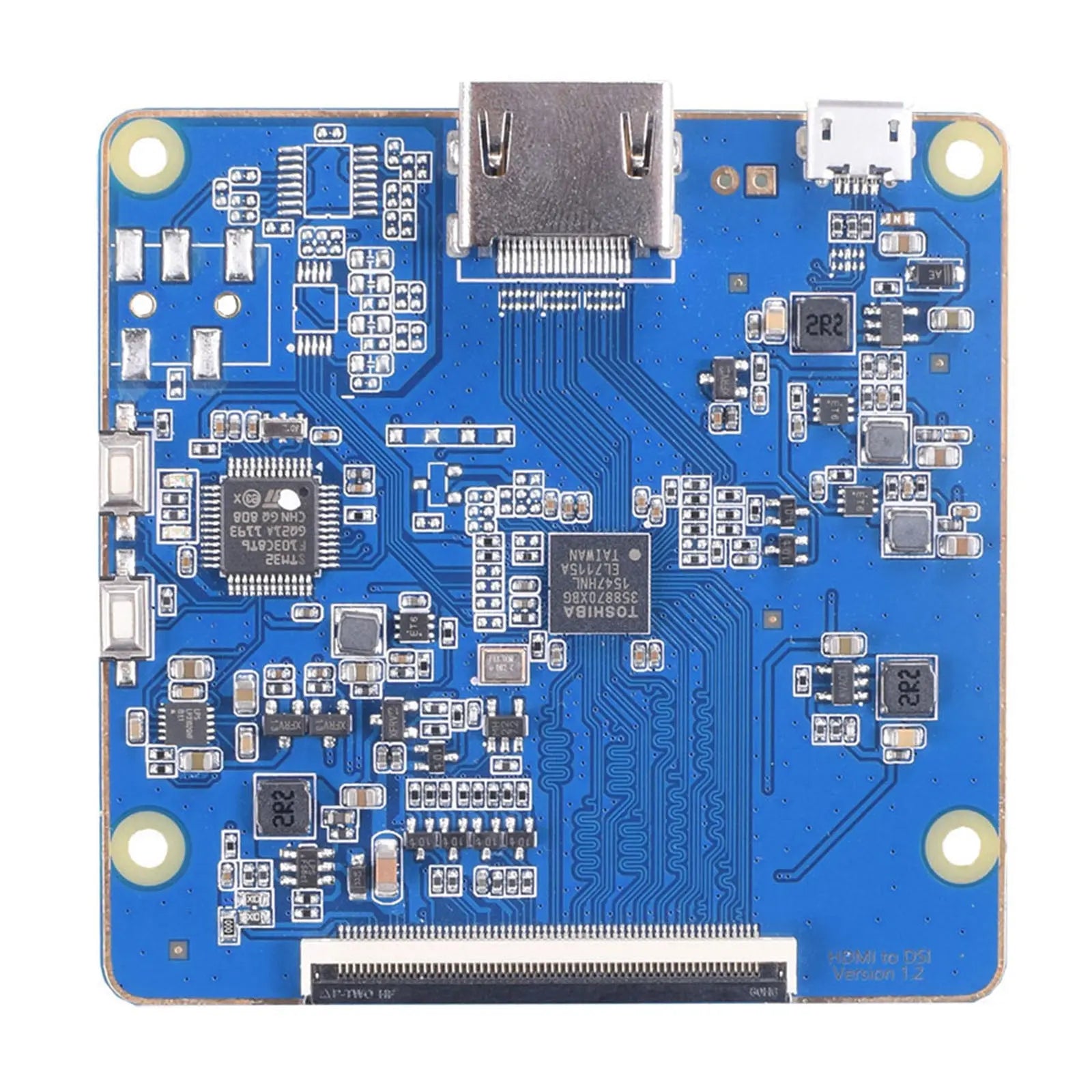

Adapter for converting HDMI input to MIPI DSI output for displays

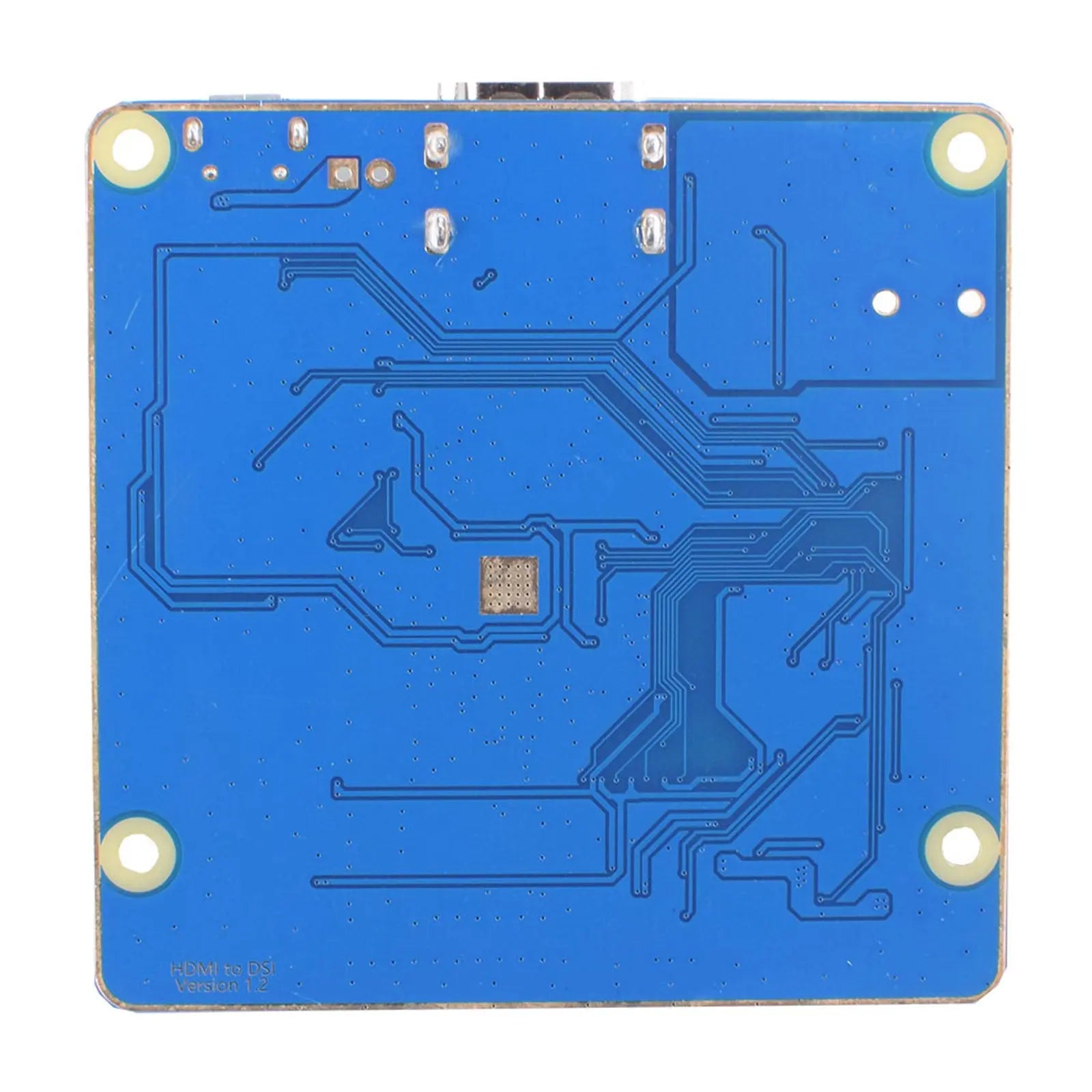

back of Adapter for converting HDMI input to MIPI DSI output for displays

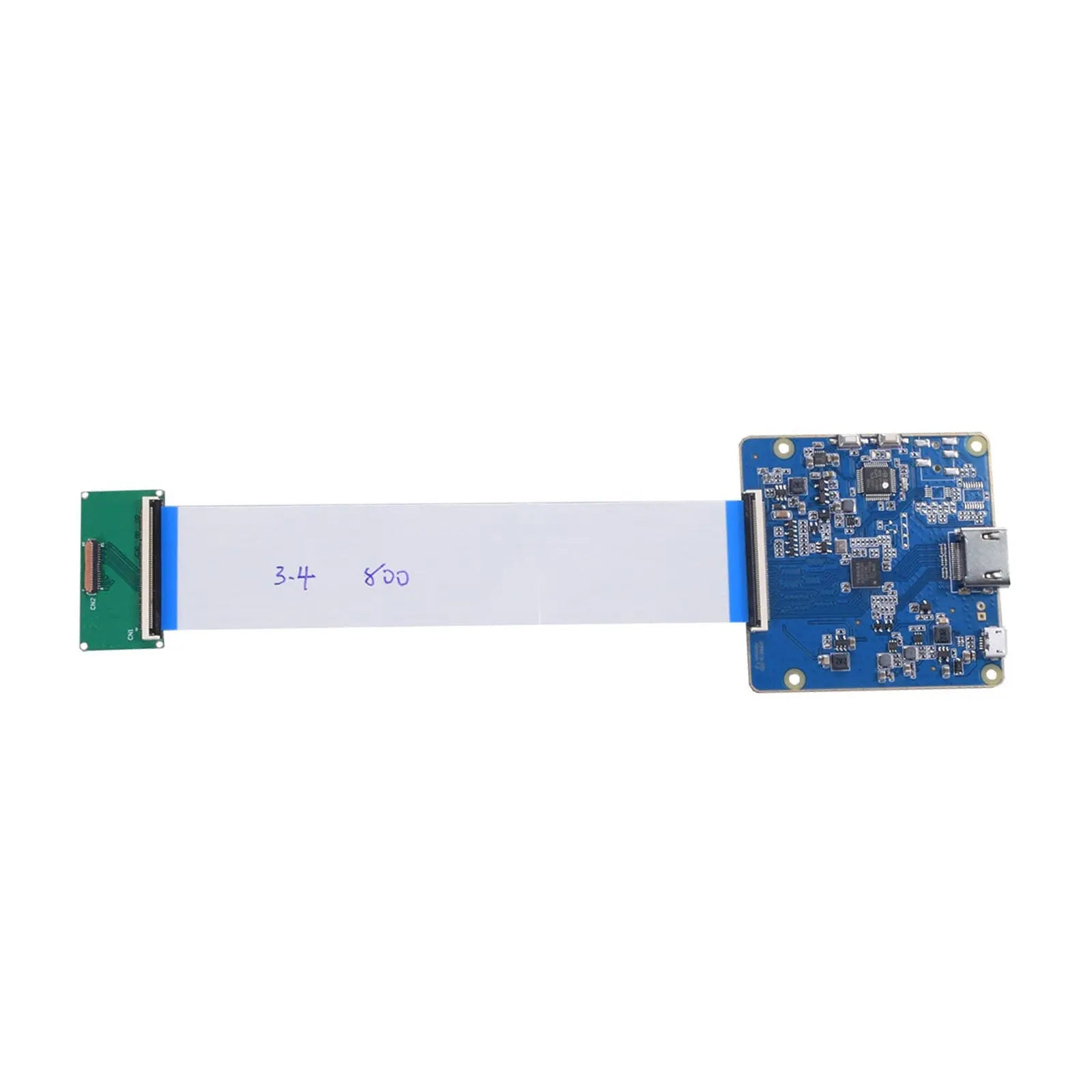

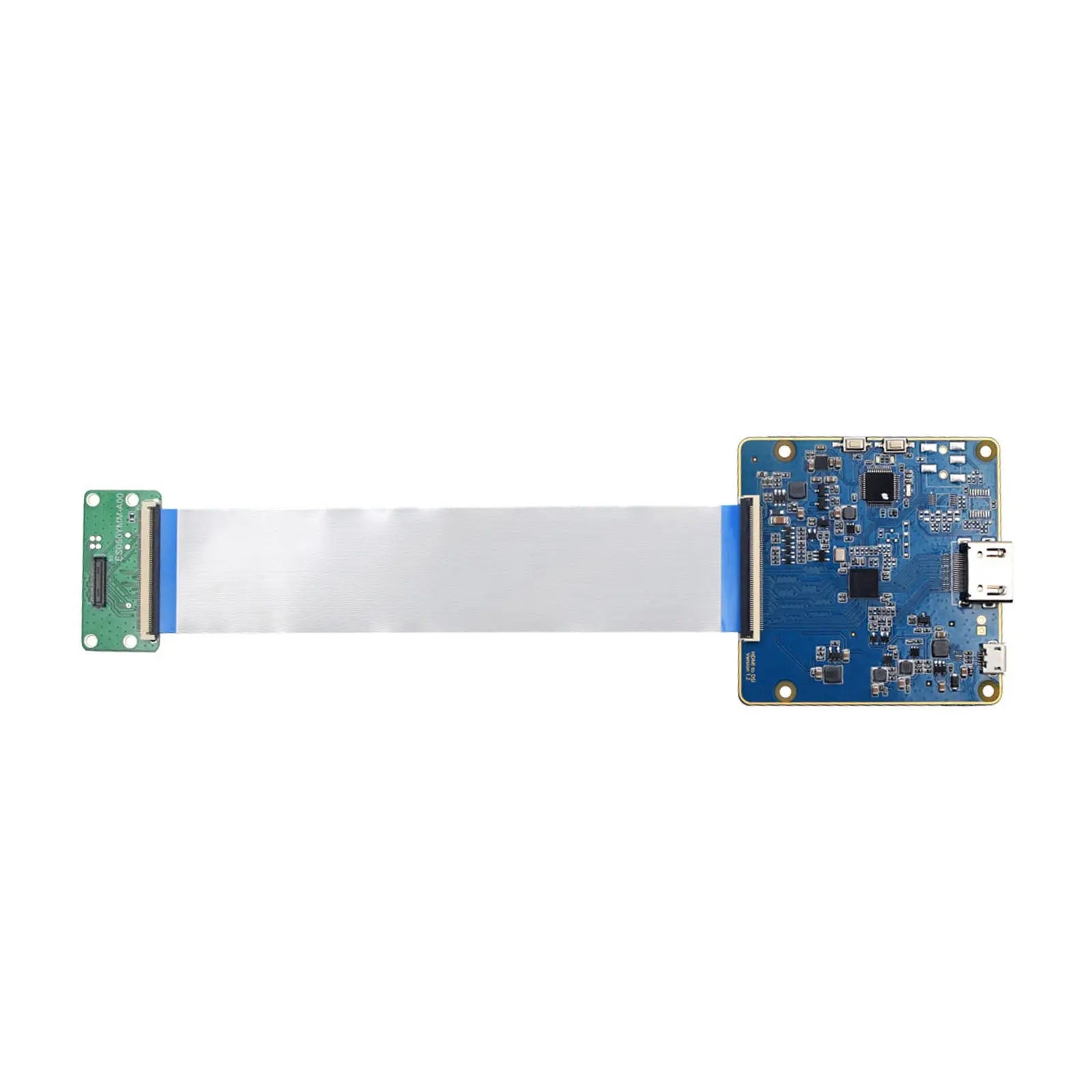

Adapter for converting HDMI input to MIPI DSI output for displays with long cable
HDMI to MIPI adapter board for 3.4-inch round screen

Display Adapter for HDMI to MIPI DSI

Regular price $99.00
Sale price $99.00 Regular price $109.00
Datesheet:
for 3.4 TFT
for 5.0 TFT
for 5.5 TFT
for 3.81 AMOLED
  • Type:
  • Availability:
    In Stock
  • SKU:
    DM-ADTTR-014
1 pcs original price
5 pcs 8% off
10 pcs 10% off

Customization & Manufacturing

Adapter Custom

Sometimes standard interfaces or adapters may not meet your special needs. We provide custom adapter service for this, make sure you can easily connect our screen with your device perfectly.

Prototype, Pilot Production, Mass Manufacturing

DisplayModule is a subsidiary of NexPCB, thanks to NexPCB's rich experience in design, prototype, mass production, we confidently declare that we can provide one-stop service.

Contact Form

I'm reaching out to DisplayModule because...

Product description

Board Specifications

This adapter consists of three parts: one driver board, one FPC cable, and one display connect board.

  • Adapter Function: HDMI to  4lane  MIPI DSI Driver
  • Supply Voltage:4.5-5.5v
  • Input Interface: A TYPE 2.0 , HDMI1.4
  • Output Interface: 4lane MIPI DSI, 60pin
  • Outline L x W x H: 65x64 mm
  • Driver IC: TOSHIBA TC358870XGB
  • Maximum Resolution: 2160 * 3840(30HZ)
  • Display model (Double Screen): -
  • OS: Windows, RaspberrPi, and Mac  (if you want to use the Mac OS, please contact us)

Resources

Applications

This Adapter can work with:


Product reviews
