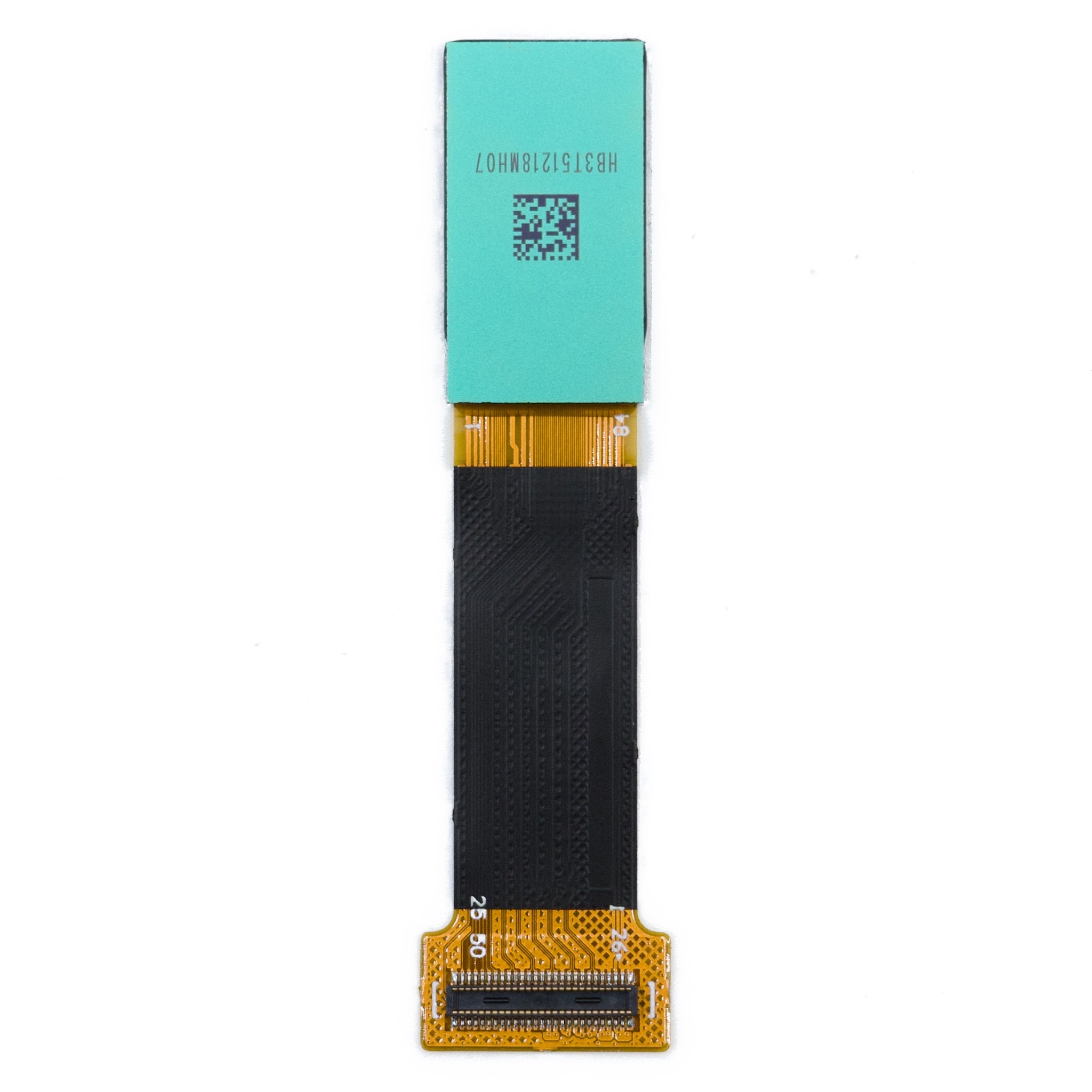

0.71" AMOLED Microdisplay 1920×1080 FHD – Ultra-High PPI Silicon-Based Near-Eye Display
The DMYGTMA is a 0.71-inch silicon-based active AMOLED microdisplay delivering Full HD 1920×1080 resolution in an ultra-compact form factor. Built on a single-crystal silicon substrate with integrated pixel circuits and driver IC, it achieves extremely low power consumption while providing outstanding clarity for near-eye optical systems. With a PPI up to 3135 and refresh rate up to 90 Hz, this module is a premium display core for next-generation AR/VR and high-precision viewfinder solutions.
Featuring hexagonal sub-pixel arrangement, 16.7M colors, and high contrast (>10000:1), the DMYGTMA produces vivid images with deep blacks and clean highlight separation. It also integrates brightness control, temperature compensation, and uniformity compensation to ensure stable luminance and consistent color under changing environments. The built-in VESA-DSC decoder supports 3× / 3.75× compression, and onboard scaling allows 1440×810 or 1280×720 sources to be expanded to FHD output—ideal for bandwidth-limited wearable platforms.
- FHD Near-Eye Clarity: 1920×1080 active pixels in a 0.71" diagonal for extremely fine detail viewing.
- Ultra-High PPI: 3135 PPI provides razor-sharp edges and smooth text in optical magnification systems.
- High Contrast AMOLED: Contrast ratio >10000:1 for rich black levels and strong depth perception.
- 90Hz Refresh Support: Up to 90Hz for smooth motion (90Hz mode supports 1280×720 input).
- MIPI + DSC + Scaling: 4-lane MIPI input with DSC decode and 1.33× / 1.5× scaling flexibility.
| Technical Parameter | Specification |
|---|---|
| Display Type | Color Silicon-Based AMOLED Microdisplay |
| Diagonal Size | 0.71 inch |
| Resolution | 1920 × 1080 (Active Pixels: 1952 × 1112) |
| Pixel Density | 3135 PPI |
| Pixel Arrangement | Hexagonal |
| Active Area (AA) | 15.81 × 9.00 mm |
| Gray Level | 256 Levels (8-bit) |
| Colors | 16.7M Colors |
| Refresh Rate | 60 ~ 90 Hz (90 Hz @ 1280×720 input) |
| Brightness | 3000 ±10% cd/m² (W255 Standard) |
| Uniformity | > 85% (9-point) |
| Contrast Ratio | > 10000:1 |
| Color Gamut | > 87% DCI-P3 |
| Interface | MIPI DSI (2/3/4-lane selectable) + I²C control |
| Digital Supply (VDDI) | 1.8 V |
| Analog Supply (AVIDD) | 5.0 ~ 5.5 V |
| Analog Supply (AVEE) | -5.0 ~ -6.5 V |
| Operating Temperature | -45°C ~ +65°C |
| Storage Temperature | -50°C ~ +70°C |
| Connector | Hirose DF40C-50DP-0.4V (51), 50-pin |
DMYGTMA is engineered for premium near-eye products requiring FHD clarity, high PPI, and stable luminance control. DisplayModule offers full OEM/ODM collaboration to accelerate your optical engine and wearable development.
- Optical Engine Co-Design: Support for waveguide / birdbath / pancake optics matching and FOV tuning.
- DSC & Timing Bring-Up: Assistance with MIPI-DSI configuration, DSC decode enable, and refresh optimization.
- Image Calibration: Brightness/contrast/gamma tuning plus uniformity compensation for mass production.
- Long-Term Supply: Stable lifecycle plan for industrial, medical, and defense near-eye systems.
FHD microdisplay core for next-gen AR/VR eyewear requiring high PPI and compact optical engines.
Ideal for high-end camera EVFs, thermal imaging viewfinders, and precision optical scopes.
Suitable for simulation, training, and industrial HMD products with wide temperature stability.
Used in portable inspection devices and medical viewing systems needing sharp detail and stable color.
The DMYGTMA supports MIPI-DSI video transmission with 2/3/4-lane configurations, and uses I²C for command/configuration when required. Standard burst-mode video, on-chip DSC decode, and selectable scan directions simplify integration into compact SoC/FPGA wearable platforms.
- MIPI DSI Video Input: 4-lane @ 60Hz recommended, HS speed up to 1.0Gbps per lane.
- I²C Control Channel: Register access for brightness, gamma, lane swap, scan direction, and scaling.
- DSC Compression: VESA-DSC on-chip decoder supports 3× / 3.75× compression for bandwidth savings.
- Scaling Support: 1.33× (1440×810 → FHD) and 1.5× (1280×720 → FHD) input scaling.
Technical Documentation: The official datasheet includes full electrical specs, MIPI timing, DSC/scaling setup, register map, optical performance, and mechanical drawings.
Datasheet: Download DMYGTMA Datasheet (PDF)
Design Support: Contact our engineering team for MIPI bring-up, DSC enable scripts, optical matching, and volume customization.
