1.78" 368×448 AMOLED Display Specifications

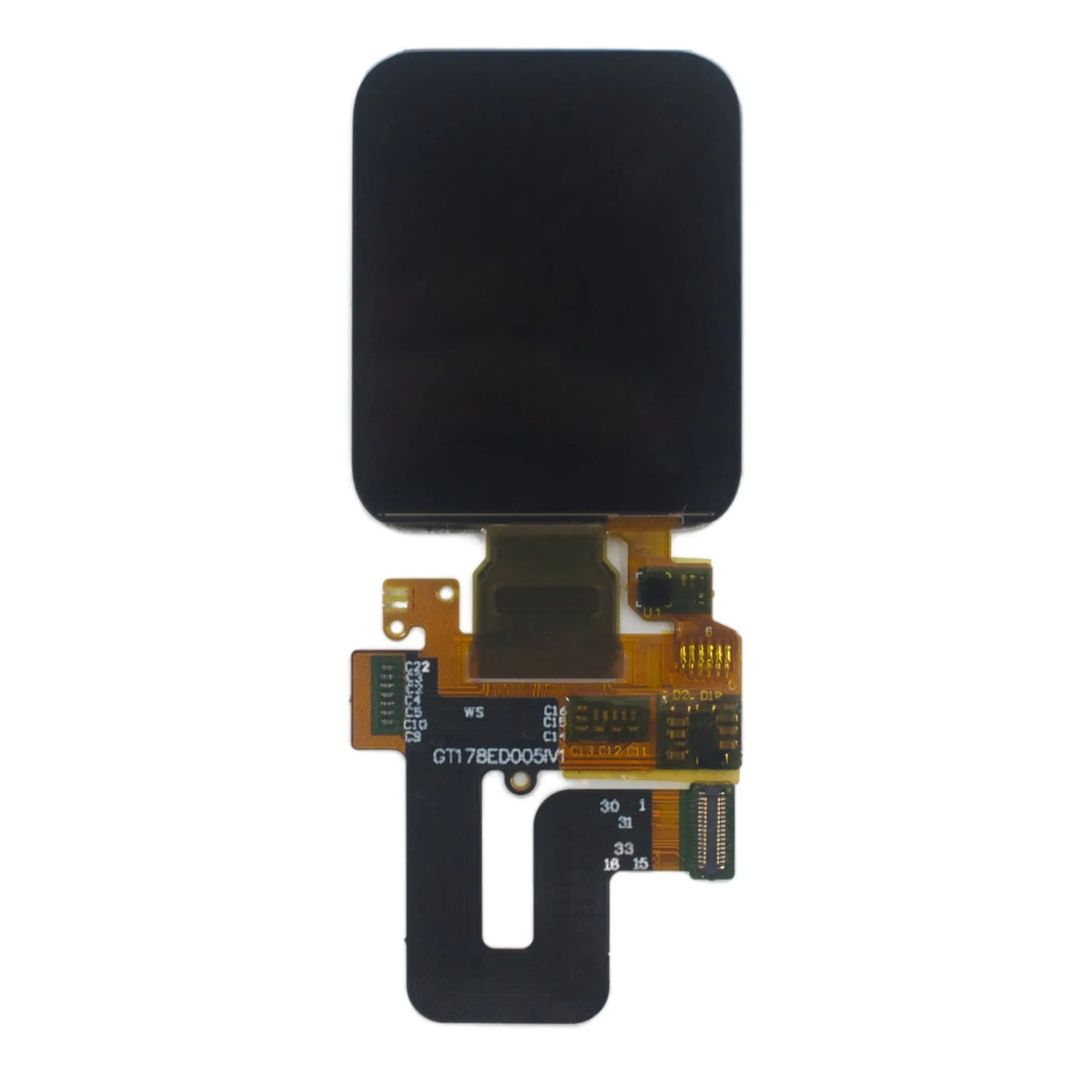

The DMGXO0178X3NA is a 1.78-inch AMOLED display featuring 368×448 resolution, Real RGB pixel layout, and MIPI/SPI dual interface. It integrates an ICNA3311 display IC and CHSC5816 touch IC for On-cell CTP support. With its ultra-slim 0.804 mm profile, this module is perfect for smartwatches, fitness trackers, and wearable user interfaces.
Parameter | Specification | Unit |
---|---|---|
Screen Size | 1.78 | inch |
Resolution | 368 × 448 | pixels |
Display Mode | AMOLED Active Matrix | - |
Pixel Pitch | 0.026 × 0.078 | mm |
Display Colors | 16.7M | colors |
Color Arrangement | Real RGB | - |
Interface | MIPI / SPI | - |
Viewing Direction | All | - |
Active Area | 28.70 × 34.94 | mm |
Module Dimensions | 30.6 × 37.99 × 0.804 | mm |
Touch Screen | On-cell (Without Cover Lens) | - |
Display Driver IC | ICNA3311 | - |
Touch Driver IC | CHSC5816 | - |
Mechanical Dimensions

Technical Resources
