Binocular AR glasses with birdbath optical module, 1920x1080 resolution, and 47° field of view (FOV), connected via LVDS

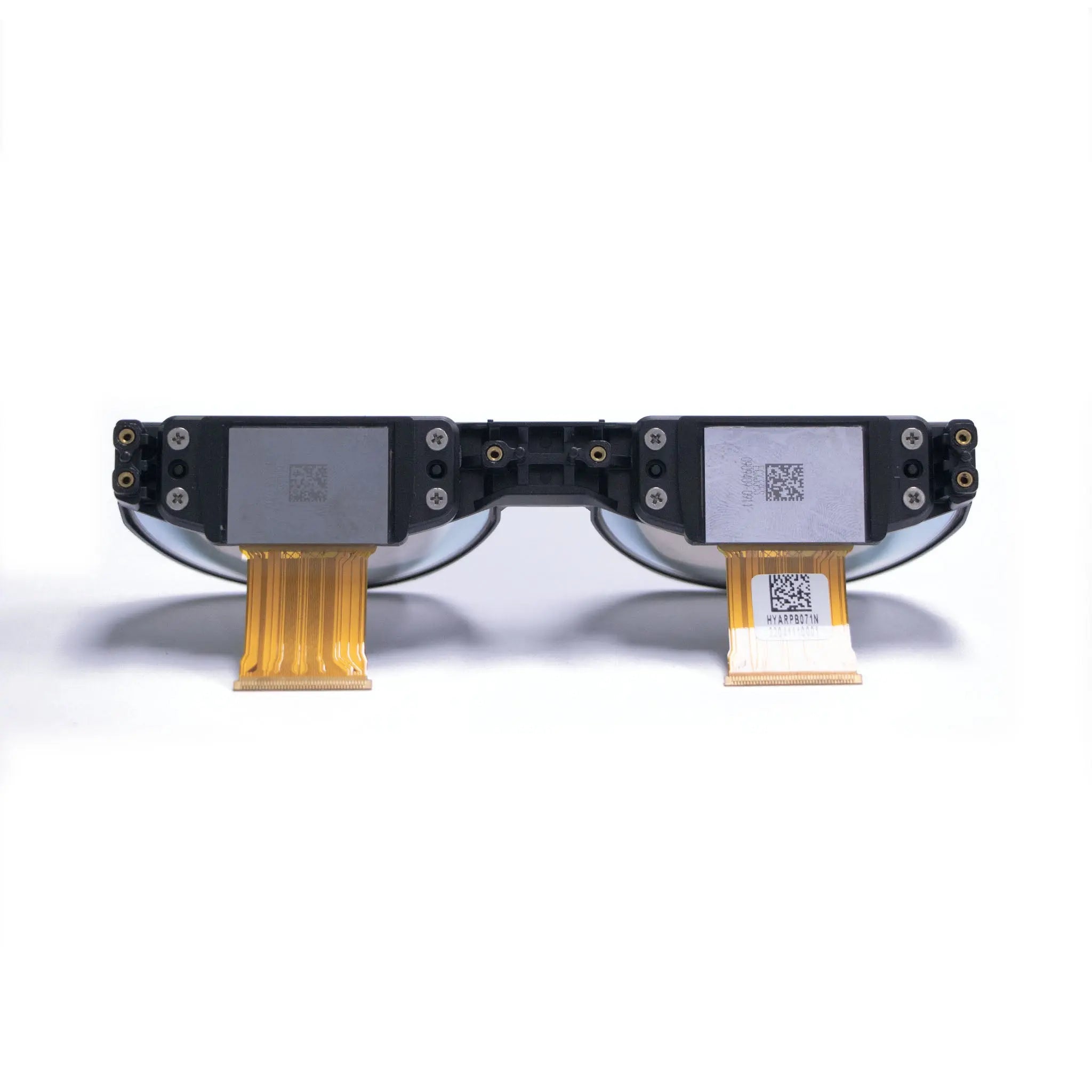

back of Binocular AR glasses with birdbath optical module

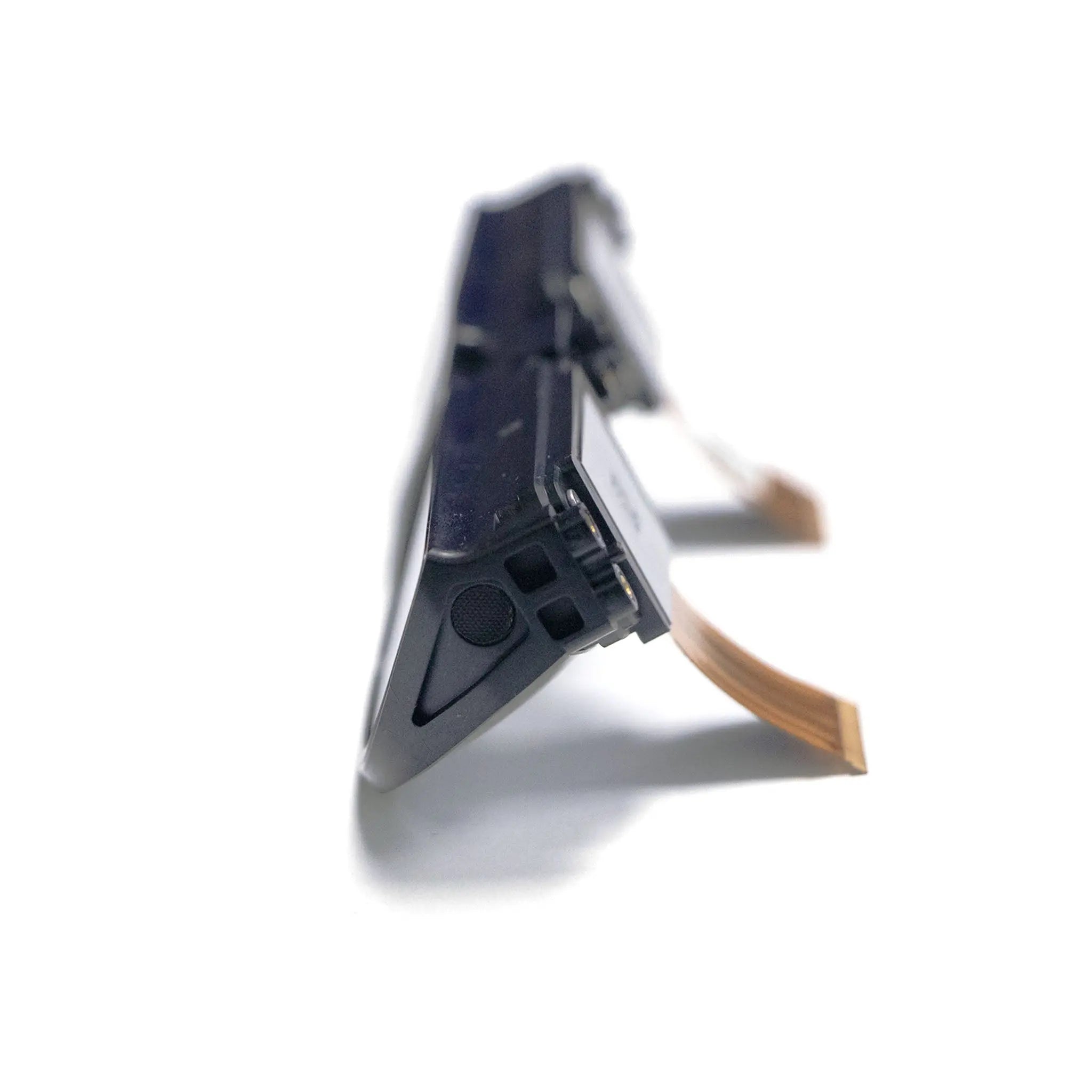

side of Binocular AR glasses with birdbath optical module
Binocular AR glasses with birdbath optical module Model rendering
Binocular AR glasses with birdbath optical module and adapter
Binocular AR glasses with birdbath optical module, 1920x1080 resolution, and 47° field of view (FOV), connected via LVDS
back of Binocular AR glasses with birdbath optical module
side of Binocular AR glasses with birdbath optical module
Binocular AR glasses with birdbath optical module Model rendering
Binocular AR glasses with birdbath optical module and adapter

鸿蚁光电+DP转tpye C的线材

Binocular AR Glasses Birdbath 1920*1080 47° FOV Optical Module - LVDS

Module Specifications

  • FOV: 47 degree
  • PPD: 47
  • Virtual imaging size: 136"@4m
  • Eyebox: 14x8mm
  • Transmittance: 20-40%  (support customization)
  • Diagonal Dimension: 0.7 inch
  • Resolution: 1920RGBx1080 pixel
  • Refresh: 60fps
  • Luminance: Max 3000 cd/m2
  • Typical Contrast Ratio: 100,000:1
  • Interface: LVDS
  • Controller IC: -
  • Weight: 23g
  • Operation Temperature: -20℃~70℃
  • Storage Temperature: -30℃~80℃
  • Micro Display | Sony Micro OLED, 335SN

Dimensions

Resources

      $999.00
      Birdbath optical module for augmented reality with 1920x1080 resolution and a 42-degree field of view, connected via LVDS
      External view of Birdbath optical module for augmented reality
      Photo of the interface location of Birdbath optical module for augmented reality
      Model rendering of Birdbath optical module for augmented reality
      side of Model of Birdbath optical module for augmented reality
      Birdbath optical module for augmented reality with 1920x1080 resolution and a 42-degree field of view, connected via LVDS
      External view of Birdbath optical module for augmented reality
      Photo of the interface location of Birdbath optical module for augmented reality
      Model rendering of Birdbath optical module for augmented reality
      side of Model of Birdbath optical module for augmented reality

      DisplayModule

      Birdbath 1920x1080 AR(Augmented Reality) Optical Module-FOV 42 degree - LVDS

      Module Specifications

      • FOV: 42 degree
      • Virtual imaging size: 100 inch @4m
      • Eyebox: 17x10mm @15 mm eye relief
      • Eye relief: typ.15-20mm
      • Transmittance: 26%  (support customization)
      • Diagonal Dimension: 0.7 inch
      • Resolution: 1920RGBx1080 pixel
      • Refresh: 60fps
      • Luminance: Max 3000 cd/m2
      • Typical Contrast Ratio: 100,000:1
      • Interface: LVDS
      • Controller IC: -
      • Weight: 14g
      • Operation Temperature: -20℃~70℃
      • Storage Temperature: -30℃~80℃
      • Micro-Display | Sony Micro OLED, 335SN

      Resources

      $1,499.00
      2.1 inch 1600x1600 Fast Switch LCD display module designed for myopia VR, utilizing MIPI interface
      2.1 inch 1600x1600 Fast Switch LCD display module designed for myopia VR, utilizing MIPI interface

      鸿蚁光电

      2.1" 1600x1600 Fast Switch LCD Myopia VR Display Module - MIPI

      Module Specifications

      • FOV: 100 degree
      • Exit Relief: 10 mm
      • Eyebox: 8 mm
      • Distortion: 26%
      • Myopia: 0-800 degree
      • Thickness 21.2 mm
      • Diagonal Dimension: 2.1 inch
      • Resolution: 1600RGB x 1600 pixel
      • Refresh: 90fps
      • Typical Contrast Ratio: 700:1
      • Interface: MIPI
      • Luminance: 450 cd/m2
      • Drive IC: HX8379-C
      • Operation Temperature: -10°C~ +55°C
      • Storage Temperature : -40°C~ +70°C

      Resources

      $1,999.99
      Augmented Reality Optical Waveguide Module with a resolution of 1280 by 720 pixels
      Augmented reality waveguide module as viewed from the human eye's perspective
      AR display module as viewed from a bystander's perspective
      Side view of a AR display module
      AR Optical Waveguide Module 1280x720
      Augmented Reality Optical Waveguide Module with a resolution of 1280 by 720 pixels
      Augmented reality waveguide module as viewed from the human eye's perspective
      AR display module as viewed from a bystander's perspective
      Side view of a AR display module
      AR Optical Waveguide Module 1280x720

      DisplayModule

      AR Optical Waveguide Module 1280x720

      The Waveguide Module is a high-performance optical device offering a 30° field of view, 1280 x 720 resolution, full-color RGB display, 800 nits brightness, and a 500:1 contrast ratio. It ensures over 80% brightness uniformity and an 8-bit grayscale for detailed visuals. With an eye movement range of 10x10mm, 85% transmittance, and imaging at an optically infinite distance, it provides an immersive, comfortable, and superior viewing experience.

      Board Specifications

      Parameter Specification
      Field of View 30°=26.16°(H)×14.71°(V)
      Resolution 1280 x 720
      Color Full-color RGB
      Brightness 800 nits
      Contrast Ratio 500:1 (FOFO)
      Brightness Uniformity Over 80%
      Grayscale 8-bit
      Eye Movement Range 10x10 (mm)
      Transmittance 85%
      Imaging Distance Optically Infinite

      Resources

      $999.00

      Integrate AR waveguide modules into your project

      15% discount for purchase of 1 piece or 100 pieces, stackable with other discounts

      Discover now

      Rapid Development Module for AR Glasses Waveguide

      Choose an AR optical kit for your project, and we will help you expedite product development

      Augmented Reality Optical Waveguide Module with a resolution of 1280 by 720 pixels
      Augmented reality waveguide module as viewed from the human eye's perspective
      AR display module as viewed from a bystander's perspective
      Side view of a AR display module
      AR Optical Waveguide Module 1280x720
      Augmented Reality Optical Waveguide Module with a resolution of 1280 by 720 pixels
      Augmented reality waveguide module as viewed from the human eye's perspective
      AR display module as viewed from a bystander's perspective
      Side view of a AR display module
      AR Optical Waveguide Module 1280x720

      DisplayModule

      AR Optical Waveguide Module 1280x720

      The Waveguide Module is a high-performance optical device offering a 30° field of view, 1280 x 720 resolution, full-color RGB display, 800 nits brightness, and a 500:1 contrast ratio. It ensures over 80% brightness uniformity and an 8-bit grayscale for detailed visuals. With an eye movement range of 10x10mm, 85% transmittance, and imaging at an optically infinite distance, it provides an immersive, comfortable, and superior viewing experience.

      Board Specifications

      Parameter Specification
      Field of View 30°=26.16°(H)×14.71°(V)
      Resolution 1280 x 720
      Color Full-color RGB
      Brightness 800 nits
      Contrast Ratio 500:1 (FOFO)
      Brightness Uniformity Over 80%
      Grayscale 8-bit
      Eye Movement Range 10x10 (mm)
      Transmittance 85%
      Imaging Distance Optically Infinite

      Resources

      $999.00
      Vertical projection version of AR optical module with a resolution of 1920 by 1080 pixels
      AR Optical Module 1920x1080 Vertical
      AR Optical Module 1920x1080 Vertical
      AR Optical Module 1920x1080 Vertical
      Vertical projection version of AR optical module with a resolution of 1920 by 1080 pixels
      AR Optical Module 1920x1080 Vertical
      AR Optical Module 1920x1080 Vertical
      AR Optical Module 1920x1080 Vertical

      DisplayModule

      AR Optical Module 1920x1080 Vertical

      The AW82 Waveguide Optical Module, equipped with a 40° field of view (35.2° horizontal and 20.2° vertical), employs a 0.55” LCOS with 1920 x 1080 RGB resolution, providing vivid and detailed visuals. It ensures a comfortable viewing experience with a 22mm exit pupil distance and an eye movement range of 12mm height by 10mm width. The module achieves impressive brightness of 1000 nits and a 200:1 contrast ratio, while maintaining a transmittance rate of over 85%, delivering high-quality images across various lighting conditions.

      Board Specifications

      Parameter Name Parameter Value
      Field of View 40°= 35.2°(H)×20.2°(V)
      Focal Length 21.5 mm
      F/# 0.51
      Image Source 0.55” LCOS 1920 x 1080 RGB 6.4um/pixel
      Eye Movement Distortion < 10' @max field
      Brightness 1000 nits
      Contrast Ratio 200:1 (FOFO)
      Exit Pupil Distance 22 mm
      Eye Movement Range 12mm Height x 10 mm Width
      Transmittance > 85%

      Resources

      Datesheet: ARM-105

      Schematic-PDF: ARM-105 Schematic-PDF

      Schematic-DSN: ARM-105-Schematic-DSN

      CAD: DM-ARM-105.stp

      $1,299.00
      Vertical Augmented Reality Optical Waveguide Module set with a resolution of 1920 by 1080 pixels
      AR Optical Waveguide Module 1920x1080 Vertical Set
      AR Optical Waveguide Module 1920x1080 Vertical Set
      Vertical Augmented Reality Optical Waveguide Module set with a resolution of 1920 by 1080 pixels
      AR Optical Waveguide Module 1920x1080 Vertical Set
      AR Optical Waveguide Module 1920x1080 Vertical Set

      DisplayModule

      AR Optical Waveguide Module 1920x1080 Vertical Set

      The DM-ARM-103 Waveguide Module boasts a 50°±1° monocular diagonal field of view, a resolution of 1920 x 1080, and full-color RGB display, providing immersive and vibrant visuals. Its brightness peaks at 300 nits (to be tested), along with an 8-bit grayscale for nuanced detail. Comfortable viewing is ensured with a 15x10mm eye movement range at a 20mm exit pupil distance. The module has excellent image quality with a MTF of >0.3 at 35lp/mm and <2% TV distortion, complemented by an 85% transmittance rate and 60Hz refresh rate. Its unique upward and downward projection method offers versatility across various applications.

      Board Specifications

      Parameter Specification
      Field of View 60°=50°±1° (monocular diagonal)
      Resolution 1920 x 1080
      Color Full-color RGB
      Brightness Peak 300 nits (to be tested)
      Grayscale 8-bit
      Eye Movement Range 15x10 (mm) @20mm exit pupil distance
      Exit Pupil Distance 20mm
      MTF (Modulation Transfer Function) >0.3 (avg) @35lp/mm
      TV Distortion <2%
      Transmittance 85%
      Refresh 60Hz
      Projection Method Upward and downward projection

      Resources


      $3,999.00
      Augmented Reality Optical Waveguide Module with a resolution of 640 by 400 pixels
      Augmented Reality Optical Waveguide Module with a resolution of 640 by 400 pixels

      DisplayModule

      AR Optical Waveguide Module 640x400

      The AWO72 Waveguide Optical Module offers a 24° field of view and leverages a 0.23 inch Micro-OLED screen to create a virtual 51-inch display at 3M. It provides an adjustable brightness of 400 nits, excellent image quality with a resolution of 640x400, and full-color RGB visuals. Its compact design, including a weight of just 9.3g and displacement volume of 2.11cc, along with a customizable waveguide size of 21381.7mm, makes it versatile for a range of applications.

      Board Specifications

      Parameter Name Parameter Value
      Field of View 24° (±1°)
      Screen Type/Specification Micro-OLED (0.23 inch)
      Virtual Screen 51 inches @ 3M
      Eye Movement Range 8mm x 4mm
      Exit Pupil Distance 22mm
      Transmittance 85%
      Brightness 400 nits (adjustable)
      Exit Pupil Diameter 8mm
      Distortion ≤2%
      Brightness Uniformity ≥80%
      Contrast Ratio 10000:1
      Resolution 640x400
      Color Full-color RGB
      Signal Format RGB TTL
      Waveguide Size 21381.7mm (customizable)
      Module Weight 9.3g
      Displacement Volume 2.11cc



      Dimensions


      Resources


      $999.00
