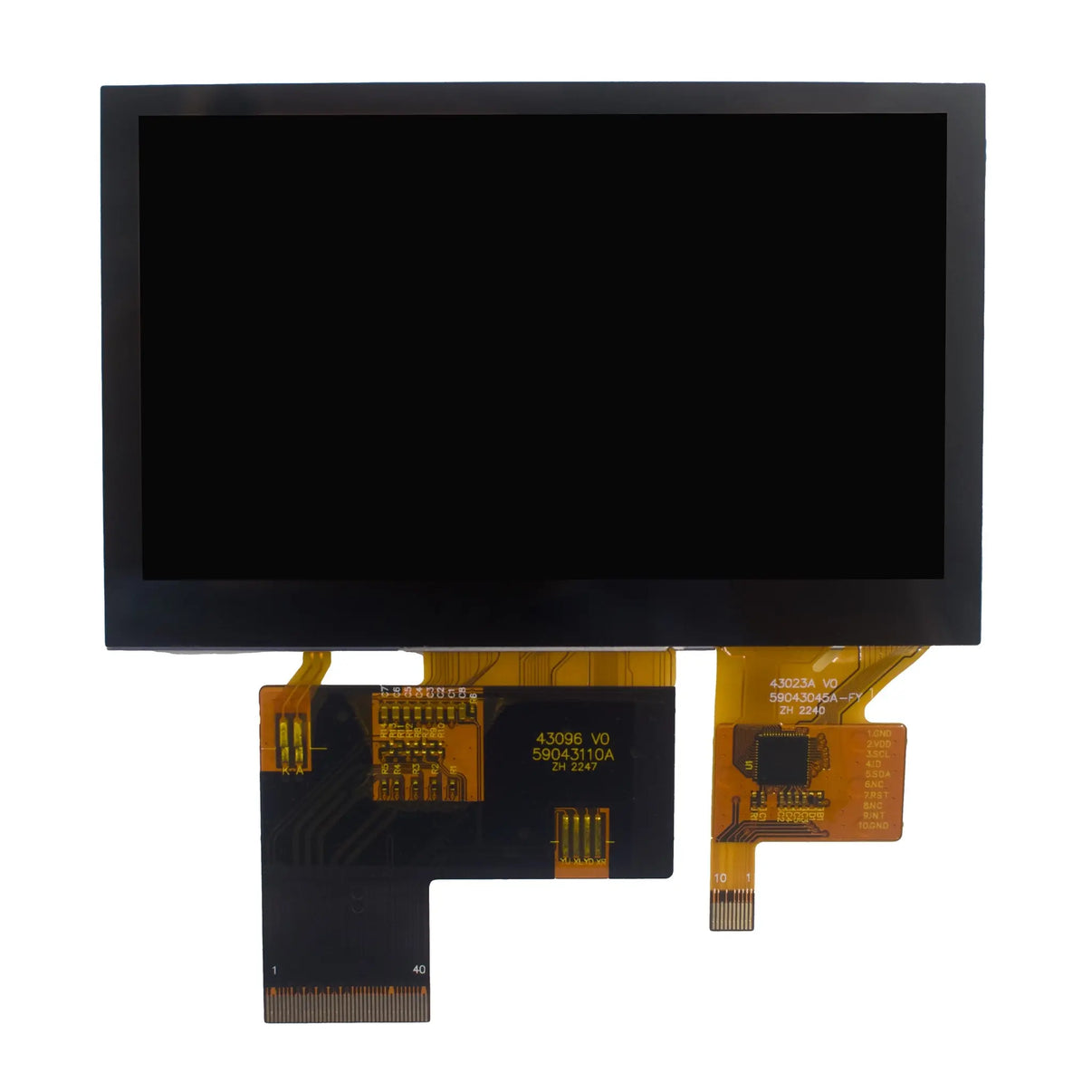

4.3" 800×480 TFT LCD Display – 8BIT LVDS Interface

$59.00
Shipping calculated at checkout.
SKU: DMKDI0430WVCA
4.3
$59.00

Payment and security

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
View details

4.3" 800×480 TFT LCD Display | 8BIT LVDS Interface

The DMKDI0430WVCA is a 4.3-inch high-resolution TFT-LCD module offering 800×480 pixels with a transmissive, normally black display mode. Featuring 8-bit LVDS interface and ST77262E43-G4 driver IC, this display supports 16.7 million colors with RGB vertical stripe arrangement, providing excellent image quality and stable signal transmission. Ideal for embedded systems, industrial HMIs, and handheld applications.

Parameter Specification Unit
Screen Size 4.3 inch
Resolution 800 × 480 pixels
Display Mode Transmissive / Normally Black -
Pixel Pitch 0.1188 × 0.1122 mm
Active Area 95.04 × 53.86 mm
Module Dimensions 105.40 × 67.15 × 4.36 mm
Interface 8BIT LVDS -
Driver IC ST77262E43-G4 -
Color Arrangement RGB Vertical Stripe -
Color Depth 16.7M colors

Mechanical Dimensions

Technical Resources
Device interface LVDS
