0.39" 1024×768 Micro-OLED | Ultra-Fine Pixel, 1800 cd/m²

SKU: DMGXO0039XGNA
Sale price$99.00
  • 💹 Enjoy a 20% discount for orders over 500
  • 📉 A 15% discount is available for orders ranging from 200 to 499
  • 🎁 A 10% discount is available for orders ranging from 50 to 199
  • 🎁 A 5% discount is available when ordering 10-49

Interested in customizing this product? Get in touch with us.

Order samples, immediate delivery.

Factory bulk lead time: 3 weeks.


Share
0.39" 1024×768 Micro-OLED | Ultra-Fine Pixel, 1800 cd/m² DisplayModule
0.39" 1024×768 Micro-OLED | Ultra-Fine Pixel, 1800 cd/m² Sale price$99.00

Mechanical Dimensions

0.39 inch micro OLED display module dimensions



0.39" 1024×768 Micro-OLED | Ultra-Fine Pixel, 1800 cd/m²

Product Details

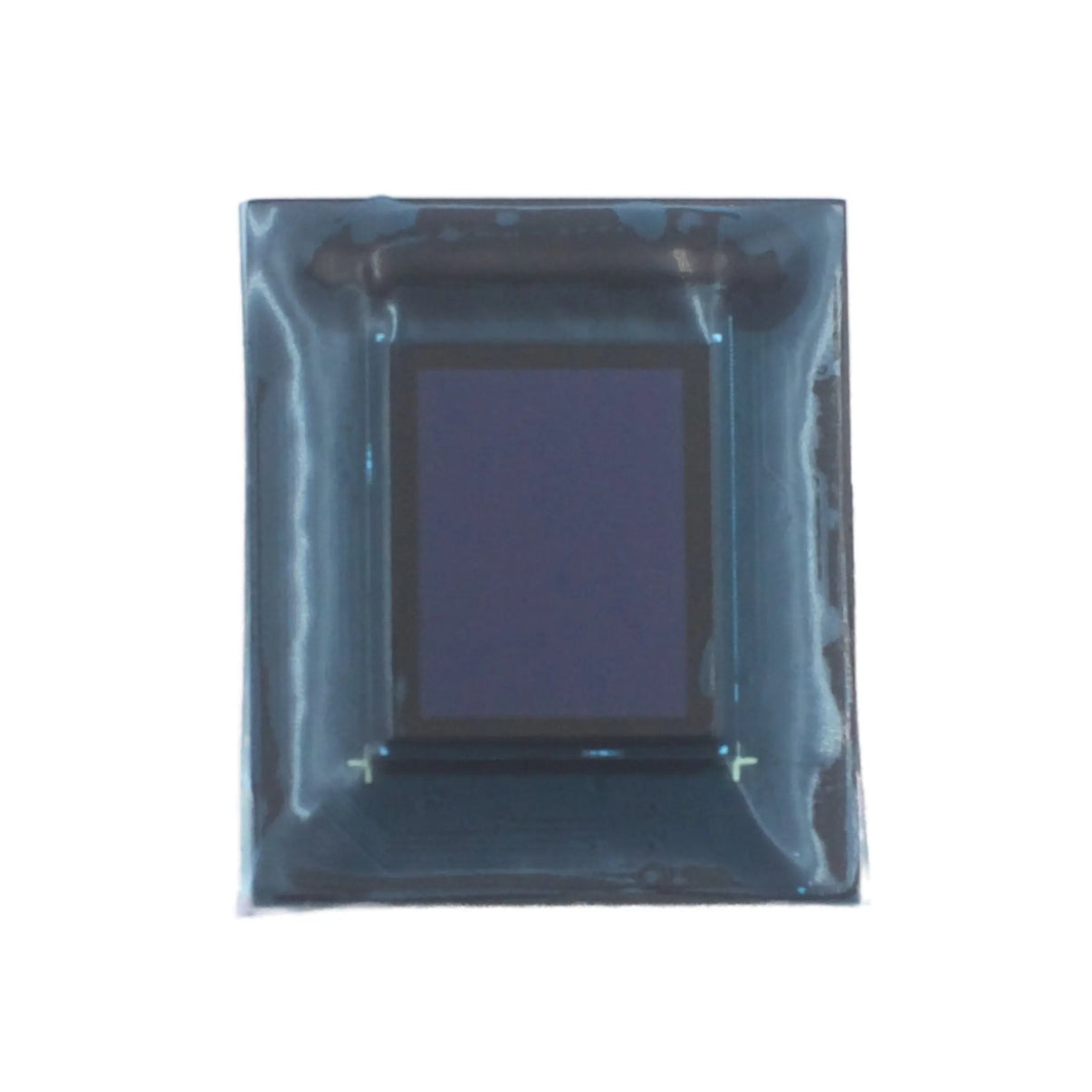

The DMGXO0039XGNA is a 0.39-inch Micro-OLED display module delivering 1024×768 resolution with ultra-fine 7.8 μm pixel pitch and typical luminance of 600 cd/m² (max. 1800 cd/m²). This module supports 24-bit RGB and YCbCr input formats and is engineered for AR/VR applications, waveguides, and NEDs requiring extreme compactness and high contrast (>10,000:1).

RESOLUTION
1024 × 768
PIXEL SIZE
7.8 × 7.8 μm
MAX BRIGHTNESS
1800 cd/m²
CONTRAST RATIO
>10,000:1

This silicon-based OLED microdisplay is a self-developed, top-emission, high-efficiency, active matrix-driven product manufactured using a 0.18μm CMOS process. It integrates signal enhancement circuits, row and column driver circuits, and logic control circuits, making it ideal for near-eye display systems requiring compact size, high resolution, and low power consumption.

  • Low Power Consumption: Typical 65mW @ 60Hz and 54mW @ 25Hz operation
  • Multiple Interfaces: Supports 3-wire SPI/4-wire SPI/MCU/IIC interfaces
  • Built-in Features: Integrated temperature sensor and brightness adjustment functions
  • Image Control: Supports horizontal/vertical mirroring and display position adjustment
  • Wide Operating Range: Functions from -40°C to +65°C with 25Hz-75Hz refresh rate
Product Specifications
Parameter Specification
Screen Size 0.39 inch
Resolution 1024 × 768 pixels
Pixel Size 0.0078 × 0.0078 mm
Active Area 8.1325 × 6.1779 mm
Pixel Arrangement RGB Vertical Stripe
Grayscale 256 levels
Contrast Ratio >10,000:1
Uniformity ≥ 90%
Refresh Rate 25-75 Hz
Video Input Format 24bit RGB / 8/16/24bit YCbCr
Typical Brightness 600 cd/m²
Maximum Brightness 1800 cd/m²
Supply Voltage 1.8V, 5.0V
Power Consumption 65 mW @ 60Hz, 54 mW @ 25Hz
Color Coordinates CIE-x: 0.31 ± 0.05, CIE-y: 0.33 ± 0.05
Weight 1 g
Operating Temperature -40°C to +65°C
Enterprise Solutions

We offer customized display solutions for businesses and institutions seeking to integrate high-performance micro-displays into their products.

  • Custom Configurations: Tailored display solutions with specific brightness, interface, or form factor requirements
  • Volume Pricing: Competitive pricing for bulk orders and OEM partnerships
  • Technical Support: Comprehensive engineering support for integration and optimization
  • Custom Calibration: Specialized gamma correction and color calibration services
Industry Applications
AUGMENTED REALITY

Ideal for AR glasses and headsets requiring high pixel density, excellent contrast, and compact form factor for immersive experiences.

VIRTUAL REALITY

Perfect for VR applications where high resolution, fast response time, and minimal screen door effect are critical.

MEDICAL IMAGING

Used in surgical loupes, endoscopes, and medical displays where accurate color reproduction and high resolution are essential.

INDUSTRIAL EQUIPMENT

Integrated into measurement devices, inspection systems, and portable instruments requiring high-quality displays in compact designs.

Compatibility

This micro-OLED display supports multiple interface standards and can be integrated with various systems and platforms:

  • Input Formats: 24-bit RGB (4:4:4), 24-bit YCbCr (4:4:4), 16-bit YCbCr (4:2:2), 8-bit Mono
  • Control Interfaces: I2C (10KHz to 400KHz), 3-wire SPI, 4-wire SPI, MCU
  • Power Supply: Compatible with standard 1.8V digital and 5.0V analog power sources
  • Timing Standards: Supports VESA standard timing with configurable parameters for custom requirements
Technical Resources

Documentation: Complete technical specifications, interface guidelines, and integration manuals available for download.

Design Support: FPC design recommendations, connector specifications, and mechanical drawings provided for seamless integration.

Development Tools: Register configuration examples and initialization code to accelerate product development.

Resources: DMGXO0039XGNA Datasheet (PDF)
