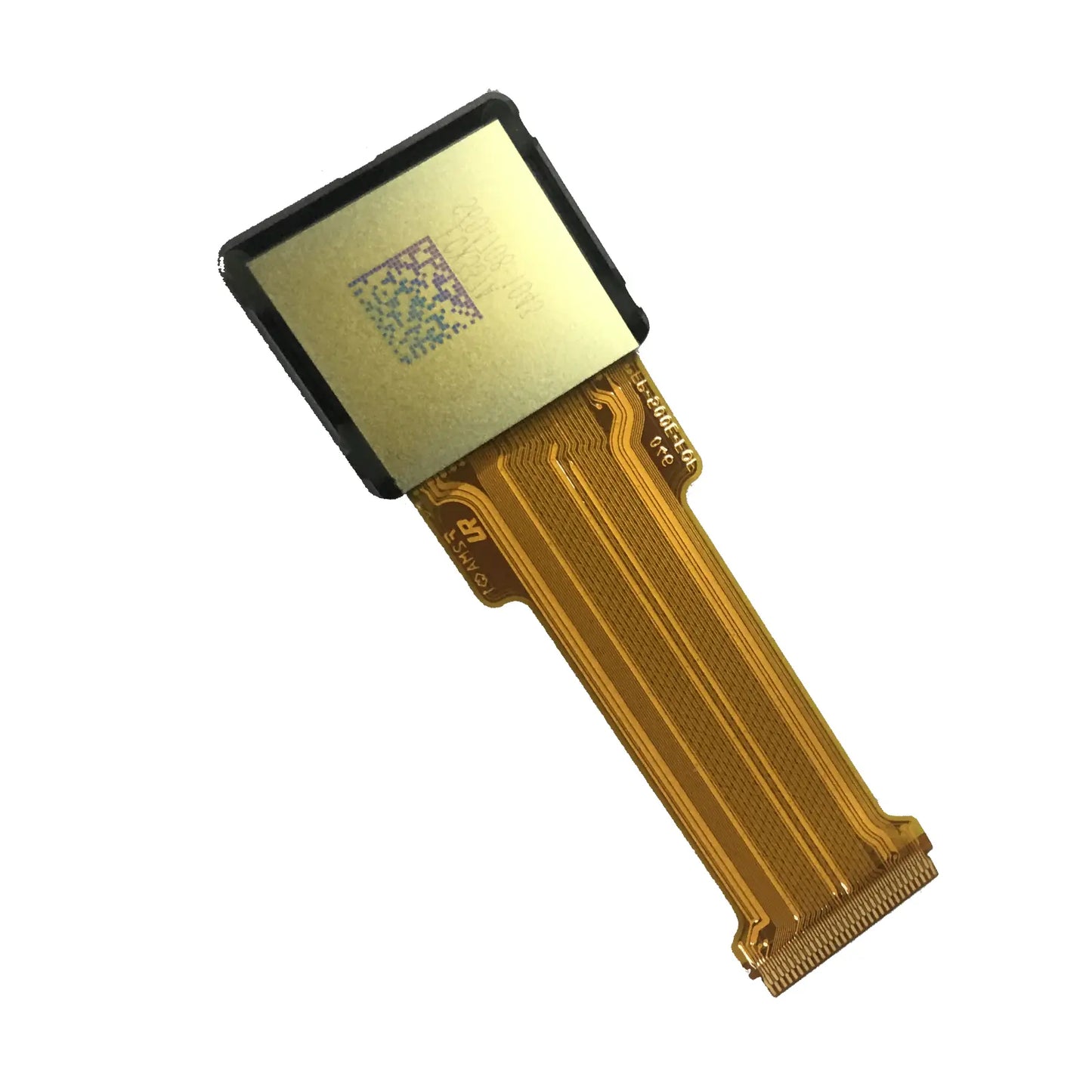

0.5" Micro OLEDoS Display 1280×960 1000nits 120Hz - LVDS
1 pcs | original price |
5 pcs | 8% off |
10 pcs | 10% off |
Orders typically ship within 1-2 business days. However, delays might occur if an item is purchased by many customers simultaneously. Once your order ships, we'll send you a shipping confirmation email with tracking info. If unsatisfied with your purchase from DisplayModule.com, you can return it for a full refund.
Orders under $400 have shipping fees. You can choose between standard and express shipping. Standard shipping is $10, with the courier chosen based on your address. Express shipping is $40 via DHL. Orders of $400 or more receive free express shipping.
Customization & Manufacturing
Adapter Custom
Sometimes standard interfaces or adapters may not meet your special needs. We provide custom adapter service for this, make sure you can easily connect our screen with your device perfectly.
Prototype, Pilot Production, Mass Manufacturing
DisplayModule is a subsidiary of NexPCB, thanks to NexPCB's rich experience in design, prototype, mass production, we confidently declare that we can provide one-stop service.
Contact Form
I'm reaching out to DisplayModule because...
OLED micro display is a 1.3 cm (0.5inch) diagonal, 1280(RGB) × 960 dots active matrix color OLED (Organic Light Emitting Display) panel module based on single crystal silicon transistors. The module integrates panel driver and logic driver, and achieves smaller size, light in weight and high resolution..
(Potential applications: Head mounted displays, View finders, Small monitors etc.)
Display Specifications
Ultra high contrast
Wide color gamut
Fast response speed
Thin and light in weight
Power consumption Saving (PS) mode
Scan direction selection, up or down and right or left
Parameter | Specification |
Resolution | 1280x960 RGB |
Effective Dots | 1280 × RGB × 960 = 3.69 M dots |
Actual Dots including Orbit function | Total dots 1300 × RGB x 980 = 3.82 M dots |
Useable Display Area | 0.5"diagonal |
Luminance | 1000 |
Contrast Ratio | 10,000:1 |
Power Consumption | 0.1~720mW |
Interface | LVDS, FPC |
Frame Rate | 60Hz or 120Hz |
Operating Temperature | -10℃~70℃ |
Storage Temperature | -30℃~80℃ |
Dimension
Resources
- Datasheet : DM-OLED05-684
