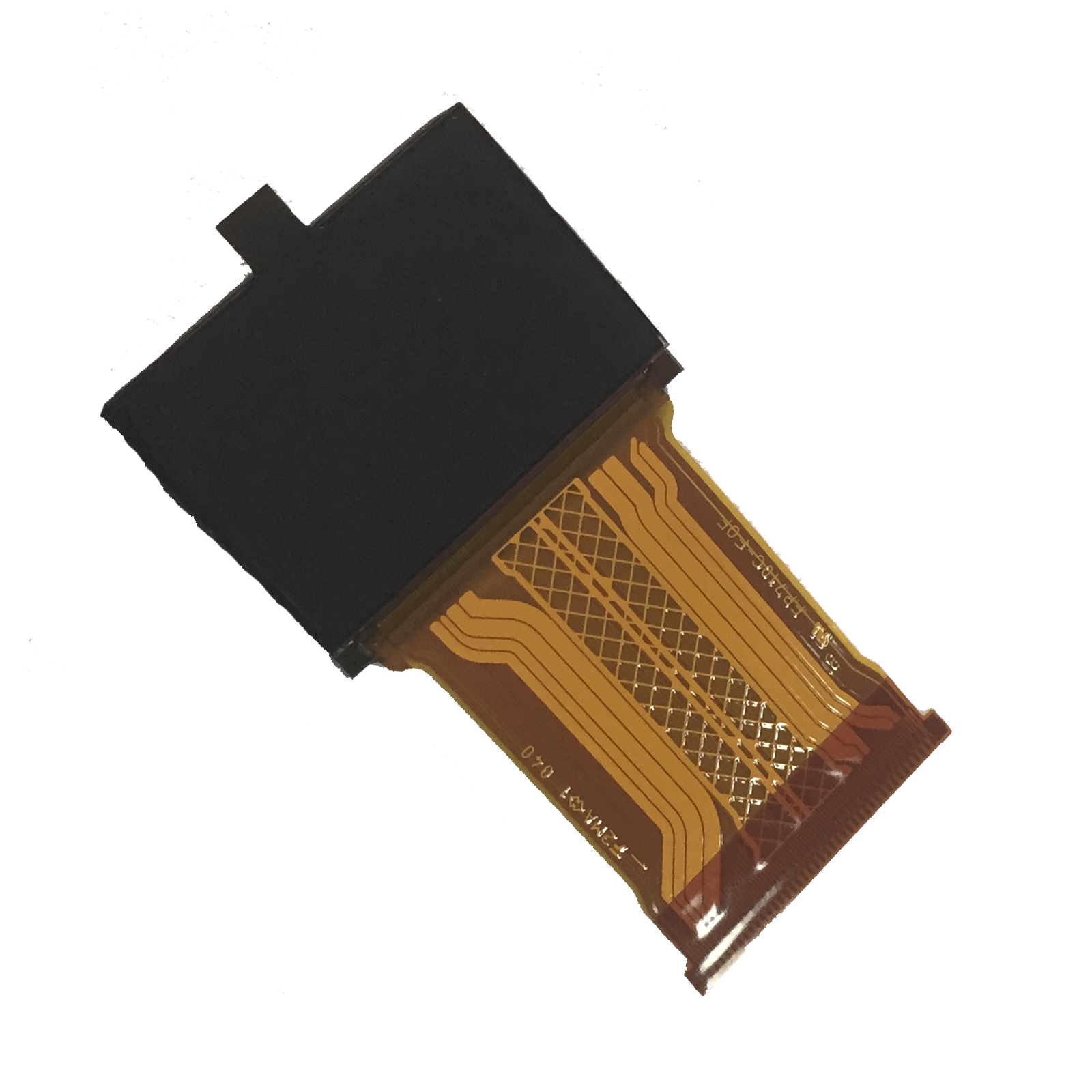

0.71-inch Micro OLED Display Panel with 1920x1080 resolution and LVDS interface

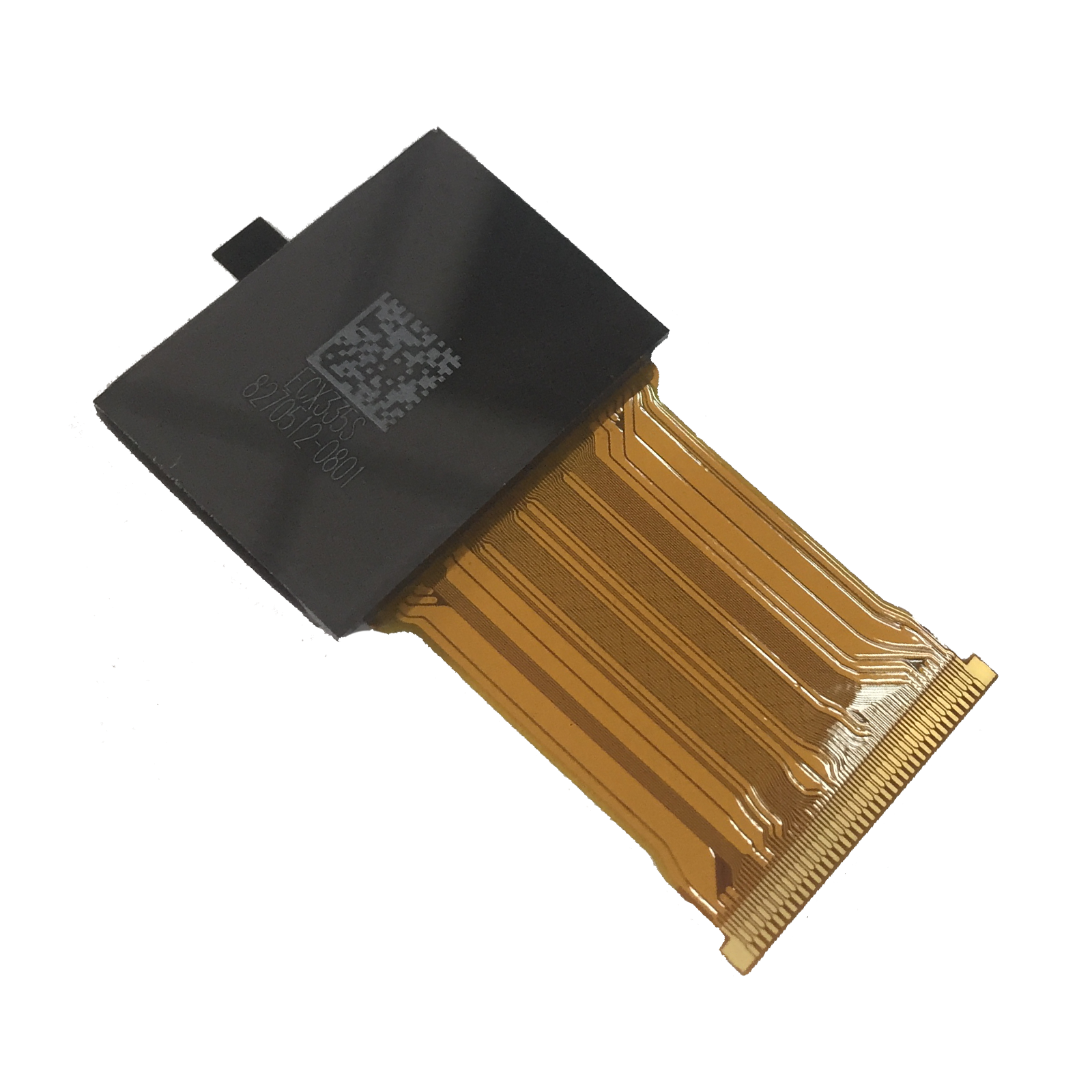

Back of 0.71-inch Micro OLED Display Panel

0.71" Micro OLED Display 1920×1080 - LVDS

Regular price $249.00
Sale price $249.00 Regular price
Datesheet:
  • Type:
  • Availability:
    In Stock
  • SKU:
    DM-OLED071-682
1 pcs original price
5 pcs 8% off
10 pcs 10% off

Customization & Manufacturing

Adapter Custom

Sometimes standard interfaces or adapters may not meet your special needs. We provide custom adapter service for this, make sure you can easily connect our screen with your device perfectly.

Prototype, Pilot Production, Mass Manufacturing

DisplayModule is a subsidiary of NexPCB, thanks to NexPCB's rich experience in design, prototype, mass production, we confidently declare that we can provide one-stop service.

Contact Form

I'm reaching out to DisplayModule because...

Product description

The micro OLED panel is a 1.8 cm (0.71inxh) diagonal, 1920(RGB) × 1080 dots active matrix color OLED (Organic Light Emitting Display) panel module based on single crystal silicon transistors. The module integrates panel driver and logic driver, and achieves smaller size, light in weight and high resolution. . (Potential applications: Head mounted displays, View finders, Small monitors etc.)

Display Specifications

Ultra high contrast
Wide color gamut
Fast response speed
Thin and light in weight
Power saving (PS) function
Scan direction selection, up or down and right or left.
Orbit supported

Parameter Specification
Resolution 1920x1080 RGB
Number of dots 6.22M dots
Useable Display Area 0.7" diagonal
Luminance up to 3600
Contrast Ratio 10,000:1
Power Consumption 0.5~1280mW
Interface LVDS, 81 pins, FPC
Frame Rate 60Hz
Operating Temperature -20℃~70℃
Storage Temperature -30℃~80℃

Dimension
