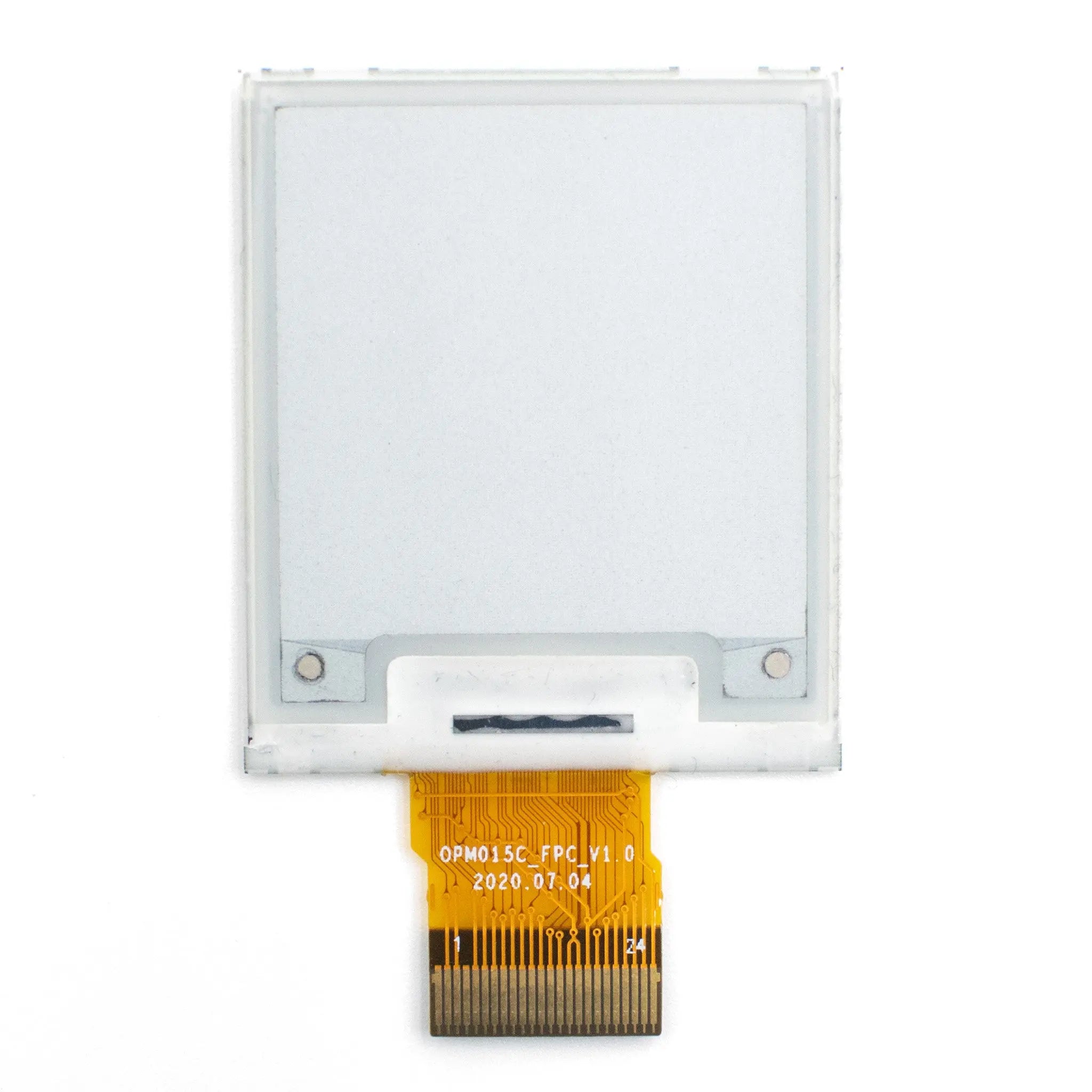

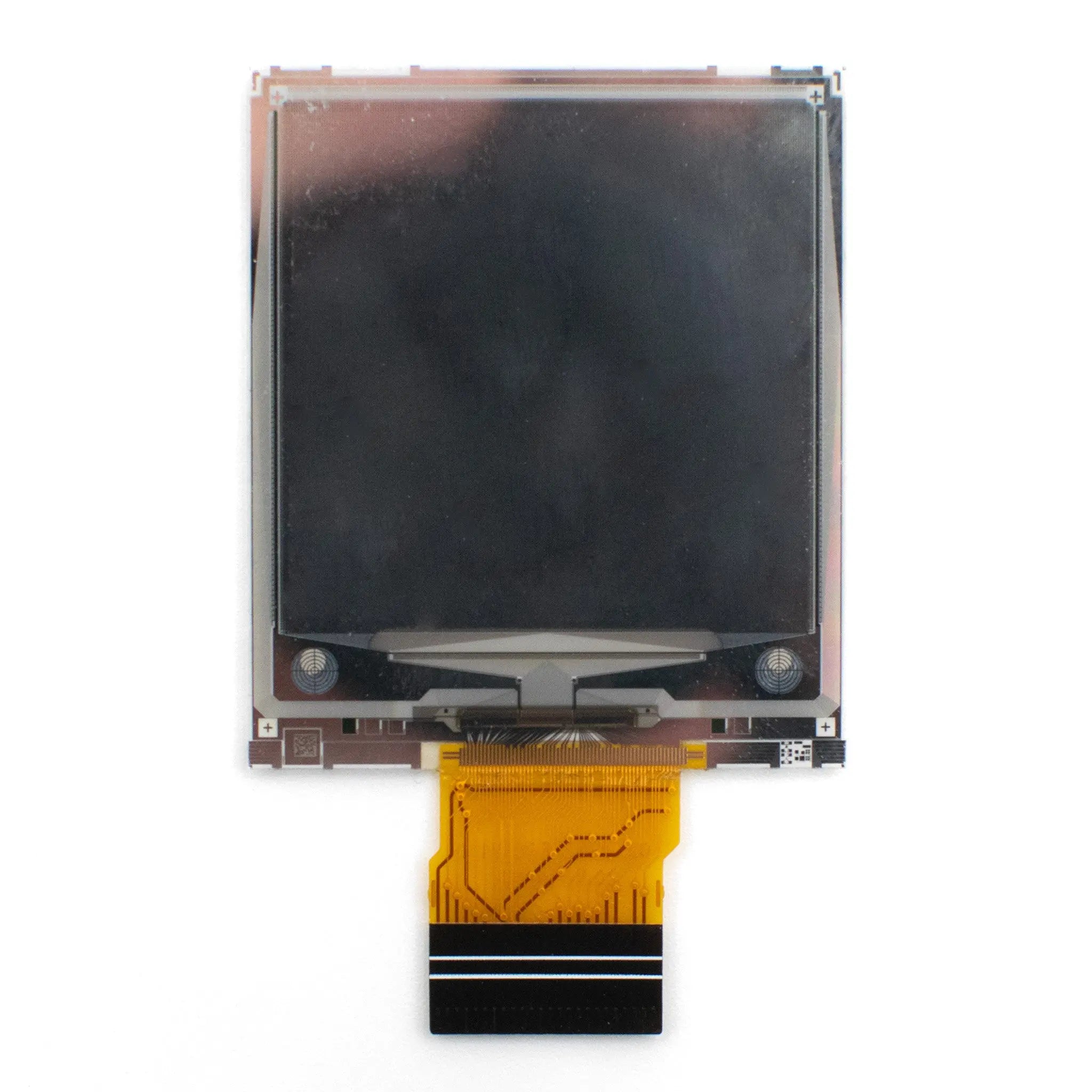

1.54" ePaper 200x200 - IIC/SPI
High-performance 1.54-inch Active Matrix Electrophoretic Display (AM EPD) with 200×200 pixel resolution, delivering crisp text and 4-level grayscale images. Ideal for battery-powered applications requiring ultra-low power consumption.
Featuring advanced electrophoretic technology, this display maintains content without power - perfect for applications where battery life is critical. The bi-stable nature means zero power consumption when displaying static content.
- Ultra-Low Power Operation: Typical operating current of 4mA at 3.0V, with deep sleep mode consuming only 1μA.
- High Contrast Ratio: 25:1 contrast ratio with white reflectance above 45% for excellent readability.
- Dual Interface Support: Configurable I2C or SPI (4-wire/3-wire) interface through BS pin selection.
- Integrated Temperature Sensing: Built-in I2C interface for external temperature sensor connectivity.
| Parameter | Specification |
|---|---|
| Display Type | Active Matrix Electrophoretic Display (AM EPD) |
| Screen Size | 1.54 inch |
| Resolution | 200 × 200 pixels |
| Pixel Pitch | 135 × 135 μm |
| Active Area | 27.0 × 27.0 mm |
| Module Size | 31.80 × 37.32 × 0.82 mm |
| Weight | 2.1 grams |
| Interface | I2C / SPI (4-wire or 3-wire) |
| Supply Voltage | 2.4V - 3.6V (3.0V typical) |
| Operating Temperature | 0°C to +50°C |
| White Reflectance | >45% (typical 48%) |
| Contrast Ratio | 20:1 (typical 25:1) |
Perfect for retail pricing systems with instant updates and weeks of battery life on a single charge.
Ideal for sensor displays, weather stations, and monitoring equipment requiring minimal power consumption.
Reliable display solution for measurement devices, control panels, and portable diagnostic equipment.
We provide customized ePaper display solutions for volume applications with specialized requirements.
- Bulk Order Programs: Competitive pricing for volume purchases with flexible delivery schedules.
- Custom Configuration: Tailored firmware, interface options, and mechanical adaptations for specific applications.
- Technical Support: Comprehensive documentation and engineering support for integration projects.
Interface Notes: BS pin configuration: Low for 4-wire SPI, High for 3-wire SPI. BUSY pin indicates active operations - avoid sending commands when BUSY is high.
Refresh Performance: Full refresh takes approximately 750ms with screen flicker; partial refresh completes in 250ms without flickering.
Documentation: Download Complete Datasheet
Dimensions
