10.1-inch IPS Display with a resolution of 1280 by 800 pixels, featuring 10-point capacitive touch via USB touch interface, interfaced with LVDS

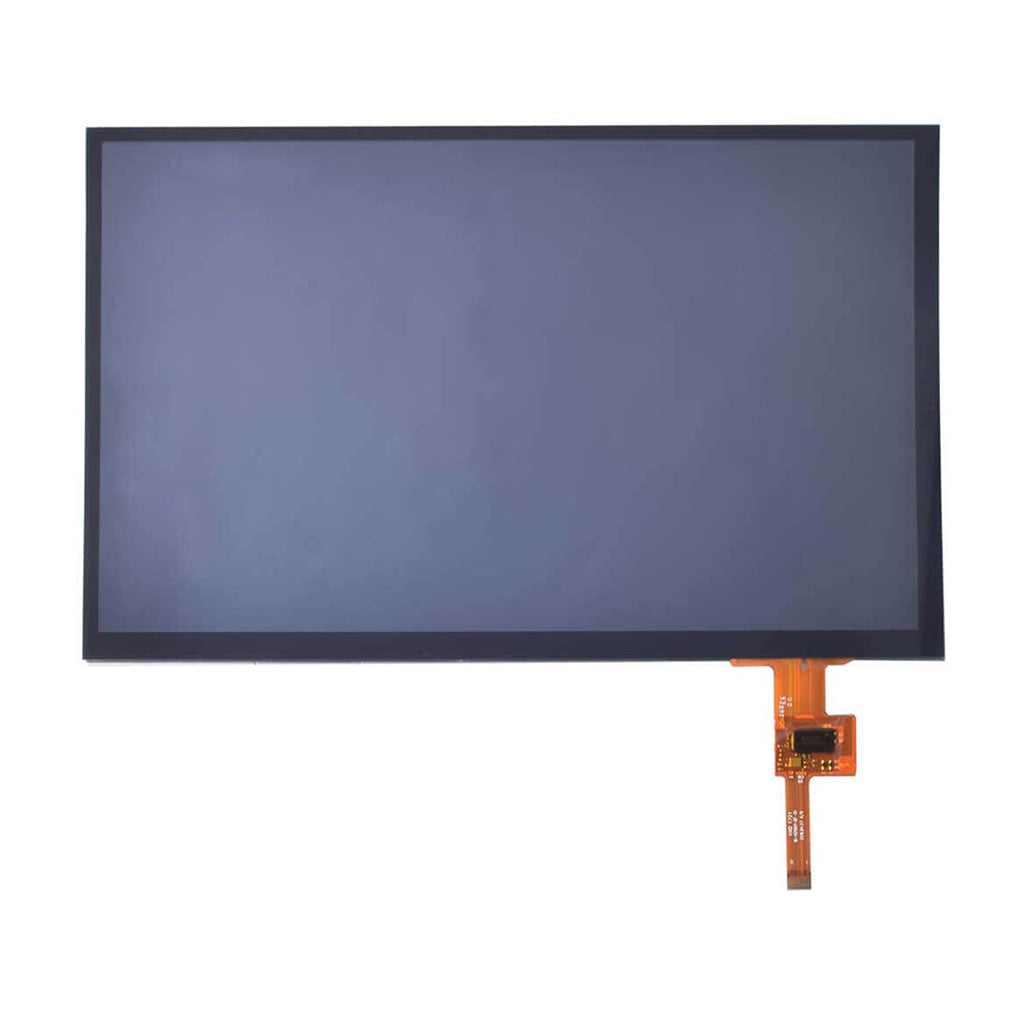

Top View of 10.1-inch IPS Display Panel

10.1" IPS Display 1280x800 10-points Capacitive(USB Touch Interface) - LVDS

Regular price $139.00
Sale price $139.00 Regular price $150.00
Datesheet:
  • Availability:
    In Stock
  • SKU:
    DM-TFT101-355
1 pcs original price
5 pcs 8% off
10 pcs 10% off

Customization & Manufacturing

Adapter Custom

Sometimes standard interfaces or adapters may not meet your special needs. We provide custom adapter service for this, make sure you can easily connect our screen with your device perfectly.

Prototype, Pilot Production, Mass Manufacturing

DisplayModule is a subsidiary of NexPCB, thanks to NexPCB's rich experience in design, prototype, mass production, we confidently declare that we can provide one-stop service.

Contact Form

I'm reaching out to DisplayModule because...

Product description

Display Specifications

  • Diagonal Dimension : 10.1 inch
  • Resolution : 1280x800 pixel
  • View Direction : All
  • Touch Mode : 10 points and Gestures
  • Module Dimension : 229.46(H)x149.1(V)x4.83(D) mm
  • Viewing Area : 216.96(H)x135.6(V) mm
  • Supply Voltage : 3.3 V
  • Interface : LVDS
  • Luminance : 300 cd/m2
  • Drive IC : -
  • Operation Temperature : 0℃~50℃
  • Storage Temperature : -20℃~60℃

Dimensions

Resources

  • No init code needed for this display panel
