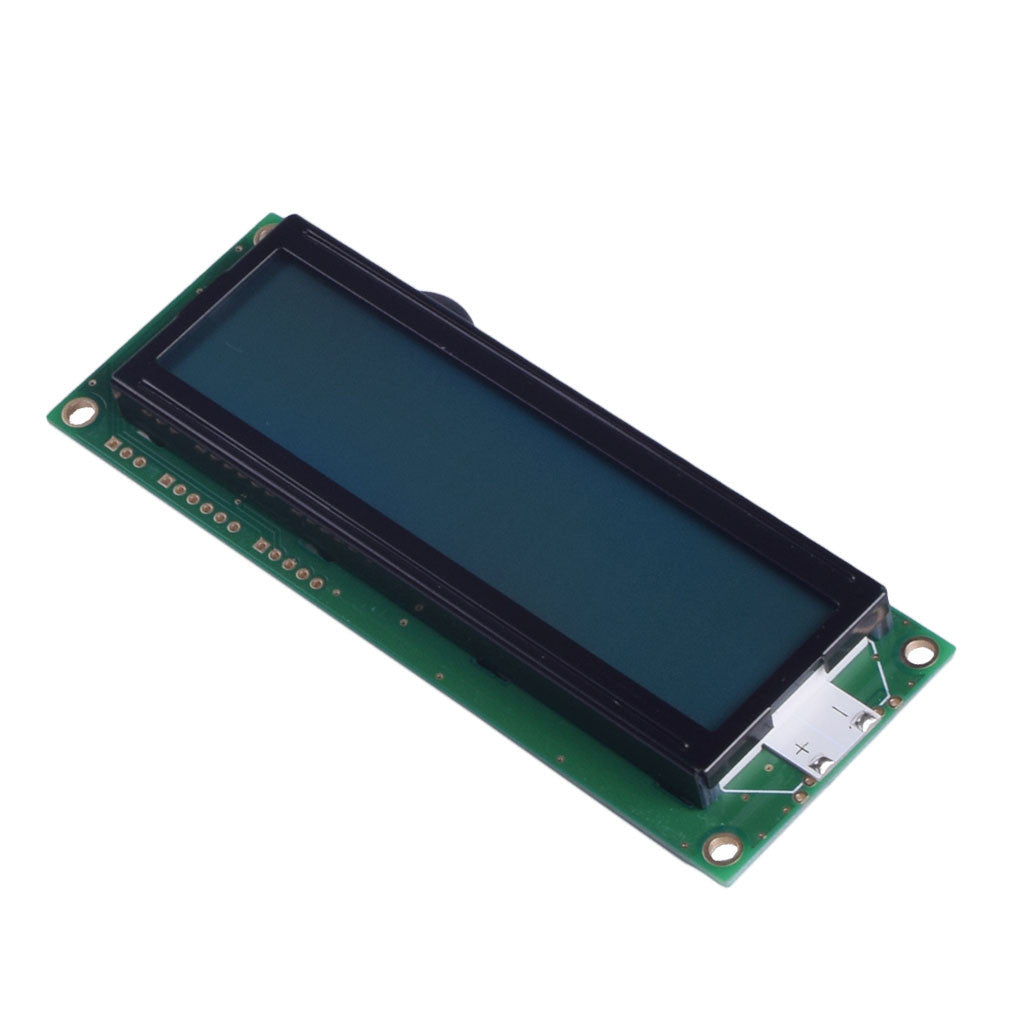

Large 16x2 character LCD with STN gray transflective technology and RS232, I2C, SPI interfaces

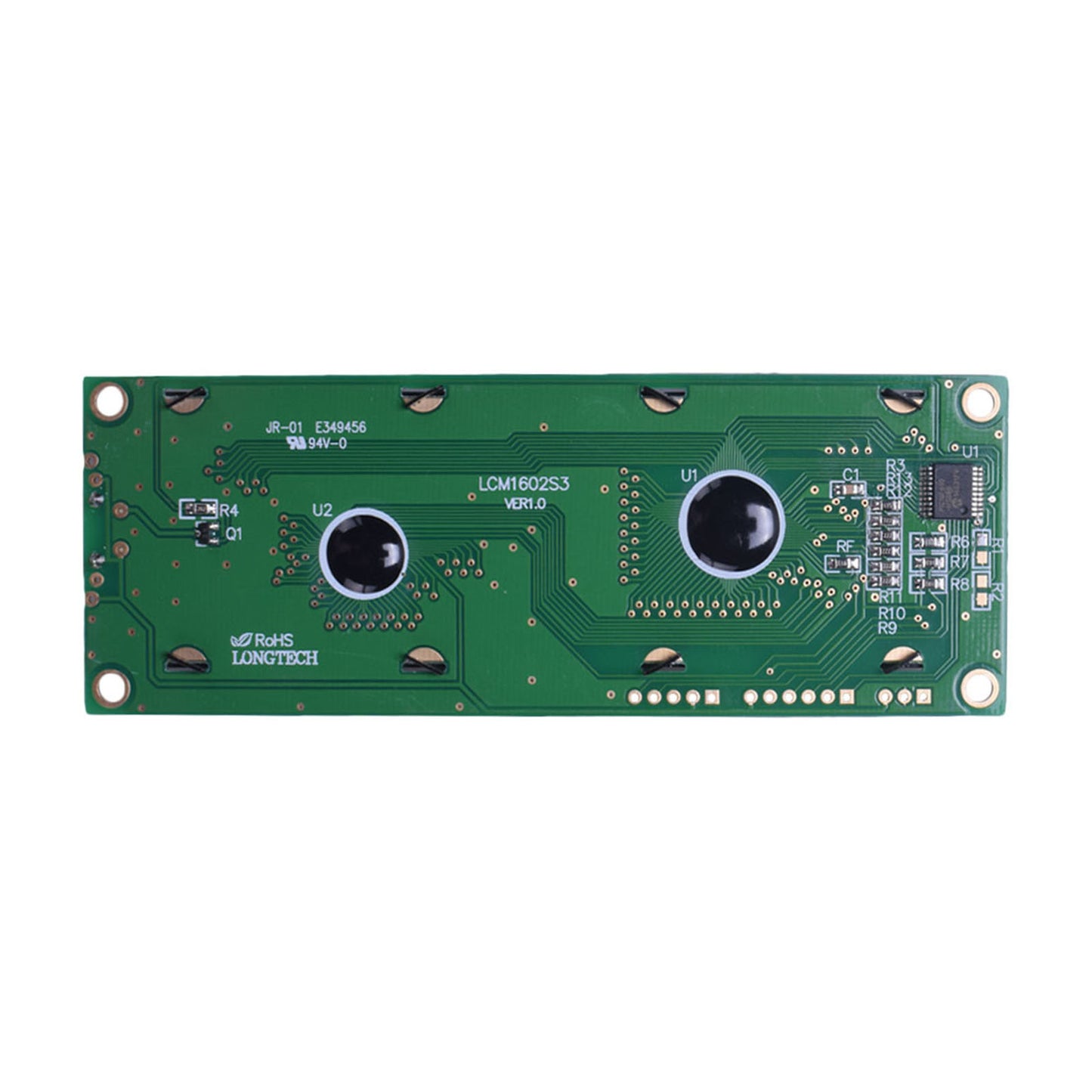

back of large 16x2 character LCD module

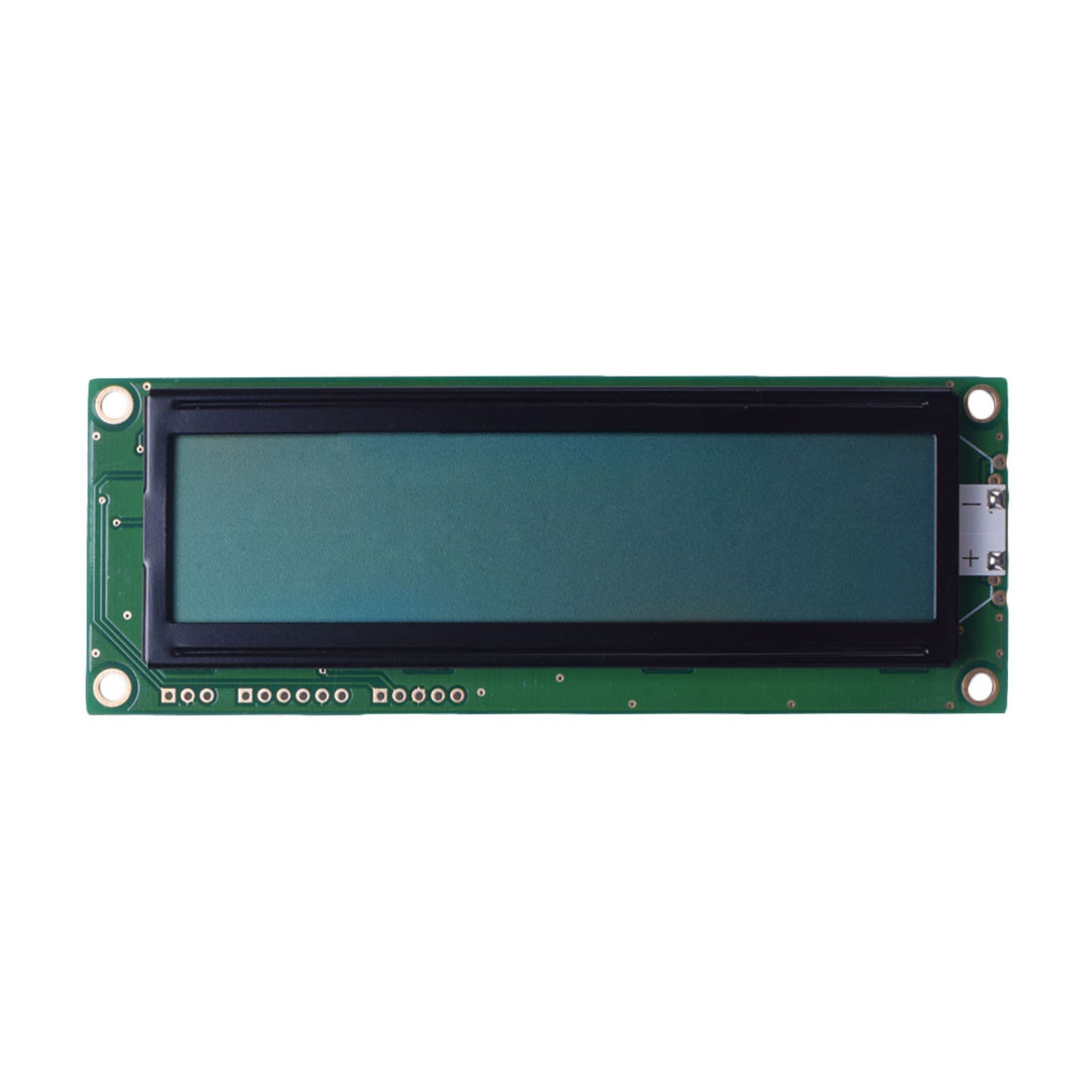

top view of Large 16x2 character LCD module

16x2 Character LCD STN Gray Transflective Large - RS232, I2C, SPI

Regular price $19.90
Sale price $19.90 Regular price $11.99
Datesheet:
1 pcs original price
5 pcs 8% off
10 pcs 10% off

Customization & Manufacturing

Adapter Custom

Sometimes standard interfaces or adapters may not meet your special needs. We provide custom adapter service for this, make sure you can easily connect our screen with your device perfectly.

Prototype, Pilot Production, Mass Manufacturing

DisplayModule is a subsidiary of NexPCB, thanks to NexPCB's rich experience in design, prototype, mass production, we confidently declare that we can provide one-stop service.

Contact Form

I'm reaching out to DisplayModule because...

Product description

Display Specifications

  • Display Format : 16 characters x 2 lines
  • Display Mode : STN Gray, Transflective
  • View Direction : 6:00
  • Module Dimension : mm
  • Power Supply : 5.0 V
  • Backlight : Yellow/Green LED
  • Interface : Serial Interface:I2C, SPI or RS-232(TTL)
  • Controller IC : ST7066U or equivalent
  • Operation Temperature : -20℃~70℃
  • Storage Temperature : -30℃~80℃
  • Weight : 66.6 g

Dimensions

Resources

Product reviews
