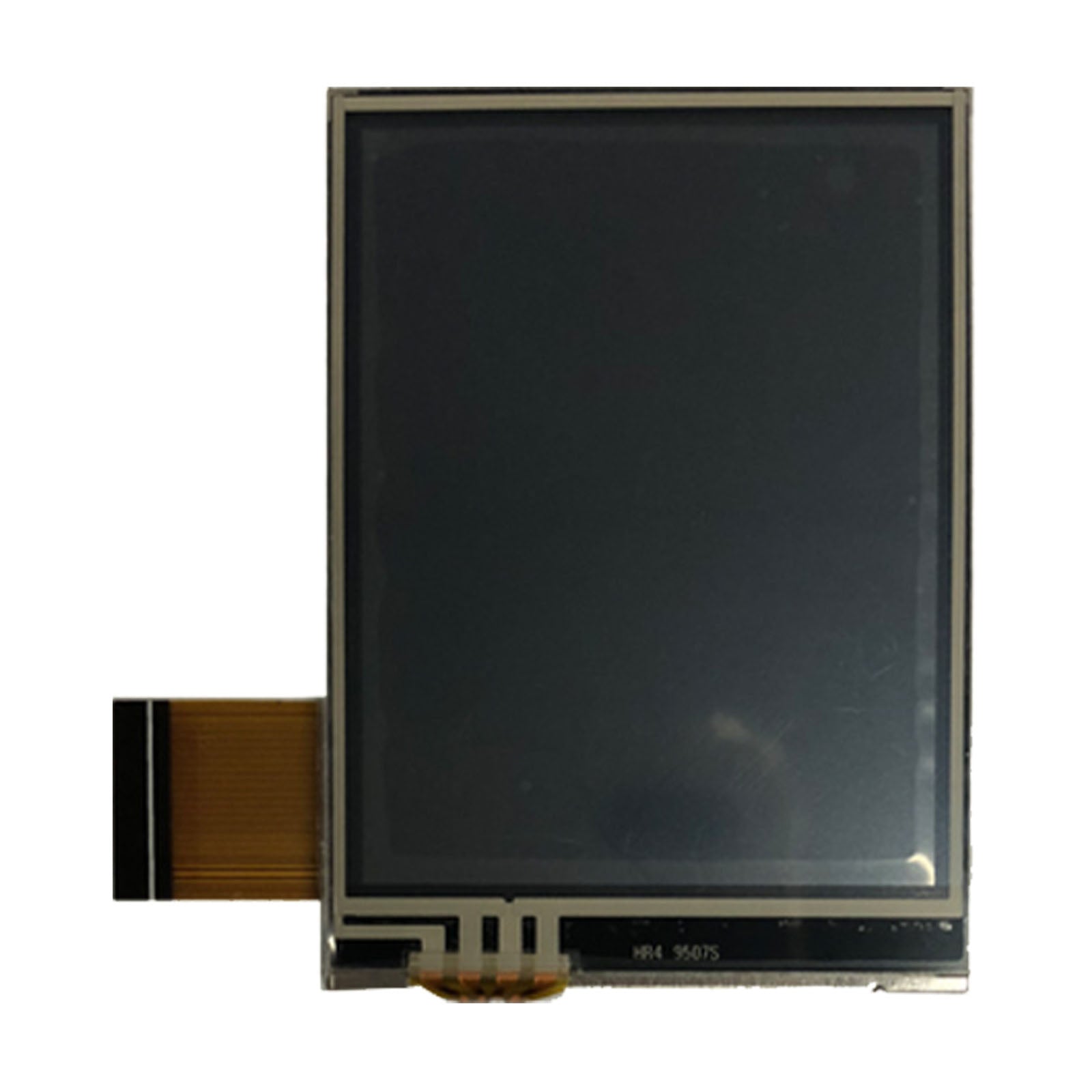

2.4 inch Transflective TFT Display with 240x320 resolution and resistive touch capability, utilizing MCU, SPI, and RGB interfaces

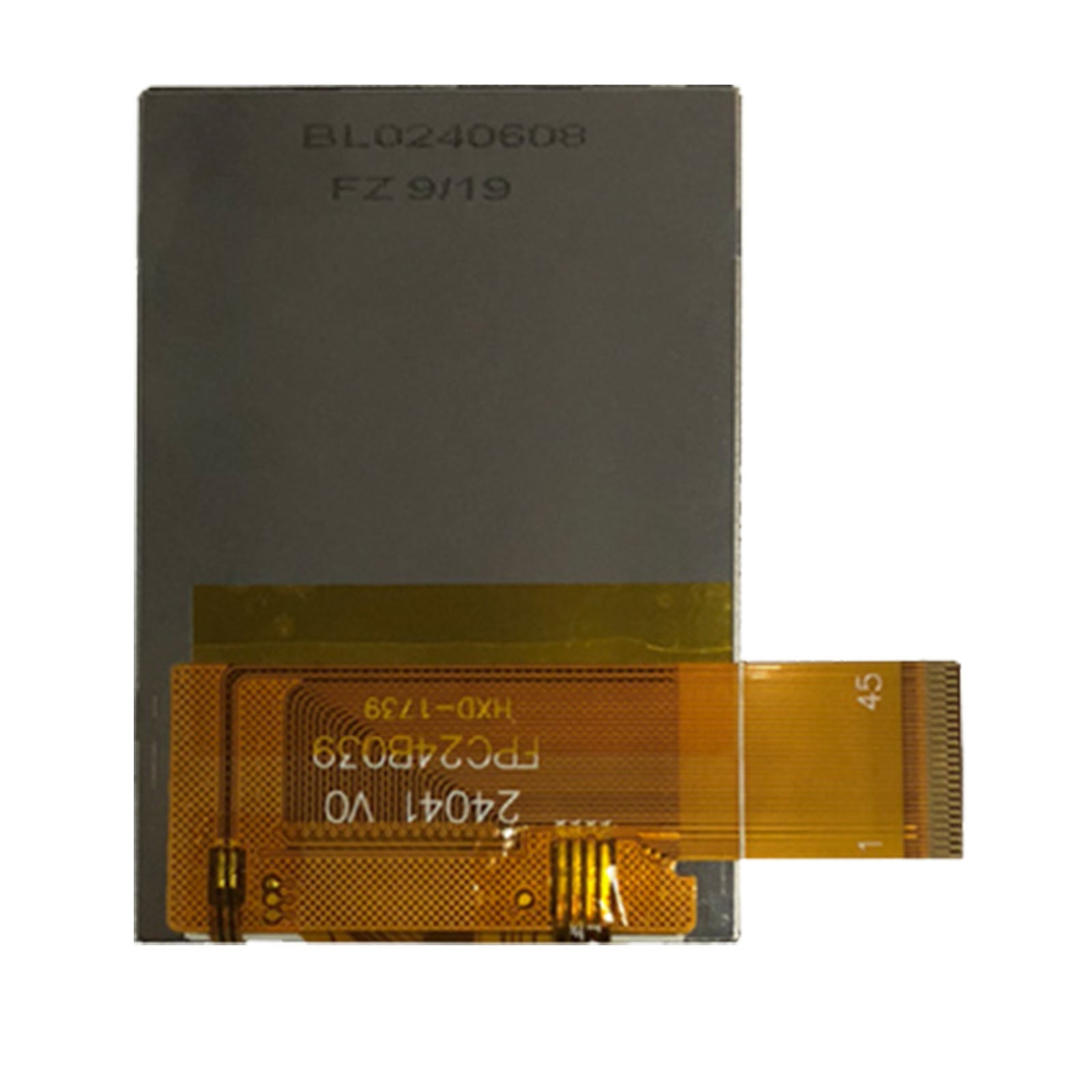

Back of 2.4 inch Transflective TFT Display Panel

2.4" 240x320 TFT Transflective Resistive - MCU, SPI, RGB

Regular price $24.90
Sale price $24.90 Regular price
Datesheet:
1 pcs original price
5 pcs 8% off
10 pcs 10% off

Customization & Manufacturing

Adapter Custom

Sometimes standard interfaces or adapters may not meet your special needs. We provide custom adapter service for this, make sure you can easily connect our screen with your device perfectly.

Prototype, Pilot Production, Mass Manufacturing

DisplayModule is a subsidiary of NexPCB, thanks to NexPCB's rich experience in design, prototype, mass production, we confidently declare that we can provide one-stop service.

Contact Form

I'm reaching out to DisplayModule because...

Product description

Display Specifications

  • Diagonal Dimension : 2.4 inch
  • Resolution : 240(RGB) x 320 pixel
  • View Direction : SUPER WIDE
  • Touch Mode : Resistive
  • Module Dimension : 42.92 x 60.26 x3.55 mm
  • Viewing Area : 36.72(H) *48.96(V) mm
  • Supply Voltage : 3.3 V
  • Interface : 8/9/16/18Bit MCU Interface,3/4SPI+16/18Bit RGB Interface,3-line/4-line Serial Interface
  • Luminance : 290 cd/m2
  • Drive IC : ST7789V
  • Operation Temperature : -20℃~70℃
  • Storage Temperature : -30℃~80℃

Dimensions
