2.6" 320x432 TFT Transflective - SPI, MCU, RGB
2.6" 320x432 TFT Transflective - SPI, MCU, RGB
SKU:DM-TFT26-384
Regular price
$39.90 USD
Regular price
Sale price
$39.90 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
1 pcs | original price |
5 pcs | 8% off |
10 pcs | 10% off |
Shipping
Shipping
Standard and expedited shipping available, free expedited shipping over $600. Lenrn more
Easy Returns
Easy Returns
No need to worry about buying products that don't fit your design, we offer a 30-day no-questions-asked return service.
More Order, More Save
More Order, More Save
The higher the quantity ordered, the greater the discount, so contact us for the discount price! Contact us
Share

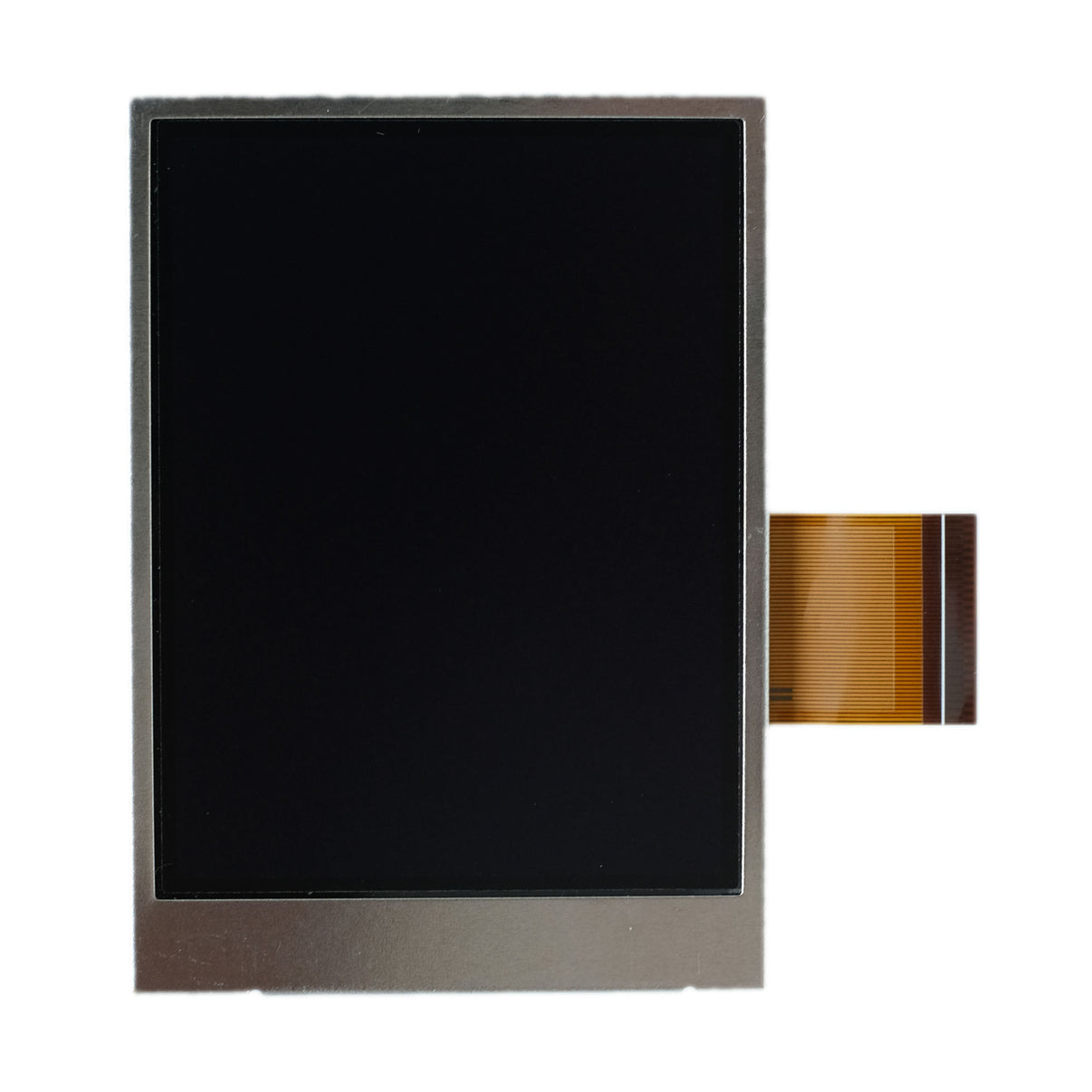

![2.6 inch Transflective TFT Display Panel with 320x432 resolution, utilizing SPI, MCU, and RGB interfaces](http://www.displaymodule.com/cdn/shop/files/384.jpg?v=1712132638&width=1445)
![Back of 2.6 inch Transflective TFT Display Panel with 320x432 resolution](http://www.displaymodule.com/cdn/shop/files/384_3.jpg?v=1712132638&width=1445)
![Top view of 2.6 inch Transflective TFT Display Panel](http://www.displaymodule.com/cdn/shop/files/384_2.jpg?v=1712132638&width=1445)
Display Specifications
- Diagonal Dimension : 2.6 inch
- Resolution : 320x432 pixel
- View Direction : All
- Touch Mode : None
- Module Dimension : 46.76(H)x65.85(V)x2.6(D) mm
- Viewing Area : 39.84(H)x53.78(V) mm
- Supply Voltage : 3.3 V
- Interface : 8/9/16/18/24 Bit MCU,3/4SPI+16/18/24 bit RGB,3-line/4-line Serial
- Luminance : 500 cd/m2
- Drive IC : ILI9488
- Operation Temperature : -30℃~85℃
- Storage Temperature : -40℃~85℃
Dimensions
Resources
- DM-TFT26-384
- Display Controller: ILI9488-V090
