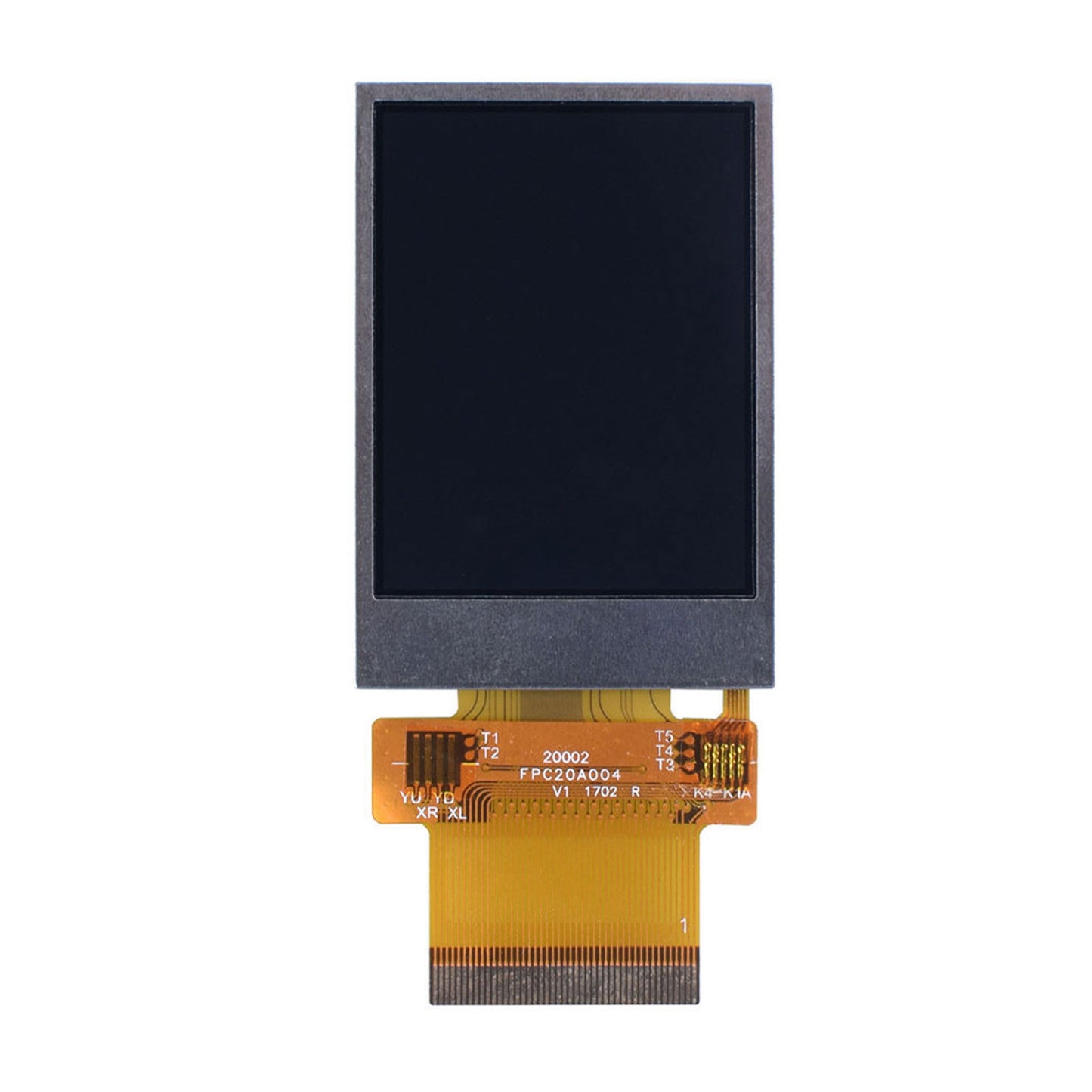

2.0 inch 240x320 TFT transflective display panel with SPI, MCU, and RGB interfaces

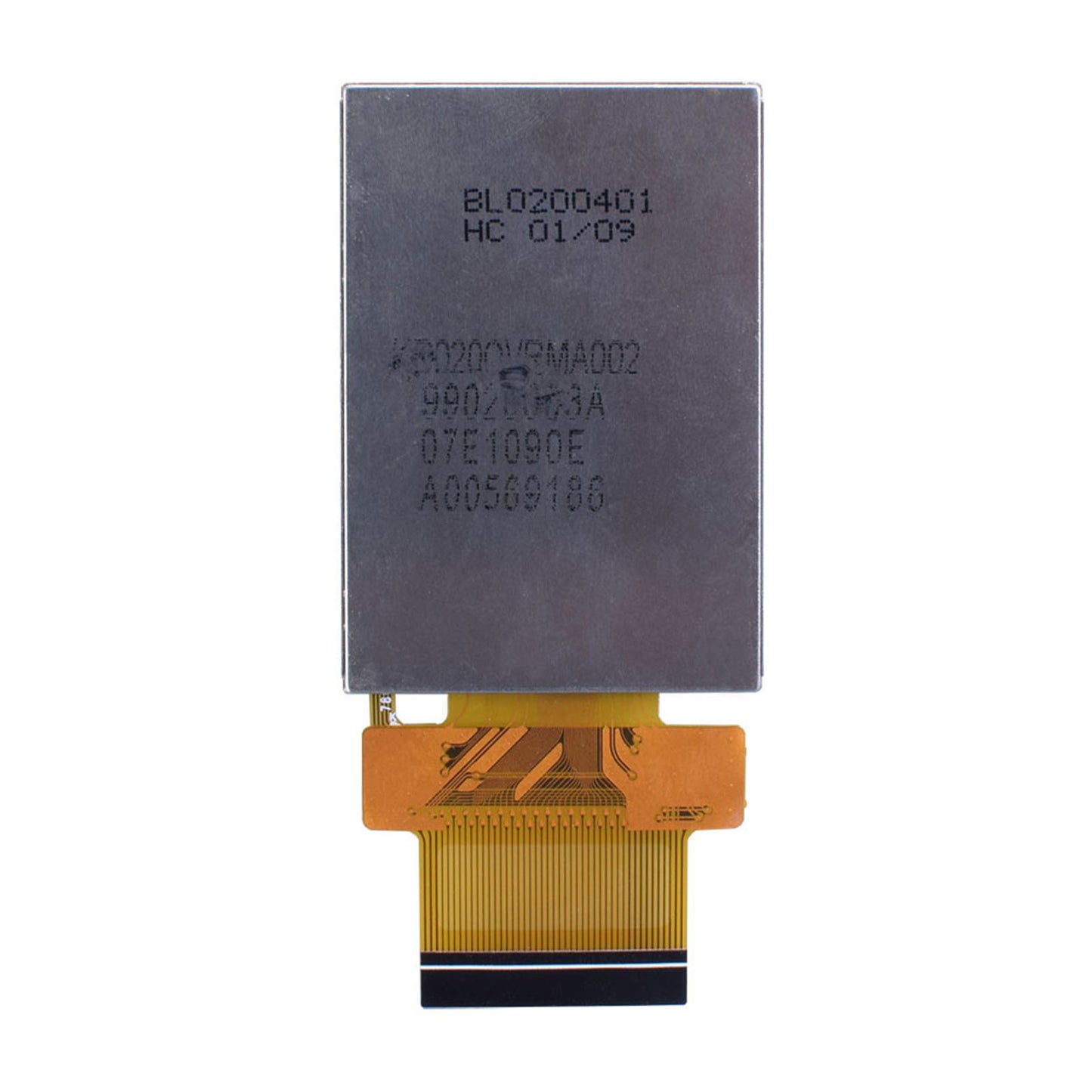

back of 2.0 inch 240x320 TFT display panel
top view of 2.0 inch 240x320 TFT transflective display panel

2.0" 240x320 TFT Transflective - SPI, MCU, RGB

Regular price $29.90
Sale price $29.90 Regular price
Datesheet:
1 pcs original price
5 pcs 8% off
10 pcs 10% off

Customization & Manufacturing

Adapter Custom

Sometimes standard interfaces or adapters may not meet your special needs. We provide custom adapter service for this, make sure you can easily connect our screen with your device perfectly.

Prototype, Pilot Production, Mass Manufacturing

DisplayModule is a subsidiary of NexPCB, thanks to NexPCB's rich experience in design, prototype, mass production, we confidently declare that we can provide one-stop service.

Contact Form

I'm reaching out to DisplayModule because...

Product description

Display Specifications

  • Diagonal Dimension : 2.0 inch
  • Resolution : 240x320 pixel
  • View Direction : All
  • Touch Mode : None
  • Module Dimension : 35.8(H)x52.1(V)x2.65(D) mm
  • Viewing Area : about 30.6(H)x40.8(V) mm
  • Supply Voltage : 3.8 V
  • Interface : 8/9/16/18 Bit MCU,3/4SPI+16/18bit RGB,3-line/4-line Serial
  • Luminance : 345 cd/m2
  • Drive IC : ST7789V
  • Operation Temperature : -20℃~70℃
  • Storage Temperature : -30℃~80℃

Dimensions
