3.5" IPS Display 320x480 w/o Capacitive - SPI, MCU, RGB
3.5" IPS Display 320x480 w/o Capacitive - SPI, MCU, RGB
SKU:DM-TFT35-368
Regular price
$59.00 USD
Regular price
Sale price
$59.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
1 pcs | original price |
5 pcs | 8% off |
10 pcs | 10% off |
Shipping
Shipping
Standard and expedited shipping available, free expedited shipping over $600. Lenrn more
Easy Returns
Easy Returns
No need to worry about buying products that don't fit your design, we offer a 30-day no-questions-asked return service.
More Order, More Save
More Order, More Save
The higher the quantity ordered, the greater the discount, so contact us for the discount price! Contact us
Share

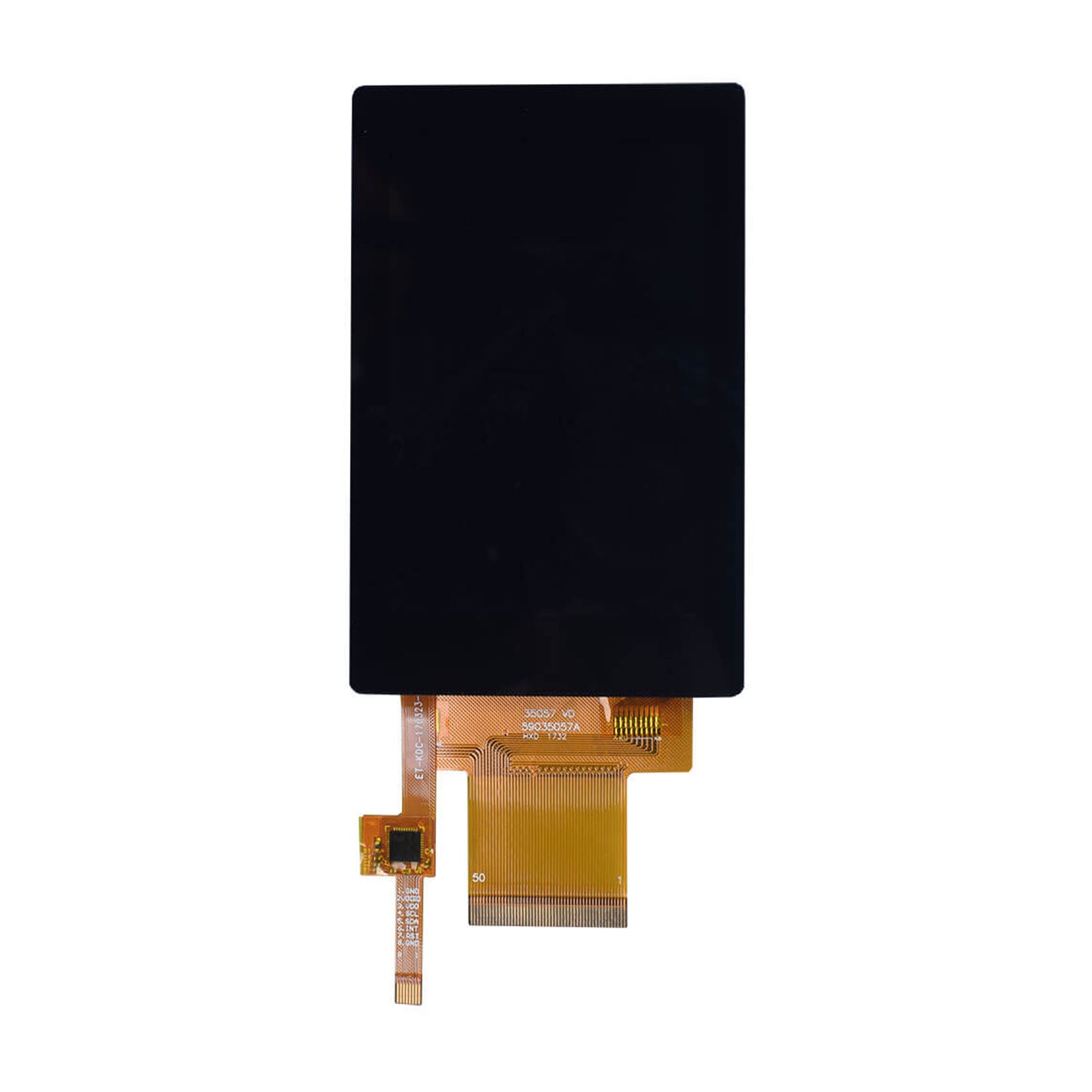

![3.5-inch IPS display panel with 320x480 resolution, capacitive touch, supporting SPI, MCU, and RGB interfaces](http://www.displaymodule.com/cdn/shop/products/DM-TFT35-368face.jpg?v=1659144955&width=1445)

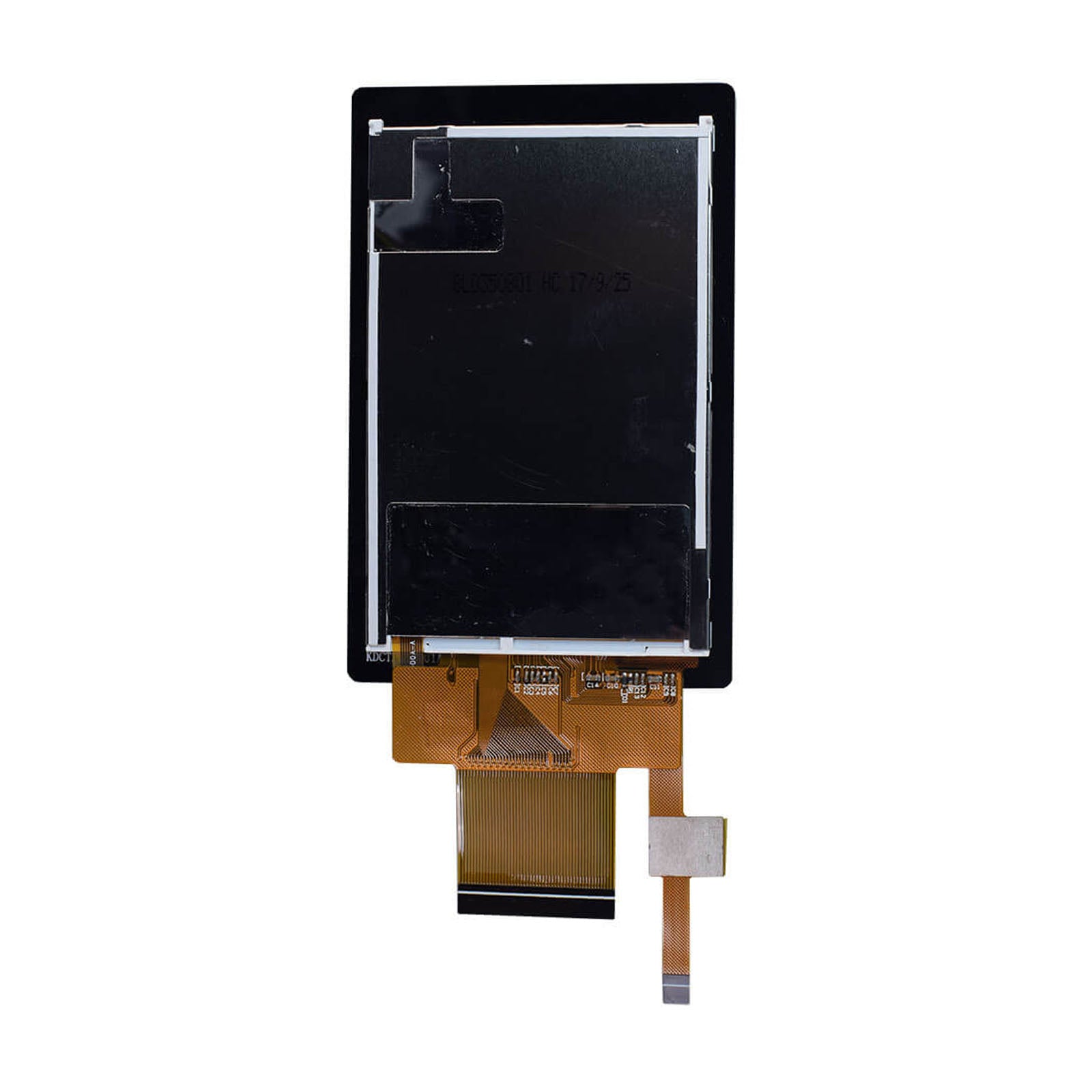

![back of 3.5-inch IPS display panel with 320x480 resolution, capacitive touch](http://www.displaymodule.com/cdn/shop/products/DM-TFT35-368back.jpg?v=1659144955&width=1445)

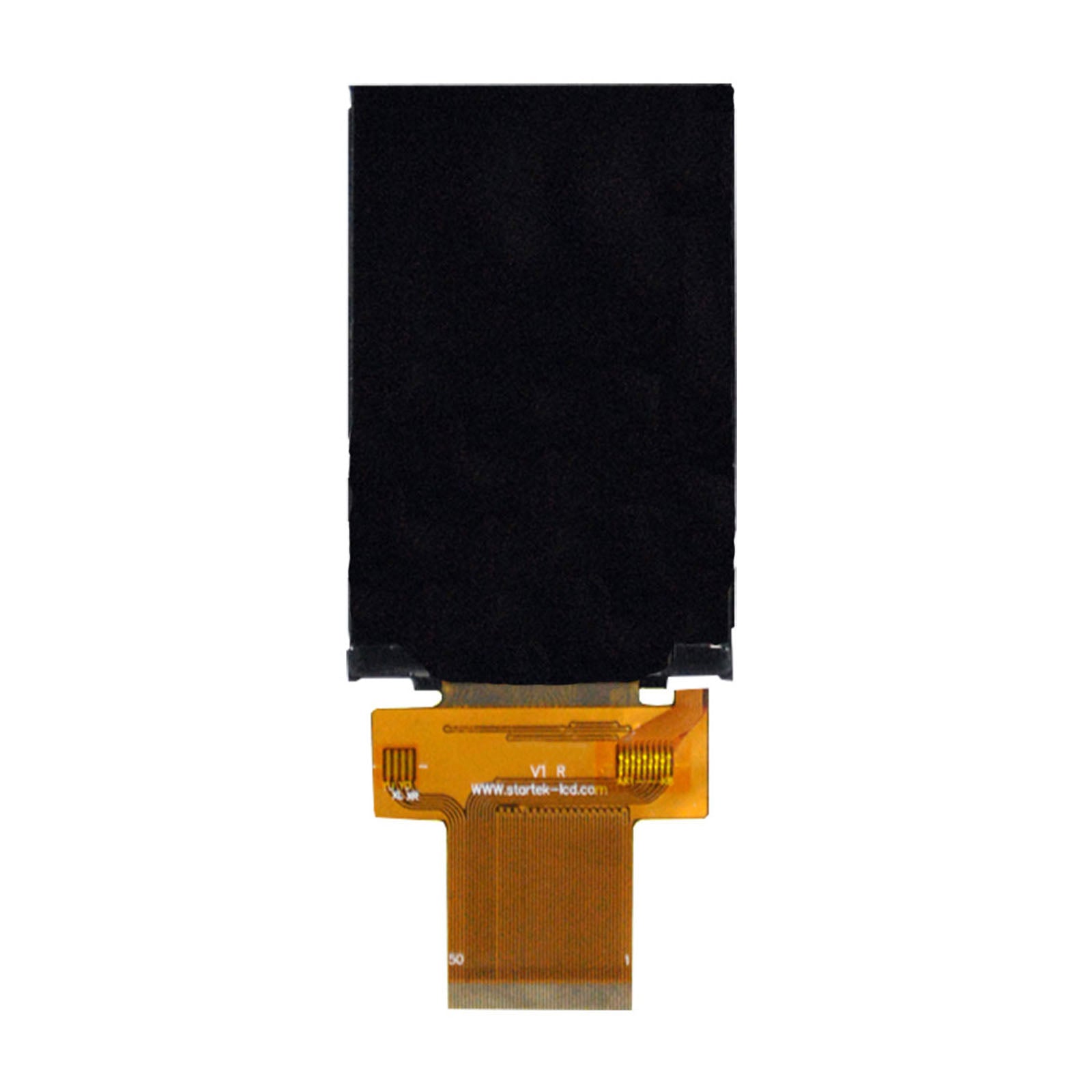

![3.5-inch IPS display panel with 320x480 resolution](http://www.displaymodule.com/cdn/shop/products/DM-TFT35-368face-2.jpg?v=1659144955&width=1445)

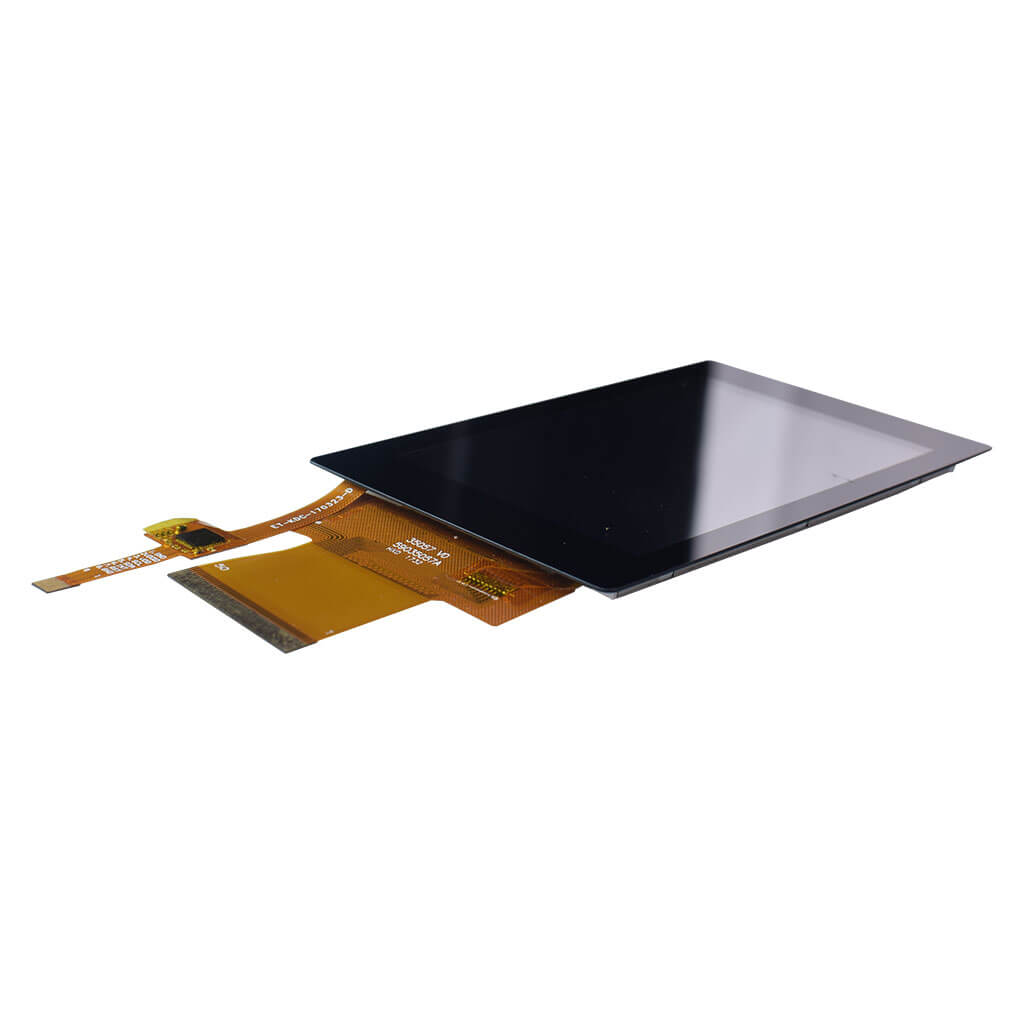

![side view of 3.5-inch IPS display panel with 320x480 resolution, capacitive touch](http://www.displaymodule.com/cdn/shop/products/side_19a3f093-78e1-4ef4-9c94-89cada7cbb69.jpg?v=1659144955&width=1445)
Display Specifications
- Diagonal Dimension : 3.5 inch
- Resolution : 320(RGB) x 480 pixel
- View Direction : All
- Touch Mode : Single points and Gestures
- Module Dimension : 61.90 x 96.01 x 3.88 mm
- Viewing Area : 48.96 x 73.44 mm
- Supply Voltage : 3.3 V
- Interface : 8/9/16/18Bit MCU Interface,3/4 line SPI,16/18Bit RGB Interface
- Luminance : 450 cd/m2
- Drive IC : ILI9488 FT6336G
- Operation Temperature : -20℃~70℃
- Storage Temperature : -30℃~80℃
Dimensions
![](http://cdn.shopify.com/s/files/1/0264/7629/files/tft35-368_794f34d6-aeff-4fcb-998f-931bb00cb7dd.jpg?v=1537514915)
Resources
- DM-TFT35-368
- DM-TFT35-420
- Driver IC: ILI9488-V090
- CTP Controller: FT6336G-V1.0
