3.5" TFT Display 320x240 with Capacitive - RGB
3.5" TFT Display 320x240 with Capacitive - RGB
SKU:DM-TFT35-335
Regular price
$49.90 USD
Regular price
$37.00 USD
Sale price
$49.90 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
1 pcs | original price |
5 pcs | 8% off |
10 pcs | 10% off |
Shipping
Shipping
Standard and expedited shipping available, free expedited shipping over $600. Lenrn more
Easy Returns
Easy Returns
No need to worry about buying products that don't fit your design, we offer a 30-day no-questions-asked return service.
More Order, More Save
More Order, More Save
The higher the quantity ordered, the greater the discount, so contact us for the discount price! Contact us
Share

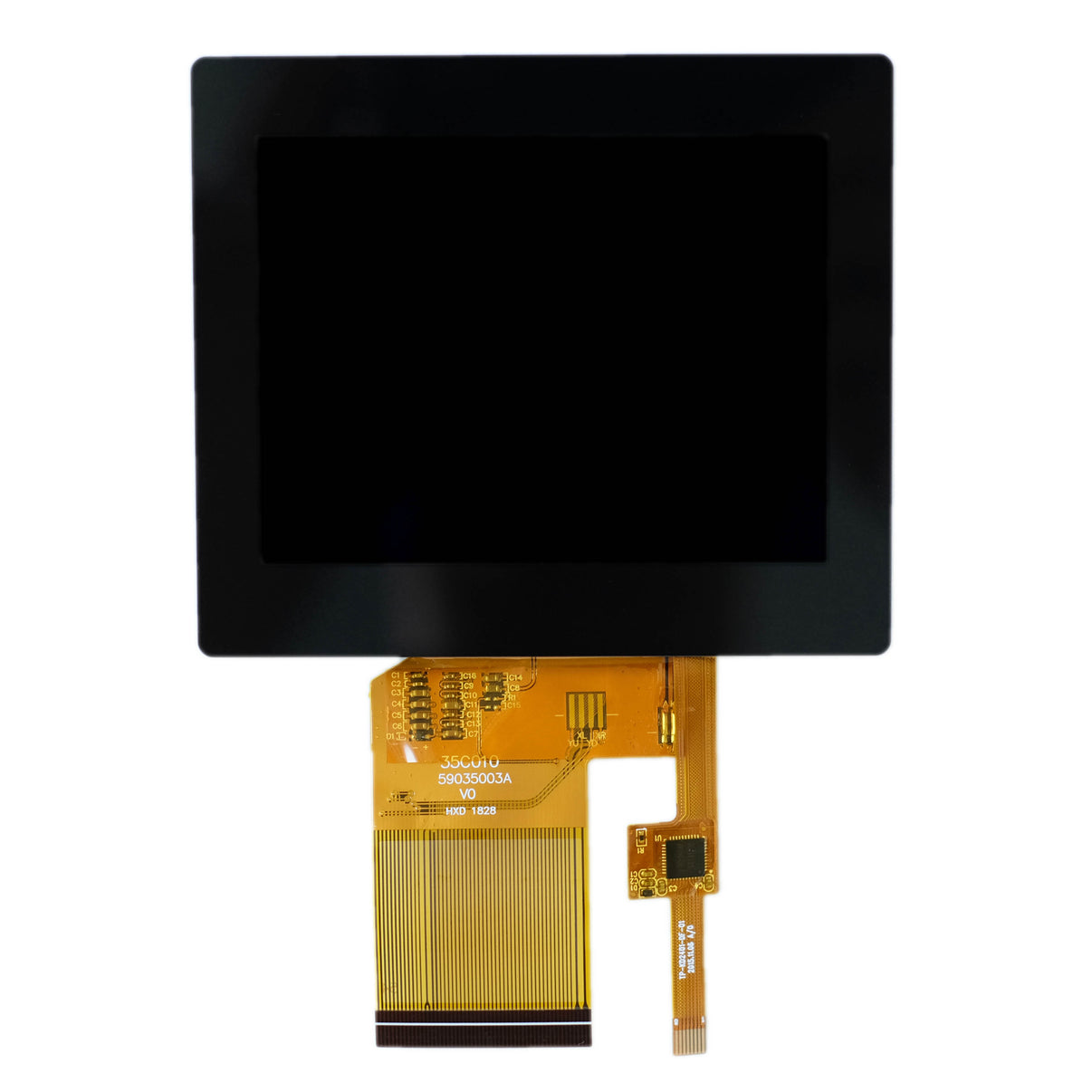

![3.5-inch TFT display panel with 320x240 resolution, capacitive touch capability, and RGB interface](http://www.displaymodule.com/cdn/shop/files/335.jpg?v=1712124561&width=1445)
![back fo 3.5-inch TFT display panel with 320x240 resolution](http://www.displaymodule.com/cdn/shop/files/335_3.jpg?v=1712124561&width=1445)
![side view of 3.5-inch TFT display panel with 320x240 resolution](http://www.displaymodule.com/cdn/shop/files/335_2.jpg?v=1712124561&width=1445)
Display Specifications
- Diagonal Dimension : 3.5 inch
- Resolution : 320 x 240 pixel
- View Direction : 12:00
- Touch Mode : Single point and Gestures
- Module Dimension : 86.84 x 74.84 x 5.05 mm
- Viewing Area : 70.08 x 52.56 mm
- Supply Voltage : 3.3 V
- Interface : 16/18/24 Bit RGB SYNC Mode
- Luminance : 350 cd/m2
- Drive IC : HX8238D,FT6336
- Operation Temperature : -20℃~70℃
- Storage Temperature : -30℃~80℃
Dimensions
![](http://cdn.shopify.com/s/files/1/0264/7629/files/335-4_31033559-ec83-42df-a56b-fac387c7842b.png?3769705142895345110)
Resources
- DM-TFT35-335
- Display Controller: HX8238D
- CTP Controller: FT6236
