3.5" TFT Display 320x240 - RGB
3.5" TFT Display 320x240 - RGB
SKU:DM-TFT35-323
Regular price
$29.90 USD
Regular price
$29.00 USD
Sale price
$29.90 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
1 pcs | original price |
5 pcs | 8% off |
10 pcs | 10% off |
Shipping
Shipping
Standard and expedited shipping available, free expedited shipping over $600. Lenrn more
Easy Returns
Easy Returns
No need to worry about buying products that don't fit your design, we offer a 30-day no-questions-asked return service.
More Order, More Save
More Order, More Save
The higher the quantity ordered, the greater the discount, so contact us for the discount price! Contact us
Share
![3.5-inch TFT display panel with a 320x240 resolution, using RGB interface](http://www.displaymodule.com/cdn/shop/products/DM-TFT35-323face.jpg?v=1659415730&width=1445)

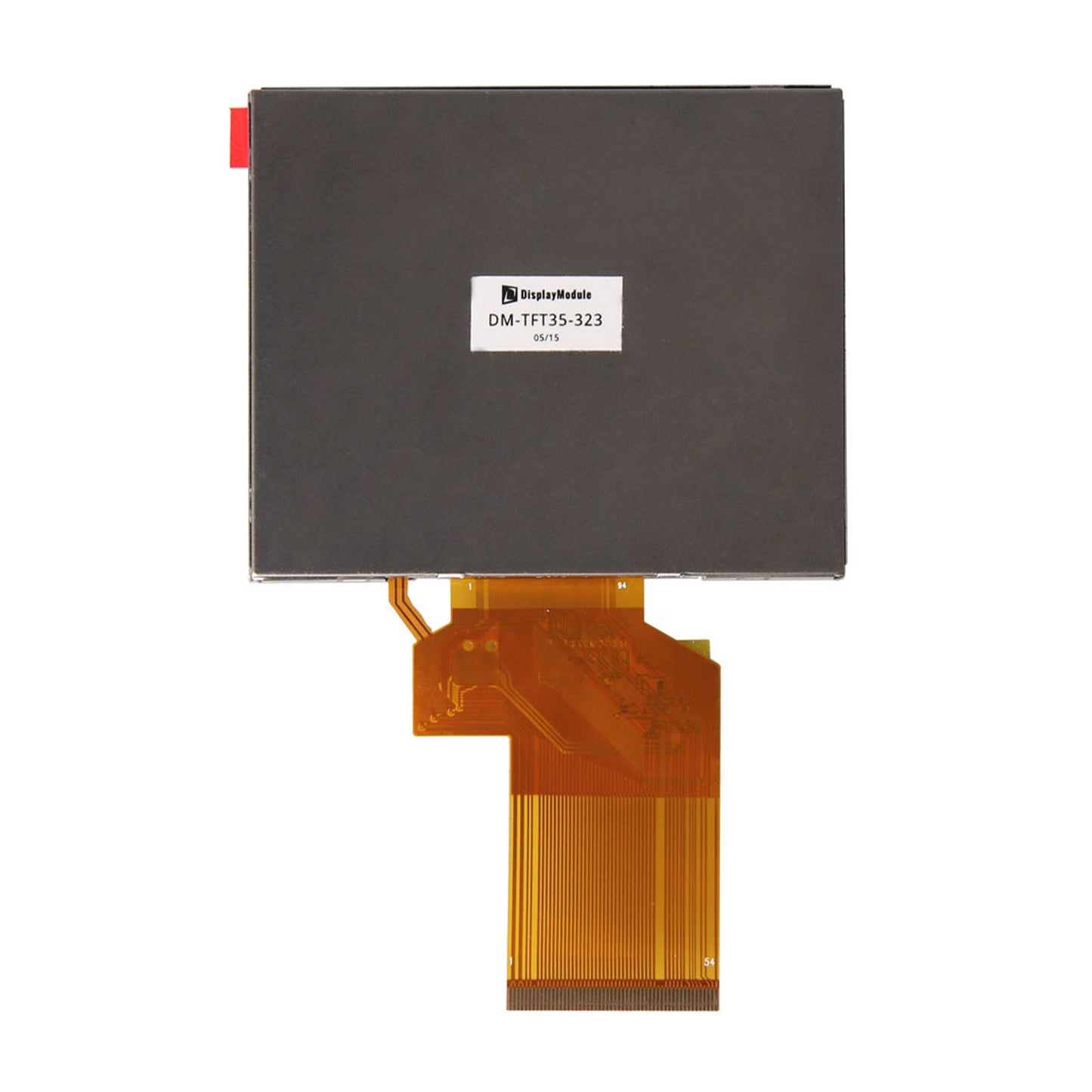

![back of 3.5-inch TFT display panel with a 320x240 resolution](http://www.displaymodule.com/cdn/shop/products/DM-TFT35-323back.jpg?v=1659415730&width=1445)

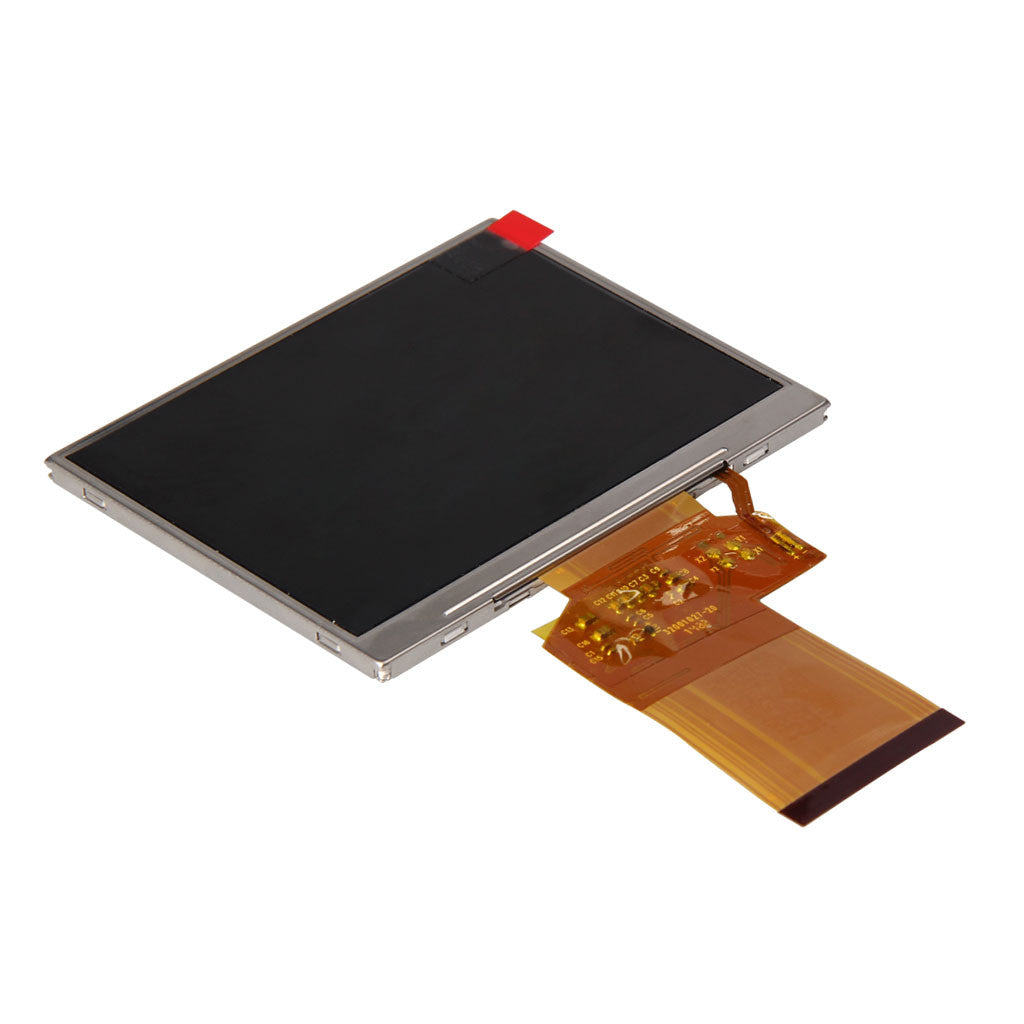

![side view of 3.5-inch TFT display panel with a 320x240 resolution](http://www.displaymodule.com/cdn/shop/products/DM-TFT35-323-1.jpg?v=1659415730&width=1445)
Display Specifications
- Diagonal Dimension : 3.45 inch
- Resolution : 320x240 pixel
- View Direction : 12 o’clock
- Touch Mode : None
- Module Dimension : 76.9(H)x63.9(V)x3.26(D) mm
- Viewing Area : 70.08(H)x52.56(V) mm
- Supply Voltage : 3.3 V
- Interface : 24 bit RGB
- Luminance : 420 cd/m2
- Drive IC : HX8238A
- Operation Temperature : -20℃~70℃
- Storage Temperature : -30℃~80℃
Dimensions
Resources
- DM-TFT35-323
- Display Controller: HX8238-A-V03
- No init code needed for this display panel
