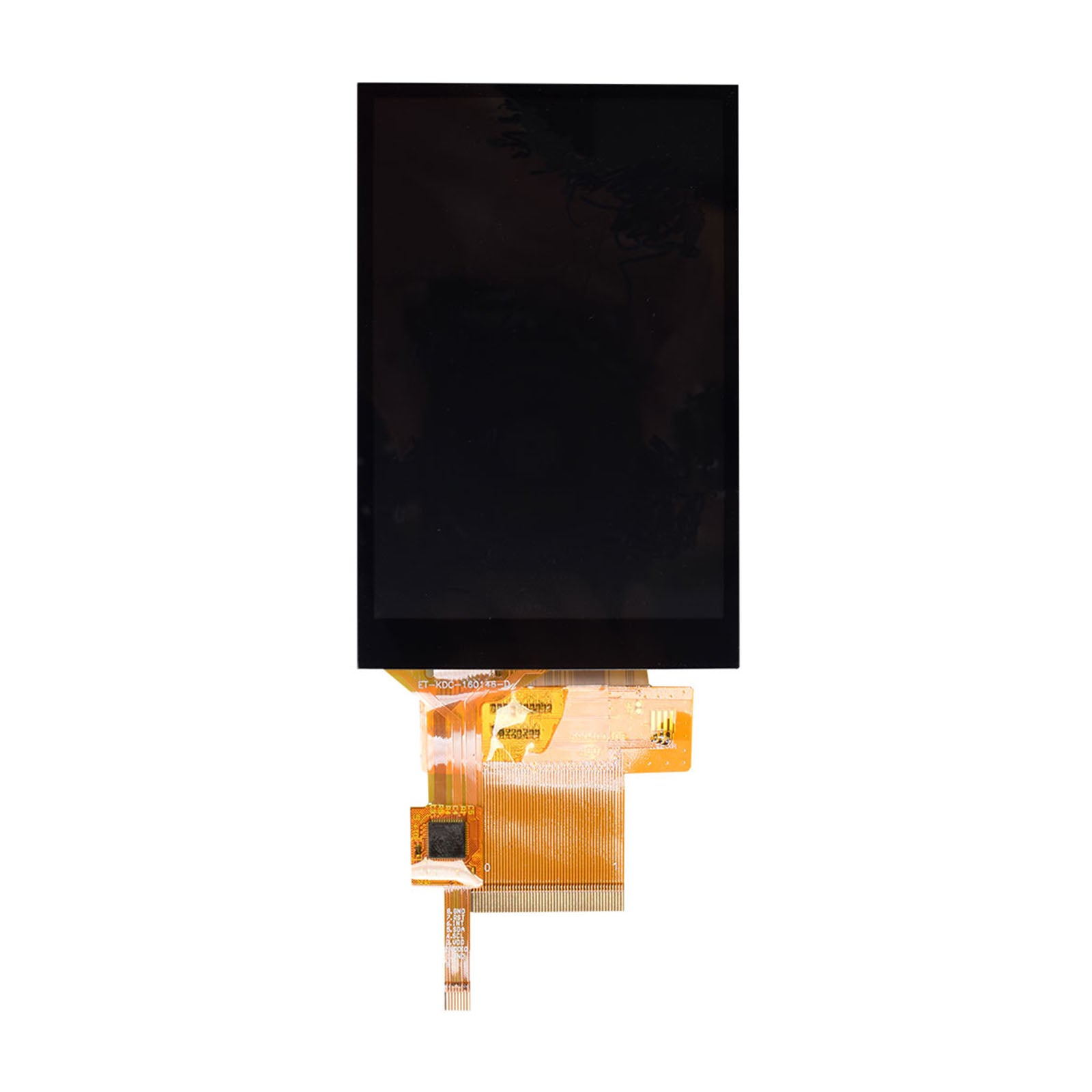

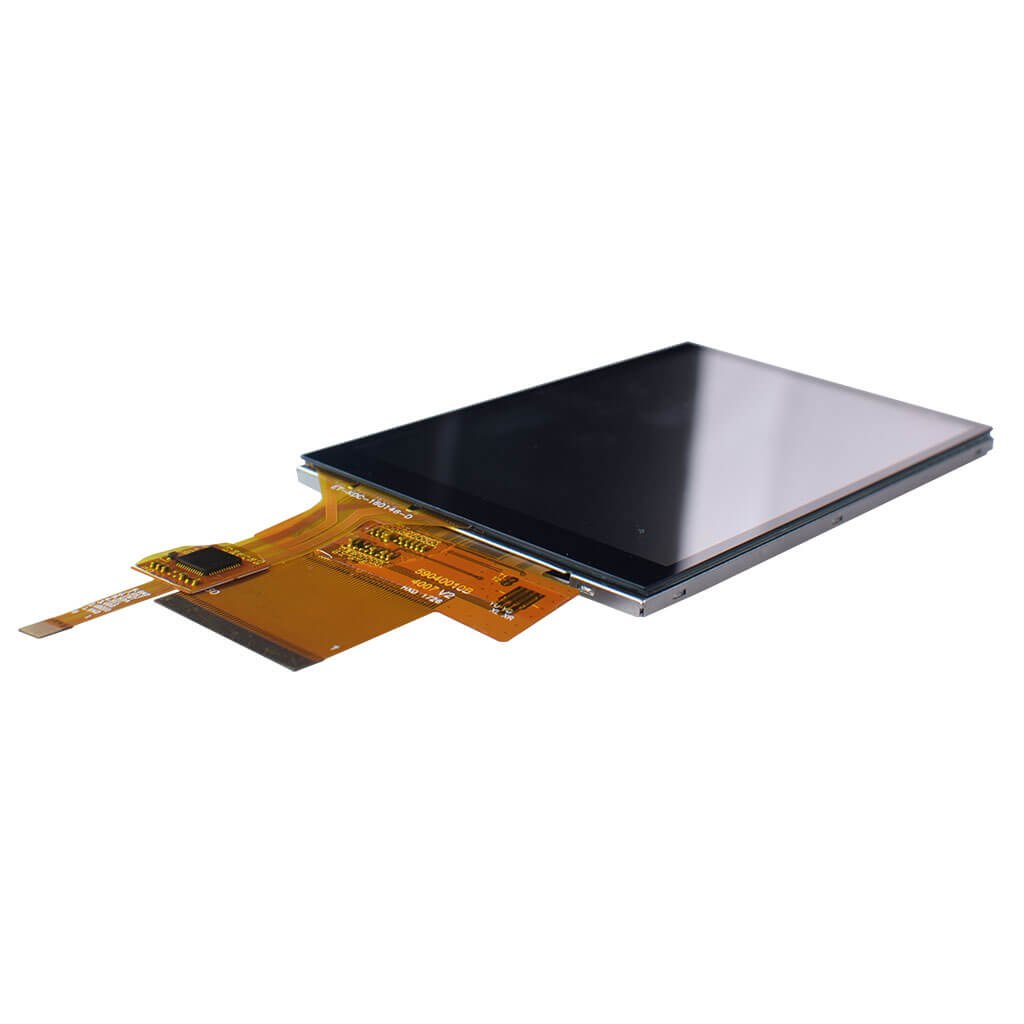

4.0" TFT Display 320x480 Capacitive - SPI, MCU, RGB
4.0" TFT Display 320x480 Capacitive - SPI, MCU, RGB
SKU:DM-TFT40-380
Regular price
$49.90 USD
Regular price
Sale price
$49.90 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| 1 pcs | original price |
| 5 pcs | 8% off |
| 10 pcs | 10% off |
Shipping
Shipping
Standard and expedited shipping available, free expedited shipping over $600. Lenrn more
Easy Returns
Easy Returns
No need to worry about buying products that don't fit your design, we offer a 30-day no-questions-asked return service.
More Order, More Save
More Order, More Save
The higher the quantity ordered, the greater the discount, so contact us for the discount price! Contact us
Share
Display Specifications
- Diagonal Dimension : 4.0 inch
- Resolution : 320(RGB) x 480 pixel
- View Direction : 12 O’clock
- Touch Mode : Five points and Gestures
- Module Dimension : 62.0 x 95.0 x 4.08 mm
- Viewing Area : 55.68 x 83.52 mm
- Supply Voltage : 2.8 V
- Interface : 8/9/16/18 Bit MCU,3/4SPI+16/18bit RGB,3-line/4-line Serial
- Luminance : 400 cd/m2
- Drive IC : ILI9488 GT911
- Operation Temperature : -20℃~70℃
- Storage Temperature : -30℃~80℃
Dimensions
Resources
- DM-TFT40-380
- Driver IC: ILI9488-V090
- CTP Controller: GT911-Rev0.9
