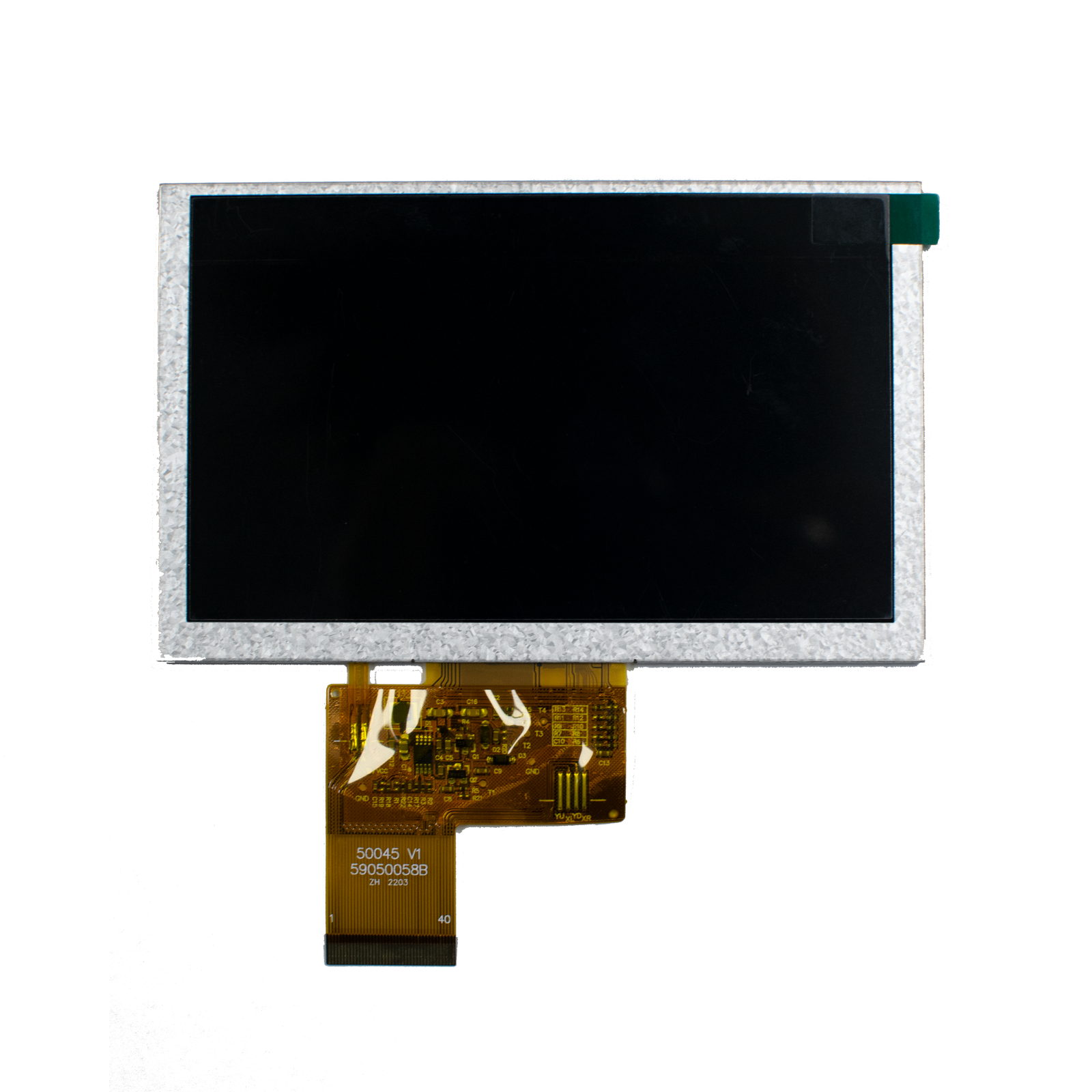

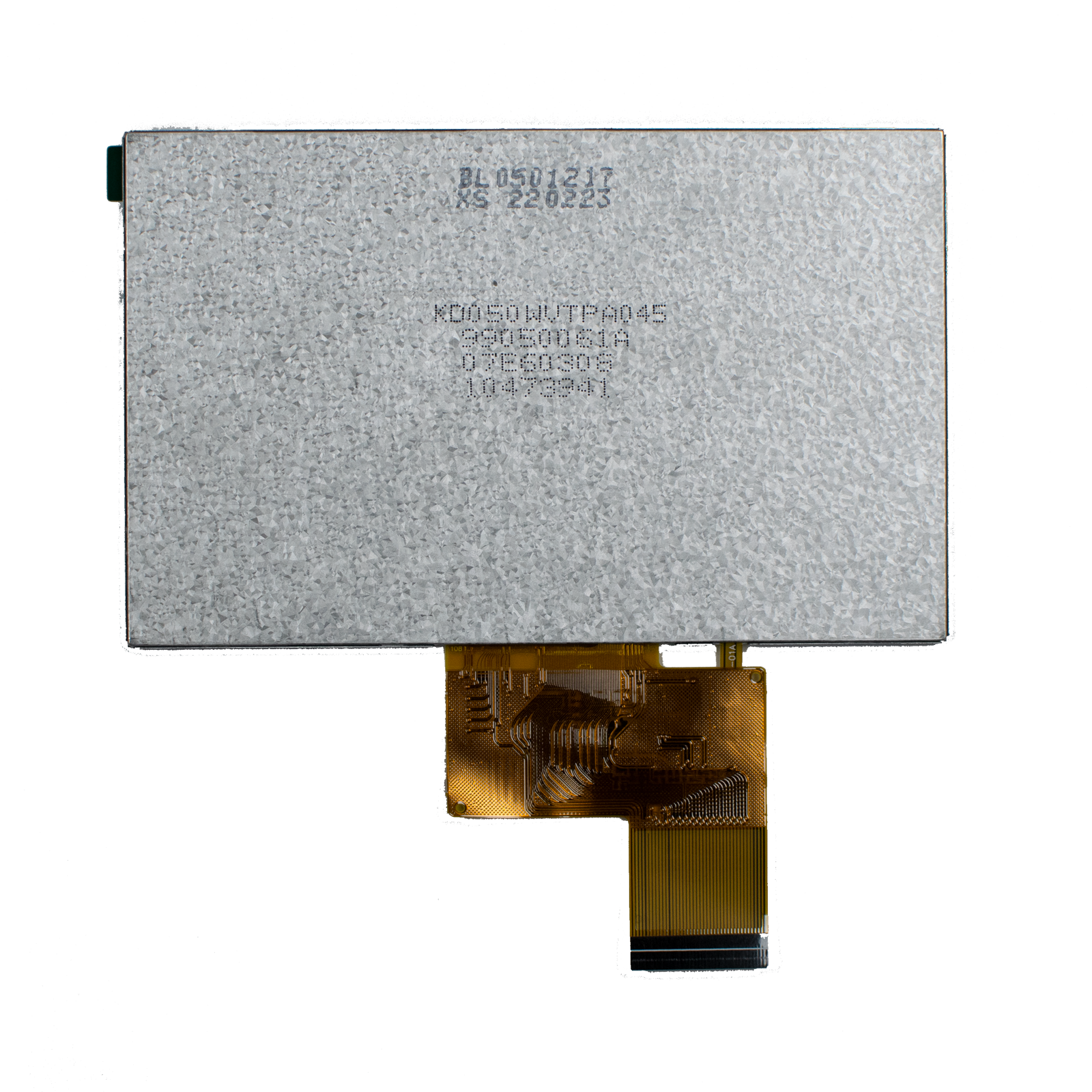

5.0" TFT Display 800x480 - RGB
5.0" TFT Display 800x480 - RGB
SKU:DM-TFT50-426
Regular price
$39.99 USD
Regular price
$39.99 USD
Sale price
$39.99 USD
Unit price
/
per
1 pcs | original price |
5 pcs | 8% off |
10 pcs | 10% off |
Shipping
Shipping
Standard and expedited shipping available, free expedited shipping over $600. Lenrn more
Easy Returns
Easy Returns
No need to worry about buying products that don't fit your design, we offer a 30-day no-questions-asked return service.
More Order, More Save
More Order, More Save
The higher the quantity ordered, the greater the discount, so contact us for the discount price! Contact us
Share
Display Specifications
- Diagonal Dimension : 5.0 inch
- Resolution : 800x480 pixel
- View Direction : 12 o’clock
- Touch Mode : None
- Module Dimension : 120.70(H)x75.80(V)x3.1(D) mm
- Viewing Area : 108.00(H)x64.80(V) mm
- Supply Voltage : 3.3 V
- Interface : 16/18/24 bit RGB
- Luminance : 350 cd/m2
- Drive IC : ILI5960/ILI6122
- Operation Temperature : -20℃~70℃
- Storage Temperature : -30℃~80℃
Dimensions
Resources
- DM-TFT50-426
- Display Controller: ILI5960-V0.03 / ILI6122-V0.08
- No init code needed for this display panel
