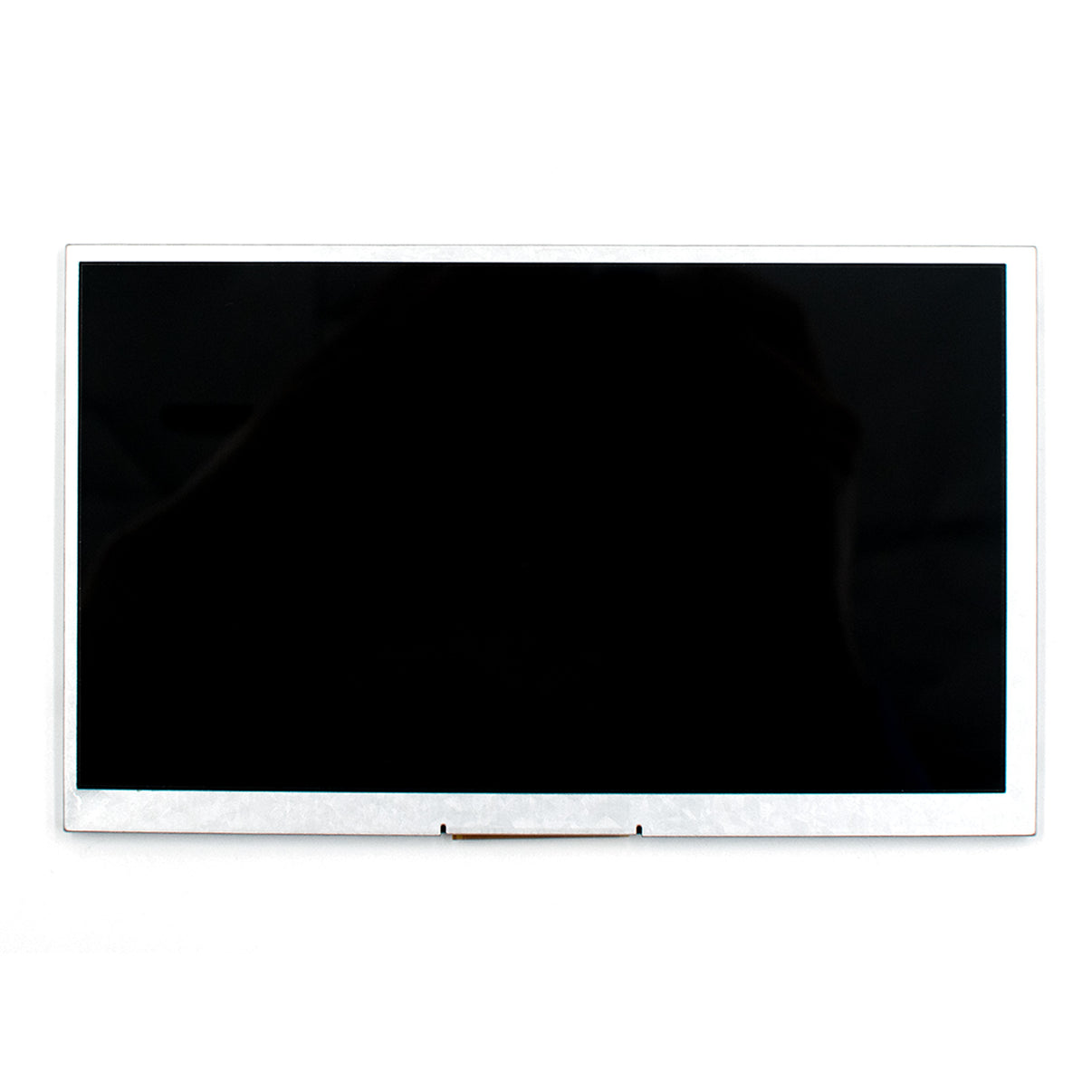

7.0" Hard Coating TFT Display 1024x600 - LVDS

Regular price $49.00
Sale price $49.00 Regular price
Datesheet:
1 pcs original price
5 pcs 8% off
10 pcs 10% off

Customization & Manufacturing

Adapter Custom

Sometimes standard interfaces or adapters may not meet your special needs. We provide custom adapter service for this, make sure you can easily connect our screen with your device perfectly.

Prototype, Pilot Production, Mass Manufacturing

DisplayModule is a subsidiary of NexPCB, thanks to NexPCB's rich experience in design, prototype, mass production, we confidently declare that we can provide one-stop service.

Contact Form

I'm reaching out to DisplayModule because...

Product description

Display Specifications

Parameter Specification
Screen Size 7 inch
Driver Element
a-Si TFT Active Matrix
Resolution
1024 x 600 RGB
Display Mode
Normally White, Transmmissive
Pixel Size 0.1506(W) x 0.1432(H) mm
Active Area
154.2144(W) x 85.92(H) mm
Module Size
164.9(W) x 100(H) x 4.8(D) mm
Surface Treatment
Hard Coating
Color Arrangement
RGB-stripe
Interface
LVDS
Operation Temperature -20℃~70℃
Storage Temperature
-30℃~80℃

Dimensions
