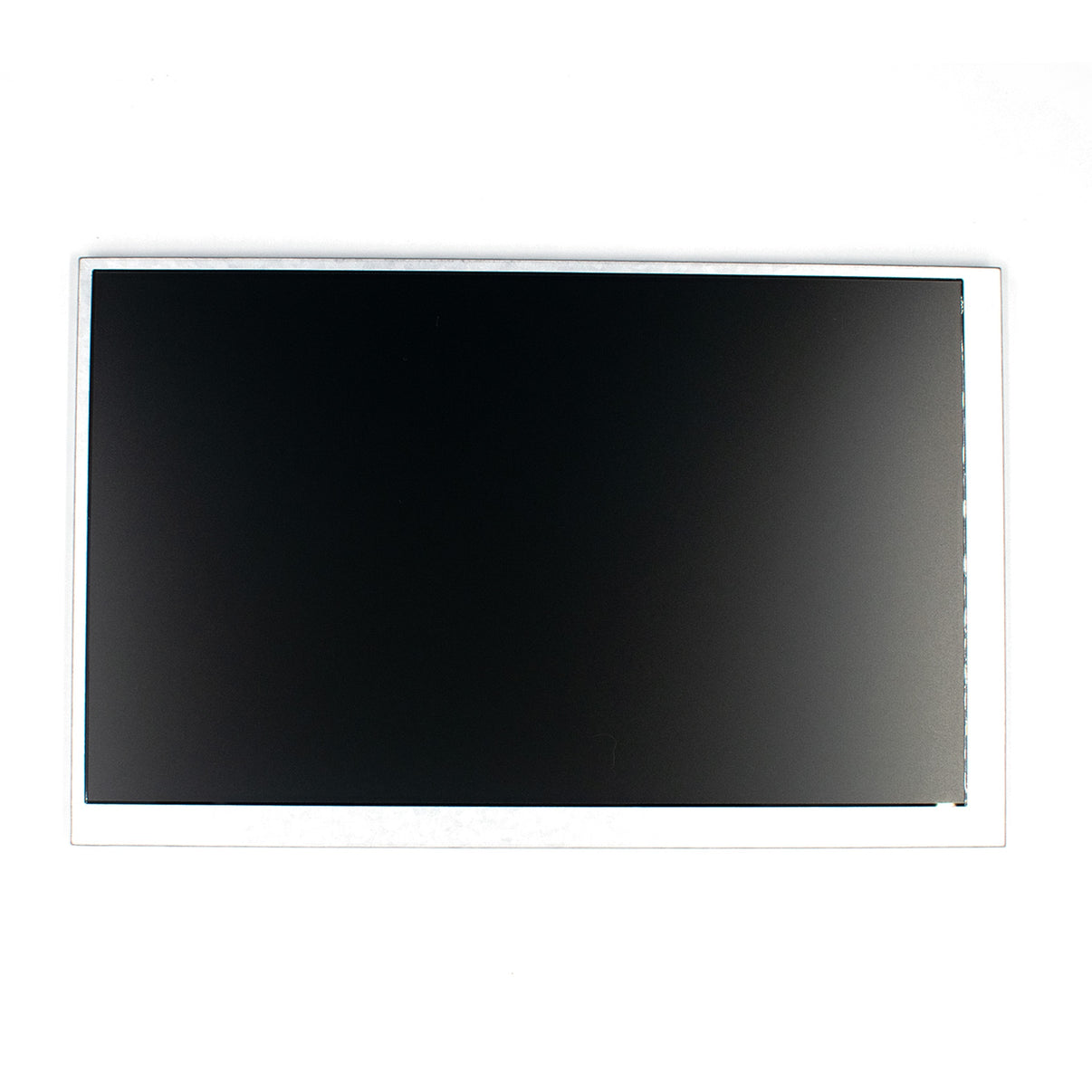

7.0" Transmissive TFT Display 800x480

Regular price $49.00
Sale price $49.00 Regular price
Datesheet:
1 pcs original price
5 pcs 8% off
10 pcs 10% off

Customization & Manufacturing

Adapter Custom

Sometimes standard interfaces or adapters may not meet your special needs. We provide custom adapter service for this, make sure you can easily connect our screen with your device perfectly.

Prototype, Pilot Production, Mass Manufacturing

DisplayModule is a subsidiary of NexPCB, thanks to NexPCB's rich experience in design, prototype, mass production, we confidently declare that we can provide one-stop service.

Contact Form

I'm reaching out to DisplayModule because...

Product description

Display Specifications

Parameter Specification
Display Method  Active matrix TFT
Resolution 800x480 RGB
Display Mode
Normally white, Transmissive
Pixel Pitch 0.0635(W) x 0.1905(H) mm
Luminance 300 cd/m²
Contrast Ratio 1000:1
Backlight Power Consumption 2.500 W
Panel Power Consumption
0.281 W
Surface Treatment
Anti-Glare
Color Arrangement
RGB-stripe
Interface Digital (TTL)
Active Area
152.4(W) x 91.44(H) mm
Module Size
MIPI DSI (Video Mode)
Operating Temperature -20℃~70℃
Storage Temperature -30℃~80℃

Dimensions
