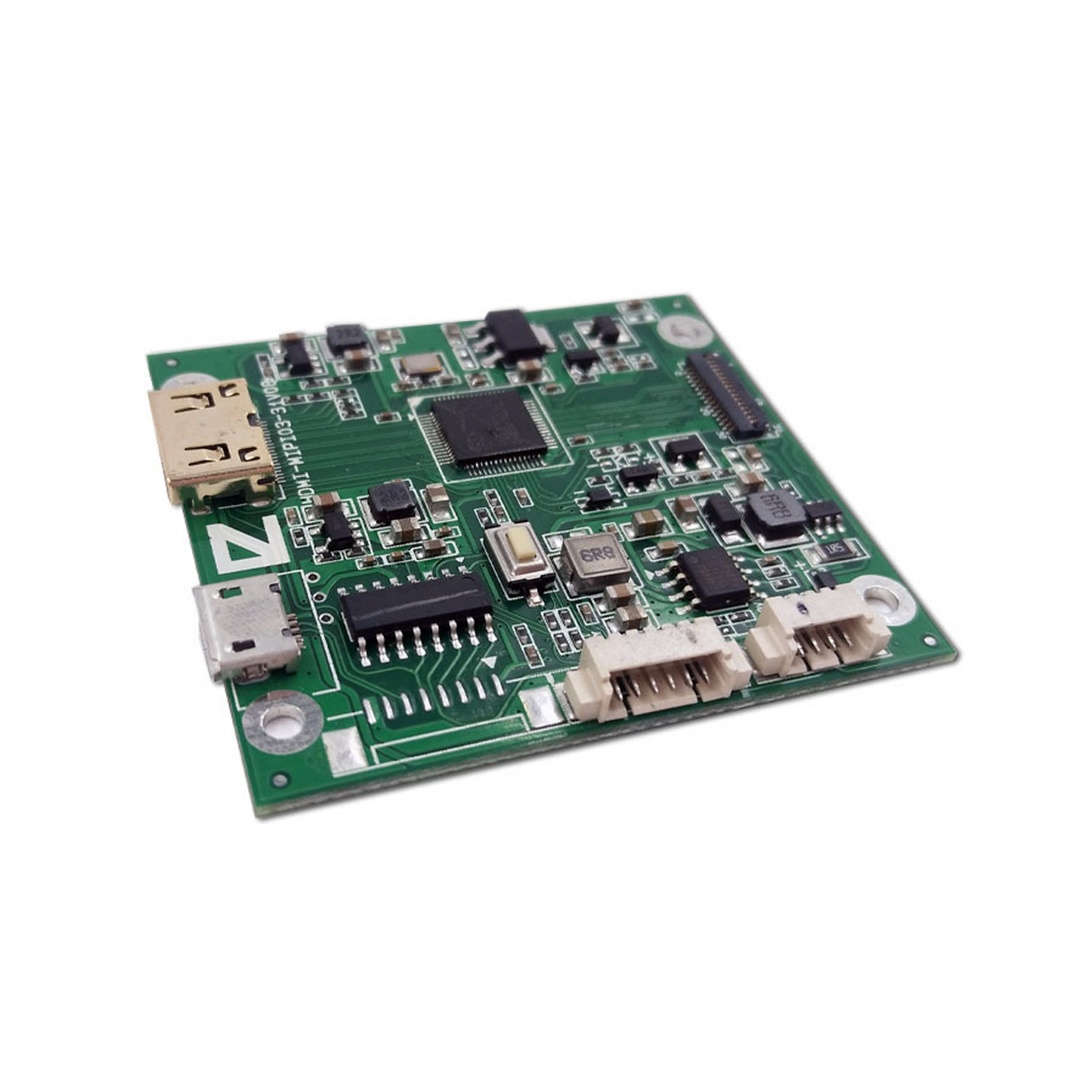

Adapter converting Mini HDMI input to 4-lane MIPI DSI output for display connectivity
side view of adapter converting Mini HDMI input to 4-lane MIPI DSI output for display connectivity

Display Adapter for Mini HDMI to 4-Lane MIPI DSI

Regular price $99.00
Sale price $99.00 Regular price
Datesheet:
  • Type:
  • Availability:
    Out of stock
  • SKU:
    DM-ADTTR-025
1 pcs original price
5 pcs 8% off
10 pcs 10% off

Customization & Manufacturing

Adapter Custom

Sometimes standard interfaces or adapters may not meet your special needs. We provide custom adapter service for this, make sure you can easily connect our screen with your device perfectly.

Prototype, Pilot Production, Mass Manufacturing

DisplayModule is a subsidiary of NexPCB, thanks to NexPCB's rich experience in design, prototype, mass production, we confidently declare that we can provide one-stop service.

Contact Form

I'm reaching out to DisplayModule because...

Product description

Board Specifications

It’s a Mini HDMI to 4-Lane MIPI DSI Driver , Compliant with the HDMI 1.4 specification with TMDS data rates up to 3.4Gbps per channel,Support HDCP 1.4.

  • Adapter Function: Mini HDMI to 4-Lane MIPI DSI Driver
  • Supply Voltage:5V
  • Input Interface: Mini HDMI
  • Output Interface: 4-Lane MIPI (CFPC0310-31Pin-0.3)
  • Outline L x W x H: 50.0*46.0*4.8 mm
  • Driver IC: -
  • Maximum Resolution: 480*480
  • Display model : Single
  • OS: Windows, RaspberrPi, and Mac  (if you want to use the Mac OS, please contact us)
  • Operation Temperature:-20℃~+60℃

Dimensions

Resources

Applications

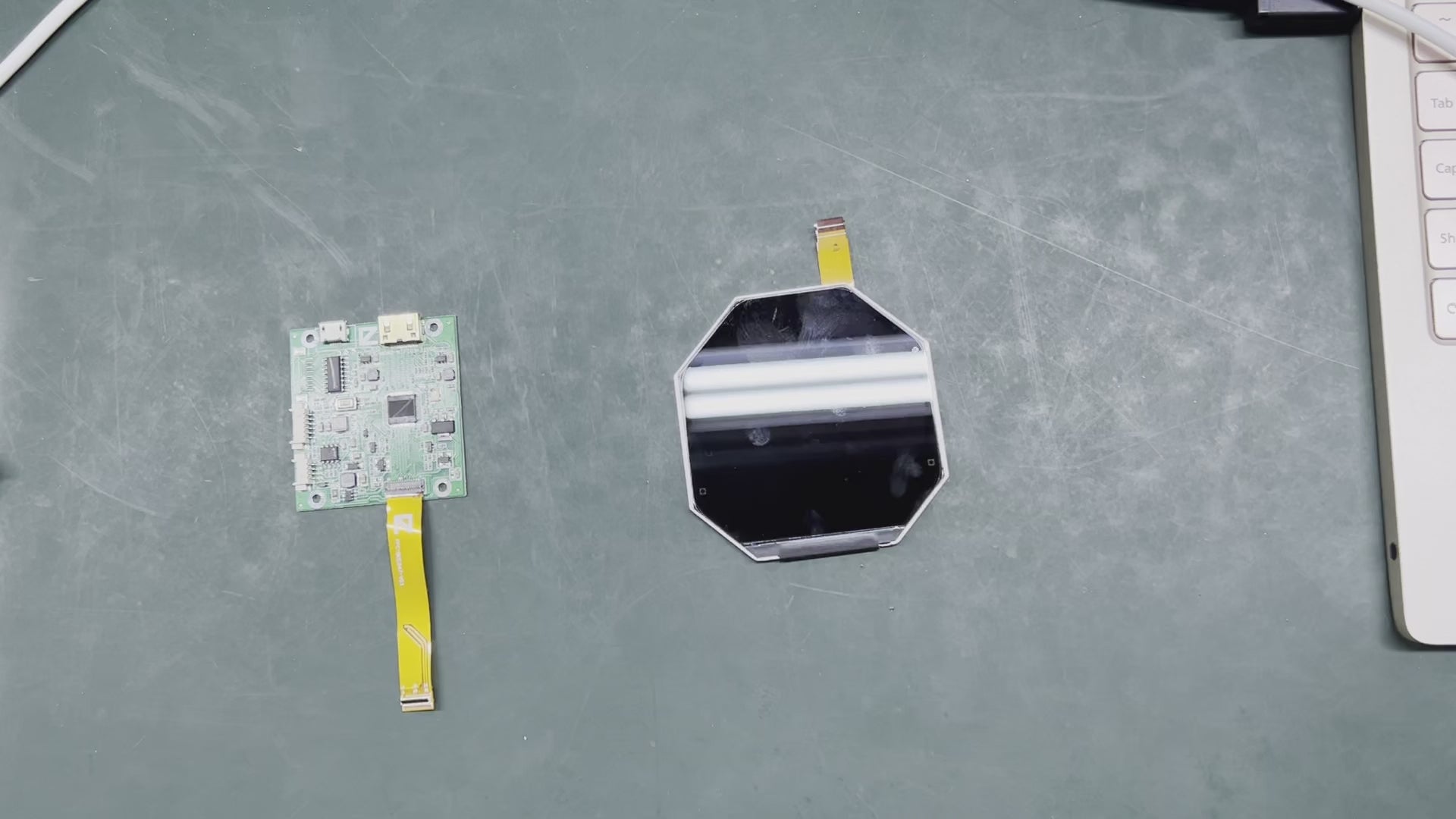

This Adapter can work with:
  • DM-TFTR247-451     2.47" IPS 480X480 Octagonal Shape Round U/D/L/R free TFT - MIPI
