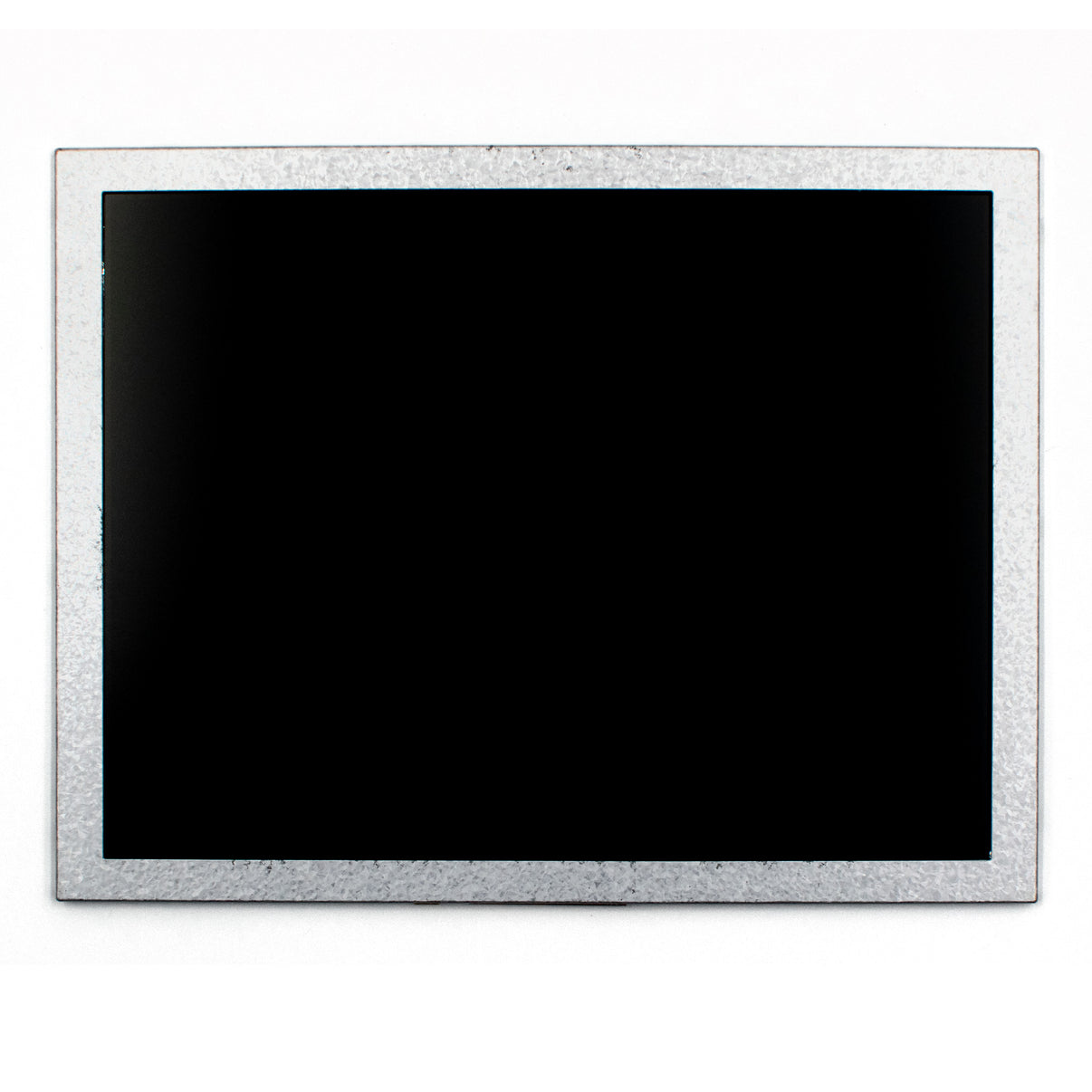

8" 1024×768 TFT LCD Display Specifications
This 8-inch TFT LCD offers a 1024×768 resolution with RGB vertical stripe pixel arrangement, anti-glare surface, and normally white display mode. Designed with edge-type LED backlight and wide operating temperature, it's ideal for high-clarity industrial and embedded display applications.
| Parameter | Value | Unit |
|---|---|---|
| Screen Size | 8.0 | inch |
| Active Area | 162.05 × 121.5 | mm |
| Number of Pixels | 1024 × 768 | pixels |
| Pixel Pitch | 0.052 × 0.158 | mm |
| Pixel Arrangement | R.G.B. Vertical Stripe | - |
| Display Colors | 16.7M | colors |
| Display Mode | Normally White | - |
| Outline Dimensions | 183.0 × 141.0 × 5.6 | mm |
| Surface Treatment | Anti-glare | - |
| Backlight Type | Edge Side, 1-LED Lighting Bar | - |
| Operating Temperature | -20 ~ 70 | °C |
| Storage Temperature | -30 ~ 80 | °C |
Mechanical Dimensions
Refer to the mechanical drawing below for installation fit and structural integration, including enclosure allowances.
Technical Resources
Download the datasheet for detailed mechanical, electrical, and optical specifications for the DM-TFT800-509 module.
