Principles of Color Reproduction in TFT LCDs
HemyobK

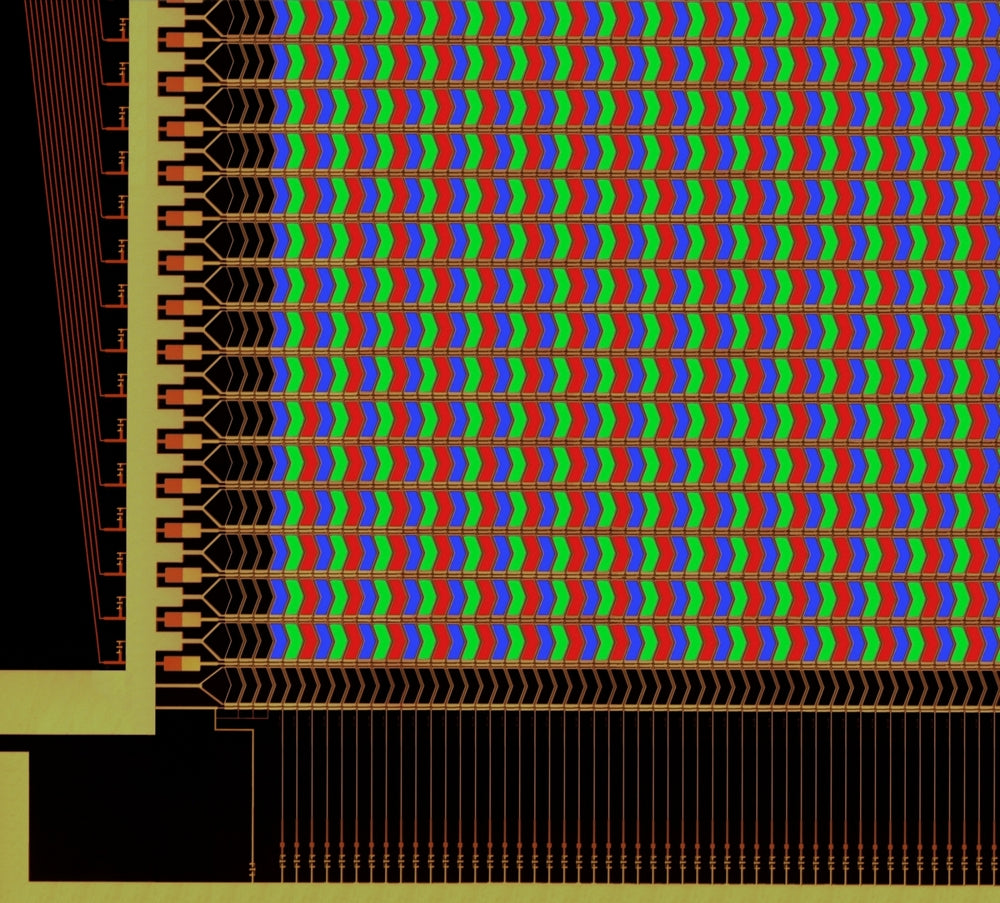

A TFT (Thin-Film Transistor) LCD screen is composed of numerous pixels, each of which consists of three sub-pixels: red (R), green (G), and blue (B). The color of each pixel is determined by controlling the brightness ratio of these three sub-pixels. Due to the persistence of human vision, the eye cannot distinguish the individual colors of the sub-pixels when they are close together in space and time. Instead, the eye perceives a single, blended color resulting from the combination of the three sub-pixels. By reducing the size of the pixels, the smoothness and fineness of the color transitions on the screen can be enhanced.
Spatial Synthesis Method
Spatial synthesis involves the simultaneous emission of light from the R, G, and B sub-pixels at different spatial positions. The human eye’s spatial persistence results in the perception of a mixed color. By adjusting the relative brightness of each sub-pixel, various colors can be achieved. The advantage of spatial synthesis is that it requires a lower pixel driving frequency, which only needs to match the screen refresh rate. However, the downside is that having multiple sub-pixels occupies more space, which can negatively impact both resolution and light transmission efficiency.
Field Sequential Color Method
Field sequential color (FSC) method, or temporal synthesis, involves displaying each primary color (R, G, B) in succession within the same pixel over a short period. The human eye’s visual persistence combines these sequential colors into a single perceived color. The advantage of the FSC method is that it requires fewer sub-pixels, which enhances resolution and light transmission. However, this method demands a driving frequency and liquid crystal response speed that are at least three times higher to ensure smooth color transitions and accurate color reproduction.
Practical Implications
1. Enhanced Resolution and Transmission: By adopting the field sequential color method, manufacturers can produce displays with higher resolution and better light transmission, leading to sharper and more vibrant images.
2. Reduced Pixel Size: Smaller pixels allow for finer color gradations and a more detailed display, which is especially beneficial for high-definition screens and devices requiring precise color accuracy.
3. Driving Frequency Requirements: While the spatial synthesis method is simpler and less demanding in terms of driving frequency, the FSC method’s higher frequency requirement poses a challenge. Advances in TFT technology and liquid crystal materials are necessary to meet these demands.
