What is MIPI DSI (Display Serial Interface)?

by HemyobK on May 24, 2023

What is MIPI DSI (Display Serial Interface)?

If you've ever wondered how your phone or tablet displays those vibrant images and videos, you might be interested in the DSI (Display Serial Interface). The DSI is an interface that feeds data to the display screen of mobile devices, serving as a bridge between the device's "brain" (processor) and "eyes" (display). But how does the DSI work? To understand this, we need to start from the organization behind it - the MIPI (Mobile Industry Processor Interface) Alliance.

MIPI is a global industry alliance formed by leading mobile device manufacturers. Its primary goal is to develop open hardware and software interface specifications for mobile and mobile-influenced industrial sectors. In simple terms, MIPI provides the "rules" for data transmission between different parts of mobile devices, ensuring that all devices function in the same way.

DSI is one of these "rules", specifically responsible for managing communication between the processor and the display in mobile devices. DSI defines how to transform large amounts of image data into serialized data streams, which are then sent to the display through physical connections (like wires or wireless links). Upon receiving this data, the display then deserializes it back into the original image data for display.

One of the main advantages of DSI is its efficiency. By using high-speed data transmission and advanced compression technologies, DSI can transmit large amounts of image data in a very short time, enabling your phone or tablet to display smooth videos and high-definition images. Moreover, DSI supports low-power mode, significantly reducing power consumption when the device is on standby or displaying static images, thereby helping to extend battery life.

However, DSI is not the only display interface specification. In addition to DSI, the MIPI Alliance has also developed other interface specifications, such as CSI (Camera Serial Interface) for cameras, and D-PHY and M-PHY for physical layer interfaces. These interface specifications collectively provide a comprehensive solution for mobile devices, enabling efficient, fast, and secure data communication between different parts of the device.

In computer networks and data communications, physical layer interface specifications are an essential part. These specifications define how to achieve actual data transmission between hardware devices, including the electrical characteristics, physical connections, encoding and decoding of signals, and the transmission and reception of data.

To understand physical layer interface specifications, we can imagine them as the rules and standards for highways. For instance, the number of lanes on a highway, lane width, speed limit, traffic signs, and lighting are all dictated by a set of rules and standards. These rules and standards ensure that all vehicles can operate on the highway in the same way, thus ensuring smooth and safe traffic flow.

Similarly, physical layer interface specifications are rules and standards that dictate how to transmit data between hardware devices. They define the voltage and current for data transmission, methods for signal encoding and decoding, the type and layout of connectors, and data transmission speeds. These rules ensure that all devices adhering to the same interface specification can transmit data in a consistent, predictable manner, facilitating communication between devices.

Physical layer interface specifications are usually developed by various industry organizations or standardization bodies, such as IEEE, IETF, ITU, USB-IF, HDMI organization, and the MIPI Alliance, among others. These organizations typically comprise experts from various companies and research institutions, who collectively decide on the content of the interface specification and maintain and update it as needed.

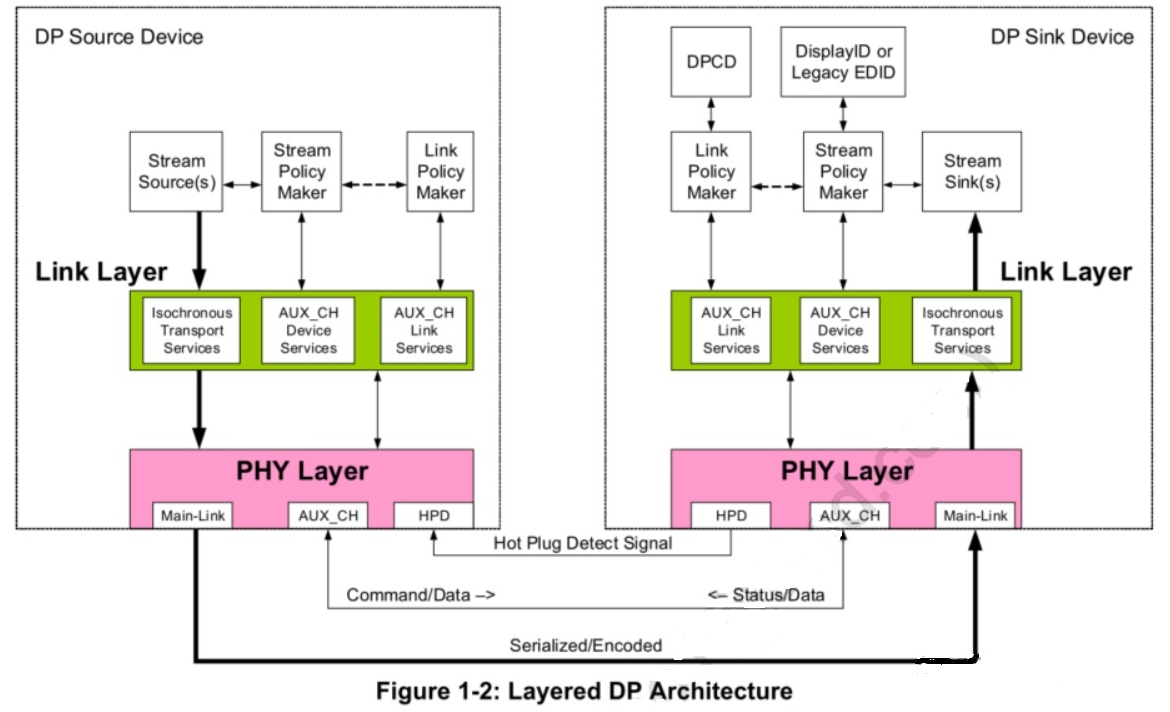

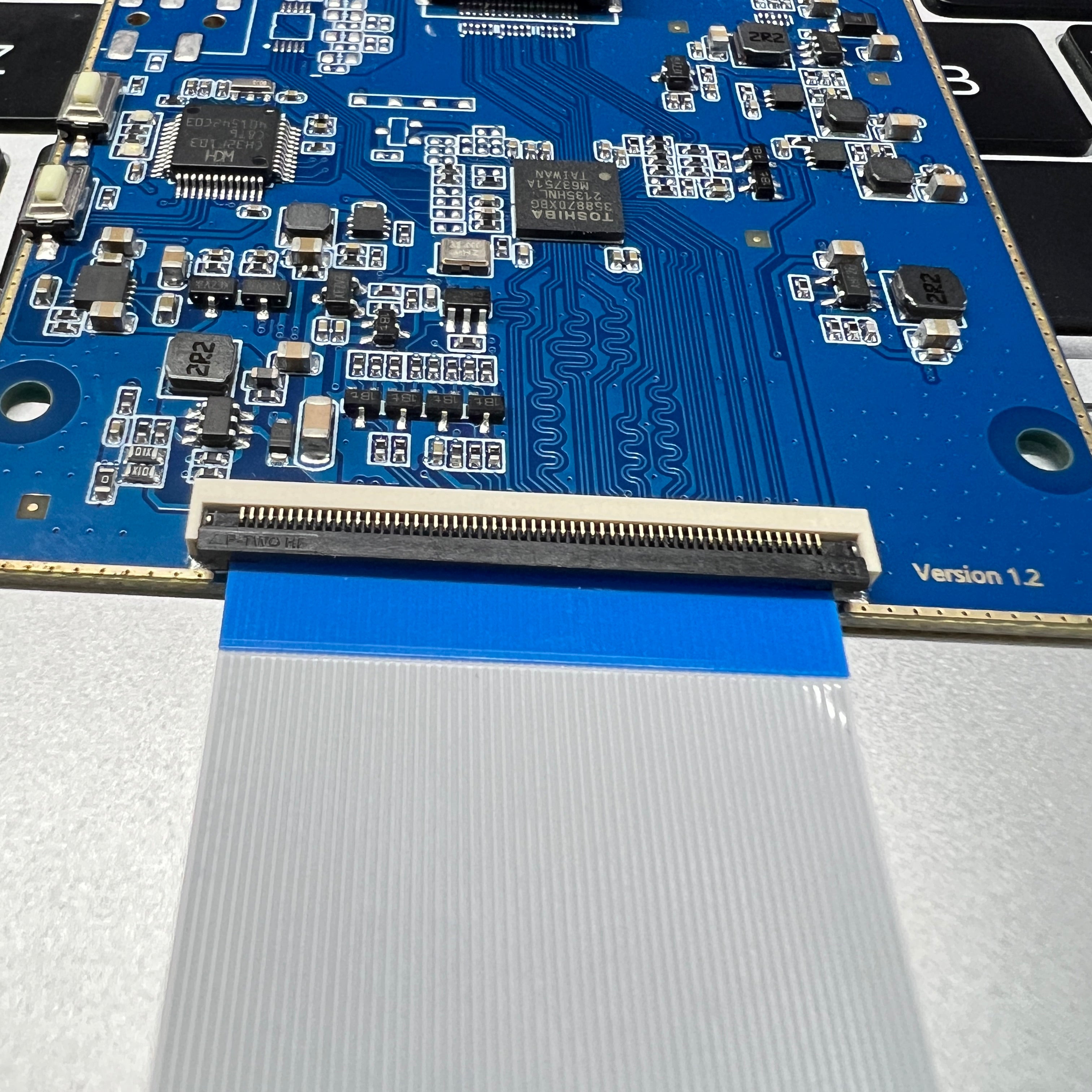

What is MIPI DSI (Display Serial Interface)

What are D-PHY and M-PHY

D-PHY and M-PHY are two physical layer interface specifications defined by the Mobile Industry Processor Interface (MIPI) Alliance. These interface specifications define how to achieve actual data transmission within devices. Let's look at these two interface specifications individually:

MIPI D-PHY

D-PHY is an interface designed specifically for high-speed, low-power mobile devices. It is primarily used in MIPI's CSI (Camera Serial Interface) and DSI (Display Serial Interface) protocols for data transmission for camera modules and displays.

D-PHY supports both high-speed and low-speed data transmission modes. In high-speed mode, it can transmit data at rates of up to several Gbps, suitable for transmitting large amounts of data such as pixel data. In low-speed mode, data transmission speed is lower, but so is power consumption, making it suitable for transmitting command and control data.

MIPI M-PHY

Unlike D-PHY, M-PHY is designed for a broader range of applications and higher data transmission rates. It is mainly used in MIPI's UniPro (Unified Protocol) protocol, which supports more complex, higher performance devices and applications, such as hard disk drives, high-speed memory, etc.

A key feature of M-PHY is its scalability. By using different baud rates (i.e., the number of symbols transmitted per second), M-PHY can support data transmission rates from several hundred Mbps to several tens of Gbps. In addition, M-PHY also has many advanced features, such as multiple power modes, advanced error detection, and correction capabilities, etc.

In summary, D-PHY and M-PHY are two physical layer interface specifications defined by the MIPI Alliance, providing ways to achieve efficient, high-speed, low-power data transmission in mobile devices. Different specifications are suitable for different applications and needs, and device manufacturers can choose which specification to use based on their specific requirements.

The relationship between DSI and Physical Layer Interfaces

The relationship between DSI (Display Serial Interface) and physical layer interface specifications can be understood as the relationship between high-level applications and underlying infrastructure. Simply put, DSI is a communication protocol that defines how to transmit data between the processor and the display of mobile devices (like smartphones or tablets). Physical layer interface specifications, on the other hand, provide the actual methods and techniques to implement this communication.

Physical layer interface specifications define the basic, physical level requirements and rules for data transmission, such as voltage levels, signal encoding and decoding, data transmission rates, connector types, etc. These rules provide the infrastructure necessary for implementing DSI. Essentially, without physical layer interface specifications, DSI could not be implemented in actual devices.

DSI protocols usually run on top of one or more physical layer interface specifications. For example, MIPI DSI protocol typically operates over MIPI D-PHY or MIPI C-PHY, these two physical layer interface specifications. DSI protocol defines how to transmit image data and control commands via the physical layer interface to establish effective communication between the processor and display.

Overall, the relationship between DSI and physical layer interface specifications is complementary and dependent. Physical layer interface specifications provide the infrastructure for data transmission, while DSI defines how to use this infrastructure to perform specific communication tasks.
