DisplayModule

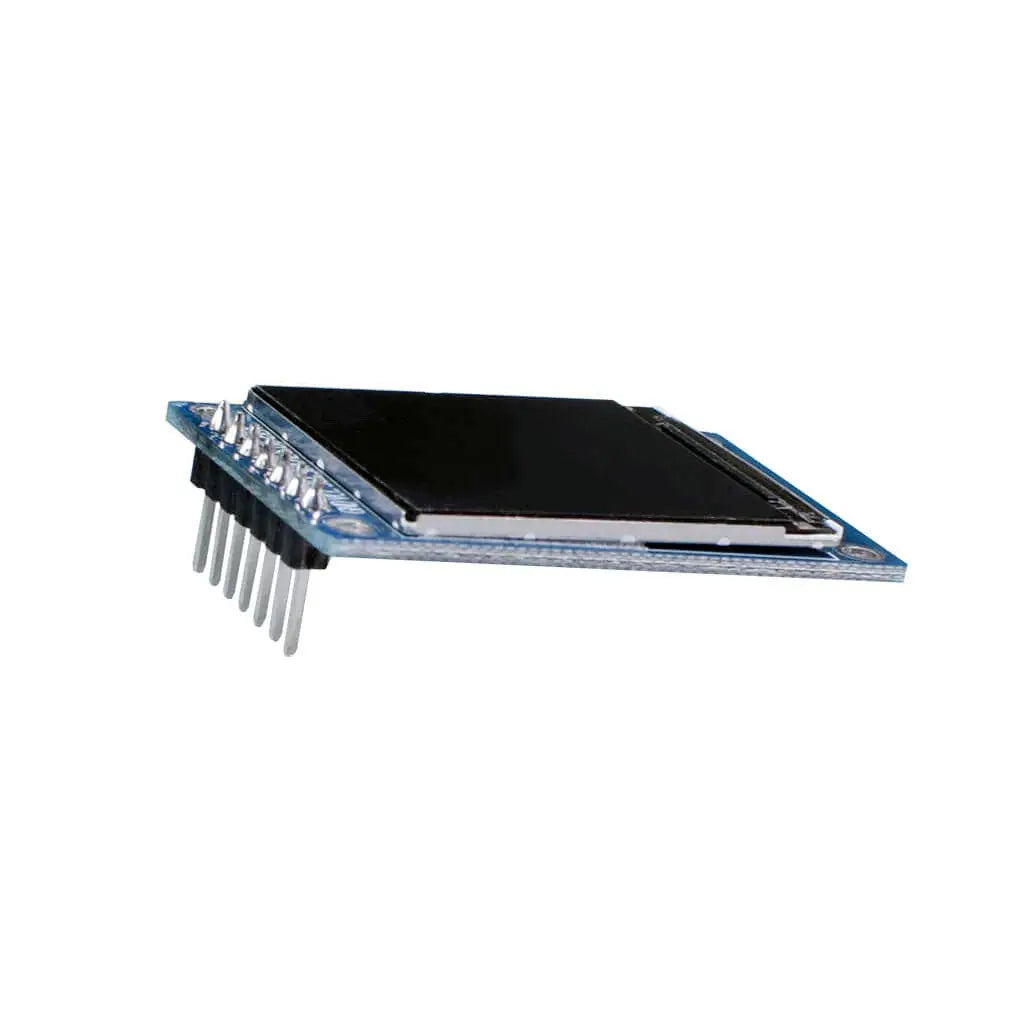

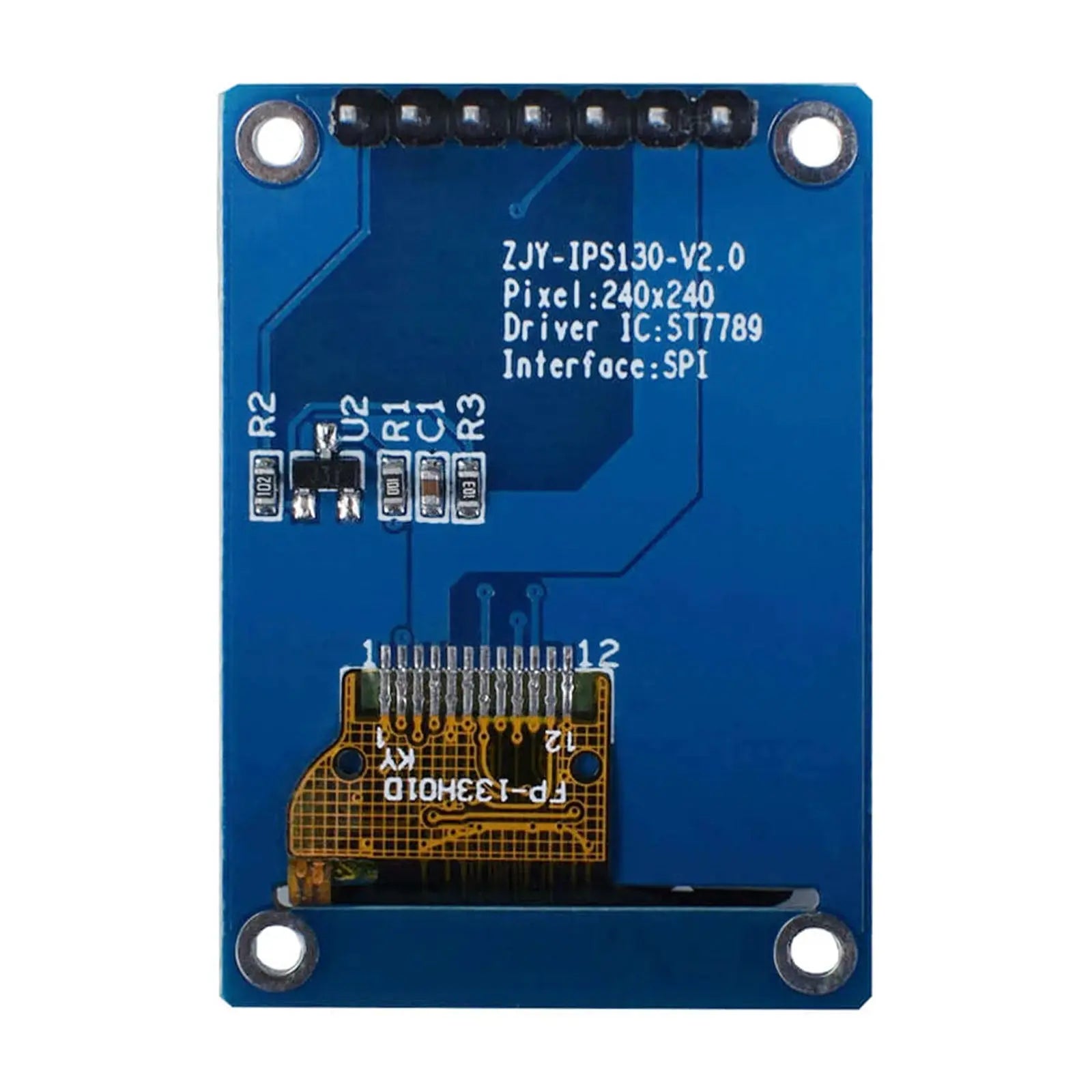

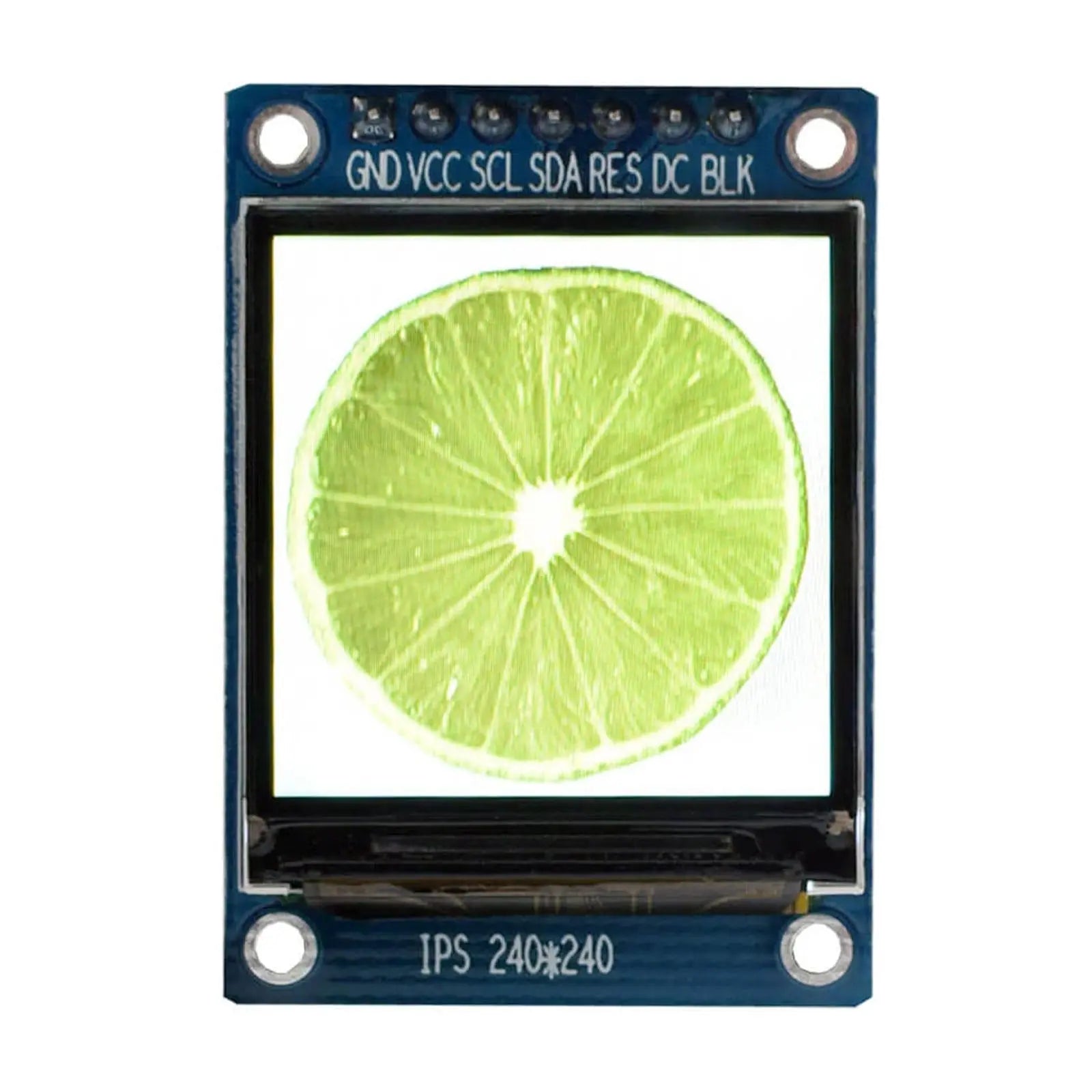

1.3" 240 X 240 IPS TFT Display Module-SPI

DM-TFT13-377

Regular price
$9.99
Regular price
Sale price
$9.99
Shipping calculated at checkout.
Type
Free shippong

Free shipping over $400

Easy returns

Free return in 30 days

Bulk discount

Discount for orders of 10 tablets or more. Please contact us for a discount info@displaymodule.com

    Main features

    • 1.3" IPS Screen
    • 240 x 240 pixel
    • Interface: 4-wire SPI
    • 2.8-3.3V  power
    • Drive IC: ST7789VW



    Related Accessories

    This module can connect with DM-ADTAU-010 P5 then work on Arduino .

    Display specifications

    Module Overall
    Screen size 1.3"
    Resolution 240 x 240 pixel
    Module Dimension 39.22 x 27.78 mm
    Active Area 23.4 x 23.4 mm
    Weight TBD g



    Dimension


    Datasheet

    Driver IC: ST7789VW

    Source Code

    Arduino ST7789V Library: Arduino-ST7789-Library. Uncomment device Arduino_ST7789 tft = Arduino_ST7789(TFT_DC, TFT_RST, TFT_MOSI, TFT_SCLK, TFT_CS);

    Comment deviceArduino_ST7789 tft = Arduino_ST7789(-1, TFT_RST, TFT_MOSI, TFT_SCLK, TFT_CS);

    You can refer to samples of the Arduino-ST7789-Library-master/example;

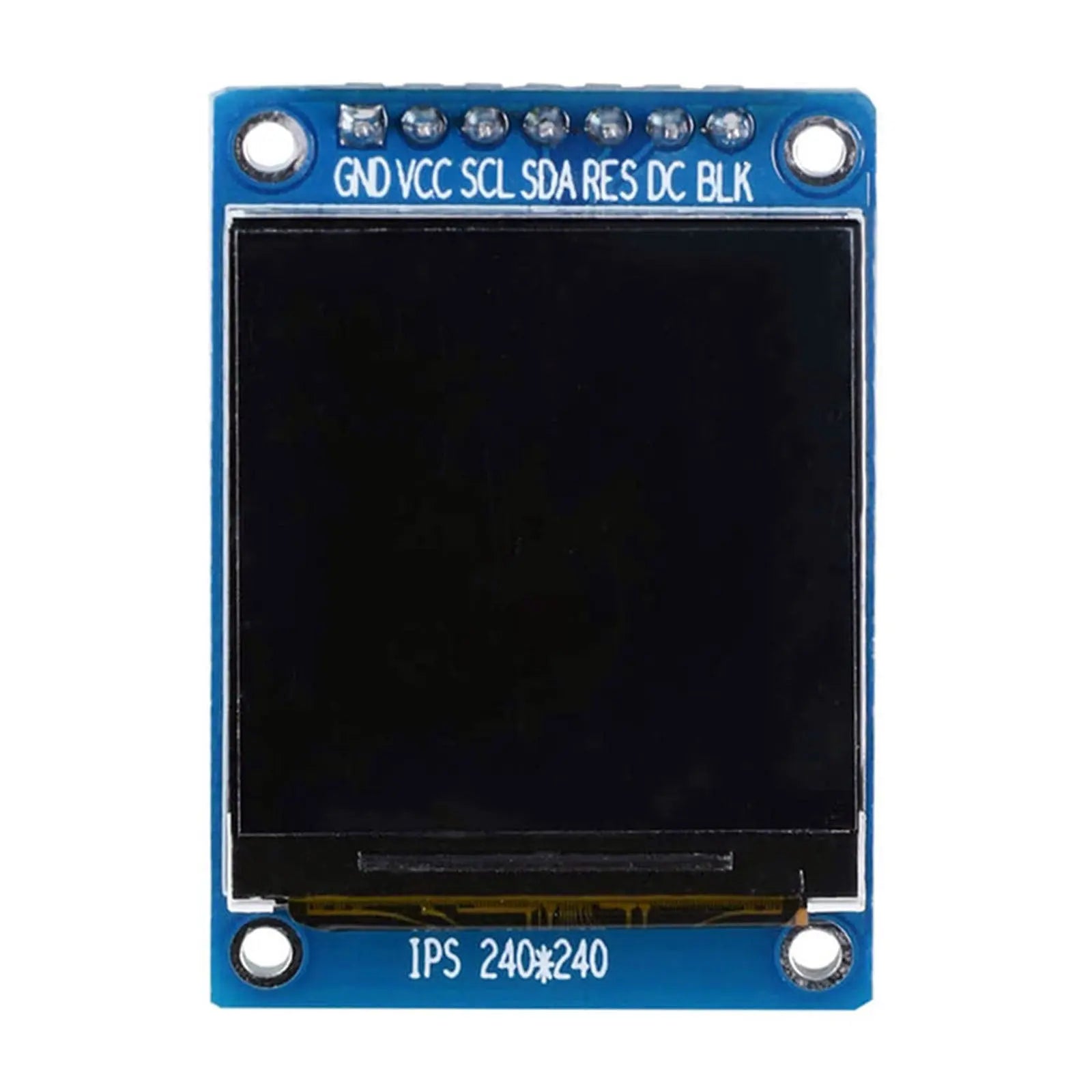

    Connect pins:13: SCL;11SDA;10: CS;9: RES;8: DC.

    Arduino Adafruit-GFX Library: Adafruit-GFX-Library


    Packing List

    • One  Display Module or One Display Panle
