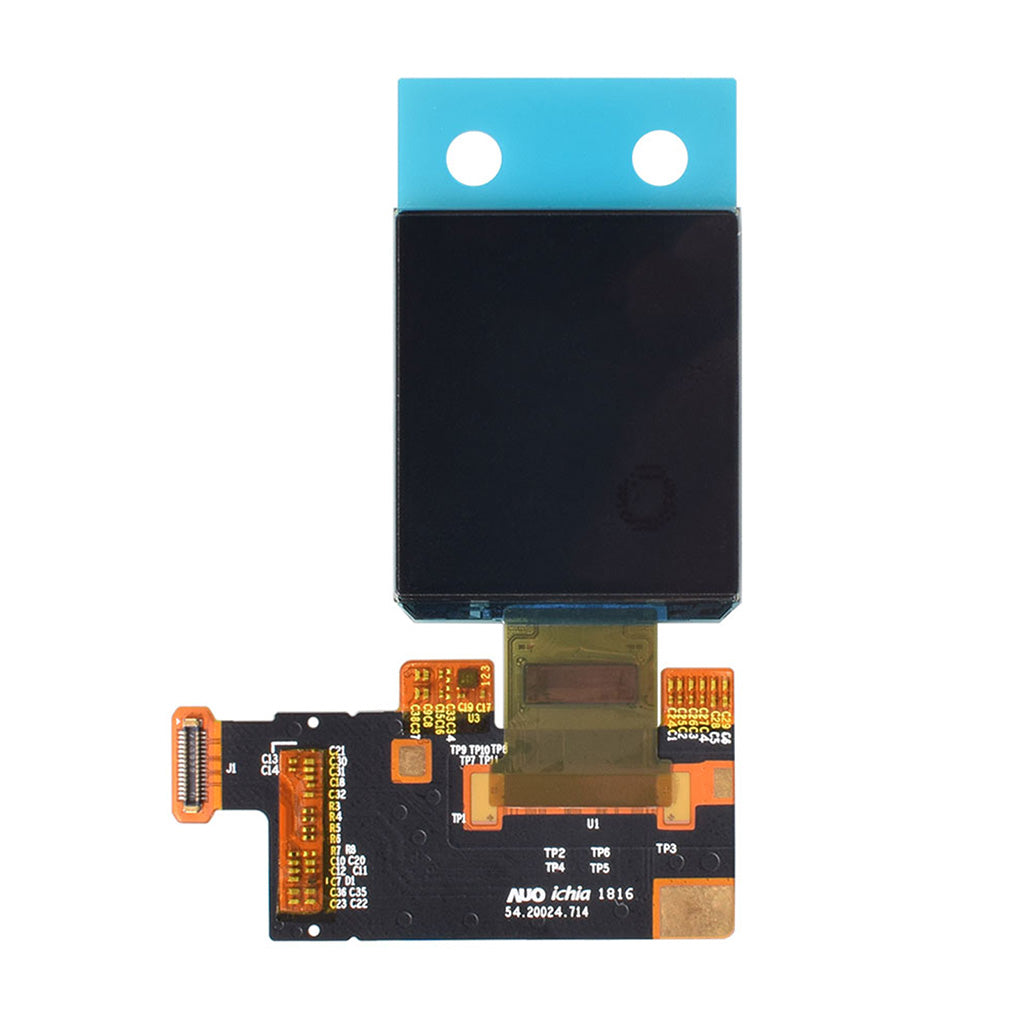

• 1.41-inch AMOLED Display, 320x360 resolution, full color, in-cell touch, MIPI interface

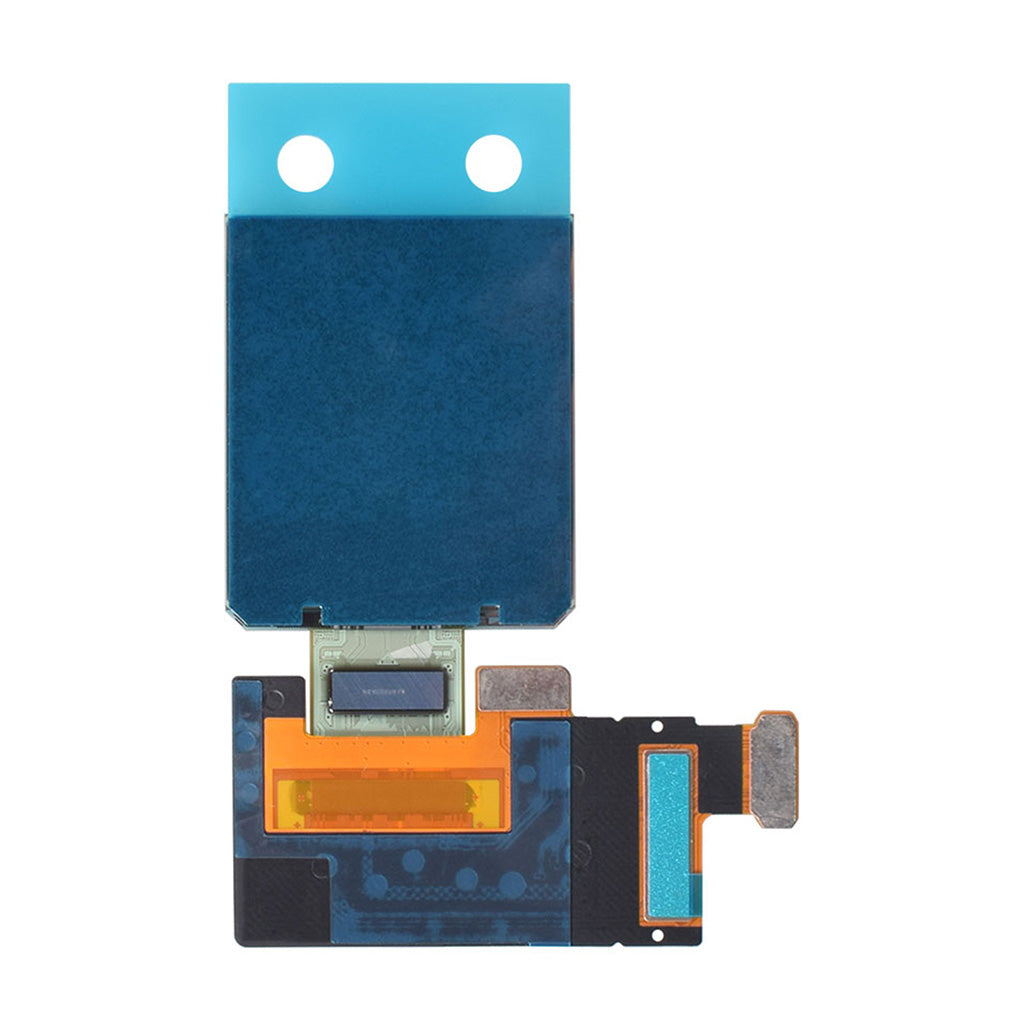

  • Back of 1.41-inch AMOLED Display, 320x360 resolution

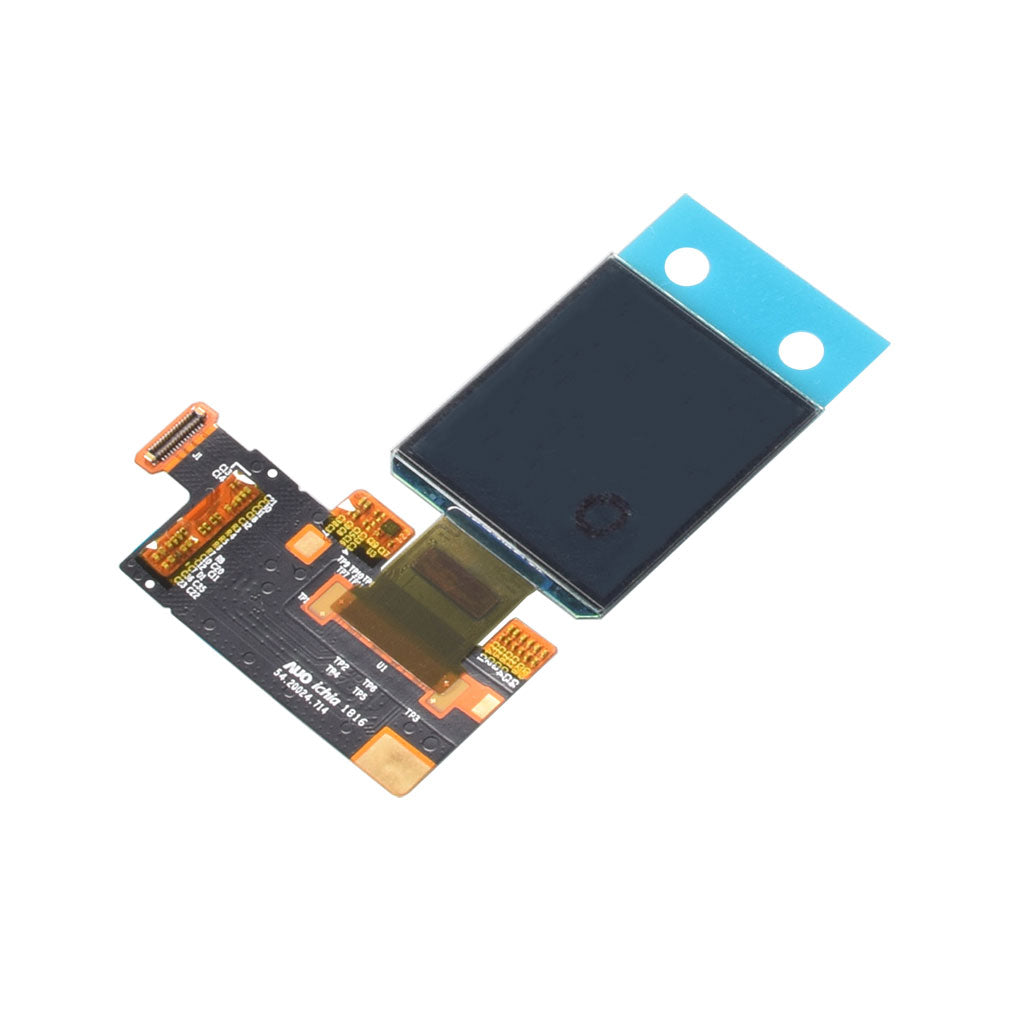

  • Top View of 1.41-inch AMOLED Display
1 / 1

1.41" AMOLED Display 320x360 Full Color In-cell Touch - MIPI

$29.90
Shipping calculated at checkout.
SKU: DM-OLEDC141-648
1.41-inch AMOLED Display, 320x360 resolution, full color, in-cell touch, MIPI interface
$29.90
Default Title

Payment and security

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
View details

Display Specifications

  • Diagonal Dimension : 1.41 inch
  • Resolution : 320RBGx360 pixel
  • Display Color : 16.7M(Maximum)
  • Touch Mode : None
  • Module/Panel Dimension : 26.04x31.00x0.66 mm
  • Viewing Area : 23.84x26.82 mm
  • Supply Voltage : 1.8 V
  • Luminance : 350 cd/m2
  • Interface : MIPI
  • Controller IC : WT010
  • Operation Temperature : -
  • Storage Temperature : -

Dimensions



Resources
  • 1.41-inch AMOLED Display, 320x360 resolution, full color, in-cell touch, MIPI interface
  • Back of 1.41-inch AMOLED Display, 320x360 resolution
  • Top View of 1.41-inch AMOLED Display
