1.44-inch TFT High Brightness Display Module, 128x128 resolution, 1800 nits, SPI interface

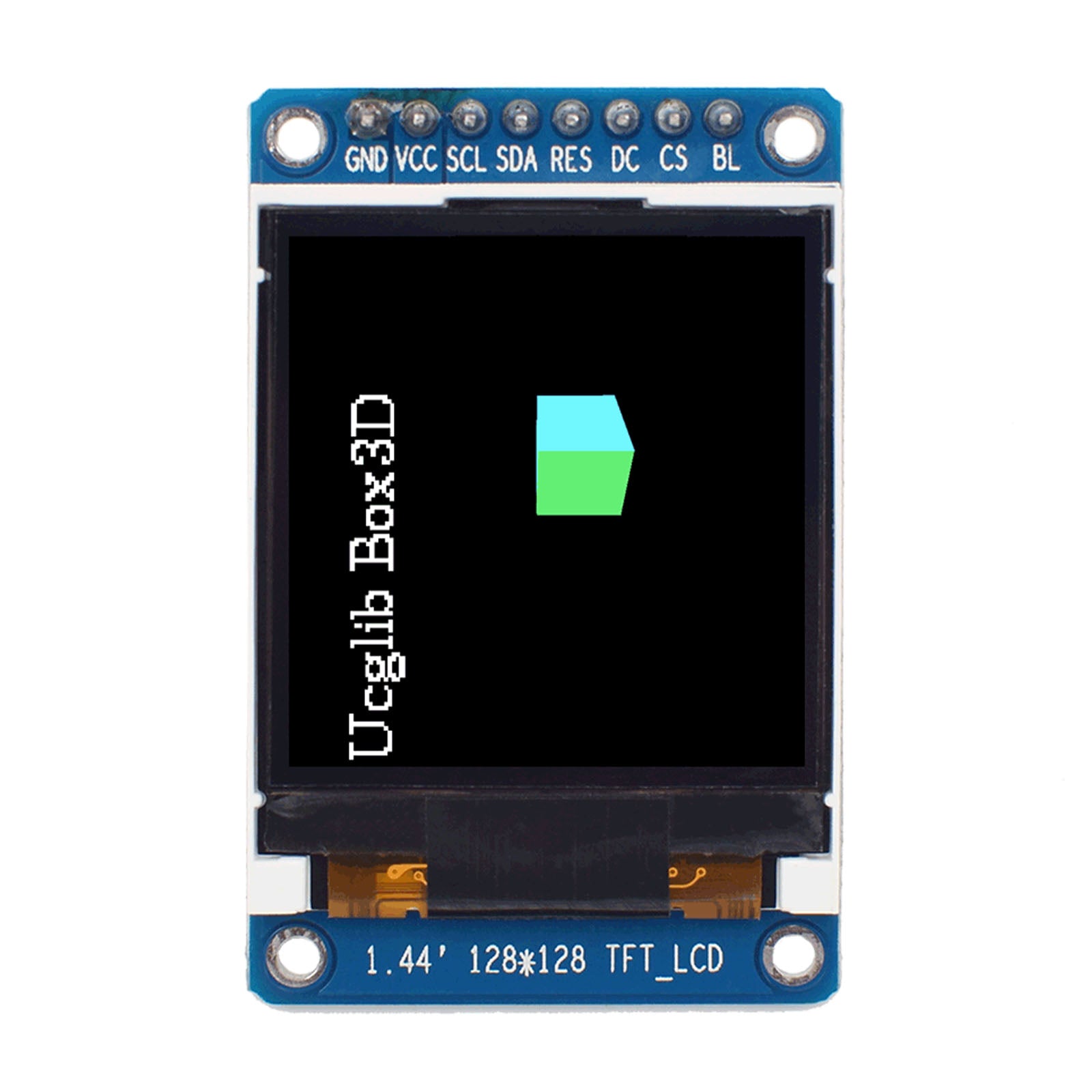

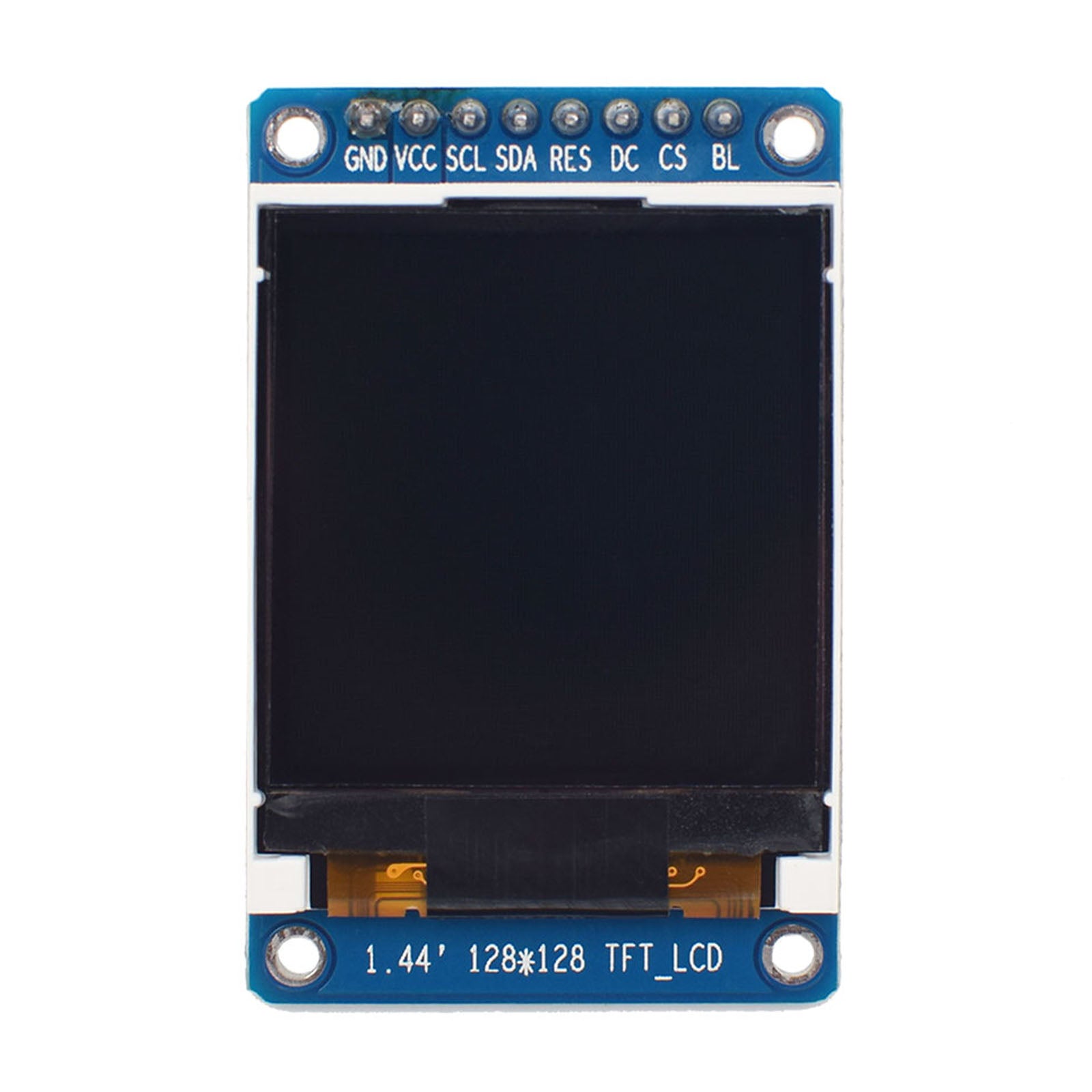

Front of 1.44-inch TFT High Brightness Display

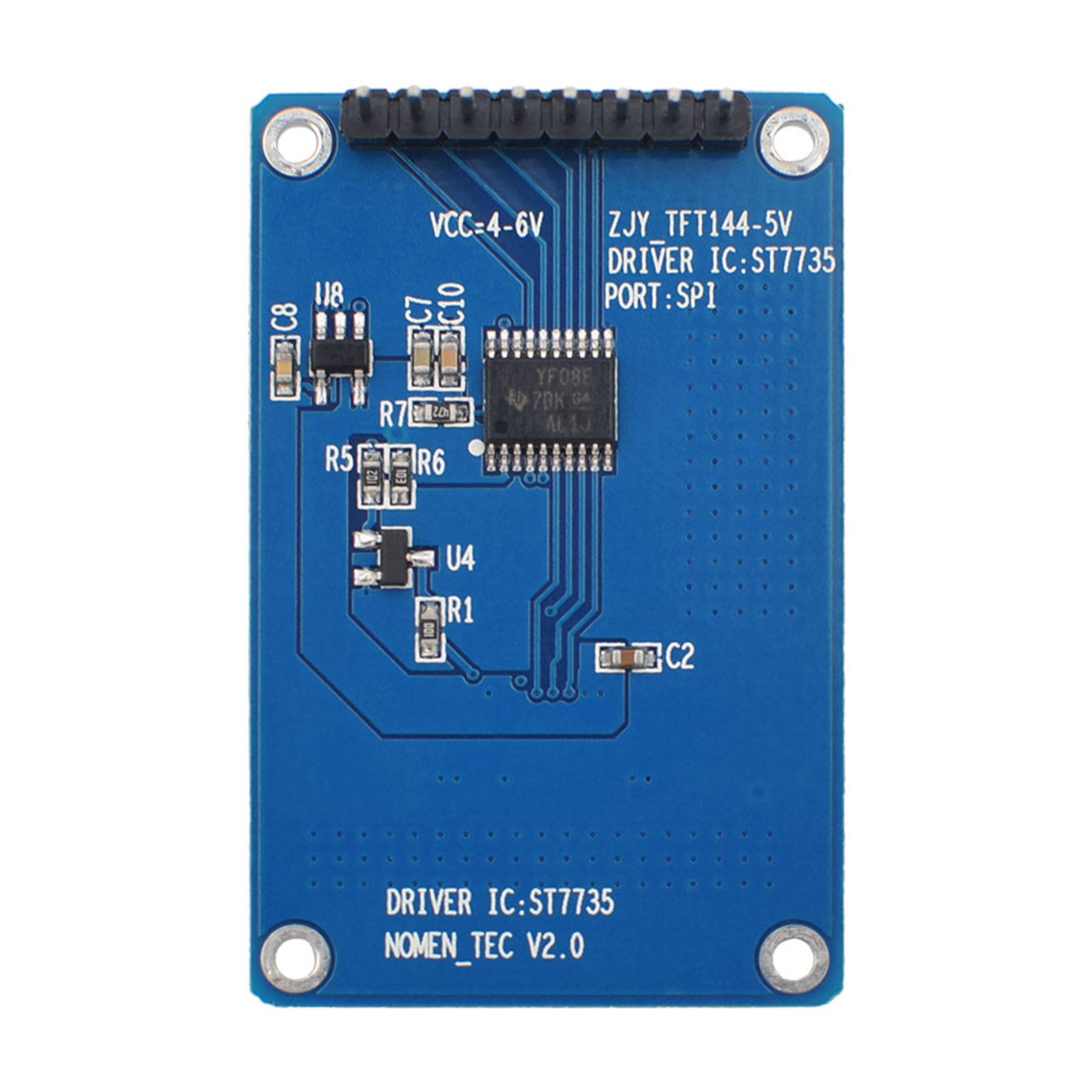

Back of 1.44-inch TFT High Brightness Display

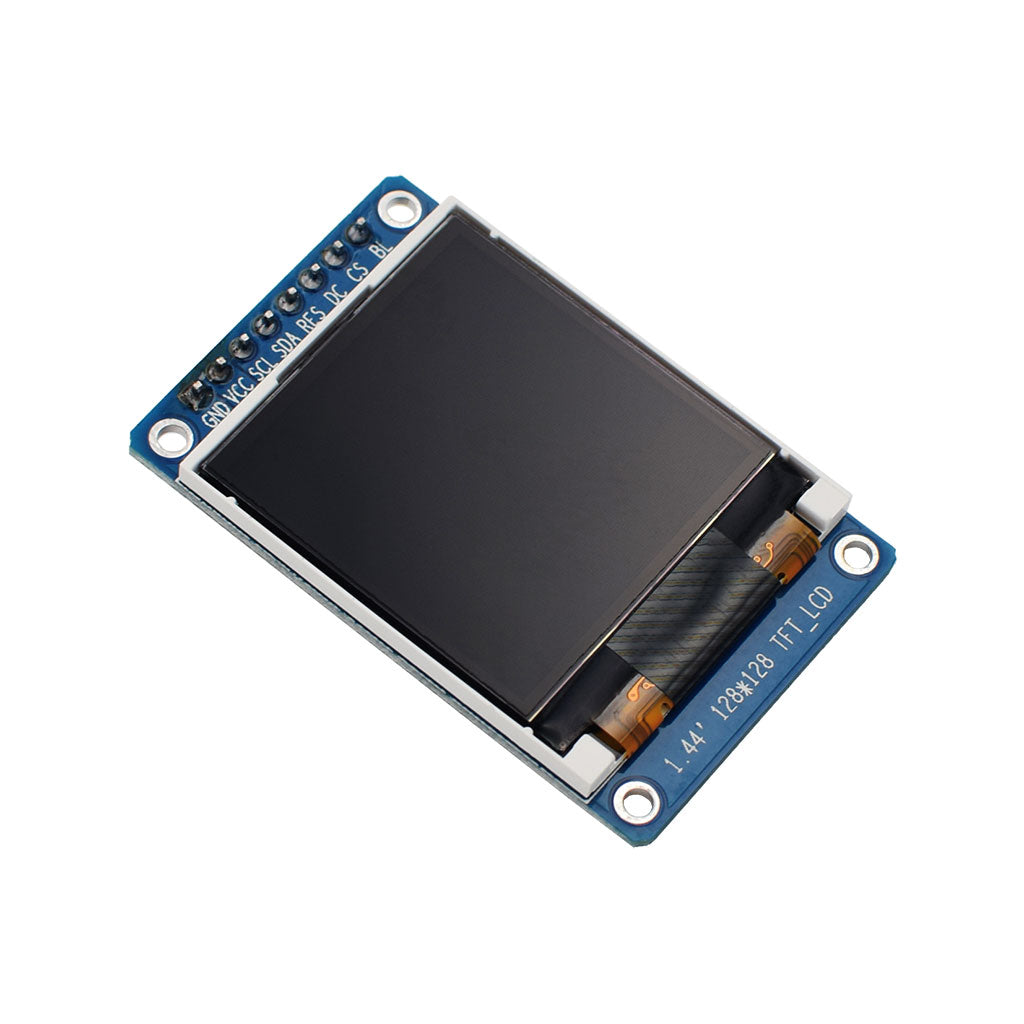

Top View of 1.44-inch TFT High Brightness Display

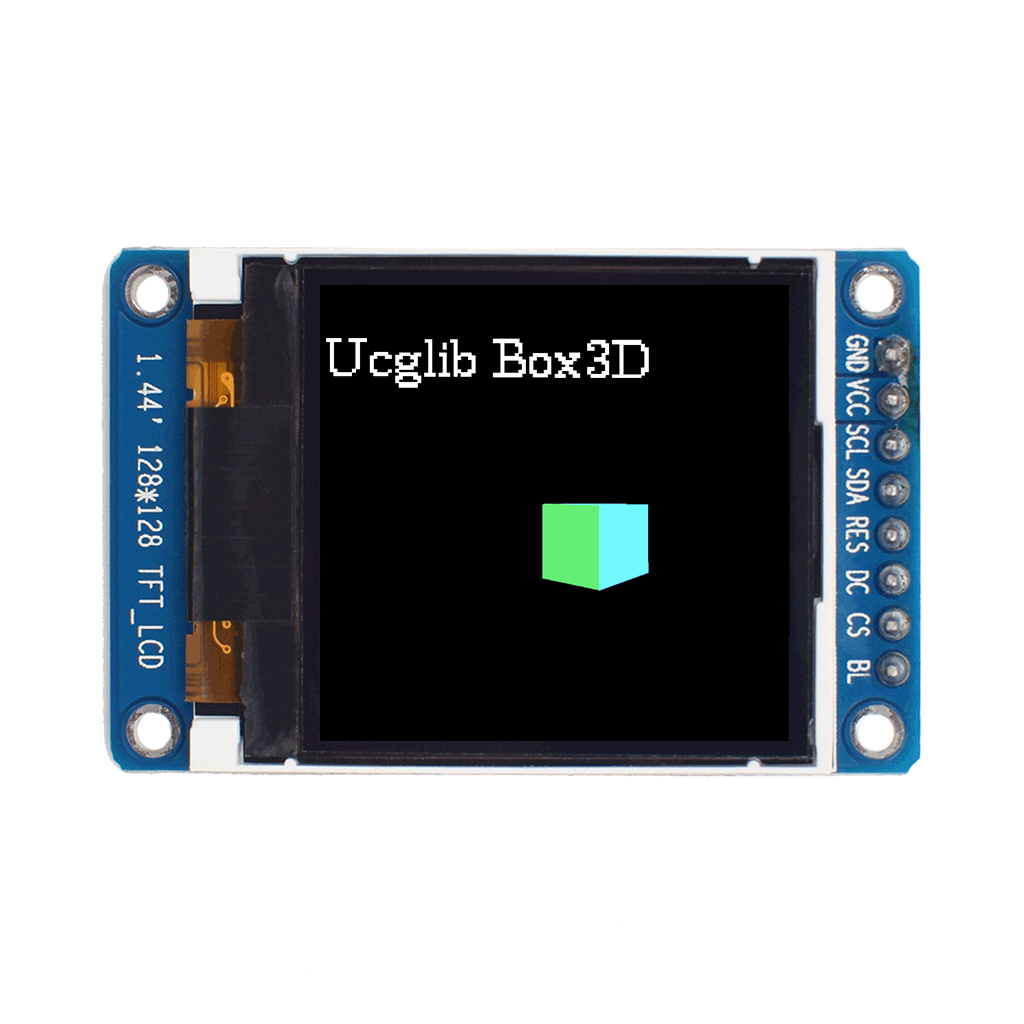

Geometric animations are displayed on the 1.44-inch 1800-nit high-brightness TFT display

1.44" TFT High Brightness Display 128x128 1800nits - SPI

Regular price $14.90
Sale price $14.90 Regular price
Datesheet:
1 pcs original price
5 pcs 8% off
10 pcs 10% off

Customization & Manufacturing

Adapter Custom

Sometimes standard interfaces or adapters may not meet your special needs. We provide custom adapter service for this, make sure you can easily connect our screen with your device perfectly.

Prototype, Pilot Production, Mass Manufacturing

DisplayModule is a subsidiary of NexPCB, thanks to NexPCB's rich experience in design, prototype, mass production, we confidently declare that we can provide one-stop service.

Contact Form

I'm reaching out to DisplayModule because...

Product description

Display Specifications

  • Diagonal Dimension : 1.44 inch
  • Resolution : 128(RGB)x128 pixel
  • View Direction : 12 o’clock
  • Touch Mode : None
  • Module Dimension : 29.50x36.50x2.25 mm
  • Viewing Area : 25.50x26.50 mm
  • Supply Voltage : 2.8 V
  • Interface : 4wire SPI
  • Luminance : ≥1800 cd/m2
  • Drive IC : ST7735S
  • Operation Temperature : -20℃~70℃
  • Storage Temperature : -30℃~80℃

Dimension



Resources

Driver IC: ST7735S-V1.1

DM-TFT144-399 code
