1.8" TFT Display 128x160 Transmissive - SPI, MCU, RGB
1.8" TFT Display 128x160 Transmissive - SPI, MCU, RGB
SKU:DM-TFT18-310
Regular price
$14.90 USD
Regular price
$11.99 USD
Sale price
$14.90 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
1 pcs | original price |
5 pcs | 8% off |
10 pcs | 10% off |
Shipping
Shipping
Standard and expedited shipping available, free expedited shipping over $600. Lenrn more
Easy Returns
Easy Returns
No need to worry about buying products that don't fit your design, we offer a 30-day no-questions-asked return service.
More Order, More Save
More Order, More Save
The higher the quantity ordered, the greater the discount, so contact us for the discount price! Contact us
Share

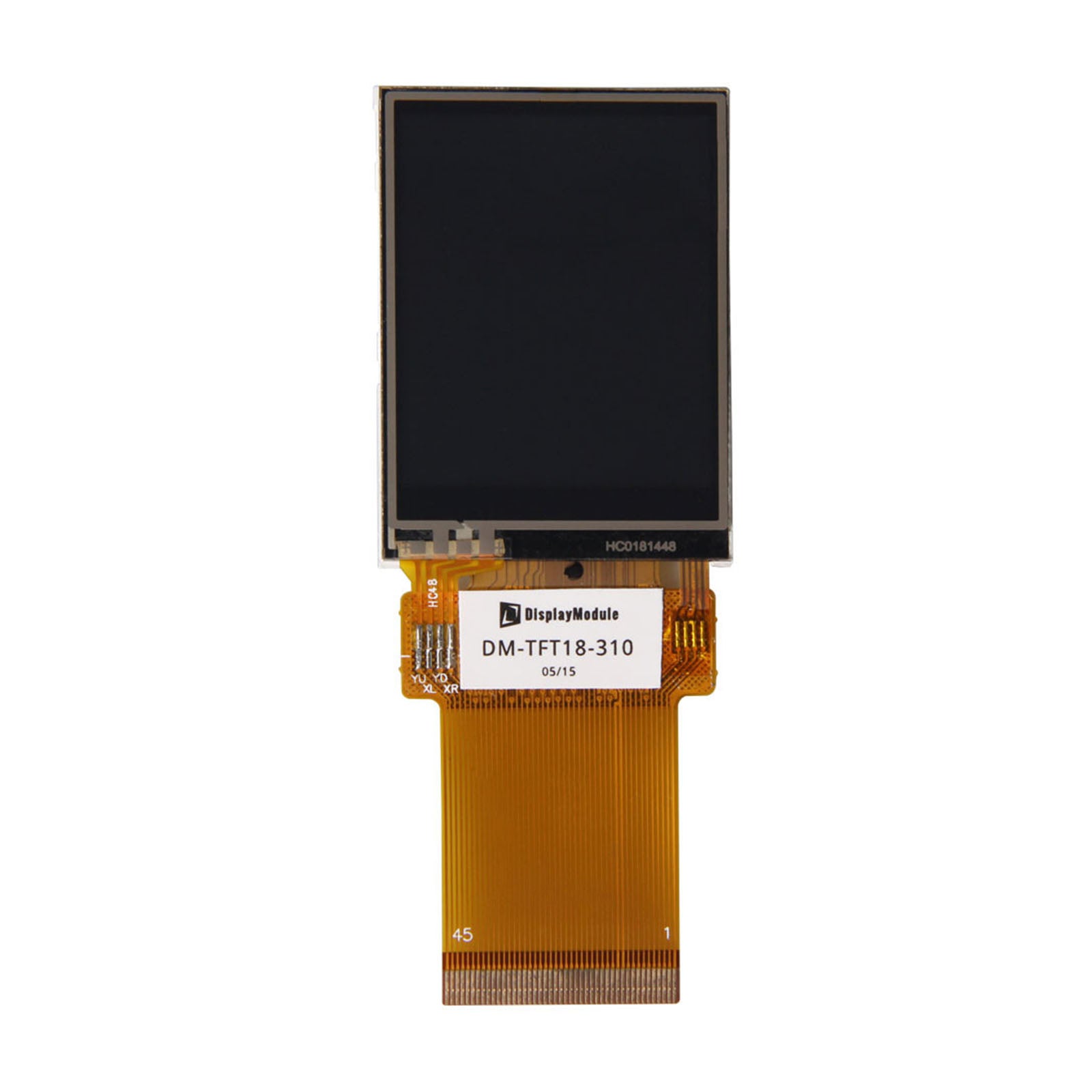

![1.8-inch TFT Display with a resolution of 128 by 160 pixels, featuring resistive touch, interfaced with SPI, MCU, and RGB support](http://www.displaymodule.com/cdn/shop/products/DM-TFT18-310face.jpg?v=1659329353&width=1445)

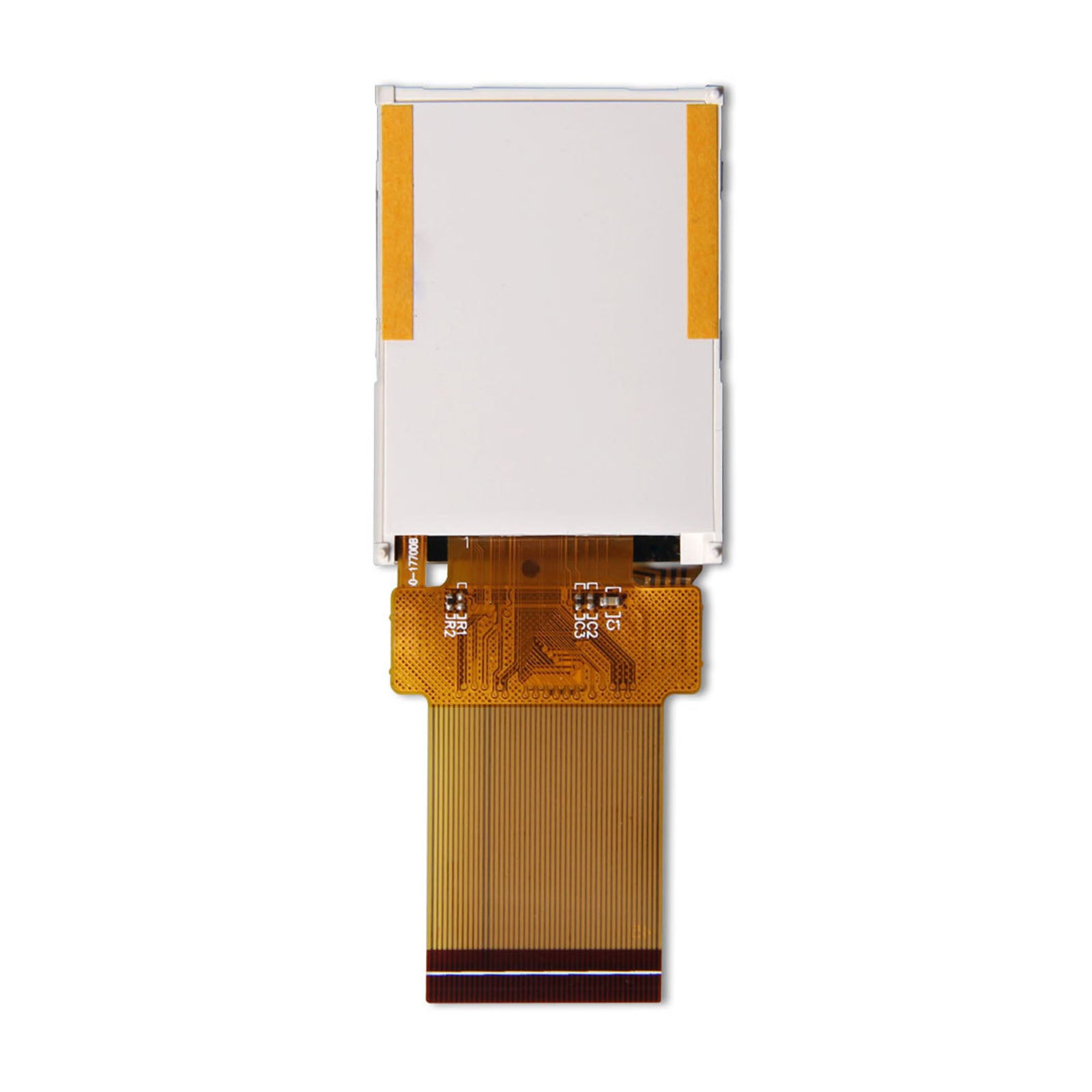

![Back of 1.8-inch TFT Display Panel](http://www.displaymodule.com/cdn/shop/products/DM-TFT18-310back.jpg?v=1659329353&width=1445)

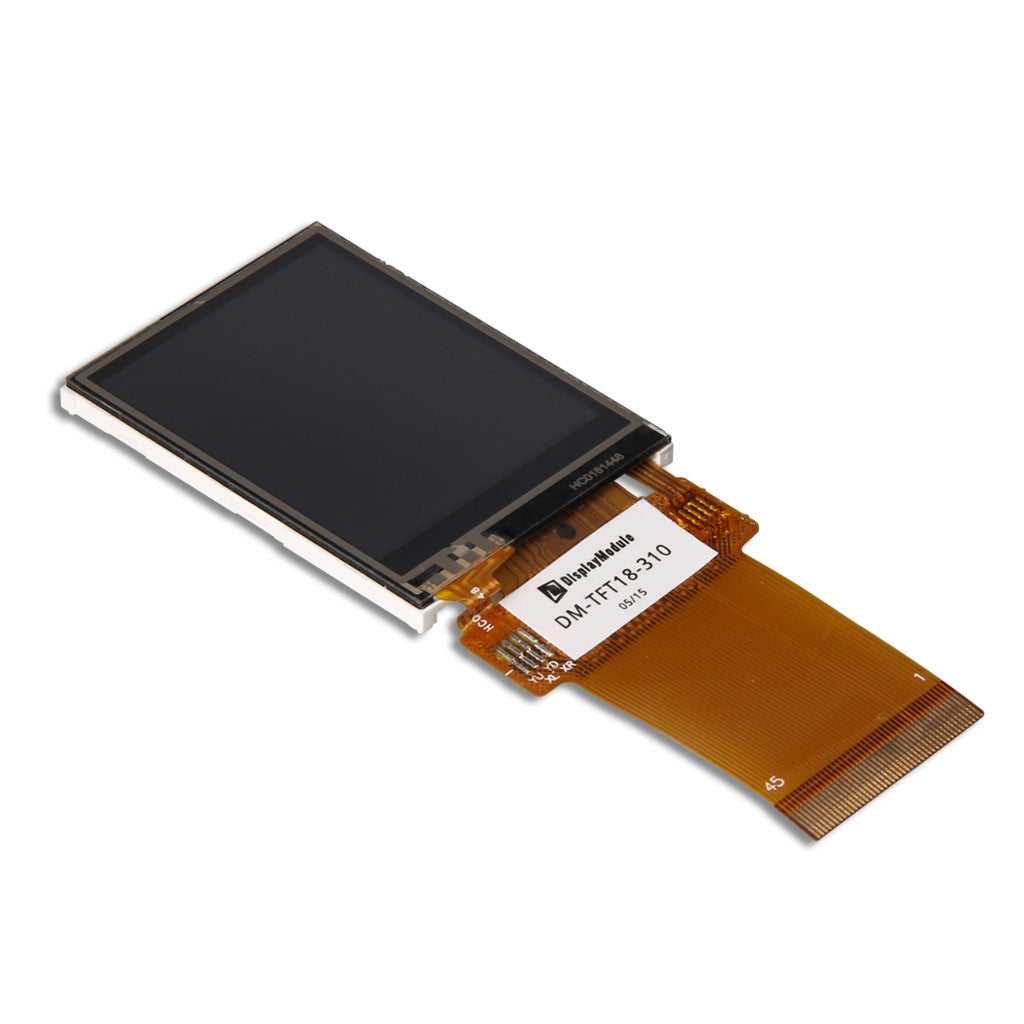

![Top View of 1.8-inch TFT Display Panel](http://www.displaymodule.com/cdn/shop/products/DM-TFT18-310-1.jpg?v=1659329353&width=1445)
Display Specifications
- Diagonal Dimension : 1.77 inch
- Resolution : 128x160 pixel
- View Direction : 6 o’clock
- Display mode :Transmissive/Normally White
- Module Dimension : 34.7(H)x46.4(V)x3.55(D) mm
- Viewing Area : 28.03(H)x35.04(V) mm
- Supply Voltage : 3.3 V
- Interface : 8/16bit MCU,3-line/4-line Serial Interface
- Luminance : 330 cd/m2
- Drive IC : ST7735S
- Operation Temperature : -20℃~70℃
- Storage Temperature : -30℃~80℃
Dimensions
![](http://cdn.shopify.com/s/files/1/0264/7629/files/DM-TFT18-310-demension.jpg?8243767754229800086)
Resources
- DM-TFT18-310
- DM-TFT18-310 MCU init code
- DM-TFT18-310 3SPI init code
- DM-TFT18-310 4SPI init code
- Source code and examples can be found in our DmTftLibrary and its User Guide.
