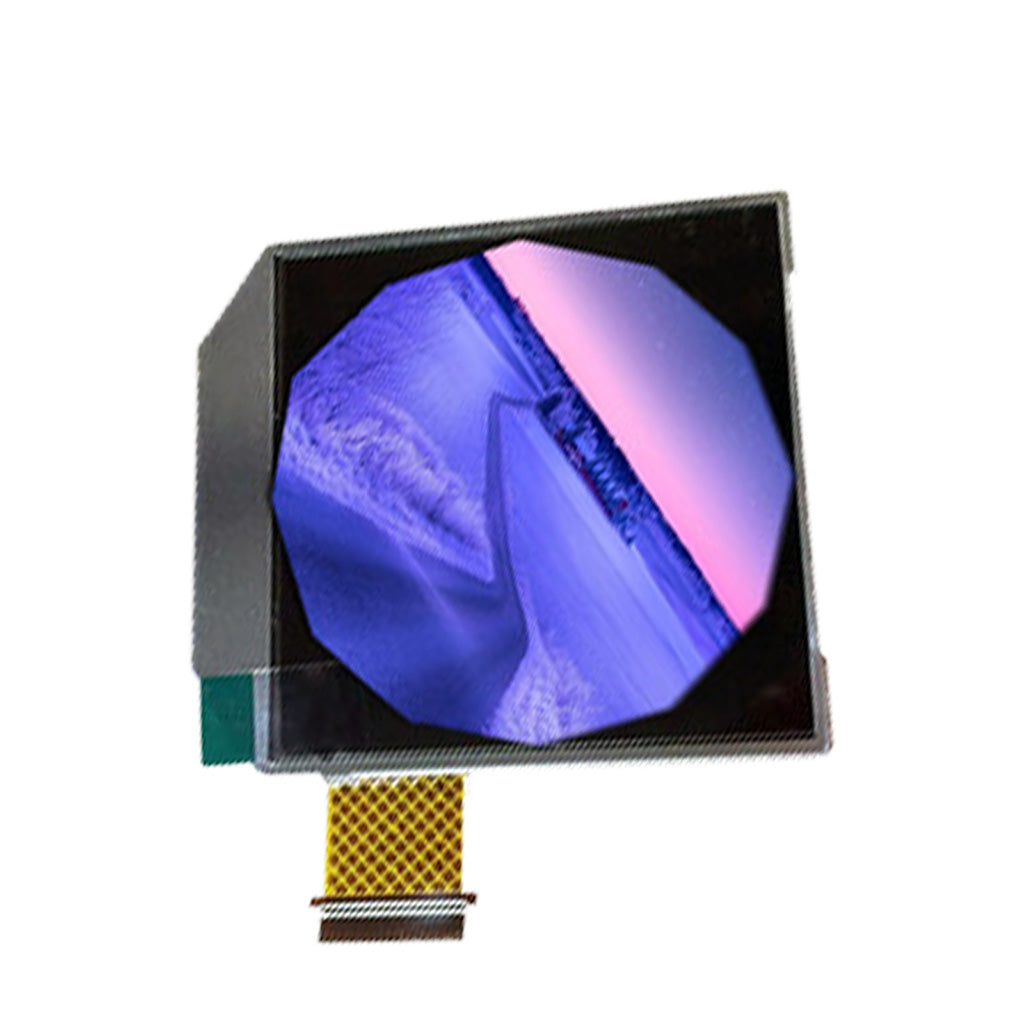

On a screen with a rectangular outer frame and a circular display area, there is an image of a road in the snow
2.48 inch Round TFT Display Panel with 320x320 resolution, optimal viewing at 12 o’clock, utilizing RGB and SPI interfaces
Back of 2.48 inch Round TFT Display Panel

2.48" Round TFT Display 320x320 12 o’clock - RGB, SPI

Regular price $19.90
Sale price $19.90 Regular price
Datesheet:
1 pcs original price
5 pcs 8% off
10 pcs 10% off

Customization & Manufacturing

Adapter Custom

Sometimes standard interfaces or adapters may not meet your special needs. We provide custom adapter service for this, make sure you can easily connect our screen with your device perfectly.

Prototype, Pilot Production, Mass Manufacturing

DisplayModule is a subsidiary of NexPCB, thanks to NexPCB's rich experience in design, prototype, mass production, we confidently declare that we can provide one-stop service.

Contact Form

I'm reaching out to DisplayModule because...

Product description

Display Specifications

  • Diagonal Dimension : 2.48 inch
  • Resolution : 320 x RGB x 320 pixel
  • View Direction : 12 o’clock
  • Touch Mode : None
  • Module Dimension : 50.44×56.34×2.6 mm
  • Viewing Area : 44.64 x 44.64 mm
  • Supply Voltage : 1.8/2.8 V
  • Interface : 3-Wire 9 bit SPI+24 bit RGB
  • Luminance : - cd/m2
  • Drive IC : S6D05A1
  • Operation Temperature : -20℃~70℃
  • Storage Temperature : -30℃~80℃

Dimensions
