• 2.5 inch Round TFT Display Panel with 480x480 resolution, 16.7 million colors, transmissive feature, utilizing MIPI interface

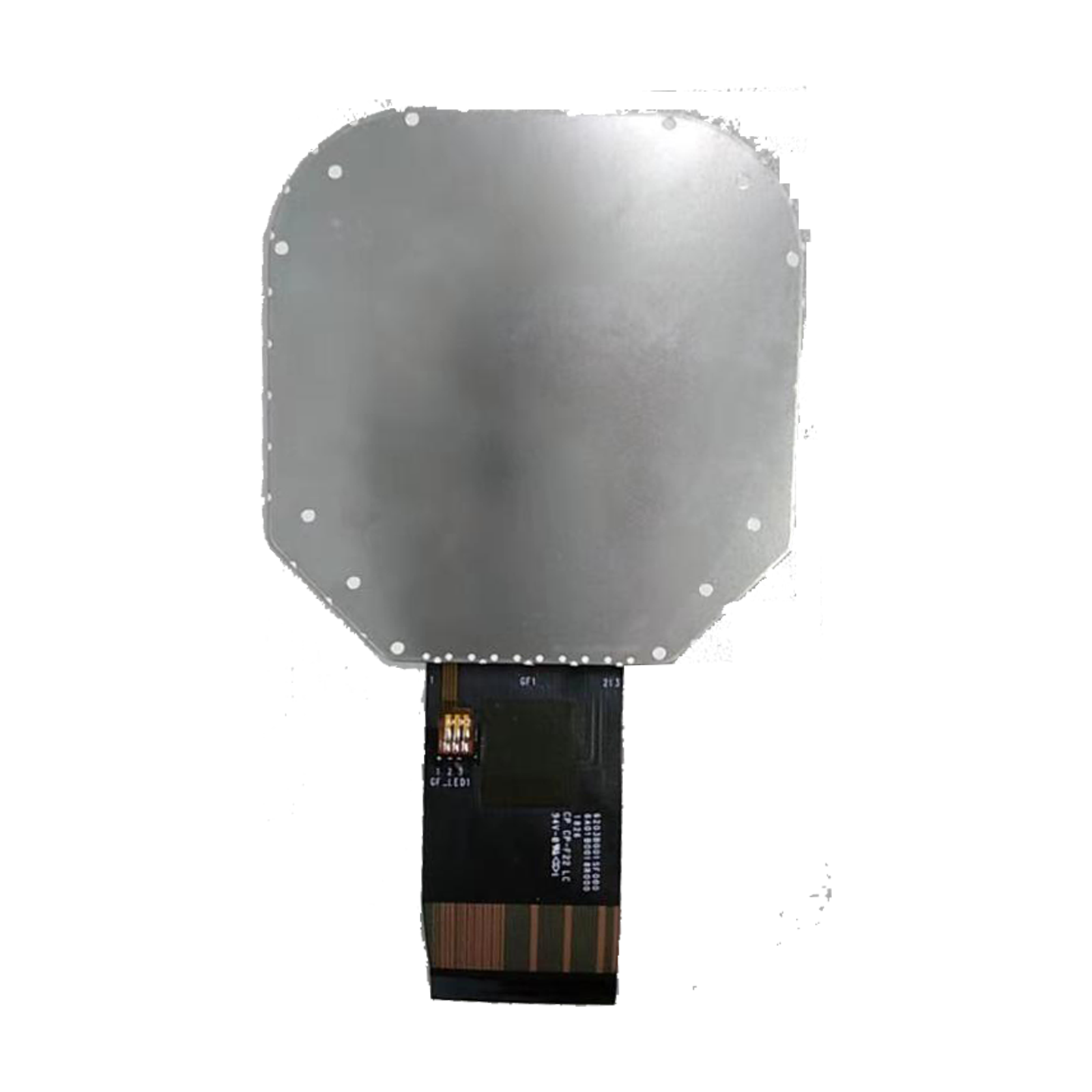

  • Back of 2.5 inch Round TFT Display Panel
1 / 1

2.5" Round TFT Display 480x480 16.7M-colors Transmissive - MIPI

$49.90
Shipping calculated at checkout.
SKU: DM-TFTR25-460
2.5 inch Round TFT Display Panel with 480x480 resolution, 16.7 million colors, transmissive feature, utilizing MIPI interface
$49.90
Default Title

Payment and security

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
View details

Display Specifications

  • Diagonal Dimension : 2.5 inch
  • Resolution : 480RGB x 480 pixel
  • View Direction : All
  • Touch Mode : None
  • Module Dimension : 69.19±0.2(H) x 71.74±0.2(V) x 2.45±0.15(D) mm
  • Viewing Area :62.64 x 62.64 mm
  • Supply Voltage : 3.3
  • Interface : MIPI
  • Luminance : 400 cd/m2
  • Drive IC : HX8379-C
  • Operation Temperature: -10°C~ +60°C
  • Storage Temperature : -30°C~ +70°C

Dimensions

Resources
  • 2.5 inch Round TFT Display Panel with 480x480 resolution, 16.7 million colors, transmissive feature, utilizing MIPI interface
  • Back of 2.5 inch Round TFT Display Panel
1 / 1
