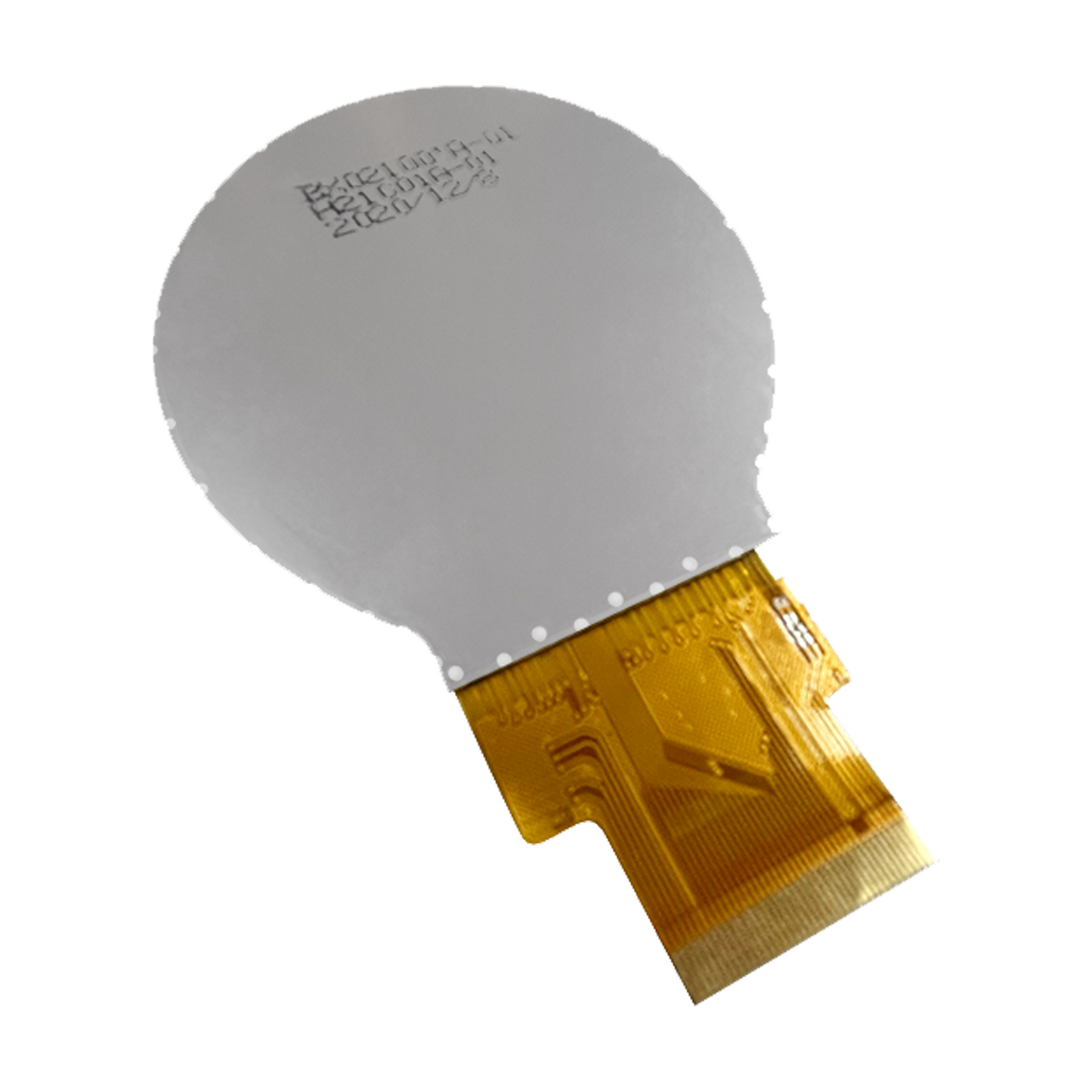

2.0" Round TFT Display 480x480 Transmissive - SPI, RGB

Regular price $34.90
Shipping calculated at checkout.
SKU: DM-TFTR20-461
2.0 inch round 480x480 TFT transmissive display panel with SPI and RGB interfaces
$34.90
Default Title

Payment and security

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Display Specifications

  • Diagonal Dimension : 2.0 inch
  • Resolution : 480RGB x 480 pixel
  • View Direction : Top: 80, Bottom: 80; Left/Right: 80
  • Touch Mode : None
  • Module Dimension : 59.71H) x 56.18(V) x 2.24(D) mm
  • Viewing Area :53.28 x 53.28 mm
  • Supply Voltage : 2.8 V
  • Interface : SPI, RGB
  • Luminance : 350 cd/m2
  • Drive IC : ST7701S
  • Operation Temperature: -20°C~ +70°C
  • Storage Temperature : -30°C~ +80°C

Dimensions

Resources
