2.0" TFT Display 240x320 Transflective Resistive - SPI ,MCU,RGB
2.0" TFT Display 240x320 Transflective Resistive - SPI ,MCU,RGB
SKU:DM-TFT20-436
Regular price
$29.90 USD
Regular price
Sale price
$29.90 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
1 pcs | original price |
5 pcs | 8% off |
10 pcs | 10% off |
Shipping
Shipping
Standard and expedited shipping available, free expedited shipping over $600. Lenrn more
Easy Returns
Easy Returns
No need to worry about buying products that don't fit your design, we offer a 30-day no-questions-asked return service.
More Order, More Save
More Order, More Save
The higher the quantity ordered, the greater the discount, so contact us for the discount price! Contact us
Share

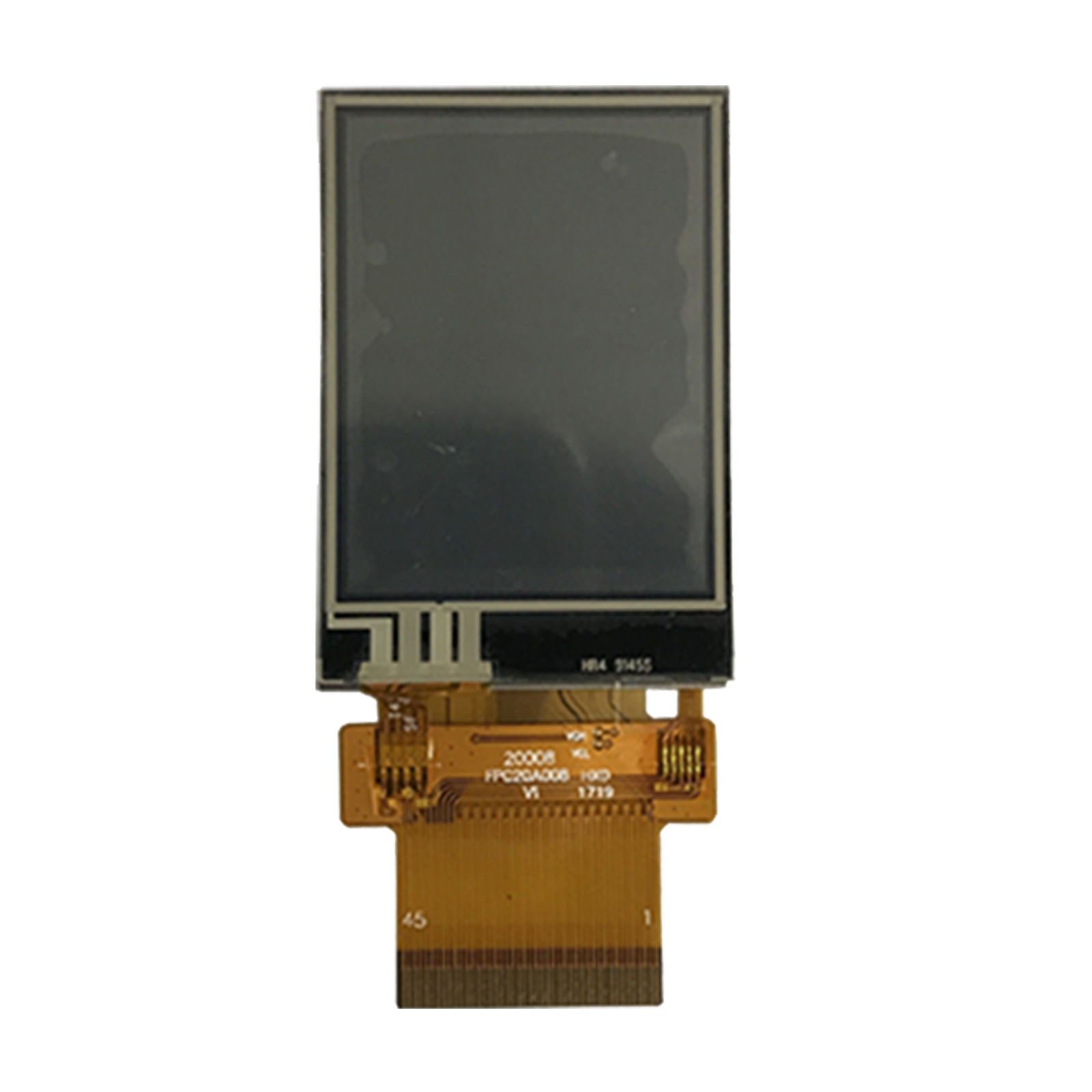

![2.0 inch 240x320 TFT transflective display with resistive touch, SPI, MCU, and RGB interfaces](http://www.displaymodule.com/cdn/shop/products/DM-TFT20-436face.jpg?v=1659329707&width=1445)

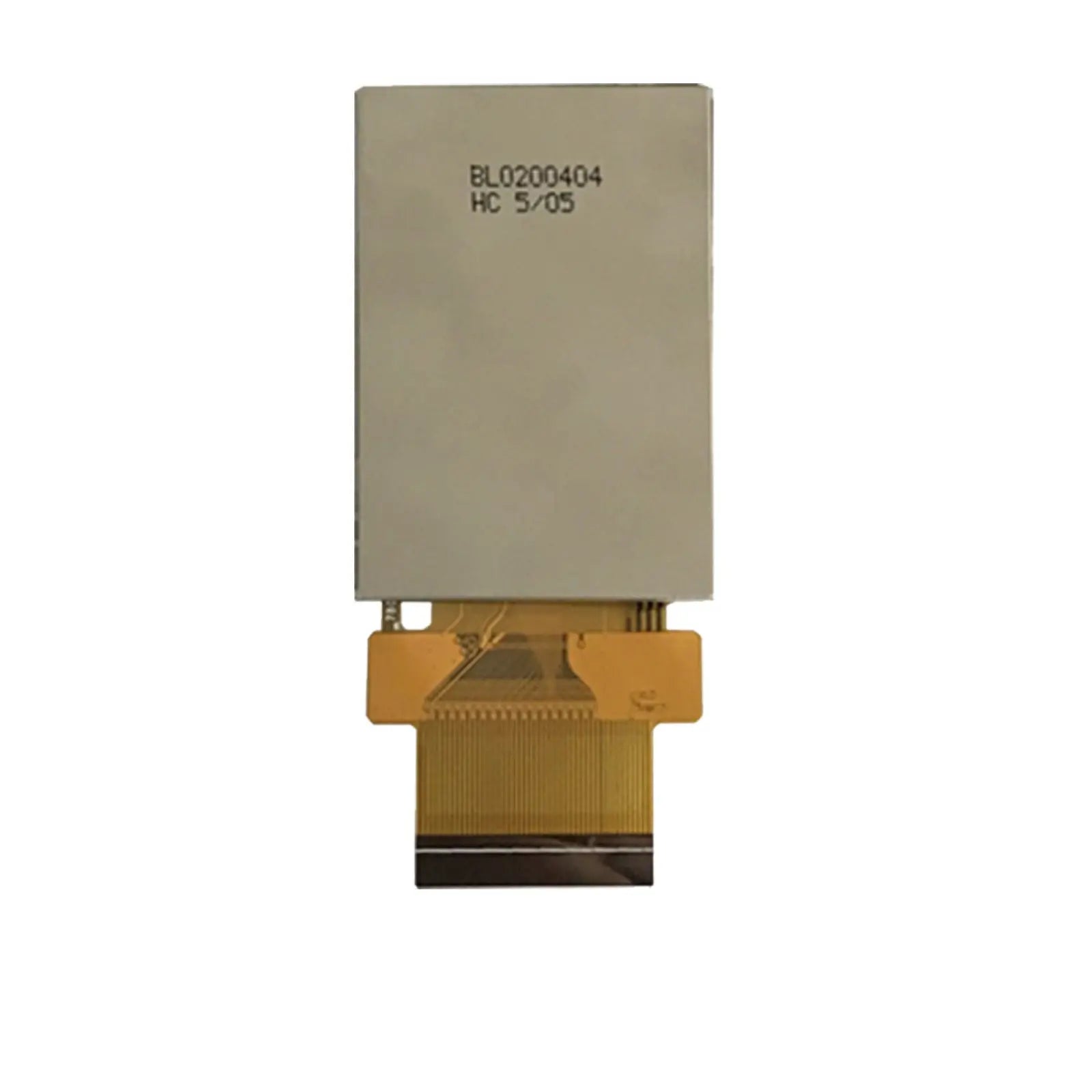

![back of 2.0 inch 240x320 TFT transflective display with resistive touch, SPI, MCU, and RGB interfaces](http://www.displaymodule.com/cdn/shop/products/DM-TFT20-436back.jpg?v=1659329708&width=1445)
Display Specifications
- Diagonal Dimension : 2.0 inch
- Resolution : 240 x RGB x 320 pixel
- View Direction : Wide Viewing
- Touch Mode : None
- Module Dimension : 35.8 x 52.10 x 3.85 mm
- Viewing Area : 30.6 x 40.8 mm
- Supply Voltage : 3.3 V
- Interface : 3/4 serial,8/9/16/18 Bit MCU,3/4SPI+16/18bit RGB
- Luminance : 200 cd/m2
- Drive IC : ST7789
- Operation Temperature : -20℃~70℃
- Storage Temperature : -30℃~80℃
Dimensions
