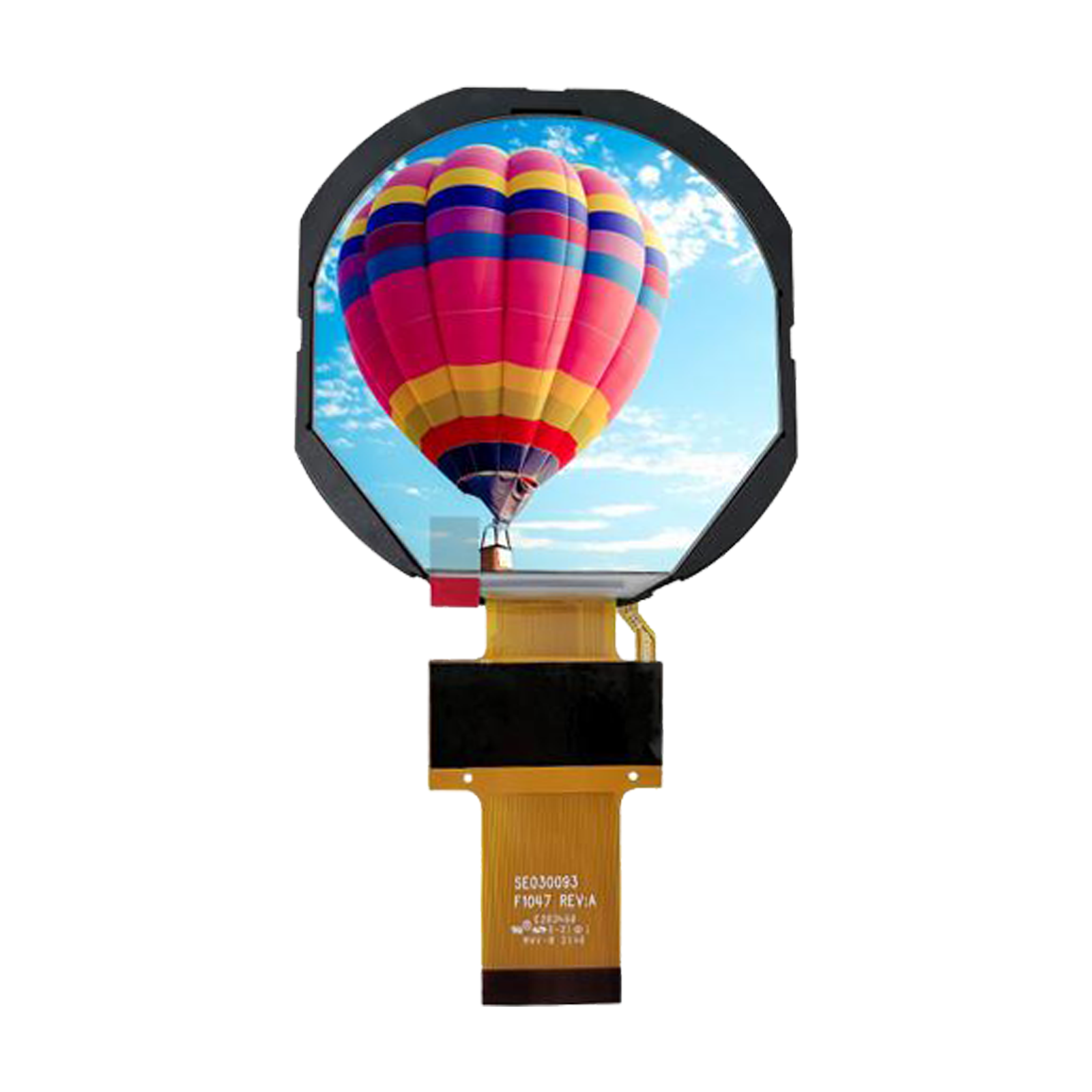

3-inch circular TFT screen displaying a hot air balloon
3.0-inch 432x432 round TFT panel  high brightness display with 1000 nits and RGB interface
back of 3.0-inch 432x432 round TFT panel

3.0" Round TFT High Brightness Display 432x432 1000nits - RGB

Regular price $99.00
Sale price $99.00 Regular price
Datesheet:
1 pcs original price
5 pcs 8% off
10 pcs 10% off

Customization & Manufacturing

Adapter Custom

Sometimes standard interfaces or adapters may not meet your special needs. We provide custom adapter service for this, make sure you can easily connect our screen with your device perfectly.

Prototype, Pilot Production, Mass Manufacturing

DisplayModule is a subsidiary of NexPCB, thanks to NexPCB's rich experience in design, prototype, mass production, we confidently declare that we can provide one-stop service.

Contact Form

I'm reaching out to DisplayModule because...

Product description

Display Specifications

  • Diagonal Dimension : 3.0 inch
  • Resolution : 432RGB x 432 pixel
  • View Direction : All
  • Touch Mode : None
  • Module Dimension : 84.2H) x 89.2(V) x 6.38(D) mm
  • Viewing Area :74.3904 x 74.3904 mm
  • Supply Voltage : 3.3 V
  • Interface : RGB
  • Luminance : 1000 cd/m2
  • Drive IC : HX8363-A
  • Operation Temperature: -30°C~ +85°C
  • Storage Temperature : -30°C~ +85°C
