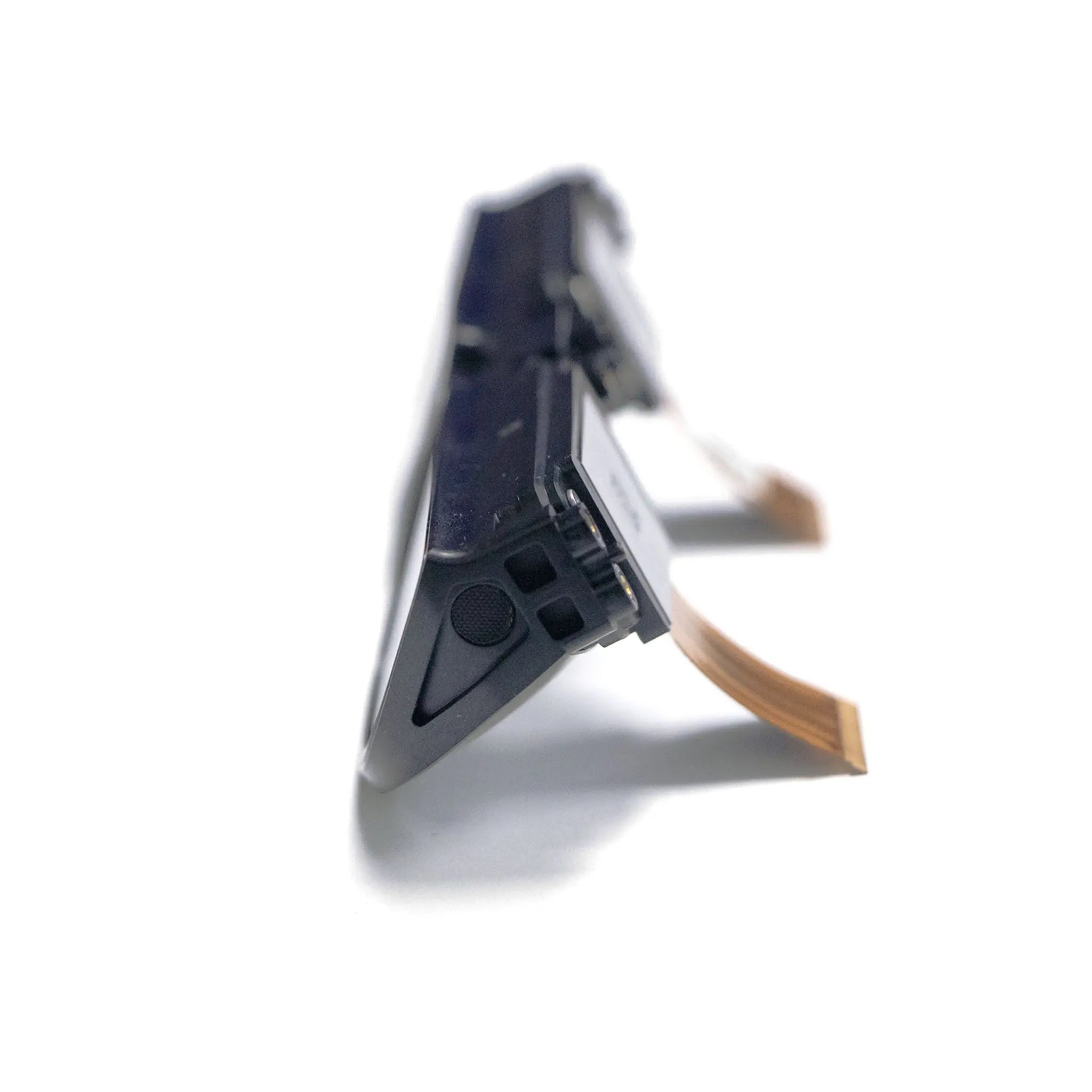

side of Binocular AR glasses with birdbath optical module

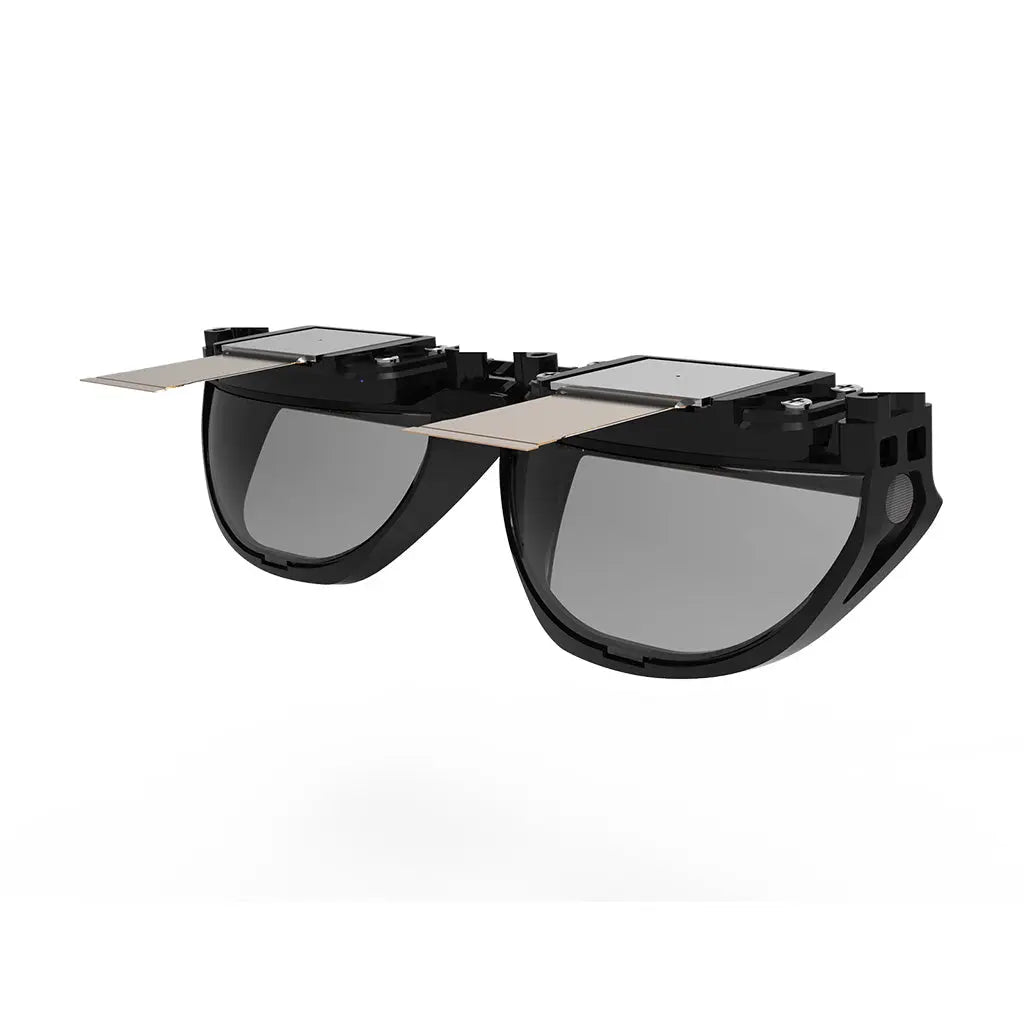

Binocular AR glasses with birdbath optical module Model rendering

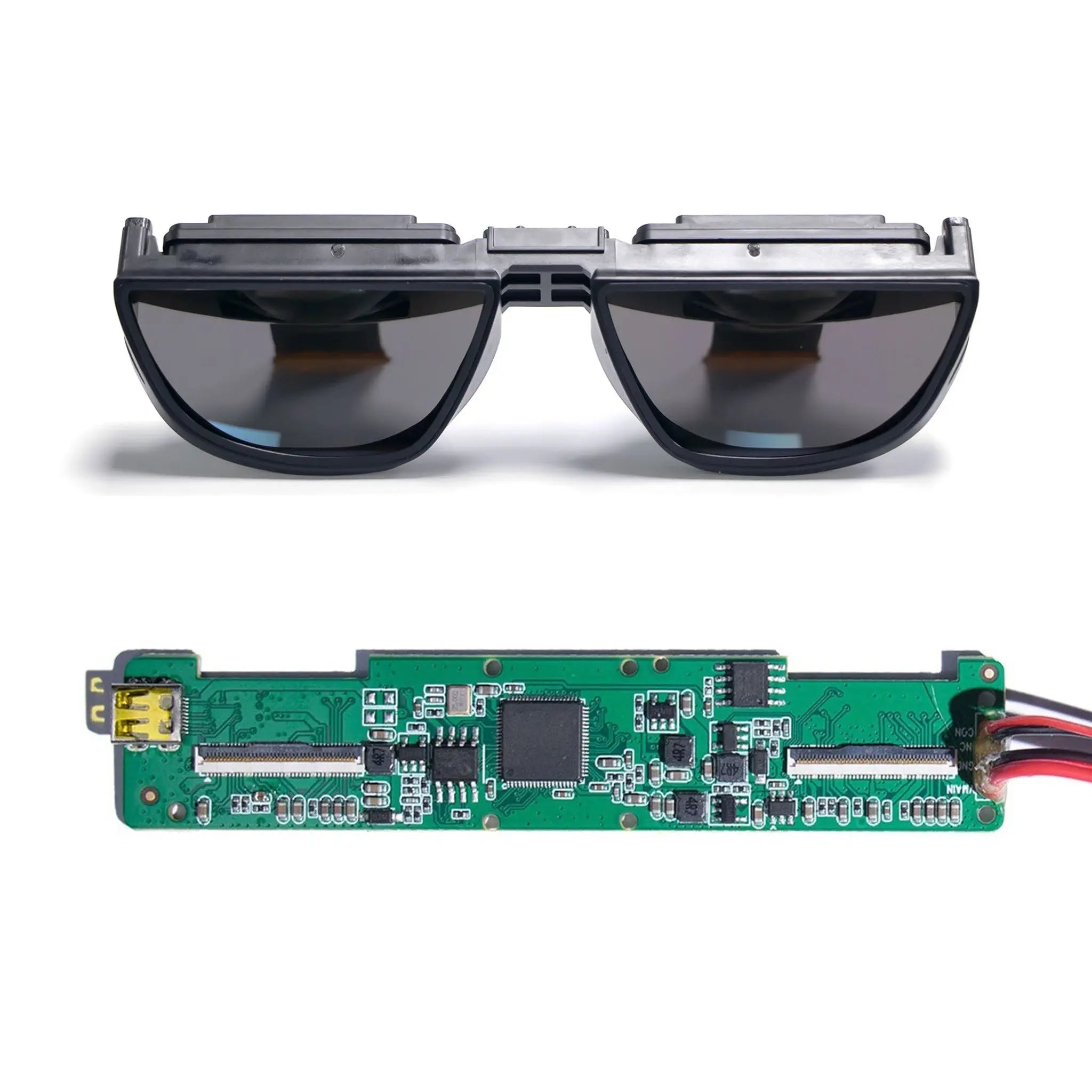

Binocular AR glasses with birdbath optical module and adapter

Binocular AR Glasses Birdbath 1920*1080 47° FOV Optical Module - LVDS

Regular price $1,099.00
Sale price $1,099.00 Regular price
Datesheet:
1 pcs original price
5 pcs 8% off
10 pcs 10% off

Customization & Manufacturing

Adapter Custom

Sometimes standard interfaces or adapters may not meet your special needs. We provide custom adapter service for this, make sure you can easily connect our screen with your device perfectly.

Prototype, Pilot Production, Mass Manufacturing

DisplayModule is a subsidiary of NexPCB, thanks to NexPCB's rich experience in design, prototype, mass production, we confidently declare that we can provide one-stop service.

Product description

Module Specifications

  • FOV: 47 degree
  • PPD: 47
  • Virtual imaging size: 136"@4m
  • Eyebox: 14x8mm
  • Transmittance: 20-40%  (support customization)
  • Diagonal Dimension: 0.7 inch
  • Resolution: 1920RGBx1080 pixel
  • Refresh: 60fps
  • Luminance: Max 3000 cd/m2
  • Typical Contrast Ratio: 100,000:1
  • Interface: LVDS
  • Controller IC: -
  • Weight: 23g
  • Operation Temperature: -20℃~70℃
  • Storage Temperature: -30℃~80℃
  • Micro Display | Sony Micro OLED, 335SN

Dimensions


Resources

      Product reviews

      1080p Sony FHD Micro OLED Panels

      100,000:1 Contrast Ratio

      Ultra-high contrast makes gorgeous pictures possible

      0.7-in 1080p

      0.7-inch 1920*1080 screen, clear and vivid picture provides immersive experience

      3000 cd/m2

      Sufficient brightness to ensure visibility in various environments

      Birdbath Optical Module

      Excellent image quality

      FOV 47 degree(customizable)

      Compact design

      Cheap wholesale price

      There is also the problem of obtaining a double image on each facet of the plate beam splitter and other reflections. And because the light passes through it twice, there are two chances to cause ghosting.
      One of the big downsides to basin designs is light loss. May block approximately 95% of real world light.
      It has a fundamental privacy issue, since others can see the display from the outside, from all directions.
      However DisplayModule's birdbath optics module has perfect solution for all weakness. It has not double images with 26% light transmittance and can eliminate 90% of user information leakage.

      Optical Module Customizationand Production Process
      for AR Glasses

      Customize modules according to your requirements.
      The product development cycle takes 6 months.

      16%

      2 Weeks

      Technical review and parameter confirmation

      32%

      2 Weeks

      Prototype and Functional Testing

      73%

      2.5 Months

      Small batch molding production

      100%

      2 Months

      Batch molding and production
