1.03-inch Micro OLEDoS Display with 2560x2560 resolution, 90Hz refresh rate, and 1800nits brightness

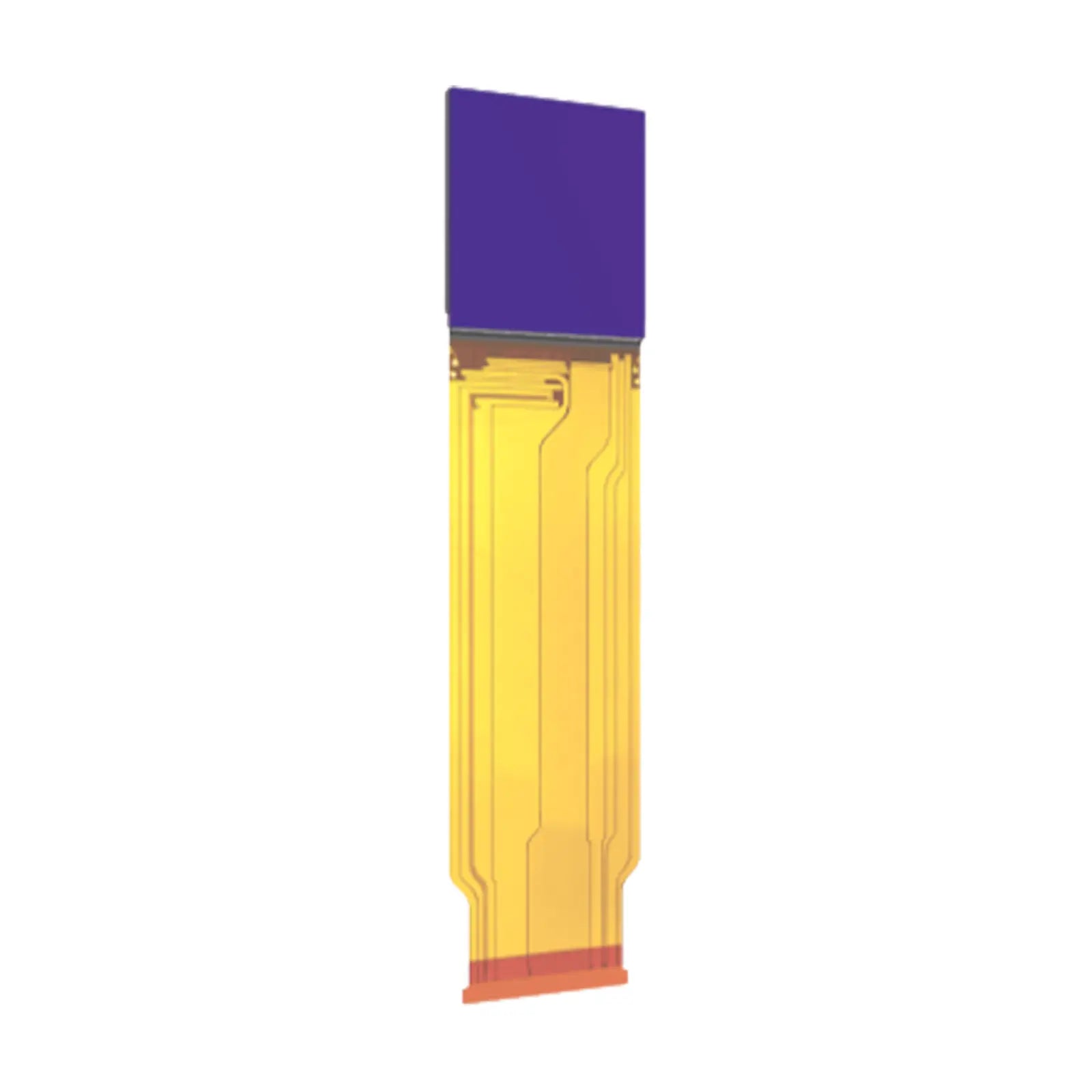

1.03-inch Micro Display Panel on white background
Front of 1.03-inch Micro Display Panel

1.03" Micro OLEDoS Display 2560×2560 90Hz 1800nits - MIPI

Regular price $399.00
Sale price $399.00 Regular price
Datesheet:
  • Type:
  • Availability:
    In Stock
  • SKU:
    DM-OLED13-688
1 pcs original price
5 pcs 8% off
10 pcs 10% off

Customization & Manufacturing

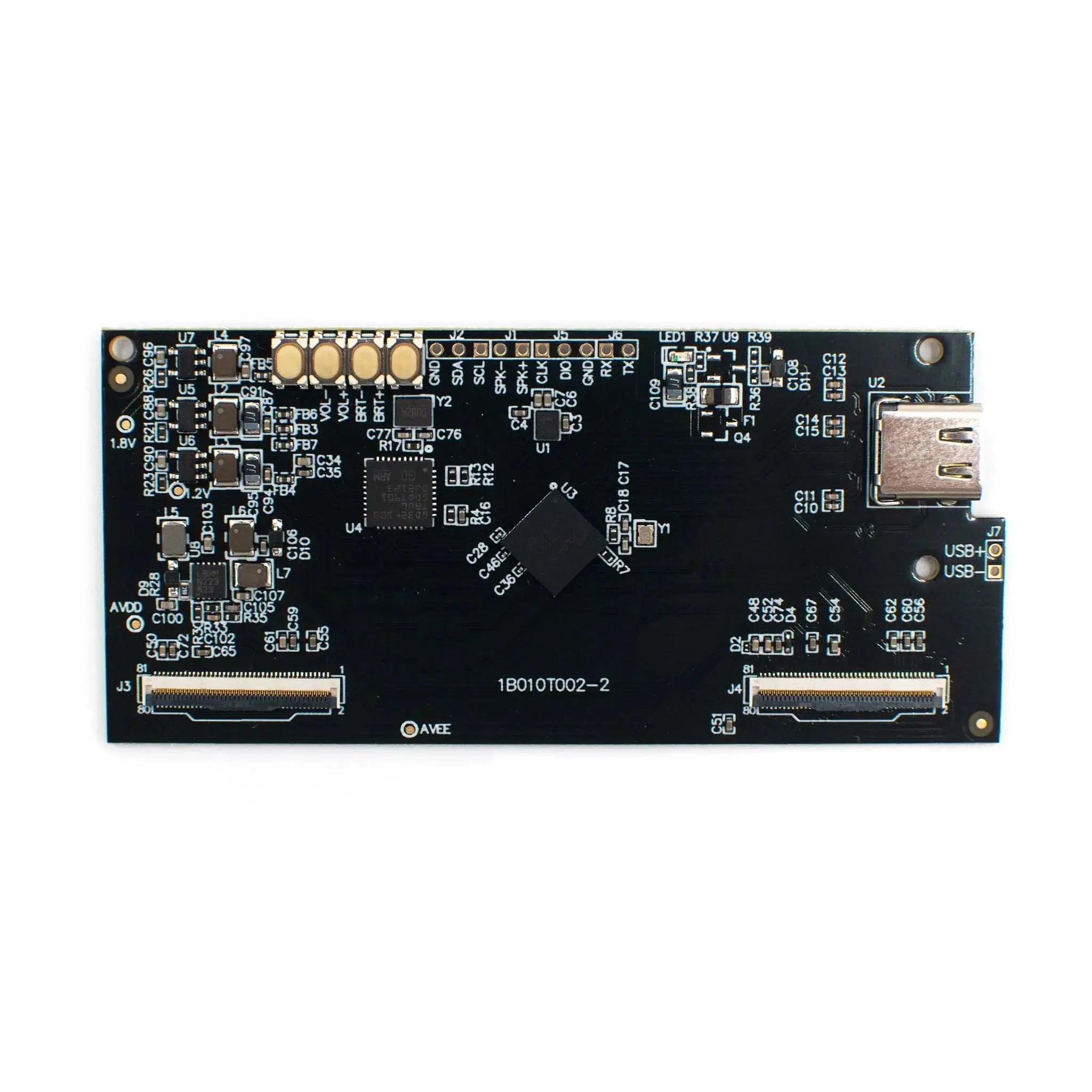

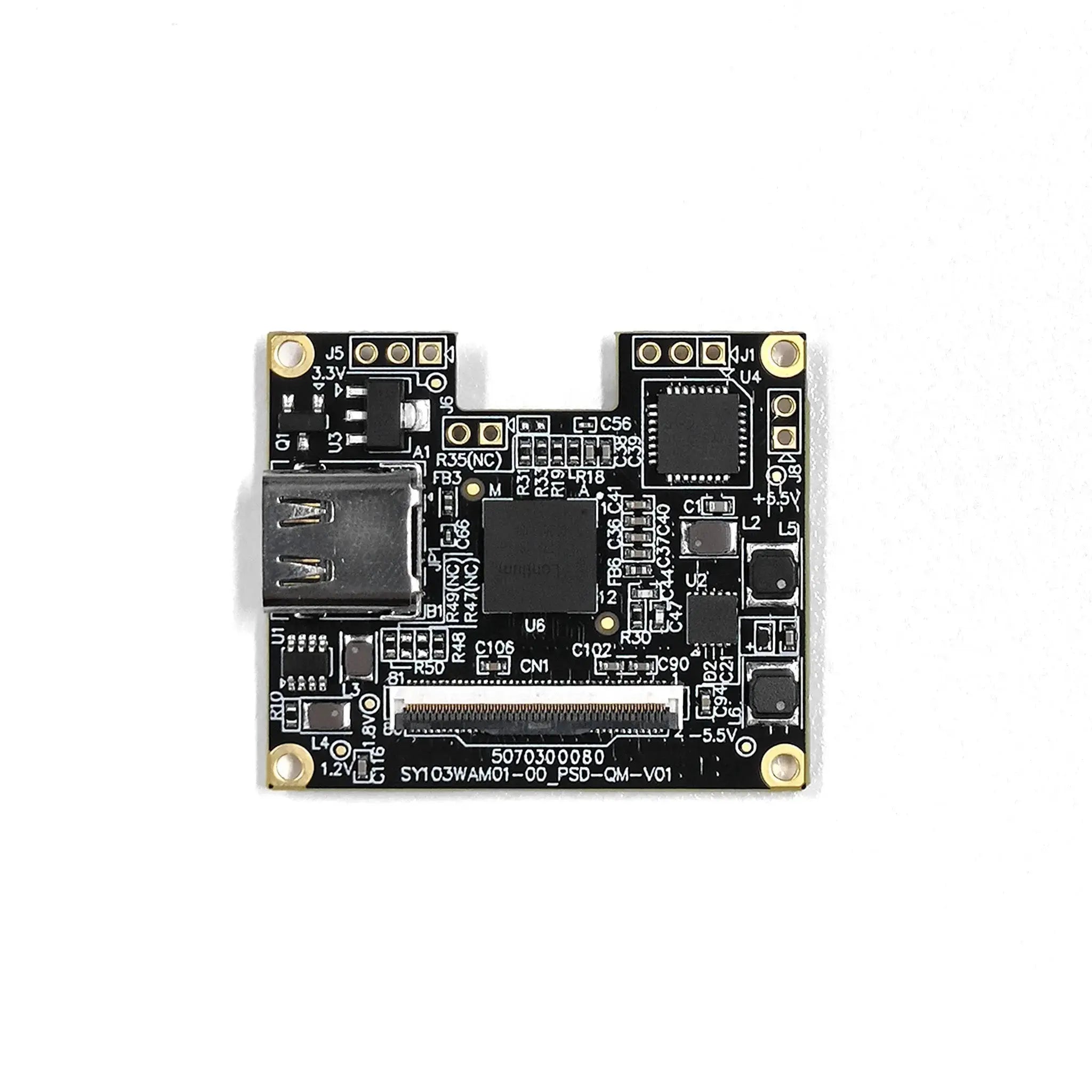

Adapter Custom

Sometimes standard interfaces or adapters may not meet your special needs. We provide custom adapter service for this, make sure you can easily connect our screen with your device perfectly.

Prototype, Pilot Production, Mass Manufacturing

DisplayModule is a subsidiary of NexPCB, thanks to NexPCB's rich experience in design, prototype, mass production, we confidently declare that we can provide one-stop service.

Contact Form

I'm reaching out to DisplayModule because...

Product description

This display is a 1.03 inch diagonal, 2560(RGB) × 2560 dots active matrix color OLED panel module based on single-crystal silicon transistors. This panel integrates panel driver and logic driver, and realizes small size, light weight, low power consumption and high resolution.
Applications: View finders, Head mounted displays, etc.

Display Specifications

Parameter Specification
Resolution 2560(H)x2560(V)
Number of dots 19.66M (2560x2560x3)
Pixel Size 7.2µm x 7.2µm
Useable Display Area 18.432mm x 18.432mm / 1.03" diagonal
Luminance 1800cd/m² typical
Contrast Ratio 500,000:1 typical
Power Consumption Total (1800nits,100%): 1600mW
Gray Levels 256
Interface MIPI (1 or 2-port D-PHY)
Frame Rate 60Hz~90Hz
Operating Temperature -20℃~70℃
Storage Temperature -40℃~80℃

Dimension

1.03" OLEDoS module diagram
