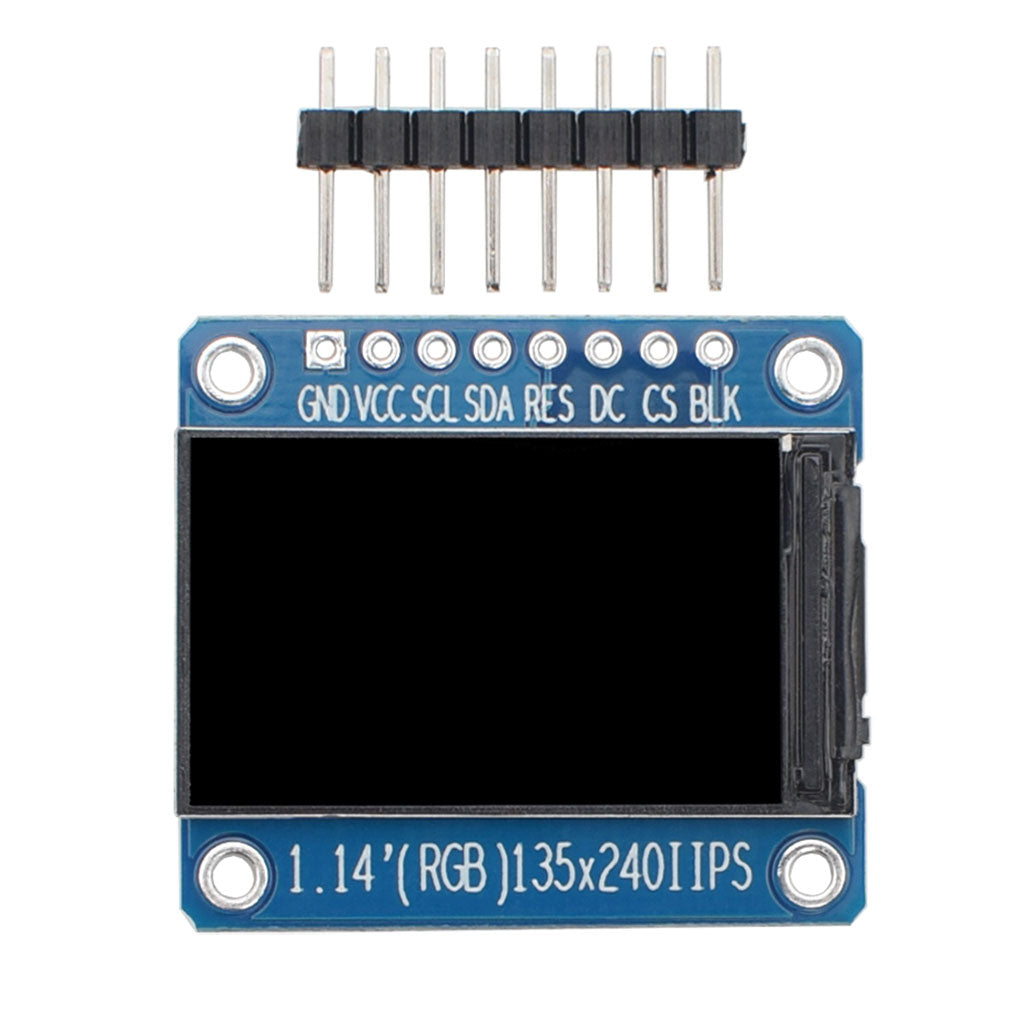

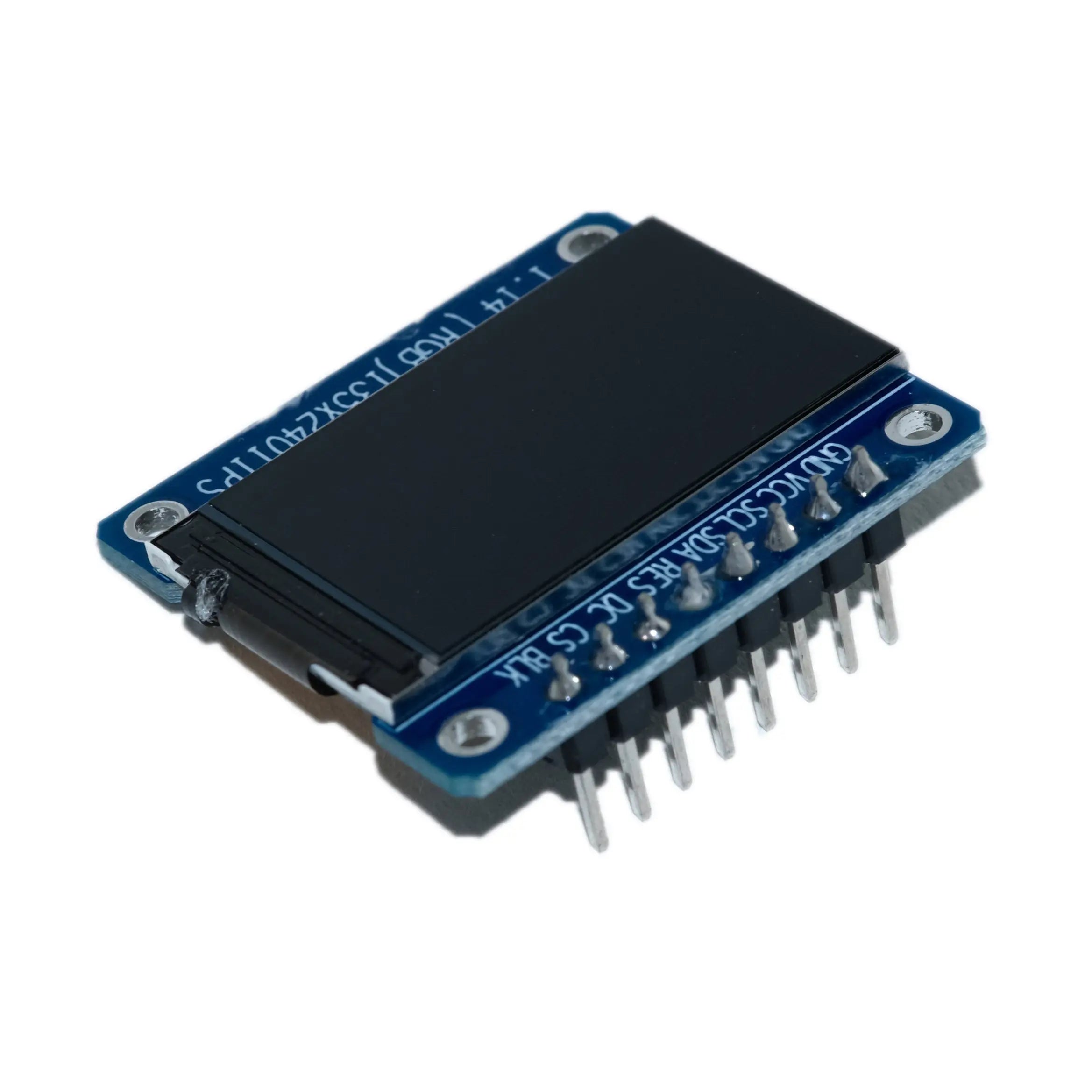

1.14" IPS Display 240x135 - SPI

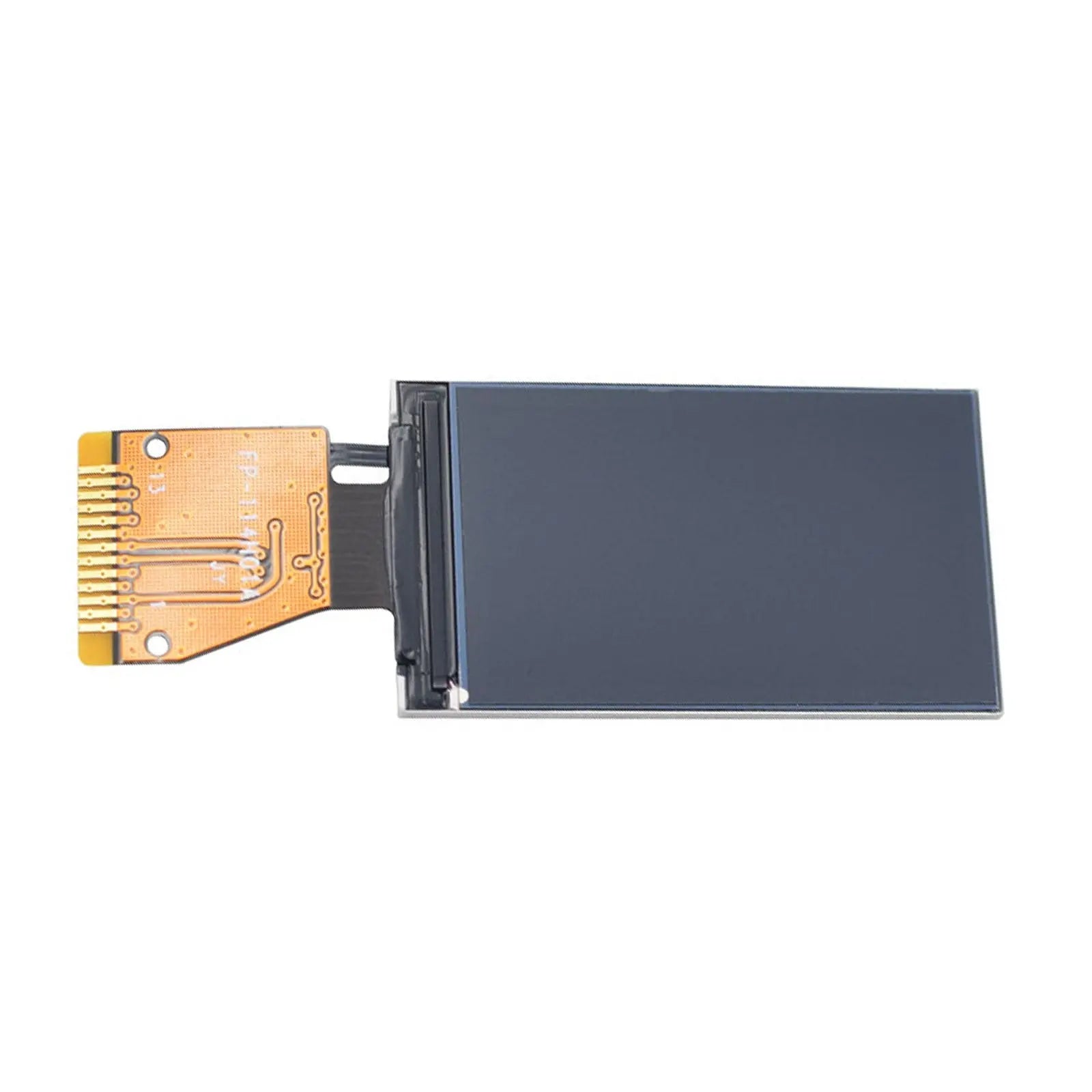

Experience crisp visuals with this compact 1.14-inch IPS display, featuring a 240x135 pixel resolution and SPI interface. Ideal for space-constrained applications, it delivers wide viewing angles and high brightness of 400 cd/m², ensuring clear visibility in various lighting conditions.
Designed for embedded systems and portable devices, this display utilizes IPS technology for consistent color and clarity from all directions. With a low 3.0V supply voltage, it minimizes power consumption while maintaining performance.
- Wide Viewing Angle: IPS panel ensures all-view direction with minimal color shift.
- Compact Dimensions: Module size of 28.0x31.4x3.1 mm fits into tight spaces.

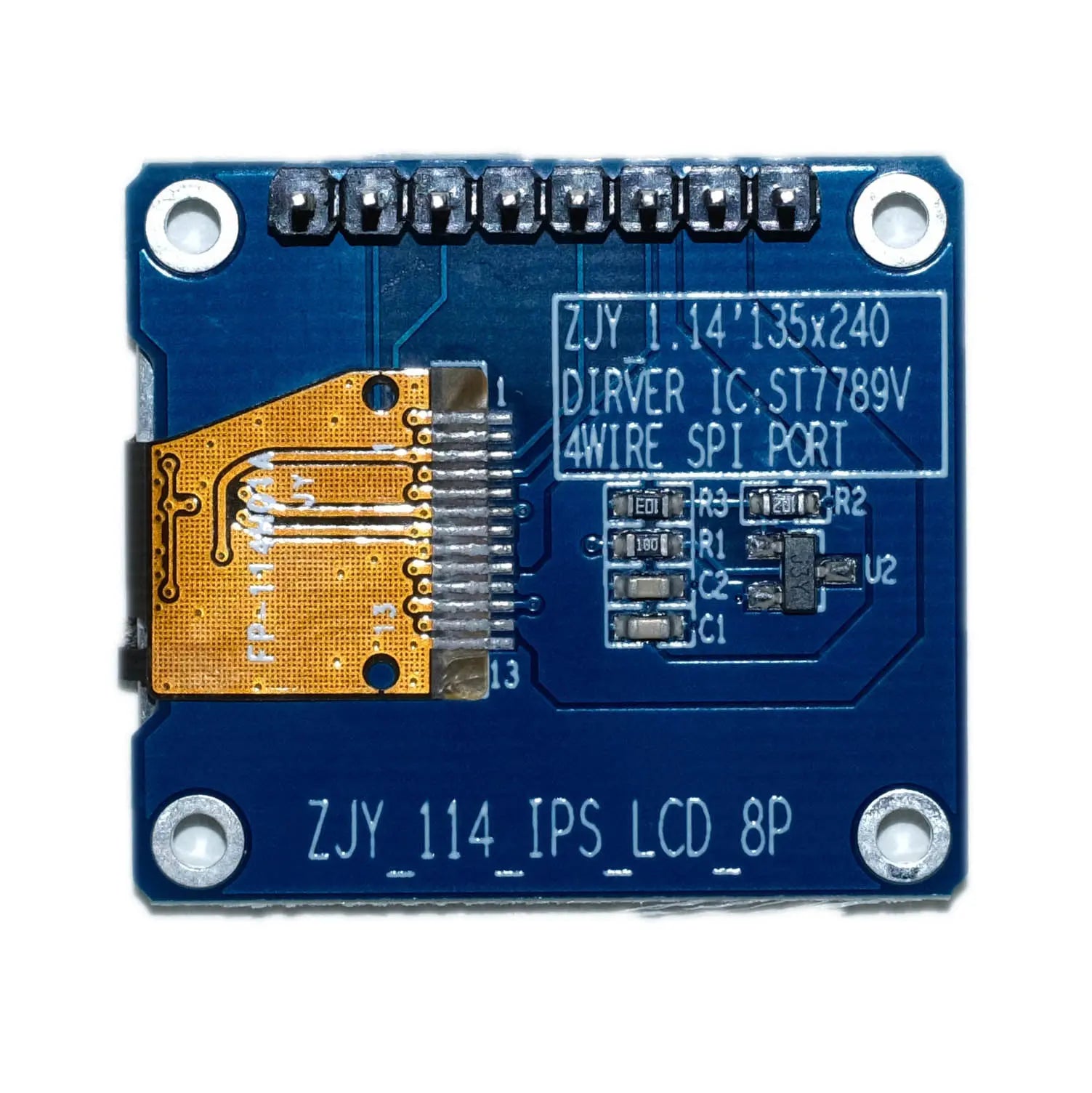

- High Compatibility: Driven by ST7789V IC, supporting easy integration with microcontrollers like Arduino.
- Robust Operation: Operates in temperatures from -20°C to 70°C, suitable for harsh environments.
| Parameter | Specification |
|---|---|
| Diagonal Dimension | 1.14 inch |
| Resolution | 135x240 pixel |
| View Direction | All View |
| Touch Mode | None |
| Module Dimension | 28.0 x 31.4 x 3.1 mm |
| Viewing Area | 14.864 x 24.912 mm |
| Supply Voltage | 3.0 V |
| Interface | 4-wire SPI |
| Luminance | 400 cd/m² |
| Drive IC | ST7789V |
| Operation Temperature | -20°C to 70°C |
| Storage Temperature | -30°C to 80°C |
Dimension
We provide tailored display solutions for businesses, including custom configurations and bulk pricing for OEM and large-scale projects. Our support includes technical assistance and white-label options for seamless integration into your products.
- Customization Services: Modify display parameters, connectors, or firmware to meet specific requirements.
- Volume Discounts: Competitive pricing for orders above standard quantities, ideal for manufacturers and resellers.
Perfect for smartwatches and fitness trackers due to small size and low power consumption, enabling always-on displays.
Used in control panels and instrumentation for its robustness and wide temperature range, ensuring reliability in factories.
Ideal for portable electronics like mini-games or DIY projects, offering easy SPI integration with Arduino and Raspberry Pi.
Compatibility Notes: This display is compatible with popular development boards. For Arduino, use the Arduino-ST7789-Library with pins: 13 (SCL), 11 (SDA), 10 (CS), 9 (RES), and 8 (DC). Ensure Adafruit-GFX-Library is installed for graphics support.
Resources: Download Datasheet | ST7789V Drive IC Documentation | Code Examples and Library
