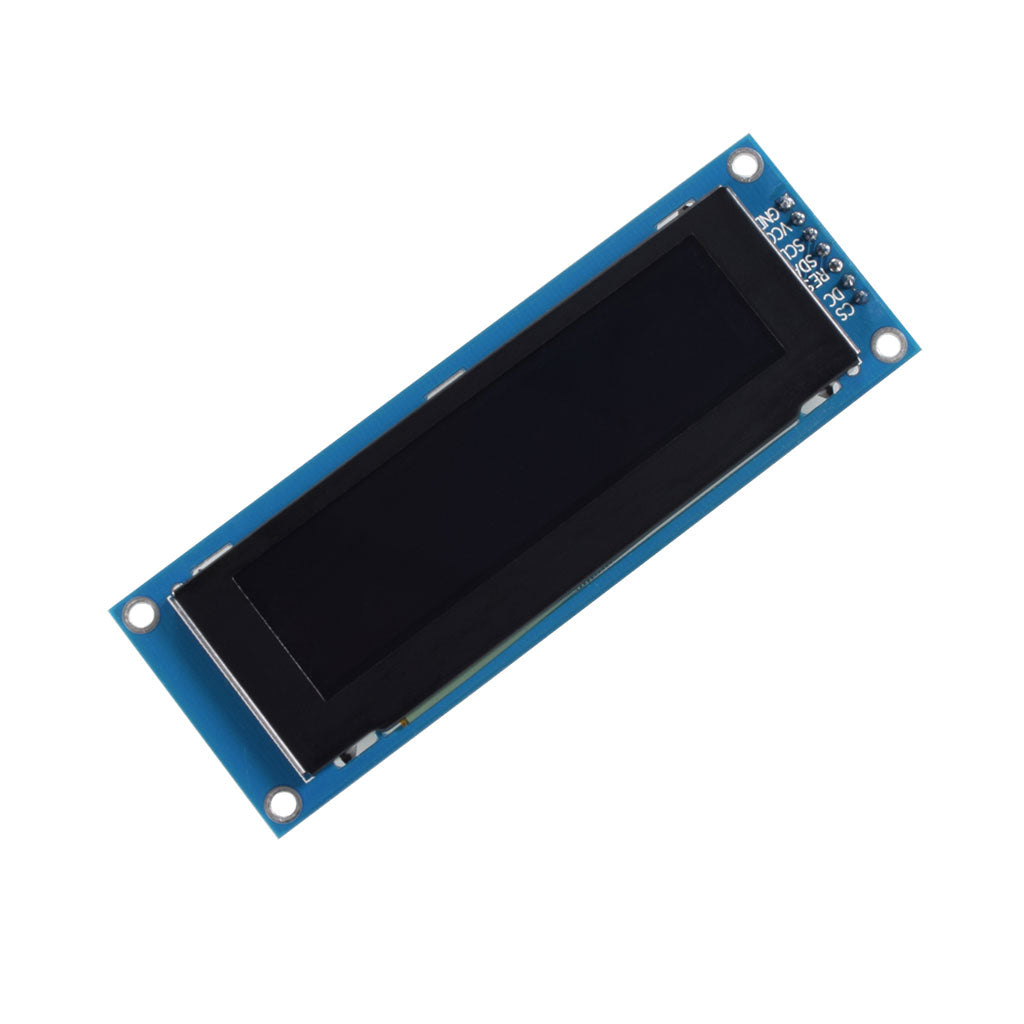

• 2.8 inch Monochrome OLED Graphic Display Module with 256x64 resolution, utilizing SPI interface

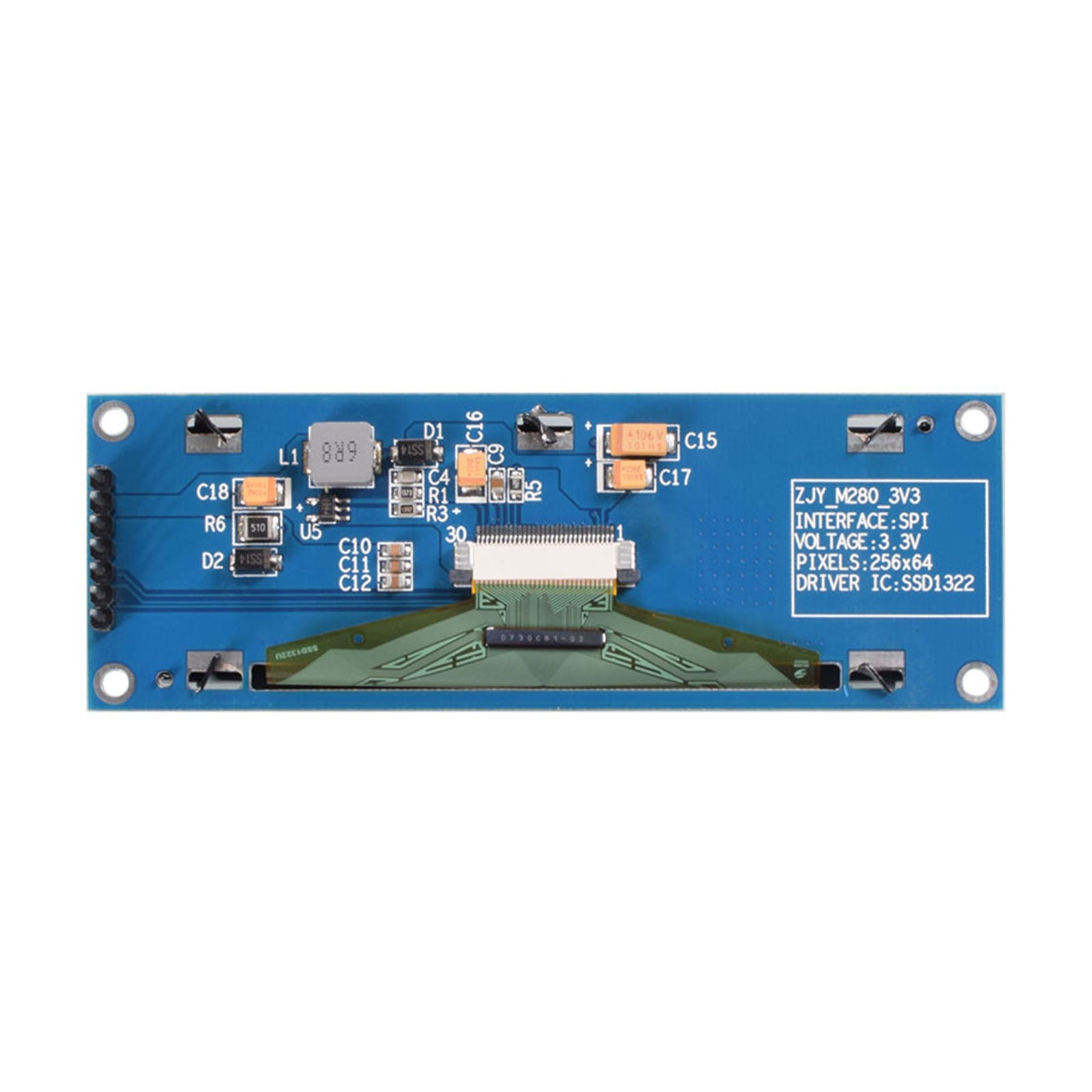

  • Back of 2.8 inch Monochrome OLED Graphic Display Module with 256x64 resolution, utilizing SPI interface

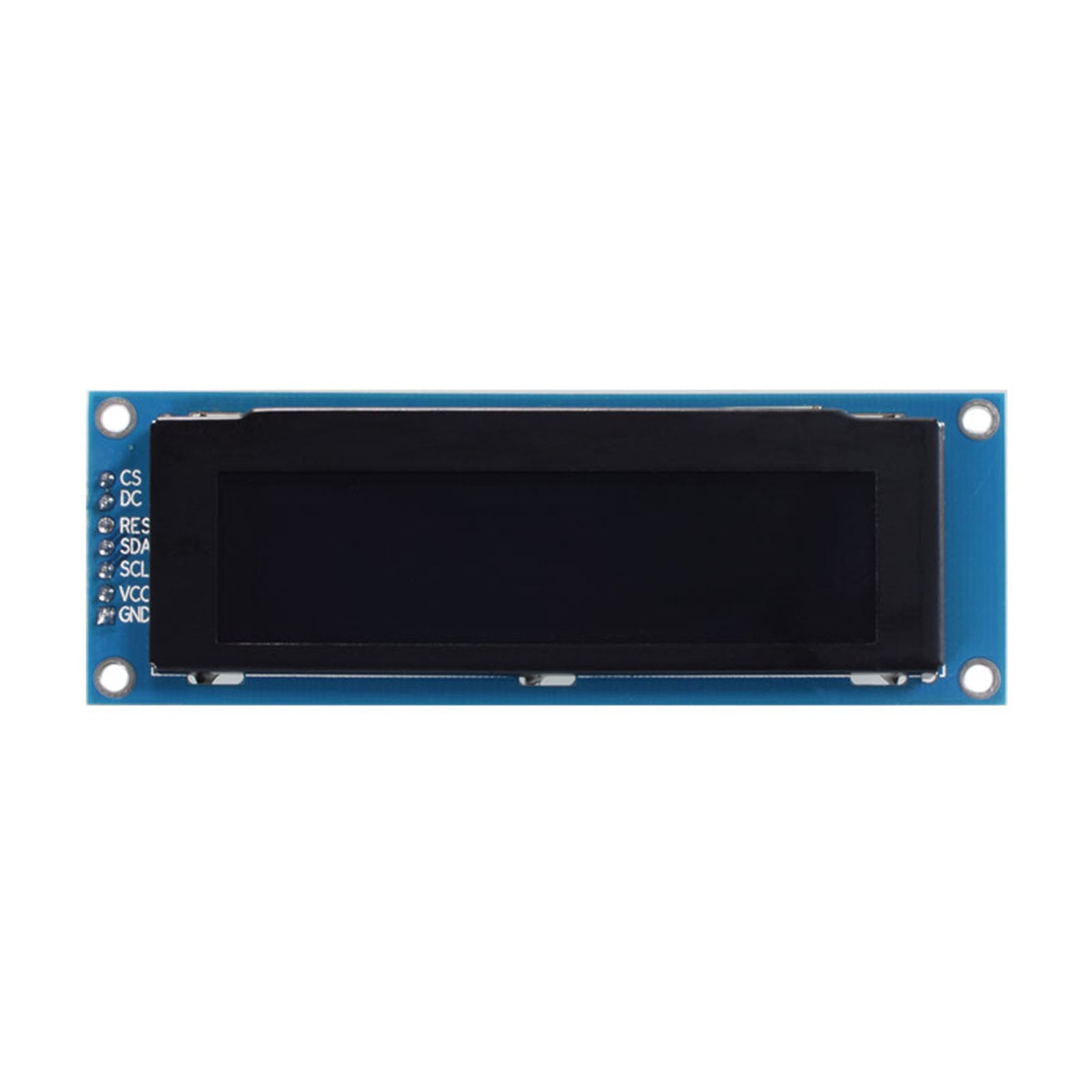

  • Top view of 2.8 inch Monochrome OLED Graphic Display Module
1 / 1

2.8" 256x64 OLED Graphic Monochrome Display Module - SPI

$29.90
Shipping calculated at checkout.
SKU: DM-OLED28-643Y
Color: Yellow
2.8 inch Monochrome OLED Graphic Display Module with 256x64 resolution, utilizing SPI interface
$29.90
Yellow

Payment and security

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
View details

Display Specifications

  • Resolution : 256x64 pixel
  • Display Mode : Passive Matrix OLED
  • Display Color : Monochrome (16 gray scale)
  • Module Dimension : 84x46x2 mm
  • Viewing Area : 69x17 mm
  • Power Supply : 2.8 V
  • Interface : 4wire SPI
  • Controller IC : SSD1322
  • Operation Temperature : -40℃~85℃
  • Storage Temperature : -40℃~90℃

Dimensions
